Aogamb D3000 Kids Alarm Clock with Bluetooth Speaker and Wake-up Light

1. Introdución

Grazas pola compraasing the Aogamb D3000 Kids Alarm Clock. This device combines a digital alarm clock, Bluetooth speaker, wake-up light, and sleep sound machine to create a versatile and engaging experience for children's bedrooms. Please read this manual carefully to ensure proper use and maintenance of your device.

Contido do paquete:

• Aogamb D3000 Alarm Clock
• Cable de carga USB
• Manual de usuario

Image: The Aogamb D3000 Alarm Clock, USB charging cable, and user manual are shown as included items.

2. Información de seguridade

• Non expoñas o dispositivo a temperaturas extremas, luz solar directa nin humidade elevada.
• Manteña o dispositivo lonxe da auga ou doutros líquidos.
• Non intente desmontar ou reparar o dispositivo vostede mesmo. Póñase en contacto co servizo de atención ao cliente para obter asistencia.
• Emprega só o cable de carga USB fornecido ou un equivalente certificado.
• Ensure the device is placed on a stable surface to prevent falling.

3. Configuración

Carga inicial

Before first use, fully charge the alarm clock using the provided USB cable. Connect the USB cable to the charging port on the back of the device and to a suitable USB power adapter (not included). The charging indicator light will be red during charging and turn blue when fully charged.

Imaxe: Primeiro plano view of the USB charging interface located on the back of the alarm clock.

Protective Film Removal

Before operating the device, gently remove the transparent protective film from the black display lens.

Image: A hand is shown peeling off a transparent protective film from the black display area of the alarm clock.

4. Instrucións de funcionamento

Máis controisview

Familiarize yourself with the buttons located on the top of the alarm clock:

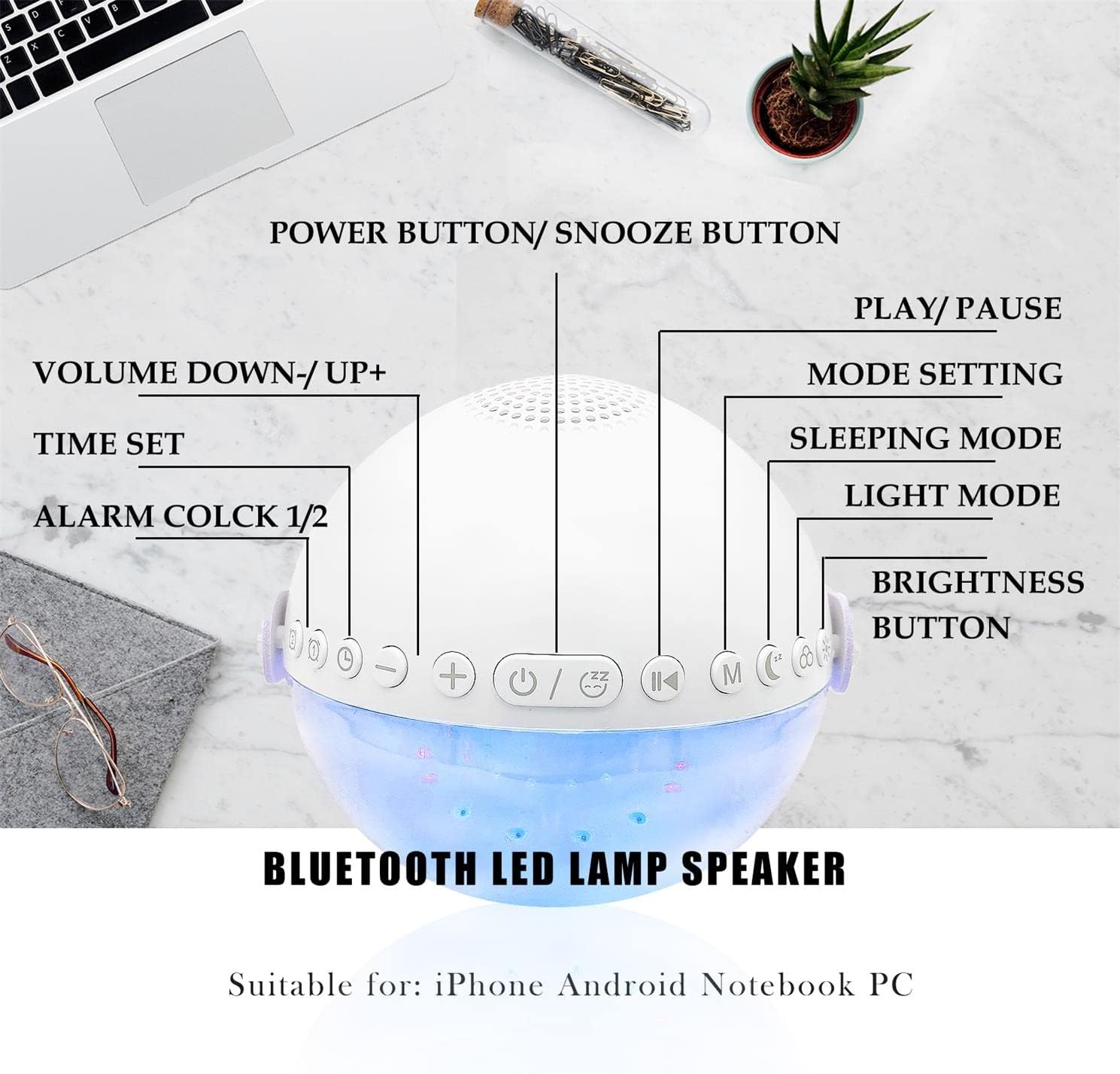

Imaxe: Unha vista superior view of the alarm clock with labels pointing to each button: Power/Snooze, Volume Down/Up, Time Set, Alarm 1/2, Play/Pause, Mode Setting, Sleeping Mode, Light Mode, and Brightness Button.

• Power Button / Snooze Button: Press to power on/off. Short press during an alarm to activate snooze.
• Volume Down (-) / Volume Up (+): Prema brevemente para axustar o volume.
• Tempo establecido: Press to enter time setting mode.
• Alarma 1 / Alarma 2: Press to set or activate/deactivate Alarm 1 or Alarm 2.
• Reproducir/Pausa: Controls media playback in Bluetooth or Sound Machine mode.
• Mode Setting (M): Press to cycle through modes (Bluetooth, Sound Machine).
• Modo de durmir: Activates sleep mode features.
• Modo de luz: Cycles through light colors and effects.
• Botón de brillo: Adjusts display and light brightness.

Configuración do tempo

1. Preme o Tempo establecido botón. A pantalla da hora parpadeará.
2. Usa o Subir volume (+) or Baixar volume (-) botóns para axustar a hora.
3. Preme Tempo establecido de novo para confirmar a hora e pasar ao axuste dos minutos.
4. Usa o Subir volume (+) or Baixar volume (-) botóns para axustar os minutos.
5. Preme Tempo establecido unha vez máis para confirmar e saír do axuste da hora.
6. The clock supports a 24-hour format.

Alarm Setting (Dual Alarms)

The device features two independent alarms. You can customize ringtones, alarm volume, and light color/brightness for each.

1. Preme o Alarma 1 or Alarma 2 button to select an alarm. The alarm icon will flash.
2. Follow the time setting steps to set the desired alarm time.
3. After setting the time, you can customize the alarm sound, volume, and wake-up light settings using the respective buttons (e.g., Modo de luz, Volume +/-).
4. Preme o Alarma 1 or Alarma 2 button again to activate/deactivate the alarm. The alarm icon will appear/disappear on the display.

Image: Two panels illustrate customized alarm times: one for waking up at 7:30 AM and another for going to sleep at 10:00 PM, both for Monday to Friday.

Función de repetición

Cando soe unha alarma, prema o botón Power Button / Snooze Button to activate the snooze function. The alarm will pause for 5 minutes and then sound again. This can be repeated up to three times, after which the alarm will turn off automatically.

Image: The alarm clock is displayed with a clear indication of its snooze function.

Modo de altofalante Bluetooth

The alarm clock features advanced Bluetooth 5.0 technology for wireless audio streaming.

1. Preme o Mode Setting (M) button repeatedly until the Bluetooth icon appears on the display.
2. On your smartphone or Bluetooth-enabled device, search for "Aogamb D3000" in the Bluetooth settings and pair.
3. Once connected, you can play music or audio from your device through the alarm clock speaker.
4. Usa o Reproducir/Pausa botón para controlar a reprodución.
5. Usa o Subir volume (+) or Baixar volume (-) botóns para axustar o volume.

Image: A child and adult are shown with the alarm clock, which is wirelessly connected to a smartphone via Bluetooth, playing music.

Sleep Sound Machine

The alarm clock offers 8 soothing natural sounds to aid sleep or relaxation.

1. Preme o Mode Setting (M) button repeatedly until the Sound Machine icon appears on the display.
2. Prema brevemente o Subir volume (+) or Baixar volume (-) buttons to cycle through the 8 available sounds: Rain, Ocean Waves, Birds, Water Stream, White Noise, Cicada, Bonfire, Tick-Tock.
3. Mantén presionado Subir volume (+) or Baixar volume (-) buttons to adjust the volume of the sleep sounds.
4. Preme o Reproducir/Pausa button to start or stop the sound.

Image: A child and adult are shown sleeping, with the alarm clock nearby. Icons for 8 natural sounds (Rain, Water Stream, Cicadas, Birds, Ocean Waves, White Noise, Bonfire, Tick-Tock) are displayed, indicating the sleep sound feature.

Wake-up Light / Night Light

The alarm clock features a touch-activated backlight and adjustable colored lights.

1. Touch-Activated Backlight: Gently tap the device to activate the backlight for checking the time in the dark.
2. Modo de luz: Preme o Modo de luz button to cycle through various light colors (Warm White, Green, Red, Blue, Orange, Yellow) and lighting effects (e.g., breathing lights, flashing light).
3. Axustar o brillo: Preme o Botón de brillo to adjust the intensity of the light (3 levels: Low, Middle, High).

Image: The alarm clock is shown displaying various colorful night light options, including 9 different colors, 3 breathing light effects, and 1 flashing light, with adjustable brightness levels (Low, Middle, High).

Image: The alarm clock is shown with various light colors and brightness settings, illustrating its wake-up light functionality.

Sleep Trainer Function (Sun & Moon Icons)

The alarm clock features sun and moon icons on the LED display to help children understand day and night cycles, promoting better sleep habits. The sun icon indicates daytime, and the moon icon indicates nighttime.

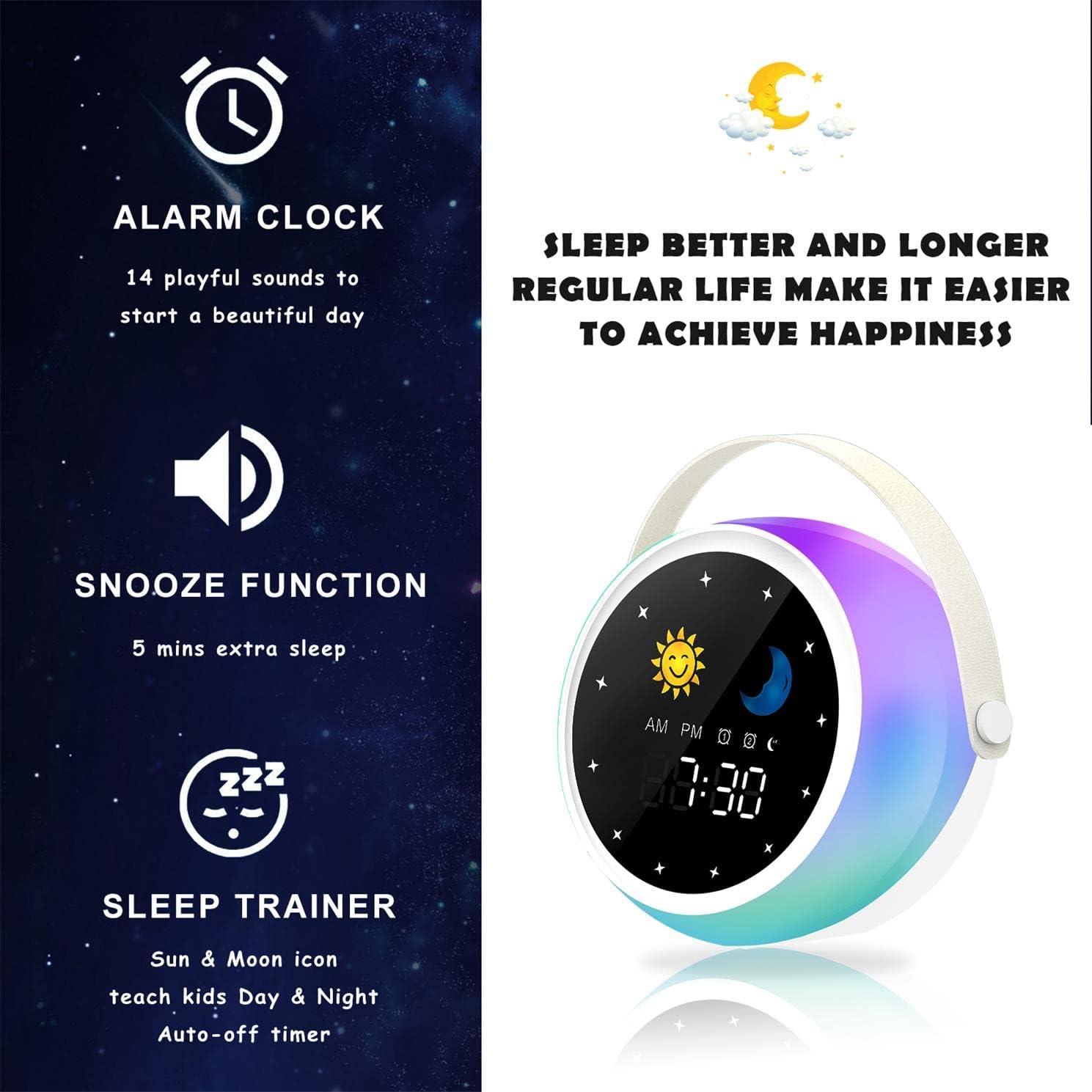

Image: A visual representation of the alarm clock's key features: alarm, snooze, and sleep trainer, with the sun and moon icons visible on the display to teach day and night.

Image: Two panels show the alarm clock display: one for sleep time (10:30 PM with moon icon) and one for wake-up time (7:00 AM with sun icon), illustrating the sleep trainer function.

5. Mantemento

• Limpa o dispositivo cun pano suave e seco. Non empregues produtos de limpeza abrasivos nin disolventes.
• Asegúrate de que o porto de carga estea libre de po e residuos.
• Garde o dispositivo nun lugar fresco e seco cando non o use durante períodos prolongados.

6 Solución de problemas

O dispositivo non se acende:

• Ensure the device is fully charged. Connect it to a power source using the USB cable.
• Press and hold the Power Button for a few seconds.

Problemas de sincronización Bluetooth:

• Make sure the alarm clock is in Bluetooth mode (Bluetooth icon visible).
• Ensure your smartphone or device's Bluetooth is enabled and within range.
• Try restarting both the alarm clock and your Bluetooth device.
• Esquece o dispositivo da lista de Bluetooth do teu teléfono e tenta emparellalo de novo.

A alarma non soa:

• Verifique que a alarma estea activada (icona da alarma visible na pantalla).
• Comprobe a configuración do volume da alarma.
• Asegúrate de que a hora da alarma estea axustada correctamente.

7. Especificacións

8. Garantía e soporte

This product comes with a standard manufacturer's warranty. For detailed warranty information, please refer to the product packaging or contact Aogamb customer support. If you encounter any issues or have questions not covered in this manual, please reach out to our support team for assistance.

Contacto de atención ao cliente: Please refer to the contact information provided on the product packaging or the official Aogamb websitio.
