NUNET 3-in-1 Countertop Ice Maker & Water Dispenser

1. Información importante de seguridade

Lea atentamente todas as instrucións antes de usar este aparello. Garde este manual para futuras consultas.

• DANGER - Risk of Fire or Explosion: Flammable refrigerant used. Do not use mechanical devices to defrost ice maker. Do not puncture refrigerant tubing.
• Seguridade eléctrica: Always ensure the unit is properly grounded. Do not immerse the power cord, plug, or appliance in water or other liquids.
• Seguridade infantil: Keep children away from the dispenser during operation, especially when dispensing hot water. Utilize the child safety lock feature.
• Colocación: Place the appliance on a stable, level surface. Ensure adequate ventilation around the unit.
• Calidade da auga: Use pure water only to prevent mineral buildup and ensure optimal performance.

2. Produto rematadoview

The NUNET 3-in-1 Countertop Ice Maker and Water Dispenser provides hot, cold, and ice water from a single compact unit. It is designed for convenience and efficiency in various settings.

Figura 2.1: Fronte view of the NUNET 3-in-1 Ice Maker and Water Dispenser, showing the main unit and included accessories such as water hoses, connectors, cleaning brush, and ice cleaner.

Figura 2.2: detallada view of the control panel, illustrating indicators for power, add water, child lock, hot water, ice block, and cold water functions. It also shows the three dispensing spouts for hot water, ice cubes, and cold water.

3. Contido do paquete

Comprobe que todos os artigos estean presentes e en bo estado ao desembalar:

• NUNET 3-in-1 Ice Maker & Water Dispenser Unit
• 10ft PE Water Inlet Hose (1/2" & 1/4" connectors included)
• Water Pump with 2.62ft Inlet Hose (for 2, 3, or 5-gallon bottles)
• Ice Machine Cleaner (120ml bottle)
• Cepillo de limpeza
• Magnetic Dry Eraser Marker
• Bonus Water Bottle (for hot coffee, cold drinks, or ice storage)

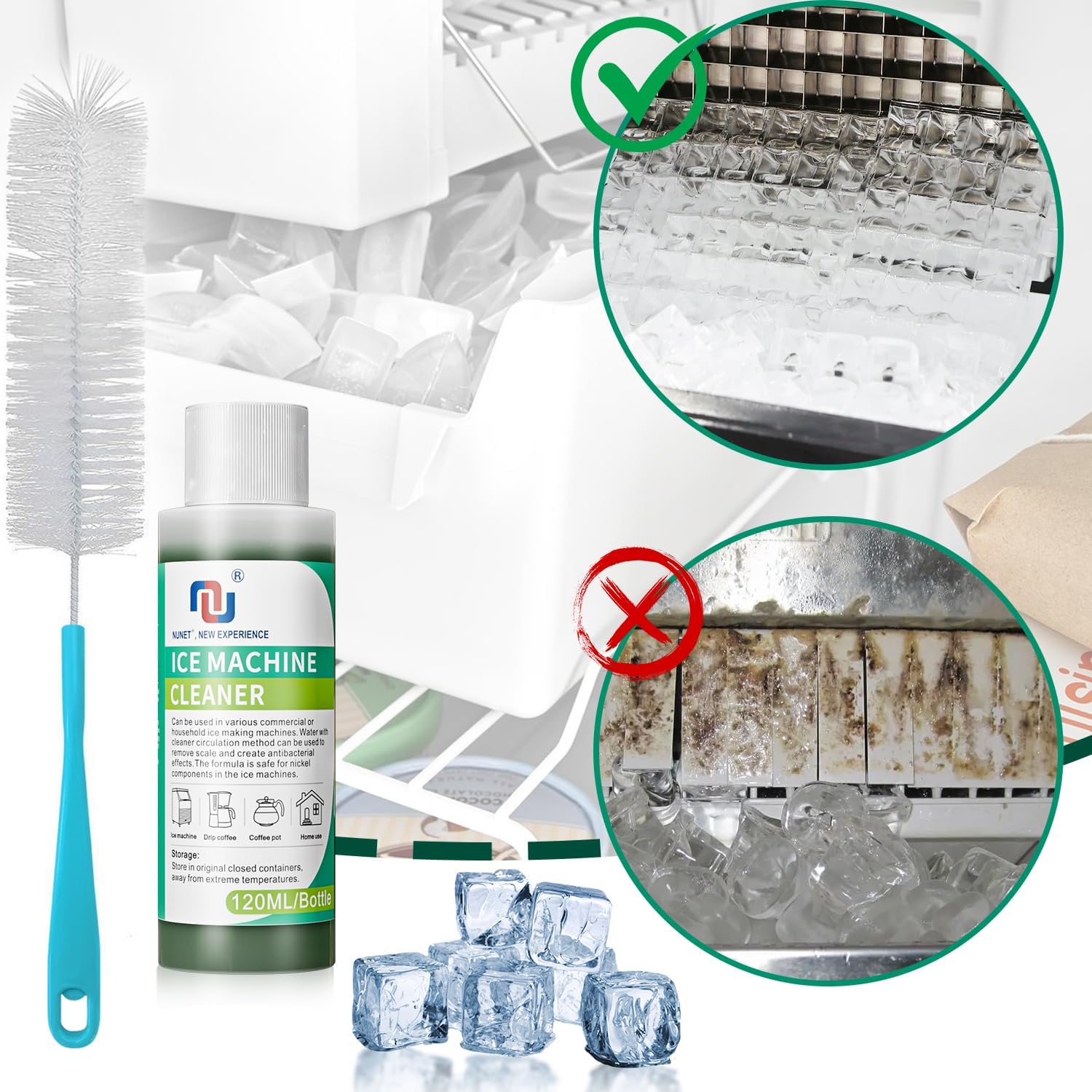

Figure 3.1: Included ice machine cleaner and long-handled brush for maintenance.

4. Configuración e instalación

Unha configuración axeitada garante un rendemento e unha seguridade óptimos.

• Colocación: Position the unit on a flat, stable countertop. Ensure at least 19 inches of height clearance above the unit for proper ventilation and access.
• Limpeza inicial: Before first use, clean the water tank and internal components. Refer to the 'Maintenance and Cleaning' section for detailed steps.
• Conexión de alimentación: Conecte a unidade a unha toma de terra.

Figure 4.1: Illustration of the unit's dimensions and the recommended 19-inch countertop clearance.

5. Instrucións de funcionamento

The control panel features touch buttons and indicator lights for easy operation.

• Indicador de potencia: Acende cando a unidade está acendida.
• Engadir indicador de auga: Lights up when the water reservoir needs refilling.
• Bloqueo para nenos: Press the lock button to enable/disable the hot water dispenser for safety.
• Auga quente: Press the 'HOT' button to dispense hot water (≥194°F). The heating indicator light will flash while heating and become solid when ready.
• Xeo: Press the 'ICE' button to dispense ice cubes. The ice making indicator light will flash while making ice and become solid when the ice tank is full.
• Auga Fría: Press the 'COLD' button to dispense cold water (≤46°F). The cooling indicator light will flash while cooling and become solid when ready.

6. Water Supply Options

Your NUNET dispenser offers multiple ways to supply water:

• Recheo manual: Open the top cover and pour water directly into the reservoir (up to 0.8 gallons).
• Direct Water Line: Connect the included 10ft PE water inlet hose to a water filtration system using the 1/2" or 1/4" diameter hose adapters. This provides a continuous water supply.
• Auga embotellada: Use the provided water pump and 2.62ft inlet hose to draw water from external 2, 3, or 5-gallon bottles.

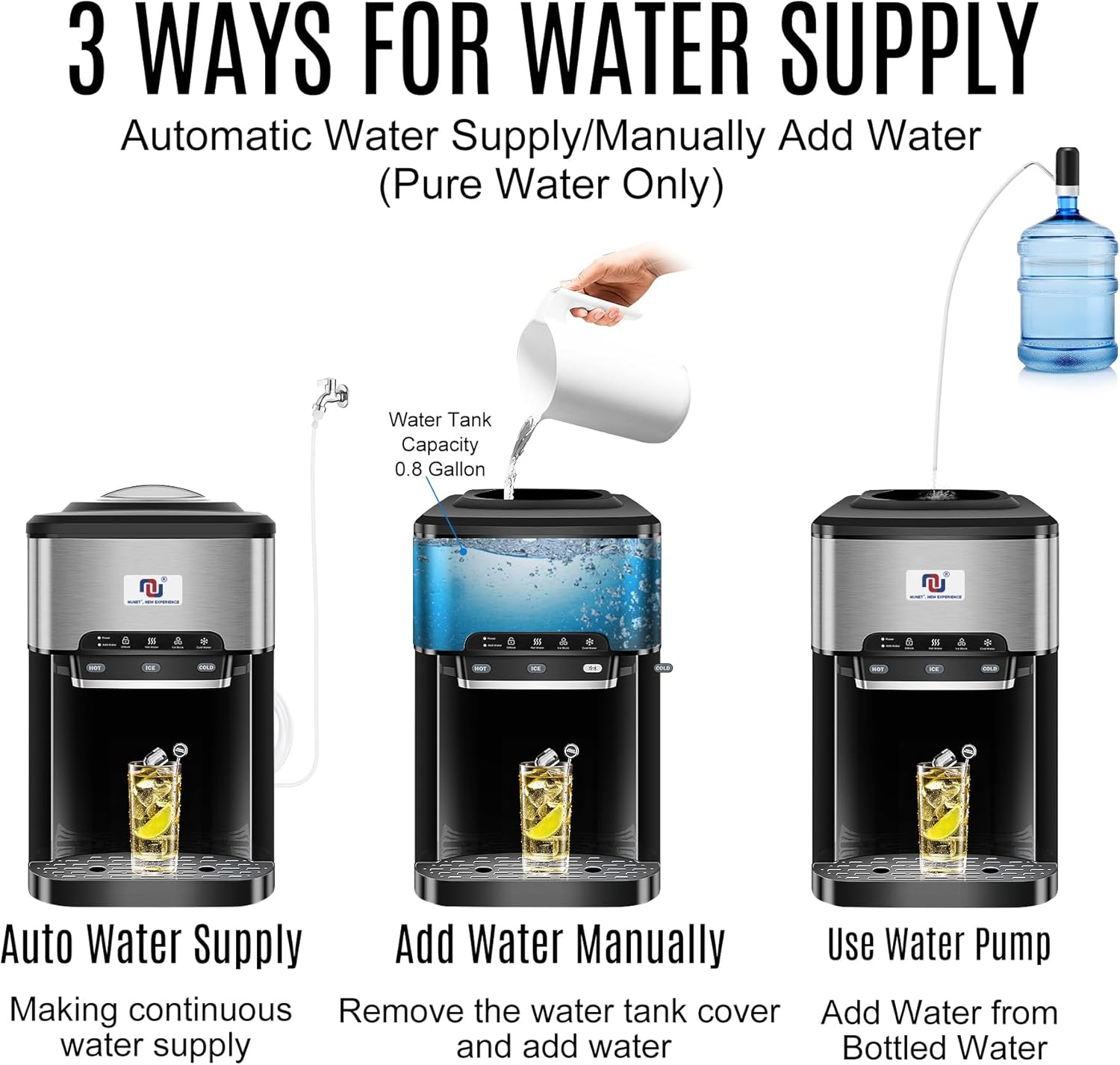

Figure 6.1: Visual representation of the three water supply methods: Auto Water Supply (direct line), Manual Add Water, and Use Water Pump with bottled water.

7. Mantemento e Limpeza

Regular cleaning is essential for hygiene and appliance longevity.

• Bandexa de goteo: The drip tray is removable for easy cleaning. Lift the metal grate and remove the plastic tray underneath to empty any spilled water and clean.
• Depósito de auga: Remove the top cover and use the provided long-handled brush to clean the water tank. Rinse with high-pressure water if possible.
• Drenaxe de auga: For thorough cleaning or storage, drain residual water from the unit. Locate the drain plugs on the bottom of the unit (one for cold water, one for hot water) and remove them to empty the tanks.
• Ice Machine Cleaner: Use the included ice machine cleaner periodically to prevent mineral buildup and maintain ice quality. Follow the instructions on the cleaner bottle.

Figure 7.1: Step-by-step guide for cleaning the water tank, removing the drip tray, and draining water from the unit's bottom plugs.

8 Solución de problemas

Consulta esta sección para ver os problemas comúns e as súas solucións.
