DANFI AUDIO DF TE-2026

DANFI AUDIO DF Vintage Bluetooth Suitcase Record Player - Model TE-2026 Instruction Manual

Marca: DANFI AUDIO DF

Modelo: TE-2026

Introdución

This instruction manual provides detailed guidance on the setup, operation, and maintenance of your DANFI AUDIO DF Vintage Bluetooth Suitcase Record Player. This versatile unit combines classic vinyl playback with modern connectivity options, including Bluetooth streaming, USB recording, and various audio inputs/outputs. Please read this manual thoroughly before use to ensure proper function and longevity of your device.

DANFI AUDIO DF Vintage Bluetooth Suitcase Record Player in pink with a pink vinyl record on a bed.

Image: The DANFI AUDIO DF Vintage Bluetooth Suitcase Record Player in pink, open with a pink vinyl record playing, set on a white bedspread.

O que hai na caixa

  • Pink record player
  • Power cord & Adapter (100v-240V)
  • Slipmat
  • Extra replacement needle
  • Adaptador 45 rpm

Características do produto

  • Premium Sound & Built-in Stereo Speakers: Enjoy clear and loud audio directly from the unit.
  • Tocadiscos de 3 velocidades: Supports 7", 10", and 12" records with adjustable speeds (33 1/3, 45, 78 rpm).
  • Función de parada automática: Automatically stops the turntable at the end of a record to prevent wear.
  • Conectividade Bluetooth: Wirelessly stream music from your smartphone or other Bluetooth-enabled devices.
  • USB Vinyl Audio Recorder: Convert your vinyl records into digital music files (MP3 format) via USB.
  • Saída RCA: Connect to external speakers for enhanced sound.
  • AUX-in & Headphone Jack: Provides options for wired audio input and private listening.
  • Portable Suitcase Design: Features an easy-carrying handle and compact size for transport.

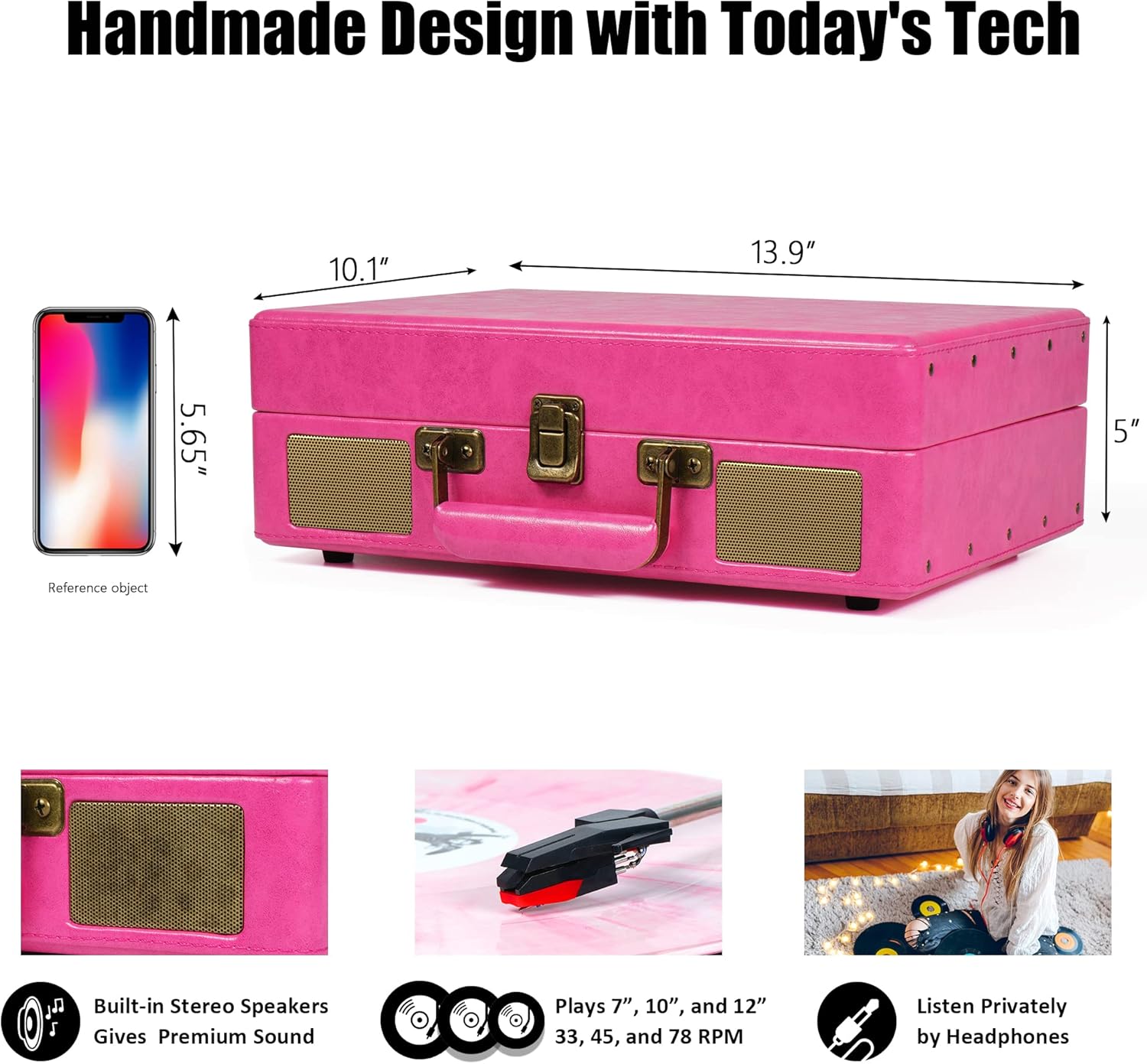

Diagram showing the dimensions of the record player and icons for its features: built-in speakers, 3-speed playback, and headphone jack.

Image: A diagram illustrating the product dimensions (14 x 10 x 5 inches) and highlighting key features such as built-in stereo speakers, 3-speed playback (7", 10", 12" records), and a headphone jack.

Instrucións de configuración

  1. Desempaquetar a unidade: Carefully remove all packaging materials. Ensure all components listed in 'What's in the Box' are present.
  2. Conexión de alimentación: Connect the power cord to the DC 5V/1A power jack on the back of the unit and plug it into a wall outlet.
  3. Remove Needle Protection: Before first use, gently remove the white plastic needle protector from the stylus.
  4. Tone Arm Setup: Unlock the tone arm clip to release the tone arm.
  5. Selección de velocidade: Adjust the speed selection switch (33, 45, or 78 RPM) to match the record you intend to play. Use the included 45rpm adapter for 7-inch records.
  6. Auto Stop Control: The auto-stop switch can be set to ON or OFF. When ON, the turntable will stop spinning automatically at the end of a record. When OFF, it will continue spinning.
Close-up of the back panel of the record player showing RCA output, power jack, tone arm lifter, LED operation panel, speed switch, auto stop control, ON/OFF button (volume control), headphone jack, and cartridge.

Imaxe: Unha detallada view of the record player's control panel and rear connections, including RCA output, power input, tone arm lifter, LED display, speed selector, auto-stop switch, volume/power knob, and headphone jack.

Instrucións de funcionamento

Tocando un disco de vinilo

  1. Place a record on the turntable platter. If playing a 7-inch record, place the 45rpm adapter on the center spindle.
  2. Select the appropriate speed (33 1/3, 45, or 78 RPM) using the speed selection switch.
  3. Open the tone arm clip and push the lift lever backwards to raise the tone arm.
  4. Gently move the tone arm to the desired position over the record. The turntable will begin to spin.
  5. Push the lift lever forward to lower the tone arm onto the record.
  6. Adjust the volume using the ON/OFF/Volume control knob.

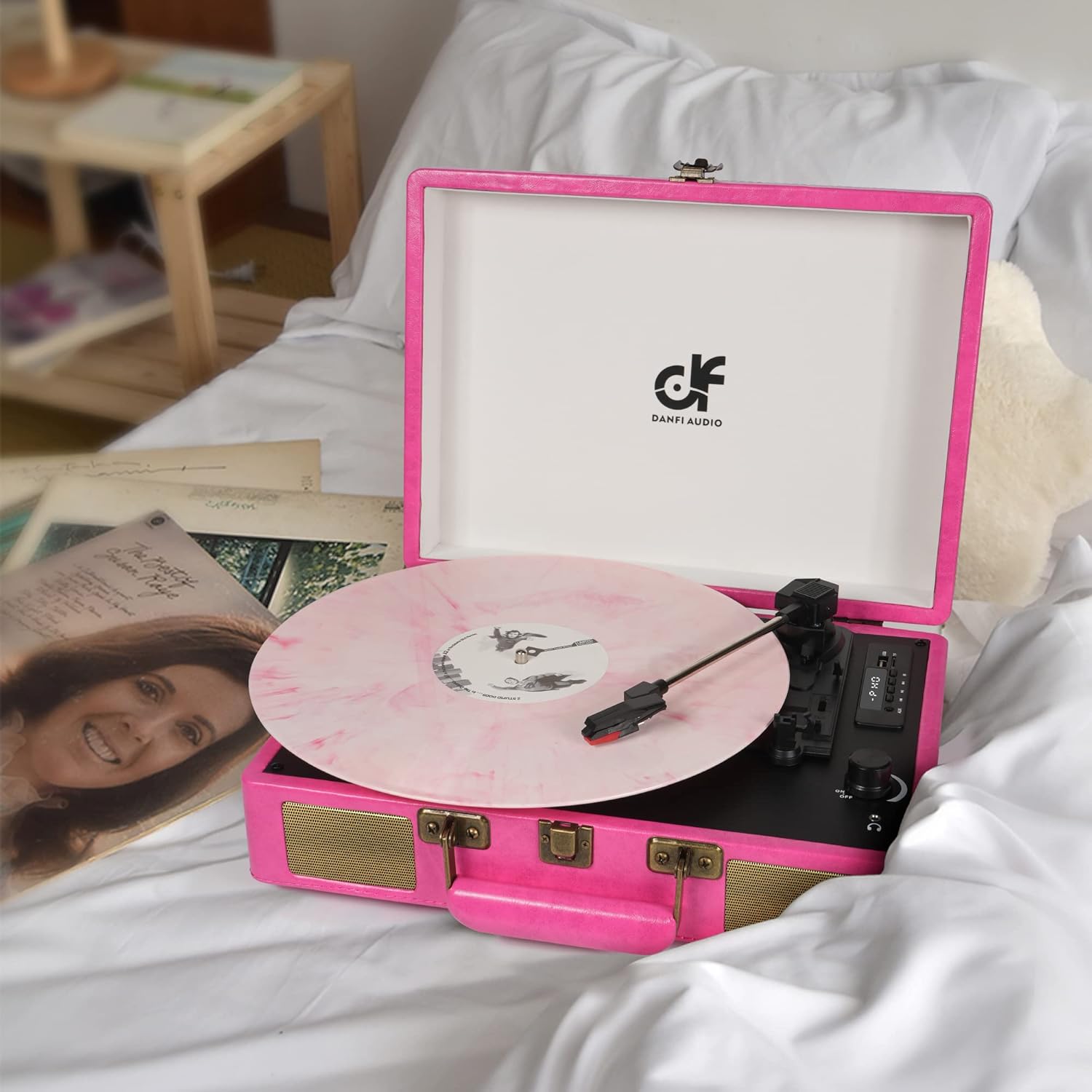

A pink suitcase record player with a pink vinyl record playing on a white surface.

Image: The open pink record player with a pink vinyl record spinning on the platter, ready for playback.

Modo Bluetooth

  1. Turn on the record player.
  2. Press the 'M' button to switch to BT (Bluetooth) mode. The LED display will show 'BT' and a blue indicator light will flash, indicating it's ready for pairing.
  3. Enable Bluetooth on your external device (e.g., smartphone, tablet) and select 'DANFI AUDIO DF' from the list of available devices.
  4. Once paired, the blue indicator light will stop flashing and remain solid. You can now stream music wirelessly to the record player.
A pink record player with a smartphone displaying Bluetooth pairing options, indicating successful connection.

Image: A pink record player with a smartphone next to it, showing the Bluetooth pairing screen with the record player successfully connected.

Gravación e reprodución USB

  1. Gravación: Insert a USB flash drive (FAT32 format) into the USB port. Play a vinyl record. Press and hold the 'REC' button for approximately 1 second until it beeps. The unit will start recording the audio from the vinyl to the USB drive. Press 'REC' again to stop recording.
  2. Reprodución: Insira unha unidade flash USB con MP3 files into the USB port. Press the 'M' button to switch to USB mode. Use the play/pause and skip buttons to navigate and play your recorded or stored music.
A close-up of the record player's control panel showing the USB port and recording buttons, with an icon indicating vinyl to MP3 conversion.

Image: A close-up of the record player's digital control panel, highlighting the USB port and recording functionality for converting vinyl to MP3.

AUX-in / Headphone Jack / RCA Output

  • Entrada AUX: Connect an external audio device (e.g., MP3 player) to the AUX-in port using a 3.5mm audio cable. Switch the mode to AUX.
  • Jack para auriculares: For private listening, plug your headphones into the headphone jack. The built-in speakers will be muted.
  • Saída RCA: Connect the RCA output ports (L/R) to an external amplifier or powered speakers using RCA cables for a louder audio experience.

Mantemento

  • Limpeza da unidade: Limpe o exterior cun pano suave e seco. Non empregue produtos de limpeza abrasivos nin solventes.
  • Coidados do stylus: The stylus (needle) is delicate. Avoid touching it with your fingers. Clean it periodically with a soft brush, brushing from back to front. Replace the stylus if you notice a decrease in sound quality or visible damage.
  • Coidado de rexistros: Keep your vinyl records clean and free of dust. Store them vertically in their sleeves to prevent warping.

Resolución de problemas

ProblemaCausa posibleSolución
Sen poderO adaptador de corrente non está conectado ou a toma de corrente non funciona.Asegúrate de que o adaptador de corrente estea conectado correctamente e proba cunha toma de corrente diferente.
Non hai son dos altofalantesVolume too low; incorrect mode selected; headphones connected.Increase volume; ensure correct mode (PHONO, BT, AUX, USB) is selected; disconnect headphones.
Salto de rexistroDirty or damaged record; stylus worn out; unit not on a stable surface.Clean record; replace stylus; place unit on a flat, stable surface.
Bluetooth non se conectaNot in BT mode; device too far; device already paired with another unit.Ensure unit is in BT mode; move device closer; disconnect from other Bluetooth devices.

Especificacións

  • Dimensións do produto: 14 x 10 x 5 polgadas
  • Peso do artigo: 5.5 libras
  • Nome do modelo: TE-2026
  • Marca: DANFI AUDIO DF
  • Velocidade de rotación máxima: 78 RPM
  • Material: Engineered Wood, Vinyl
  • Características especiais: Adjustable Speed, Built-in Speaker, Digital Recorder, Headphone Jack Output, Portable
  • Dispositivos compatibles: Headphone, MP3 Player, Smartphone, Speaker, Tablet

Garantía e Soporte

For warranty information or technical support, please refer to the documentation included with your purchase or contact DANFI AUDIO DF customer service. Keep your purchase receipt as proof of purchase for any warranty claims.

Para obter máis axuda, visite o DANFI AUDIO DF Store on Amazon.
