Manual do usuario do escáner de códigos de barras 1D/2D sen fíos Bluetooth Star Micronics BSH-HR2081BT

1. Introdución

This manual provides comprehensive instructions for the setup, operation, maintenance, and troubleshooting of your Star Micronics BSH-HR2081BT Wireless Bluetooth 1D/2D Barcode Scanner. Designed for efficiency and durability, this scanner is a reliable solution for various point-of-sale and inventory management applications.

The BSH-HR2081BT scanner is equipped with a high-power CPU, enabling it to effortlessly capture high-density, high-volume, and even distorted barcodes from both printed materials and digital screens. Its robust design, coupled with advanced wireless capabilities, ensures seamless integration into your workflow.

2. Características clave

• Escaneo de alto rendemento: Powerful CPU captures high-density, high-volume, and distorted 1D/2D barcodes on paper or screen.
• Duración prolongada da batería: Offers up to 12 hours of continuous operation (one scan every six seconds) with its 2200mAh battery.
• Conectividade versátil: Connects directly to the host device via Bluetooth Low Energy (BLE) or wirelessly to a Star printer using the included USB dongle.
• Reliable Wireless Range: Maintains a stable wireless connection to transmit data, with communication distances up to 50 meters (approximately 164 feet).
• Construción duradeira: Features an IP42-rated design and a drop-resistant housing, capable of withstanding drops from up to 1.2 meters (approximately 4 feet).

3. Guía de configuración

3.1. Desembalaxe e Inspección Inicial

Retire con coidado todos os compoñentes da embalaxe. Comprobe que estean presentes os seguintes elementos:

• Star Micronics BSH-HR2081BT Barcode Scanner
• Cable de carga USB
• USB Dongle (for wireless connection to Star printers)
• Soporte para escáner

Figure 3.1: Barcode scanner and its USB dongle.

3.2. Carga do escáner

Before first use, fully charge the scanner. Connect the USB charging cable to the scanner's charging port (located at the bottom of the handle) and plug the other end into a USB power adapter (not included) or a computer's USB port. The charging indicator light will show the charging status.

Figure 3.2: USB charging port at the base of the scanner handle.

3.3. Conexión do escáner

The BSH-HR2081BT scanner offers two primary connection methods:

3.3.1. Bluetooth Connection (Direct to Host Device)

1. Asegúrate de que o escáner estea acendido.
2. On your host device (smartphone, tablet, or computer), enable Bluetooth.
3. Busca available Bluetooth devices. The scanner should appear as "Star Micronics BSH-HR2081BT" or similar.
4. Select the scanner to pair. Follow any on-screen prompts to complete the pairing process.

3.3.2. Wireless Connection (via USB Dongle to Star Printer)

1. Insert the provided USB dongle into an available USB port on your compatible Star printer (e.g., mC-Print, mPOP).
2. Power on the scanner. The scanner and dongle should automatically establish a connection.
3. Refer to your Star printer's manual for specific instructions on connecting external devices.

Figure 3.3: Barcode scanner placed in its included stand.

4. Instrucións de funcionamento

4.1. Operación básica de dixitalización

To scan a barcode, point the scanner's window at the barcode and press the trigger button. A successful scan will typically be indicated by an audible beep and/or a visual confirmation light.

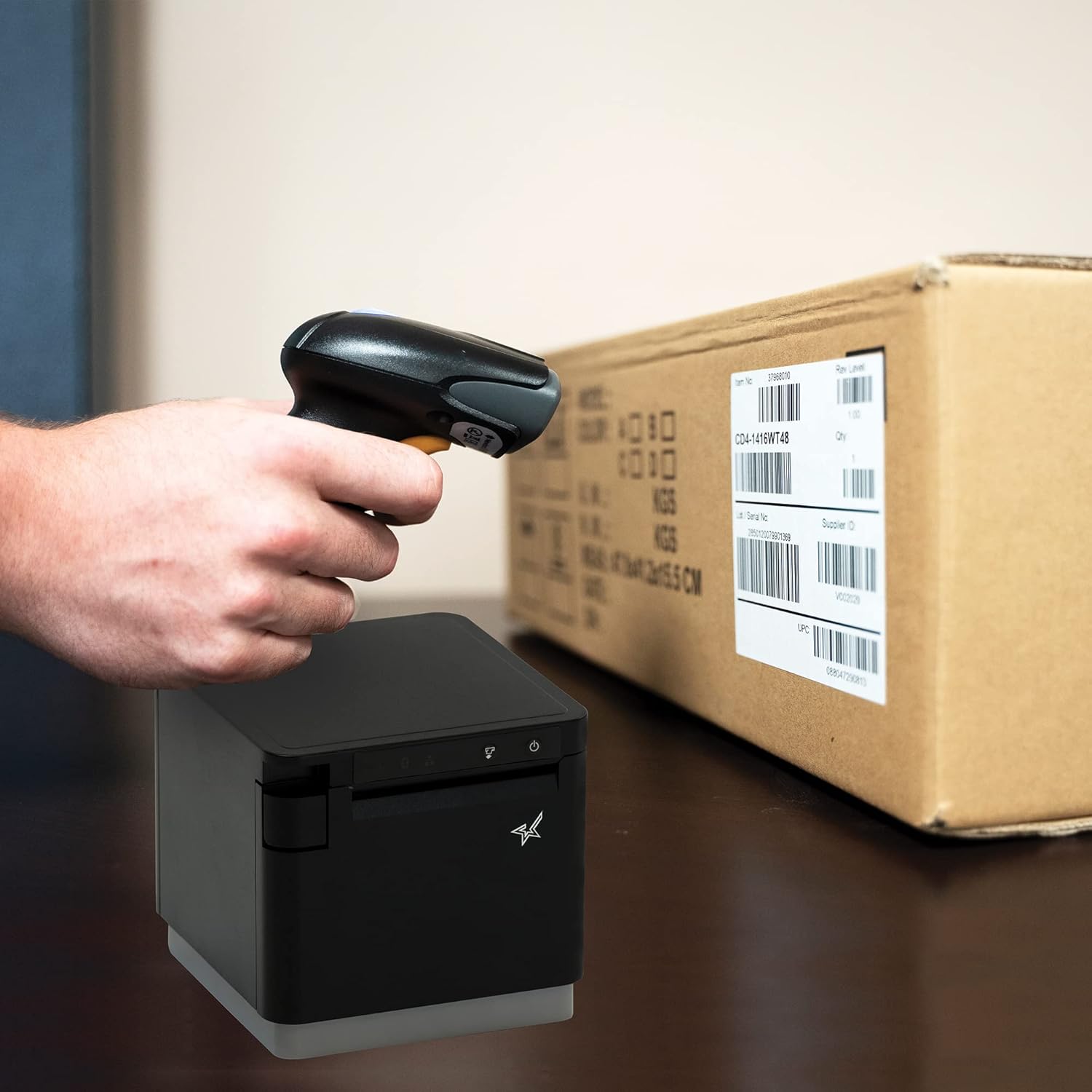

Figura 4.1: Example of scanning a barcode on a package.

4.2. Modos de dixitalización

The BSH-HR2081BT scanner supports six different scanning modes to accommodate various operational needs:

• Modo de nivel: The scanner's trigger will activate the decode session.
• Modo de disparo: A trigger pull activates a decode session.
• Modo de detección: The scanner activates a decode session every time it detects a barcode.
• Modo continuo: The scanner automatically starts one decode session after another.
• Modo de pulso: When the trigger is pulled and released, scanning is activated until a barcode is decoded or the decode session timeout expires.
• Modo por lotes: When the trigger is pulled and released, scanning is activated until the trigger is released.

Refer to the full user guide (link in Section 7) for detailed instructions on how to switch between these modes and configure specific settings.

5. Mantemento

5.1. Limpeza do escáner

To maintain optimal performance, keep the scanner's window clean. Use a soft, lint-free cloth lightly dampened with water or a mild, non-abrasive cleaner. Do not use harsh chemicals or abrasive materials, as they may damage the scanner's surface or optical components.

5.2. Coidado da batería

O escáner está equipado cunha batería de ións de litio. Para prolongar a duración da batería:

• Evite descargar completamente a batería con frecuencia.
• Garde o escáner nun lugar fresco e seco cando non o use durante períodos prolongados.
• Charge the battery regularly, even if the scanner is not in frequent use.

6 Solución de problemas

6.1. Scanner Not Connecting

• Comprobar a potencia: Ensure the scanner is fully charged and powered on.
• Emparellamento Bluetooth: For Bluetooth connections, ensure Bluetooth is enabled on your host device and the scanner is in pairing mode. Try unpairing and re-pairing the device.
• Dongle USB: If using the USB dongle, ensure it is securely plugged into the Star printer and the printer is powered on.
• Rango: Ensure the scanner is within the effective communication range (up to 50m) of the host device or dongle.

6.2. Scanner Not Reading Barcodes

• Barcode Condition: Asegúrate de que o código de barras sexa transparente, non estea manchado, roto ou sexa excesivamente reflectante.
• Distancia e ángulo: Adjust the distance and angle of the scanner to the barcode. Try different scanning modes if applicable.
• Iluminación: Ensure adequate lighting. Avoid direct glare on the barcode.
• Scanner Window: Clean the scanner's reading window as described in the Maintenance section.

6.3. Duración curta da batería

• Carga completa: Ensure the scanner is charged until the indicator shows a full charge.
• Usage Pattern: Continuous heavy usage will deplete the battery faster.
• Idade da batería: Over time, rechargeable batteries naturally lose capacity.

7. Especificacións técnicas

8. Garantía e soporte

For warranty information and technical support, please contact Star Micronics directly or visit their official websitio. Garde o recibo da compra como xustificante de compra para reclamacións de garantía.

Hai dispoñible para a súa descarga unha guía detallada do usuario en formato PDF:

Descargar a guía do usuario (PDF)
