Manual de instrucións do paquete esencial para homes de Aqualung

1. Introdución

This manual provides essential information for the safe and effective use of your Aqualung Mens Essential Package. This comprehensive diving package includes the Aqualung Pro HD BCD, Aqualung Titan Regulator, Aqualung ABS Octo, and the i300c 2 Gauge Computer. Please read this manual thoroughly before using the equipment to ensure proper operation, maintenance, and safety.

2. Contido do paquete

The Aqualung Mens Essential Package includes the following components:

• Aqualung Pro HD BCD (Buoyancy Compensator Device)
• Aqualung Titan Regulator (Primary Second Stage)
• Aqualung ABS Octo (Alternate Air Source/Octopus)
• i300c 2 Gauge Computer (Dive Computer and Pressure Gauge Console)

This image displays all four primary components of the Aqualung Mens Essential Package: the Pro HD BCD, Titan Regulator, ABS Octo, and the i300c 2 Gauge Computer.

3. Configuración e montaxe

3.1 Aqualung Pro HD BCD

The Aqualung Pro HD BCD is designed for comfort and durability. Ensure all straps and buckles are in good working order before each dive. Adjust the shoulder straps, chest strap, and cummerbund for a snug, comfortable fit. The integrated weight system pockets should be securely fastened after loading weights.

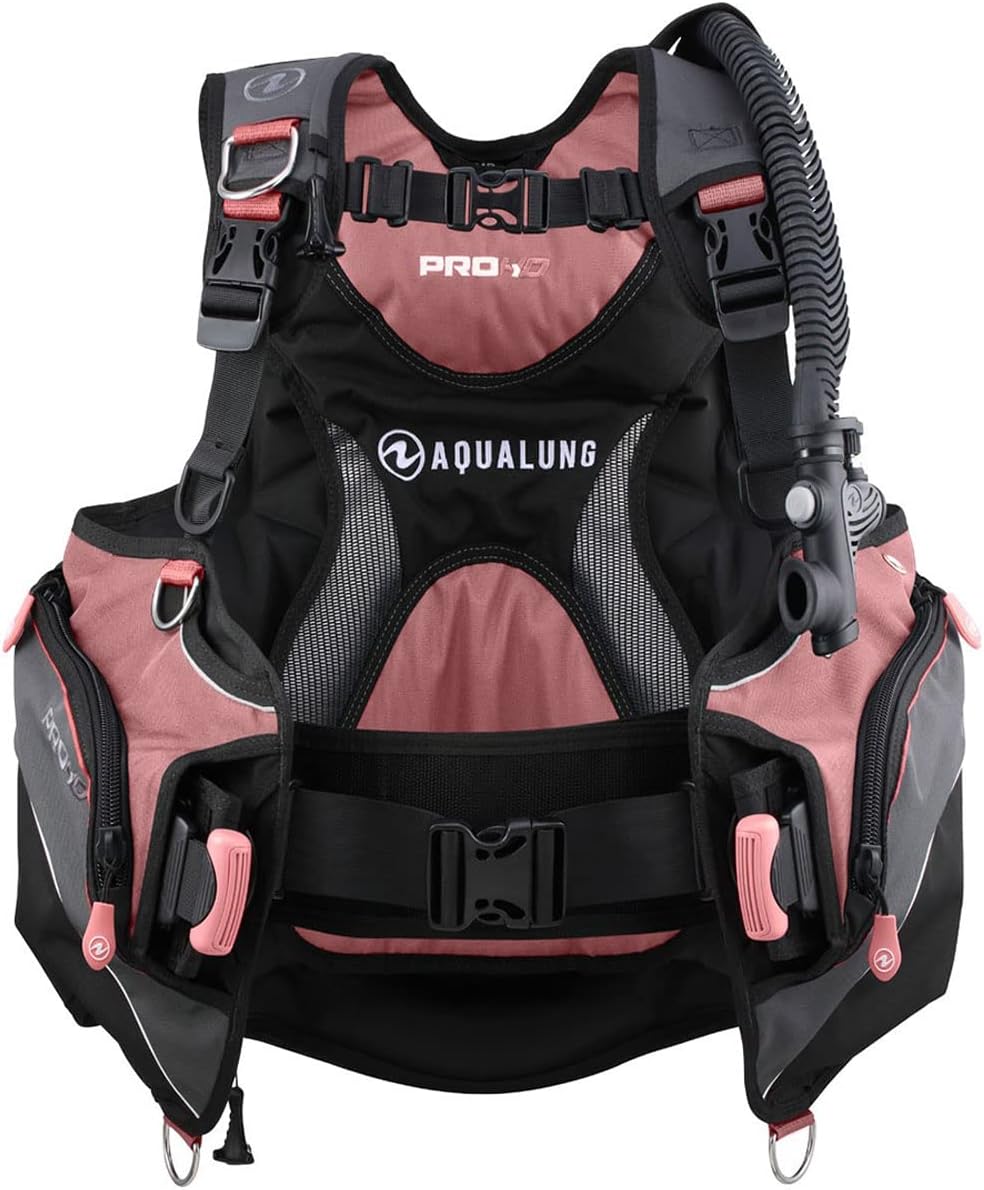

This image shows the front of the Aqualung Pro HD BCD, highlighting the integrated weight pockets and adjustment straps.

This image displays the back of the Aqualung Pro HD BCD, showing the tank band and backplate design.

3.2 Regulator and Octopus

Attach the Aqualung Titan Regulator first stage to the tank valve, ensuring a secure seal. Connect the primary second stage, the ABS Octo, and the i300c 2 Gauge Computer hose to the appropriate low-pressure and high-pressure ports on the first stage. Confirm all connections are tight and leak-free before pressurizing the system.

This image shows the Aqualung Titan Regulator's first and second stages, along with the yellow Aqualung ABS Octo, ready for hose connection.

3.3 i300c 2 Gauge Computer

The i300c 2 Gauge Computer console integrates your dive computer and submersible pressure gauge (SPG). Connect its high-pressure hose to the designated high-pressure port on the regulator first stage. Ensure the computer is powered on and displaying correct information before diving. Refer to the separate i300c manual for detailed operation of the dive computer functions.

This image displays the Aqualung i300c 2 Gauge Computer, showing its digital display for dive data and analog pressure gauge.

4. Instrucións de funcionamento

4.1 BCD Operation

To inflate the BCD, use the power inflator button. To deflate, hold the power inflator hose high above your head and press the deflate button. Oral inflation is also possible. Utilize the dump valves (shoulder, lower rear) for rapid air release. Practice buoyancy control in a controlled environment before open water diving.

4.2 Regulator and Octopus Use

The Titan Regulator provides air on demand. Breathe normally and calmly. The ABS Octo is your alternate air source, identifiable by its yellow hose and housing. It should be easily accessible for emergency sharing with a buddy. Periodically test both regulators before a dive to ensure proper function.

4.3 Dive Computer Operation

The i300c dive computer automatically activates upon immersion. It displays critical dive information such as depth, bottom time, no-decompression limits, and ascent rate. Monitor your air pressure via the integrated SPG. Always follow the computer's instructions and ascent rate warnings. Consult the dedicated i300c manual for detailed menu navigation and settings.

5. Mantemento e coidados

Proper maintenance is crucial for the longevity and safe operation of your diving equipment.

• Aclarado: After each dive, thoroughly rinse all components with fresh, clean water. Ensure the dust cap is on the regulator first stage before rinsing.
• Secado: Allow all equipment to air dry completely in a shaded, well-ventilated area before storage. Avoid direct sunlight.
• Almacenamento: Store your gear in a cool, dry place, away from direct sunlight, chemicals, and extreme temperatures. Do not store BCDs folded tightly.
• Regulator Care: The manufacturer recommends professional servicing of your regulator annually or after 100 dives, whichever comes first.
• Instrucións de coidado do produto: Só lavar a man.

6 Solución de problemas

This section addresses common issues you might encounter with your diving equipment.

• Regulator Free-Flow: If your regulator free-flows, check for debris in the second stage. Rinse thoroughly. If it persists, have it serviced by a qualified technician.
• BCD Leaks: Inspect the BCD for visible damage, especially around seams and valves. Ensure all inflator and dump valve mechanisms are clean and free of sand or salt crystals.
• Computer Malfunction: If the i300c computer displays an error or behaves erratically, consult its specific manual for error codes and troubleshooting steps. Ensure the battery is adequately charged.
• Low Air Pressure Reading: Verify the regulator is securely attached to the tank valve. If the issue persists, the SPG or regulator may require professional inspection.

For issues not covered here, or if troubleshooting steps do not resolve the problem, contact a certified Aqualung service center or your dive professional.

7. Especificacións

8. Garantía e soporte

This product comes with a full manufacturer warranty. For specific details regarding warranty coverage, duration, and claims procedures, please refer to the documentation provided with your purchase or visit the official Aqualung website. For technical support, service, or parts, please contact an authorized Aqualung dealer or service center.

You can find more information and contact details on the official Aqualung websitio: www.aqualung.com
