Gevi 4-in-1 Smart Coffee Maker GV9002 Instruction Manual

1. Introdución

Grazas pola compraasing the Gevi 4-in-1 Smart Coffee Maker, Model GV9002. This innovative appliance combines a coffee grinder, digital scale, temperature-controlled kettle, and automatic brewer into a single unit, designed to provide a professional-level coffee brewing experience. Please read this manual thoroughly before use to ensure safe operation and optimal performance.

2. Instrucións de seguridade importantes

Cando se utilicen aparellos eléctricos, deben seguirse sempre as precaucións básicas de seguridade para reducir o risco de incendio, descarga eléctrica e/ou lesións ás persoas, incluíndo as seguintes:

• Lea todas as instrucións antes de facer funcionar o aparello.
• Non toque superficies quentes. Use asas ou botóns.
• Para protexerse contra incendios, descargas eléctricas e lesións persoais, non mergulle o cable, os enchufes nin o aparello en auga ou noutro líquido.
• É necesaria unha estreita supervisión cando calquera aparello é usado por nenos ou preto de eles.
• Desenchufe da toma cando non estea en uso e antes de limpalo. Deixar arrefriar antes de poñer ou quitar pezas e antes de limpar o aparello.
• Non faga funcionar ningún aparello cun cable ou enchufe danados ou despois de que o aparello teña un mal funcionamento ou que estea danado de calquera xeito. Devolve o aparello ao centro de servizo autorizado máis próximo para o seu exame, reparación ou axuste.
• O uso de accesorios non recomendados polo fabricante do aparello pode provocar incendios, descargas eléctricas ou lesións ás persoas.
• Non use ao aire libre.
• Non deixes que o cable colgue do bordo da mesa ou do mostrador nin toque superficies quentes.
• Non o coloque sobre ou preto dun queimador eléctrico ou de gas quente, nin nun forno quente.
• Conecte sempre primeiro o enchufe ao aparello e despois enchufe o cable á toma de corrente. Para desconectar, desactiva calquera control e, a continuación, retira o enchufe da toma de corrente.
• Non use o aparello para outros usos que os previstos.

3. Compoñentes do produto

The Gevi 4-in-1 Smart Coffee Maker consists of several integrated parts:

• Main Unit (Base with controls)
• Depósito de auga
• Tolva de feixón
• Integrated Grinder (Flat cutter type)
• Portafiltros
• Carafe de vidro
• Digital Scale (Integrated into the base)
• Kettle (Integrated, 850ml capacity)
• Gotero

4. Configuración inicial

4.1 Desembalaxe

1. Retire coidadosamente todos os compoñentes da embalaxe.
2. Garde os materiais de embalaxe para o seu almacenamento ou transporte futuros.
3. Comprobe que todos os compoñentes listados estean presentes e non estean danados.

4.2 Colocación

Place the coffee maker on a stable, flat, heat-resistant surface, away from water sources and direct heat. Ensure adequate ventilation around the unit.

4.3 Limpeza inicial

Before first use, clean all removable parts (hopper, hopper lid, carafe, filter, dripper) with a neutral detergent and a soft sponge. Rinse thoroughly and dry completely. Wipe the exterior of the main unit with a slightly damp pano.

4.4 Asemblea

1. Coloque a unidade principal nunha superficie estable.
2. Attach the water tank and bean hopper securely.
3. Insert the filter holder and place the glass carafe on the heating plate.

5. Instrucións de funcionamento

5.1 Encendido/apagado

To power on the device, long-press the power button (usually indicated by a circle with a vertical line). Long-press again to power off.

5.2 Grinder Function

The integrated flat cutter grinder offers 51 levels of fineness adjustment, allowing you to customize the grind for various brewing methods, from French Press to Espresso.

5.3 Digital Scale Function

The integrated digital scale can measure coffee beans or grounds with an accuracy of 0.1g, up to a maximum of 2kg. This allows for precise coffee-to-water ratios.

5.4 Kettle Function

The integrated kettle has an 850ml capacity and allows for temperature adjustment from 40°C to 99°C in 1-degree increments. It can also be used independently for other hot water needs.

5.5 Brewer Function

The brewer features three 2.8mm diameter spouts that automatically rotate 360 degrees to ensure even water distribution over the coffee grounds for optimal extraction.

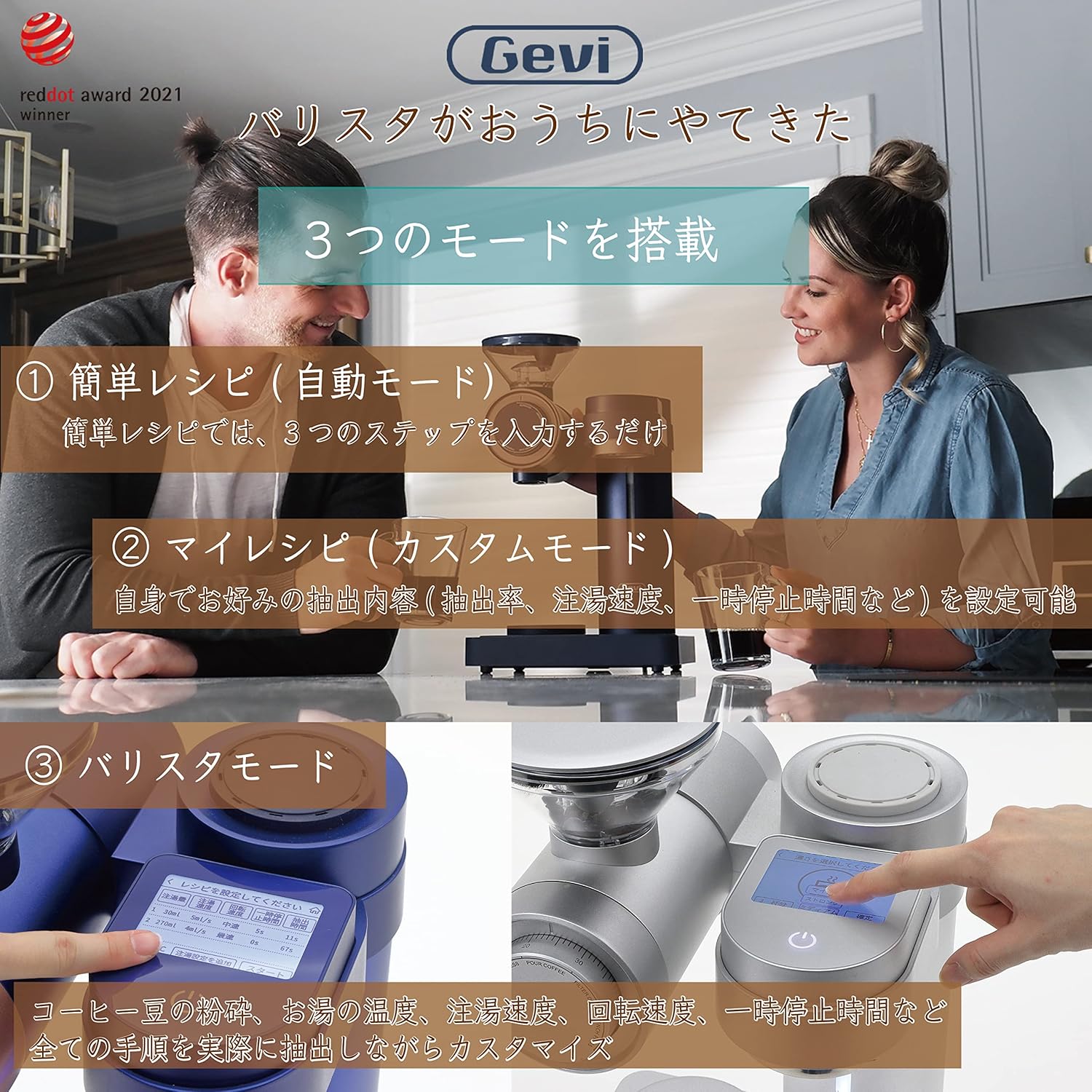

5.6 Brewing Modes

The coffee maker offers three distinct brewing modes:

• Simple Recipe (Automatic Mode): Follows a pre-set 3-step process for quick and easy brewing.
• My Recipe (Custom Mode): Allows users to set preferred extraction rate, pouring speed, and pre-infusion time.
• Modo Barista: Provides full customization over all brewing parameters, including coffee bean grind, water temperature, pouring speed, rotation speed, and pre-infusion time.

5.7 Cup Selection

You can select to brew 1 to 4 cups of coffee using the dedicated cup selection button on the control panel.

5.8 Función Manter quente

The coffee maker includes a keep warm function to maintain your brewed coffee at an optimal temperature after brewing.

5.9 Conectividade Wi-Fi

The device supports Wi-Fi connectivity, allowing it to connect with a mobile application for additional features, such as accessing and saving custom recipes.

6. Mantemento e Limpeza

Unha limpeza regular garante a lonxevidade e o rendemento óptimo da túa cafeteira.

6.1 Limpeza diaria

• After each use, clean the hopper, hopper lid, carafe, filter, and dripper using a neutral dishwashing detergent and a soft sponge.
• Rinse all parts thoroughly with clean water and allow them to dry completely before reassembling.
• Wipe the exterior of the main unit with a slightly damp pano. Non mergullo a unidade principal na auga.

6.2 Función de limpeza

The coffee maker features a dedicated 'Clean' function for internal cleaning. Refer to the on-screen prompts or the mobile application for detailed instructions on using this function.

7 Solución de problemas

If you encounter any issues with your Gevi 4-in-1 Smart Coffee Maker, please refer to the following common problems and solutions:

• O aparello non se acende: Ensure the power cord is securely plugged into a working electrical outlet. Check if the power button has been long-pressed to activate the unit.
• O café non se está preparando: Verify that the water tank is filled to the appropriate level and the carafe is correctly placed on the heating plate. Ensure a brewing mode has been selected and the start button pressed.
• Grinder is not working: Check if the bean hopper contains coffee beans and is properly seated. Ensure no foreign objects are obstructing the grinder.
• A auga non quenta: Confirm that the kettle is properly placed and the desired temperature is set.

Para problemas que non se tratan aquí, póñase en contacto co servizo de atención ao cliente.

8. Especificacións

9. Garantía e soporte

9.1 Garantía do fabricante

This Gevi product is covered by a 1-year manufacturer's warranty from the date of purchase. Please retain your proof of purchase for warranty claims. The warranty covers defects in materials and workmanship under normal use.

9.2 Atención ao cliente

For technical assistance, troubleshooting, or warranty inquiries, please contact Gevi customer support through the official website or the contact information provided with your product. Please have your model number (GV9002) and purchase date ready when contacting support.
