IMEX Fiyi GLF016 Wall-Mounted Single-Lever Basin Manual de instrucións da billa

Introdución

Thank you for choosing the IMEX Fiyi GLF016 Wall-Mounted Single-Lever Basin Faucet. This manual provides detailed instructions for the proper installation, operation, and maintenance of your new faucet. Please read this guide thoroughly before installation and keep it for future reference to ensure safe and efficient use of the product.

Image: The IMEX Fiyi GLF016 wall-mounted single-lever basin faucet in white matte finish, installed above a white rectangular basin against a dark tiled wall.

Características do produto

• Deseño de parede: Monomando basin or bathtub faucet designed for wall installation.
• Material duradeiro: Manufactured from high-quality brass for longevity.
• Independent Components: The spout and single-lever handle are separate units, offering flexible installation.
• Cartucho cerámico: Features a 2.5 cm Sedal ceramic disc cartridge in the handle to prevent dripping and promote water saving.
• Flexible Hoses: Equipped with Tucai flexible metallic hoses, simplifying installation and accommodating various basin designs and measurements.
• No Register Box Required: Installation does not require a register box.
• Dimensións compactas: Spout module: 21.5 cm (length) x 8 cm (width) x 8 cm (height). Handle module: 3.6 cm (length) x 8 cm (width) x 11.4 cm (height).

Especificacións

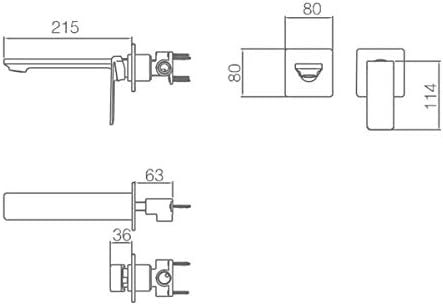

Image: Technical diagram showing the dimensions of the spout and handle modules for the IMEX Fiyi GLF016 faucet.

Configuración e instalación

This faucet is designed for wall-mounted installation. While a register box is not required, professional installation is recommended to ensure proper function and prevent leaks. Ensure you have the necessary tools and plumbing knowledge before proceeding.

Antes da instalación:

• Turn off the main water supply to your bathroom.
• Clear the installation area and ensure you have enough space to work.
• Inspeccione todos os compoñentes para detectar calquera dano antes de comezar.

Pasos de instalación (guía xeral):

1. Preparar as aberturas nas paredes: Create the necessary openings in the wall for the hot and cold water lines and the faucet's internal components, according to the dimensions provided in the technical diagram.
2. Instalar compoñentes internos: Connect the flexible Tucai hoses to the water supply lines. Secure the internal mixing unit and water connections within the wall.
3. Mount Spout and Handle Modules: Once the internal plumbing is secure and tested for leaks, attach the external spout and handle modules to their respective wall connections. Ensure they are level and securely fastened.
4. Conectar a manivela: Connect the single-lever handle to the ceramic cartridge, ensuring smooth operation.
5. Proba da billa: Slowly turn on the main water supply. Check for any leaks around the connections. Operate the faucet to ensure proper water flow and temperature control.

Note: Specific plumbing configurations may vary. Consult a qualified plumber if you are unsure about any step of the installation process.

Instrucións de funcionamento

The IMEX Fiyi GLF016 faucet features a single-lever design for easy control of water flow and temperature.

• Activar/Desactivar: Lift the lever handle to turn on the water. Push it down to turn off the water.
• Axuste do fluxo de auga: The further you lift the lever, the greater the water flow.
• Axuste da temperatura: Move the lever to the left for hot water and to the right for cold water. The central position provides mixed water.

Familiarize yourself with the handle's movement to achieve your desired water temperature and flow.

Mantemento e coidados

Proper maintenance ensures the longevity and aesthetic appeal of your IMEX Fiyi faucet. Follow these guidelines for optimal care:

1. Limpeza regular: After each use, wipe away any water or soap residue from the faucet surface with a soft cotton cloth. This prevents water spots and preserves the finish. Avoid abrasive sponges or brushes, as they can scratch the surface.
2. Preventing Limescale: Limescale deposits can damage the chrome finish. It is crucial to dry the faucet after each use to prevent calcification. If limescale builds up, especially in corners and joints, use a mild cleaner based on citric acid. Do not spray the concentrated cleaner directly onto the faucet; instead, apply it to a cloth and then wipe the faucet.
3. Limpeza do aireador: The aerator can be easily removed for cleaning. Submerge it in hot water with a little cleaner for about ten minutes to dissolve deposits.
4. Aclarado: After cleaning, thoroughly rinse the faucet with clean water.
5. Final Polish: Repeat the first step by wiping the faucet with a soft, dry cotton cloth to remove any remaining cleaning product and restore a brilliant finish.
6. Ventilación do baño: Regularly ventilate your bathroom to prevent condensation, humidity, and the accumulation of methane gas from drains, which can affect the faucet's environment.

For a visual guide on cleaning and care, please watch the official IMEX video below:

Resolución de problemas

Se tes problemas coa túa billa, consulta os seguintes problemas e solucións comúns:

• Baixa presión da auga:
  • Comprobe se a subministración principal de auga está completamente aberta.
  • Clean the aerator (refer to Maintenance section). Mineral deposits can restrict water flow.
  • Inspect the water supply lines for kinks or blockages.
• Billa que gotea:
  • Asegúrate de que todas as conexións estean ben apertadas (non as apertes demasiado).
  • A dripping faucet often indicates a worn ceramic cartridge. Contact customer support for replacement parts or professional assistance.
• Dificultade para axustar a temperatura:
  • Verify that both hot and cold water supplies are open.
  • If the issue persists, the ceramic cartridge might need inspection or replacement.

For problems not listed here or if troubleshooting steps do not resolve the issue, please contact customer support.

Garantía e Soporte

Specific warranty information for the IMEX Fiyi GLF016 faucet is not provided in the product details. Please refer to the retailer's or manufacturer's official websitio web para coñecer os termos e condicións da garantía.

For technical support, replacement parts, or further assistance, please contact the manufacturer or your point of purchase. Keep your purchase receipt and model information handy when contacting support.
