Rfiver Artistic Easel TV Stand Instruction Manual

Introdución

Thank you for choosing the Rfiver Artistic Easel TV Stand. This manual provides essential information for the safe and correct assembly, operation, and maintenance of your new TV stand. Please read all instructions carefully before assembly and retain this manual for future reference.

Información de seguridade

WARNING: Failure to read and follow all instructions may result in personal injury or damage to the product.

• Asegúrese de que todos os compoñentes estean presentes e non estean danados antes da montaxe. Non empregue pezas danadas.
• This TV stand is designed for TVs between 32 and 65 inches, weighing up to 77 lbs (35 kg). Do not exceed the maximum weight capacity.
• Always use the provided anti-tip safety kit to secure the TV stand to a wall, especially in households with children or pets.
• Assemble the product on a soft, non-abrasive surface to avoid scratches.
• Recoméndanse dúas persoas para unha montaxe e instalación seguras do televisor.
• Manteña os nenos lonxe de pezas pequenas durante a montaxe.

Contido do paquete

Please verify that all parts are included in your package. Refer to the assembly diagrams for visual identification of each component.

Descrición da imaxe: A four-panel diagram illustrating the easy installation steps. Panel 1 shows attaching the legs to the central base. Panel 2 shows securing the locking collar. Panel 3 shows attaching brackets to the TV. Panel 4 shows mounting and securing the TV to the stand. This image visually represents the main components and initial assembly process.

Configuración e montaxe

Follow these steps carefully for proper assembly. An Allen wrench and various screws are provided.

1. Montar a base do trípode: Attach the wooden legs to the central metal hub. Ensure all screws are tightened securely.
2. Instalar os soportes de montaxe do televisor: Depending on your TV's VESA pattern, select the appropriate screws and spacers. Attach the vertical mounting brackets to the back of your TV.
3. Montar o televisor no soporte: Carefully lift your TV (with assistance) and hook the mounted brackets onto the horizontal bars of the stand. Secure the TV using the provided locking mechanisms.
4. Attach the Anti-Tip Kit: For enhanced safety, attach the anti-tip wire rope from the TV stand to a wall stud using the provided hardware.

Descrición da imaxe: A side-by-side comparison illustrating the 'Upgraded Artistic Easel TV Stand' by Rfiver against 'Others'. The Rfiver stand features a height-adjustable pole (27.2 inches), upgraded wider legs, and a more stable base. The 'Others' stand has a shorter pole (23.8 inches), normal narrower legs, and a smaller, less stable base. This highlights the stability and adjustability features of the Rfiver product.

Guía de vídeo de montaxe

Descrición do vídeo: This video demonstrates the assembly process of a wooden easel TV floor stand, similar to the Rfiver model. It shows unboxing components, attaching legs, securing the central pole, and mounting a TV. The video also highlights features like the equipment shelf and cable management clips.

Instrucións de funcionamento

• Axuste de altura: The TV stand allows you to easily adjust the height of your TV along the central pole for optimal eye-level viewing. Loosen the locking collar, adjust to the desired height, and re-tighten.
• Función de giro: Your TV can smoothly swivel 50° left or right (100° total) to achieve the perfect viewing angle from anywhere in the room. Gently rotate the TV to your preferred position.
• Xestión de cables Utilize the integrated cable management system to route and hide cables along the stand's legs for a clean and organized appearance.

Descrición da imaxe: A living room scene featuring a TV mounted on the easel stand. Arrows indicate a 50-degree swivel range to both the left and right, demonstrating the stand's flexibility for optimal viewdesde varias posicións na habitación.

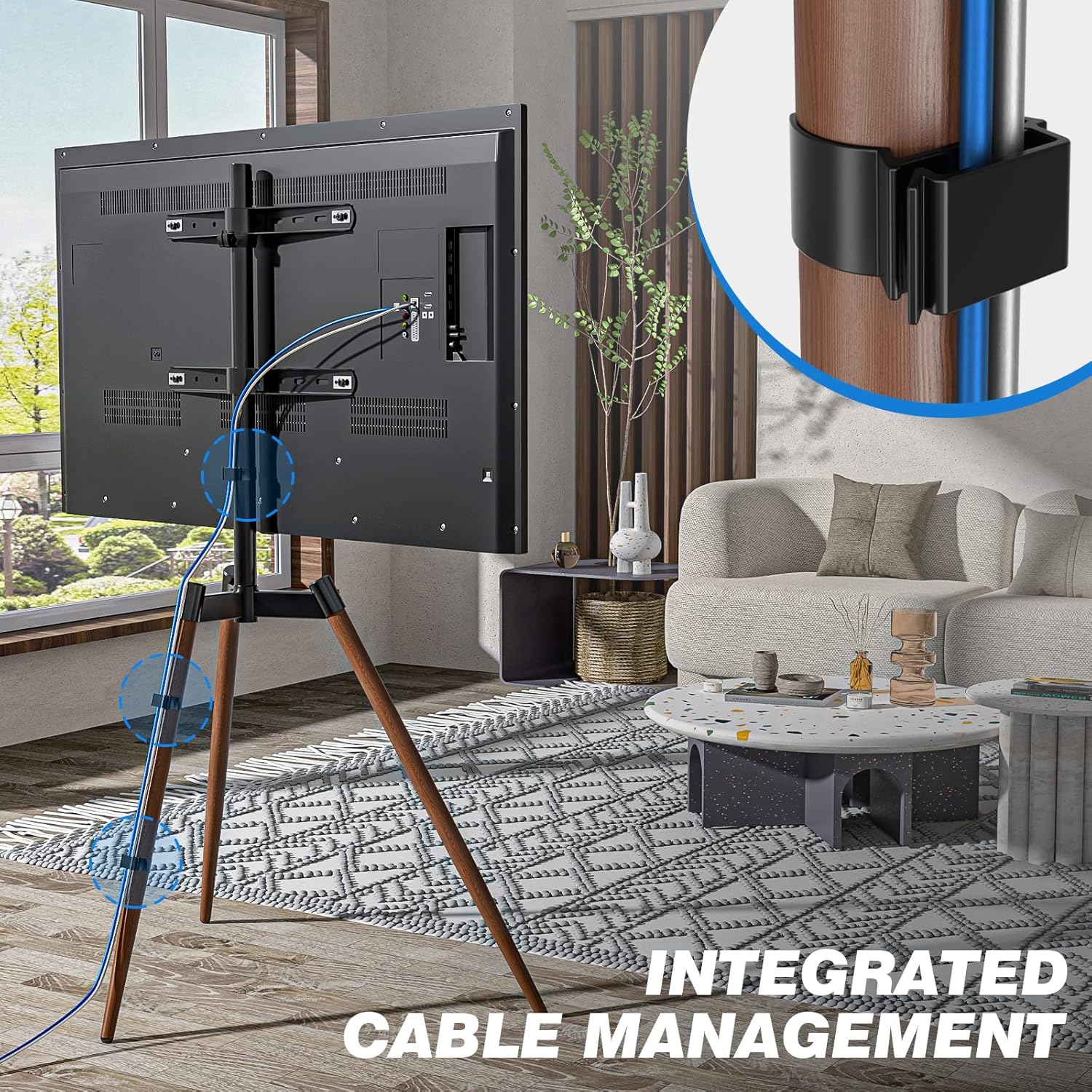

Descrición da imaxe: Unha traseira view of the TV stand in a living room setting, highlighting the integrated cable management. Blue lines illustrate how cables can be neatly routed and secured using clips along the central pole and legs, maintaining a tidy appearance.

Mantemento

To ensure the longevity and appearance of your Rfiver Artistic Easel TV Stand:

• Wipe surfaces with a soft, dry cloth. Avoid harsh chemicals or abrasive cleaners.
• Comprobe periodicamente todos os parafusos e conexións para asegurarse de que permanecen ben axustados. Volva a apertalos se é necesario.
• Keep the stand away from direct sunlight and extreme temperatures to prevent material degradation.

Resolución de problemas

• TV is not stable: Ensure all leg screws and TV mounting bracket screws are fully tightened. Verify the anti-tip kit is correctly installed.
• Difficulty adjusting height/swivel: Loosen the relevant locking mechanisms before attempting to adjust. Do not force adjustments.
• Os cables están desordenados: Re-route cables using the integrated cable management clips provided.

Especificacións

Descrición da imaxe: A detailed diagram illustrating the TV compatibility of the easel stand. It shows the overall dimensions of the stand (54.9 inches height, 33.6 inches base width), supported TV sizes (32-65 inches), maximum mount capacity (77 lbs), and compatible VESA hole patterns ranging from 100x100mm to 400x400mm.

Garantía e Soporte

For warranty information or technical support, please refer to the product packaging or contact Rfiver customer service directly. Keep your purchase receipt for any warranty claims.

Información de contacto: Please visit the official Rfiver website or refer to the contact details provided in your product packaging for support.
