Severin KA 4851 FILKA Instruction Manual

Introdución

This instruction manual provides detailed information on the safe and efficient operation, maintenance, and troubleshooting of your Severin KA 4851 FILKA filter coffee machine with integrated grinder. Please read this manual thoroughly before first use and keep it for future reference.

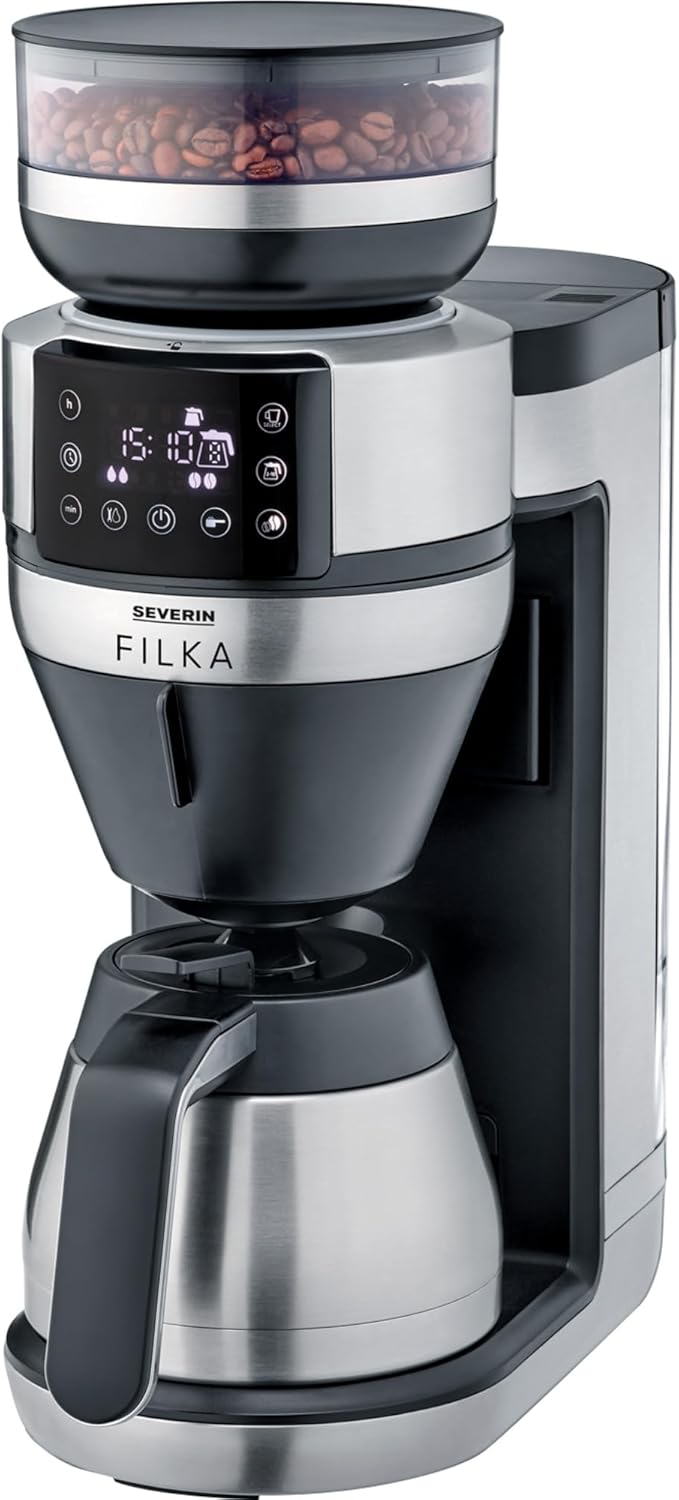

Image: The Severin KA 4851 FILKA coffee machine, featuring a sleek silver and black design with a bean hopper on top, a digital display, and a thermal carafe at the base.

Información de seguridade

Observe sempre as seguintes precaucións de seguridade para evitar lesións ou danos no aparello:

• Asegurar o voltage indicated on the rating plate matches your mains supply.
• Non mergullo o aparello, o cable ou o enchufe en auga ou outros líquidos.
• Manteña o aparello fóra do alcance dos nenos.
• Unplug the appliance from the mains socket when not in use, before cleaning, or in case of malfunction.
• Non faga funcionar o aparello cun cable ou enchufe danados.
• Use só accesorios e pezas de recambio orixinais.
• Do not open the housing of the appliance. Repairs should only be carried out by authorized personnel.
• O aparello está pensado só para uso doméstico.
• Avoid contact with hot surfaces, especially the brewing unit and hot water/coffee.

Produto rematadoview

Familiarize yourself with the components of your Severin KA 4851 FILKA coffee machine:

• 1. Bean Hopper: For storing whole coffee beans.
• 2. Grinder: Integrated conical burr grinder for fresh grinding.
• 3. Depósito de auga: Depósito extraíble para encher con auga doce.
• 4. Panel de control: Digital display and buttons for settings and operation.
• 5. Brewing Unit: Where coffee is brewed.
• 6. Permanent Gold Tone Filter: Reusable filter for ground coffee.
• 7. Drip Stop: Evita o goteo ao retirar a xerra.
• 8. Thermal Carafe: Insulated carafe to keep coffee warm.
• 9. Cup Control Platform: Adjustable platform for various cup and carafe sizes.

Image: A user's hand interacting with the Severin KA 4851 FILKA coffee machine, highlighting its slim design and the thermal jug. The image also points out features like "Easy Clean" and "Super Silent".

Configuración

1. Desembalaxe: Carefully remove all packaging materials and check for any damage. Keep packaging for future transport if needed.
2. Limpeza inicial: Before first use, clean all removable parts (water tank, bean hopper, permanent filter, thermal carafe) with warm water and a mild detergent. Wipe the main unit with a damp pano.
3. Posicionamento: Place the appliance on a stable, level, and heat-resistant surface, away from heat sources and direct sunlight. Ensure adequate ventilation.
4. First Use (Rinsing Cycle):
   • Fill the water tank with fresh cold water up to the MAX mark.
   • Place the empty thermal carafe with its lid closed on the warming plate.
   • Run a full brewing cycle without coffee beans or ground coffee to rinse the internal components. Discard the water. Repeat this process 2-3 times.

Instrucións de funcionamento

Brewing Coffee from Whole Beans

1. Encher o depósito de auga: Fill the water tank with fresh, cold water according to the desired number of cups. The "Cup Control" feature automatically draws the necessary amount of water.
2. Engadir grans de café: Open the lid of the bean hopper and fill it with whole coffee beans. Close the lid securely.
3. Inserir filtro: Ensure the permanent gold tone filter is correctly inserted into the brewing unit. You may also use a traditional paper filter if preferred.
4. Place Carafe/Cup: Place the thermal carafe on the warming plate for multiple cups, or adjust the Cup Control platform and place your single cup/travel mug for individual servings.
5. Seleccione Configuración: Use the control panel to select the desired coffee strength and number of cups. The machine offers flexible options for various container sizes.
6. Comezar a elaborar cervexa: Press the start button. The machine will grind the beans, brew the coffee, and dispense it into your chosen container.

Preparación de café a partir de café molido

1. Encher o depósito de auga: Enche o depósito de auga con auga fresca e fría.
2. Engadir café moído: Open the brewing unit and add the desired amount of pre-ground coffee into the permanent gold tone filter (or paper filter).
3. Place Carafe/Cup: Place the thermal carafe or your single cup/travel mug.
4. Seleccione Configuración: Use the control panel to select the ground coffee mode and desired strength/cups.
5. Comezar a elaborar cervexa: Preme o botón de inicio.

Funcións programables

The Severin KA 4851 FILKA features a programmable timer. Refer to the control panel instructions on the display to set the desired brewing time for automatic start.

Image: An illustration highlighting key features of the Severin KA 4851 FILKA, including "Cup Control" for automatic water measurement, "Flexible & Individual" 5-in-1 compatibility for various containers, "Hot & Strong" brewing temperature up to 96°C, and the "Gold Tone Filter" as a reusable alternative to paper filters.

Mantemento e Limpeza

Unha limpeza e un mantemento regulares garanten un rendemento óptimo e unha maior duración da súa máquina de café.

Limpeza diaria

• Despois de cada uso, desenchufe o aparello e deixe que se arrefríe.
• Remove and empty the permanent gold tone filter. Rinse it thoroughly under running water. It is dishwasher-safe.
• Empty and rinse the thermal carafe and its lid.
• Limpe o exterior do aparello cun anuncioamp pano. Non use produtos de limpeza abrasivos.
• Clean the drip tray and Cup Control platform.

Descalcificación

Depending on water hardness and frequency of use, descaling is necessary to prevent limescale buildup. The machine may indicate when descaling is required. Use a commercially available descaling agent suitable for coffee machines and follow the manufacturer's instructions. Always rinse the machine thoroughly with several cycles of fresh water after descaling.

Limpeza do moedor

Periodically clean the grinder to remove coffee oil residue and old grounds. Refer to the specific instructions in the appliance's digital display or a more detailed manual for grinder cleaning, as this may involve removing specific parts.

Resolución de problemas

Especificacións

• Marca: SEVERIN
• Número de modelo: KA 4851
• Cor: Brushed, matte, black, silver-colored
• Dimensións (L x W x H): 17 x 38 x 46 cm
• Peso: 8.2 quilogramos
• Capacidade: 350 Milliliters (Note: This capacity seems low for a coffee machine, likely refers to a specific component or is a typo in source data. Typically coffee machines measure capacity in liters or cups for the carafe.)
• Voltage: 230 voltios
• Material: Aceiro inoxidable
• Características especiais: Permanent filter, Programmable
• Tipo: Electric Filter Coffee Machine

Garantía e Soporte

For warranty information, technical support, or spare parts, please contact SEVERIN customer service directly. Refer to the official SEVERIN website or your purchase documentation for contact details and specific warranty terms applicable to your region.
