Manual do usuario da cámara IP para exteriores TENVIS IP602W

Introdución

The TENVIS IP602W is a robust outdoor IP camera designed for reliable surveillance. It offers broad compatibility, supporting not only Windows OS but also Mac OS and other platforms accessible via an internet browser. Its design facilitates easy installation, allowing for wall mounting and wireless connectivity.

Equipped with a 1/4 CMOS image sensor and a 6mm lens, the IP602W delivers video at a maximum frame rate of 30 frames per second, with a resolution of up to 640 x 480 pixels. For low-light and nighttime environments, the camera features 30 infrared LEDs, providing high levels of invisible light for clear visibility. Mobile viewing is supported across multiple platforms via 3G networks, including iPhone, Android, Windows Mobile, and Java phones, enabling remote monitoring from any location with internet access.

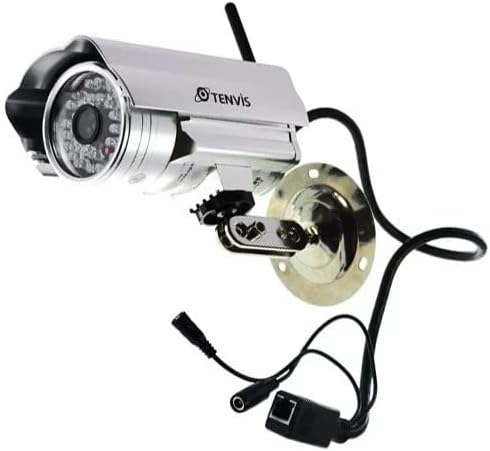

Image: The TENVIS IP602W Outdoor IP Camera, showcasing its durable build, integrated mounting bracket, and connectivity cables.

O que hai na caixa

Ao abrir o paquete, comprobe que estean incluídos todos os seguintes compoñentes:

• 1 x IP602W WiFi IP Camera
• 1 x Power Adaptor (AU Plug)
• 1 x antena WiFi
• 1 x soporte de montaxe
• 1 x CD (containing software/drivers)
• 1 x Screw Set for mounting
• 1 x Manual de usuario

Image: All components included in the TENVIS IP602W package, laid out for verification.

Características do produto

The TENVIS IP602W camera is equipped with several key features to enhance its performance and usability:

• Night Version: Integrated infrared LEDs provide clear visibility in low-light and complete darkness.
• Soporte sen fíos: Connects to your network via Wi-Fi for flexible placement.
• Metal and Waterproof Shell: Designed for outdoor use with a durable, weather-resistant casing.
• Detección de movemento: Configurable motion detection alerts for security monitoring.
• Compatibilidade entre plataformas: Soportes viewing and control from various operating systems and browsers, including Windows, Mac OS, Firefox, Chrome, and Safari.
• Móbil View: Access live feeds and controls from mobile devices via 3G network, supporting iPhone, Android, Windows Mobile, and Java phones.

Image: Visual representation of the TENVIS IP602W camera, emphasizing its key features such as night vision and wireless capabilities.

Configuración e instalación

Identificación de compoñentes

Familiarize yourself with the camera's ports and components before installation:

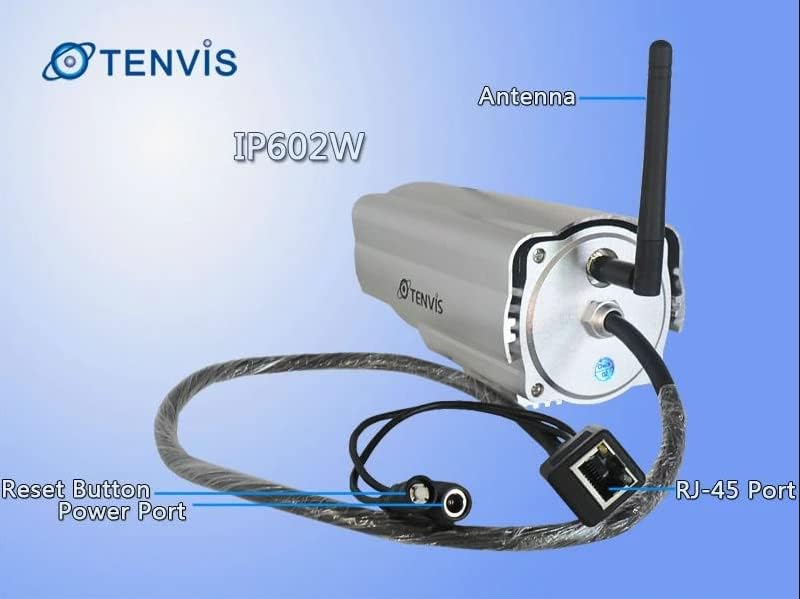

Imaxe: Detallada view of the TENVIS IP602W camera's rear, showing the antenna, RJ-45 Ethernet port, power input, and reset button.

• Antena: Para a conectividade de rede sen fíos.
• Porto RJ-45: For wired Ethernet connection to your router.
• Porto de alimentación: Conecte aquí o adaptador de enerxía incluído.
• Botón de reinicio: Úsase para restaurar a configuración predeterminada de fábrica.

Conexión de rede

The IP602W can connect to your network wirelessly or via an Ethernet cable. For initial setup, a wired connection is often recommended for stability.

Image: Network diagram showing how the IP602W camera connects to a router, allowing access from a LAN PC, Internet PC, and 3G phone.

1. Connect the camera to your router using an Ethernet cable (if using wired setup).
2. Connect the power adapter to the camera and plug it into an electrical outlet.
3. Allow the camera a few minutes to power on and initialize.
4. Refer to the included CD or the TENVIS website for software installation and detailed network configuration instructions, especially for wireless setup.

Montaxe

The camera comes with a mounting bracket for easy installation on a wall or other suitable surface. Ensure the mounting location provides a clear view and is within range of your Wi-Fi signal or Ethernet cable.

1. Choose a suitable outdoor location for mounting.
2. Use the mounting bracket as a template to mark drill holes.
3. Drill the necessary holes and insert wall anchors if required.
4. Fixe o soporte de montaxe á superficie cos parafusos proporcionados.
5. Attach the camera to the mounting bracket and adjust its angle for optimal viewing.

Operación

Once the camera is set up and connected to your network, you can begin monitoring. The IP602W supports various viewing methods:

• PC/Mac Access: Use the provided software or a compatible web browser (Firefox, Chrome, Safari) to access the camera's live feed and settings from your computer.
• Mobile Device Access: Download the TENVIS mobile application (if available) or use a compatible mobile browser on your iPhone, Android, Windows Mobile, or Java phone to view the camera remotely via a 3G network connection.
• Calidade do vídeo: The camera streams video at up to 640x480 resolution with a frame rate of 30fps, providing clear and smooth surveillance footage.
• Detección de movemento: Configure motion detection settings through the camera's interface to receive alerts when movement is detected in the monitored area.

Mantemento

Regular maintenance helps ensure the longevity and optimal performance of your TENVIS IP602W camera:

• Limpeza: Limpe periodicamente a lente e a carcasa da cámara cun pano suave eamp pano. Evite produtos de limpeza abrasivos ou solventes.
• Inspección de cables: Check all cables (power, Ethernet) for any signs of wear, damage, or loose connections.
• Actualizacións de firmware: Check the TENVIS official websitio periodicamente para ver se hai actualizacións de firmware dispoñibles. Manter o firmware actualizado pode mellorar o rendemento e a seguridade.
• Comprobacións ambientais: Ensure the camera's mounting remains secure and that no obstructions are blocking its field of view.

Resolución de problemas

If you encounter issues with your IP602W camera, try the following steps:

• Sen enerxía: Ensure the power adapter is securely connected to both the camera and a working electrical outlet.
• Sen conexión de rede:
  • For wired connection, check the Ethernet cable and router status.
  • For wireless connection, ensure the Wi-Fi antenna is properly attached and the camera is within range of your router. Verify Wi-Fi settings in the camera's configuration.
• Non se pode acceder á cámara: Verify the camera's IP address. Ensure your computer or mobile device is on the same network or has proper internet access for remote viewing. Check firewall settings on your computer.
• Baixa calidade do vídeo: Ensure the lens is clean. Check network bandwidth and signal strength.
• Restablecer a cámara: If issues persist, use the reset button (refer to Component Identification) to restore factory default settings. You will need to reconfigure the camera after a reset.

Especificacións

Garantía e Soporte

For warranty information, technical support, or further inquiries regarding your TENVIS IP602W camera, please refer to the official TENVIS website or contact their customer service directly. The included CD may also contain support contact details.
