HISTTON H6 Fanless Industrial Mini PC User Manual

1. Introdución

This manual provides essential information for the setup, operation, maintenance, and troubleshooting of your HISTTON H6 Fanless Industrial Mini PC. This compact and powerful system features an Intel Core i7-10810U processor, 16GB DDR4 RAM, and a 512GB M.2 SSD, running Windows 11 Pro. It is designed for various applications requiring stable performance and multiple connectivity options.

Image 1.1: The HISTTON H6 Fanless Industrial Mini PC.

2. Que hai na caixa

Verifica que todos os elementos estean presentes no paquete:

• 1 x HISTTON H6 Mini PC
• 1 x adaptador de alimentación
• 1 x Manual de usuario
• 1 x cable HDMI
• 1 x VESA Mount
• 8 x Screws for VESA Mount/Storage
• 2 x antenas WiFi
• 2 x SATA Cables (for 2.5-inch drive installation)

Image 2.1: Package contents including the Mini PC, power adapter, cables, antennas, and VESA mount.

3. Produto rematadoview

3.1 Características principais

• Procesador: Intel Core i7-10810U (10th Gen, 6 Cores, 12 Threads, up to 4.90 GHz)
• Gráficos: Intel UHD Graphics for 10th Gen Processors, supporting 4K resolution.
• Memoria: 16GB DDR4 RAM (expandable up to 64GB via 2 SO-DIMM slots)
• Almacenamento: 512GB M.2 NVMe PCIe 3.0x4 / SATA 3 SSD, with an additional 2.5-inch SATA HDD/SSD slot.
• Saída de visualización: Dual HD (HDMI) and one DP (DisplayPort) for triple 4K display support.
• Rede: Dual Gigabit Ethernet LAN (RJ-45), Dual-band 2.4G+5.0G WiFi (WIFI5), Bluetooth 4.2.
• Portos: 4x USB 3.0, 2x HD, 1x DP, 2x RS232/RS485 COM, 1x 14 Pin GPIO, 1x SPK (Audio Out), 1x MIC (Audio In).
• Refrixeración: Fanless design for silent operation and excellent heat dissipation.
• Sistema operativo: Pre-installed Windows 11 Pro 64-bit (activated).

3.2 Compoñentes internos

Image 3.1: Internal layout highlighting the M.2 2280 slot, DDR4 RAM slots, and SATA 3.0 slot.

The internal design allows for easy upgrades of RAM and storage. The system supports up to 64GB DDR4 RAM and includes slots for both M.2 NVMe/SATA SSDs and 2.5-inch SATA HDDs/SSDs.

3.3 Disposición de portos

Imaxe 3.2: Detallada view of the front and rear ports, including USB, HD, DP, LAN, COM, and GPIO.

The Mini PC offers a comprehensive set of ports for various industrial and personal applications. The front panel includes the power button, USB 3.0 ports, and GPIO/COM ports. The rear panel features audio jacks, Gigabit LAN ports, HD (HDMI) ports, a DisplayPort, USB 2.0 ports, and the DC power input.

4. Instrucións de configuración

4.1 Conexión inicial

1. Conectar antenas: Screw the two WiFi antennas onto the corresponding connectors on the rear of the Mini PC.
2. Conectar a pantalla: Connect your monitor(s) to the HD (HDMI) and/or DP (DisplayPort) outputs using the provided HDMI cable or a compatible DP cable. The device supports up to three displays simultaneously.
3. Conectar periféricos: Plug in your USB keyboard and mouse into the available USB ports.
4. Conectar á rede (opcional): For a wired connection, connect an Ethernet cable to one of the Gigabit LAN ports.
5. Conectar enerxía: Plug the power adapter into the DC IN port on the Mini PC, then connect the adapter to a power outlet.

4.2 Encendido

Press the power button located on the front panel of the Mini PC. The system will boot up, and Windows 11 Pro will load automatically.

4.3 Montaxe VESA (opcional)

The Mini PC can be mounted to the back of a VESA-compatible monitor or to a wall using the included VESA mount and screws. Attach the VESA bracket to the Mini PC, then secure the bracket to your desired mounting location.

5. Instrucións de funcionamento

5.1 Sistema Operativo

Your HISTTON H6 Mini PC comes with Windows 11 Pro pre-installed and activated. Follow the on-screen prompts for initial Windows setup, including user account creation and network configuration.

Image 5.1: The Mini PC running Windows 11 Pro.

5.2 Configuración de pantalla tripla

The Mini PC supports connecting up to three independent displays simultaneously via its two HD (HDMI) ports and one DP (DisplayPort). To configure multiple displays:

1. Connect all desired monitors to the available video output ports.
2. Fai clic co botón dereito no escritorio e selecciona "Configuración da pantalla".
3. Windows should detect all connected displays. You can arrange them, change their resolution, and set their orientation.
4. Choose between "Extend these displays" to have a larger desktop area or "Duplicate these displays" to mirror content.

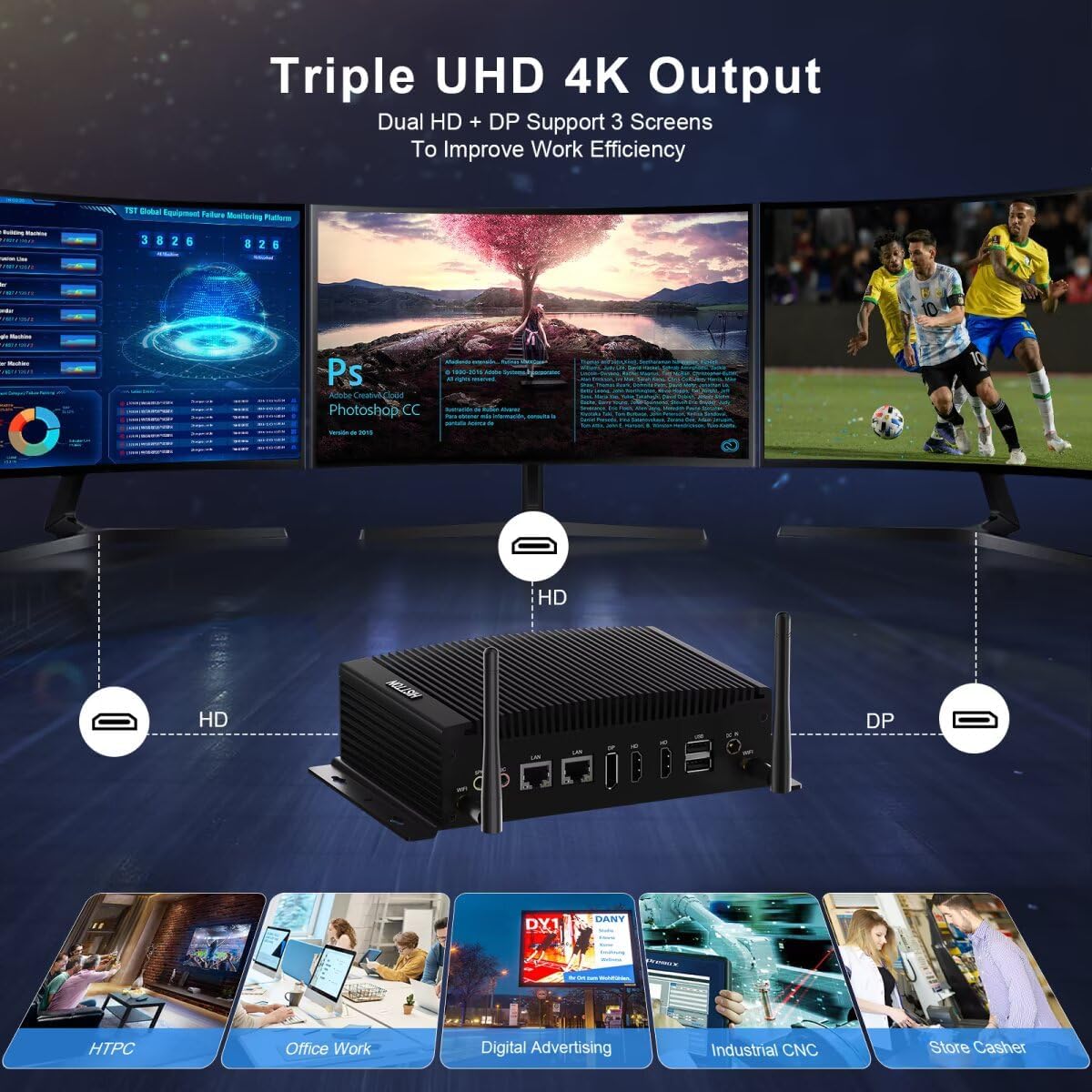

Image 5.2: Triple 4K display output configuration.

5.3 Conectividade de rede

The Mini PC offers both wired and wireless networking options:

• LAN con cable: Connect an Ethernet cable to either of the two Gigabit LAN ports for a stable, high-speed internet connection.
• Wi-Fi: The built-in Dual-band (2.4G+5.0G) Wi-Fi 5 module provides wireless internet access. To connect, click the Wi-Fi icon in the system tray, select your network, and enter the password.
• Bluetooth: Bluetooth 4.2 allows connection to compatible wireless peripherals such as keyboards, mice, and headphones. Access Bluetooth settings via the Windows Settings menu.

Image 5.3: High-speed network capabilities including Wi-Fi and Gigabit Ethernet.

5.4 GPIO and COM Ports

The 14-pin GPIO and 2x RS232/RS485 COM ports are designed for industrial applications and specialized peripheral connections. Refer to the specific documentation for your industrial equipment or custom applications for proper configuration and usage of these ports.

6. Mantemento

6.1 Limpeza

• Asegúrese de que o dispositivo estea apagado e desenchufado antes de limpalo.
• Use a soft, dry cloth to wipe the exterior of the Mini PC.
• Avoid using liquid cleaners or sprays directly on the device.

6.2 Actualizacións de software

Regularly update your Windows operating system and drivers to ensure optimal performance and security. Access Windows Update through the Settings menu.

6.3 Storage and RAM Upgrades

The Mini PC supports upgrades for both RAM and storage. If you plan to upgrade, ensure the device is powered off and unplugged. Refer to the internal component diagram (Image 3.1) for slot locations. Use compatible DDR4 SO-DIMM modules and M.2 2280 NVMe/SATA SSDs or 2.5-inch SATA drives.

7 Solución de problemas

• Sen enerxía: Asegúrate de que o adaptador de corrente estea conectado correctamente tanto ao Mini PC como a unha toma de corrente que funcione. Proba a toma de corrente con outro dispositivo.
• Sen visualización: Verify that the monitor is powered on and correctly connected to the Mini PC. Try a different video cable or monitor if available. Ensure the correct input source is selected on your monitor.
• Sen conexión a Internet: For wired connections, check the Ethernet cable and router status. For Wi-Fi, ensure antennas are attached, Wi-Fi is enabled in Windows, and you are connected to the correct network with the right password.
• Desaceleración do sistema: Check Task Manager for high CPU or RAM usage by specific applications. Ensure sufficient free storage space. Consider performing a disk cleanup or system scan for malware.
• Periférico non detectado: Try connecting the peripheral to a different USB port. Ensure drivers are installed if required.

8. Especificacións

9. Garantía e soporte

HISTTON provides customer support for its products. For technical assistance, warranty claims, or general inquiries, please use the following contact methods:

• Soporte de Amazon: For purchases made through Amazon, you can contact support by logging into your Amazon account, navigating to "Your Orders," and selecting "Ask Product Question" for your HISTTON Mini PC.
• Soporte posvenda: You may also send an email directly to the HISTTON after-sales team for dedicated support.

Image 9.1: Support contact options for HISTTON products.

9.1 Vídeo oficial do produto
