bennama 3D Wooden Puzzles Marble Run Set with Motor

Introdución

This instruction manual provides essential information for the assembly, operation, and maintenance of your bennama 3D Wooden Puzzles Marble Run Set. This mechanical model kit offers an engaging building experience and a fascinating display of continuous marble motion. Please read these instructions carefully before beginning assembly or operation.

Información de seguridade

• Aviso de pezas pequenas: This kit contains small parts which may pose a choking hazard. Keep out of reach of children under 3 years of age. Recommended age for assembly and use is 14 years and up.
• Bordes afiados: While pieces are laser-cut with smooth edges, exercise caution when handling to avoid splinters or minor cuts.
• Seguridade da batería: The motor requires batteries (not included). Ensure correct polarity when inserting batteries. Do not mix old and new batteries, or different types of batteries. Remove batteries if the product is not used for an extended period.
• Supervisión de adultos: Adult supervision is recommended during assembly, especially for younger users within the recommended age range.

O que hai na caixa

Your bennama 3D Wooden Puzzles Marble Run Set package should contain the following items:

• Pre-cut Wooden Puzzle Parts (168 pieces)
• Papel de lixa
• Motor eléctrico
• Manual de instrucións (este documento)
• Steel Marbles

Instrucións de montaxe

The assembly process for this mechanical model kit is designed to be both challenging and rewarding. Detailed, step-by-step illustrated instructions are provided in a separate booklet included with your kit. Please refer to that booklet for specific visual guidance.

Preparación

• Unpack all components and verify against the parts list in the detailed manual.
• Prepare a clean, well-lit workspace.
• Use the included sandpaper to gently smooth any rough edges on the wooden pieces if necessary.

Montaxe paso a paso

Follow the numbered steps and diagrams in the dedicated instruction booklet. Each piece is clearly marked and labeled to facilitate assembly. Patience and careful attention to detail are key to a successful build.

Image: Laser-cut wooden sheets containing the puzzle components before assembly.

Instrucións de funcionamento

Once assembled, your Marble Run Set is ready for operation. Follow these steps to enjoy the continuous marble movement.

Powering the Motor

• Locate the battery compartment for the electric motor.
• Insert the required batteries (typically AA or AAA, refer to the detailed manual for exact type) ensuring correct polarity.
• Acenda o motor usando o interruptor designado.

Initiating Marble Movement

• Place the provided steel marbles onto the designated starting point or collection tray.
• The motor will activate the lifting mechanism, transporting the marbles to the top of the track.
• Observe as the marbles navigate the various pathways, gears, and spirals.

Video: An assembled bennama Marble Run in operation, demonstrating the continuous movement of marbles through the mechanical system.

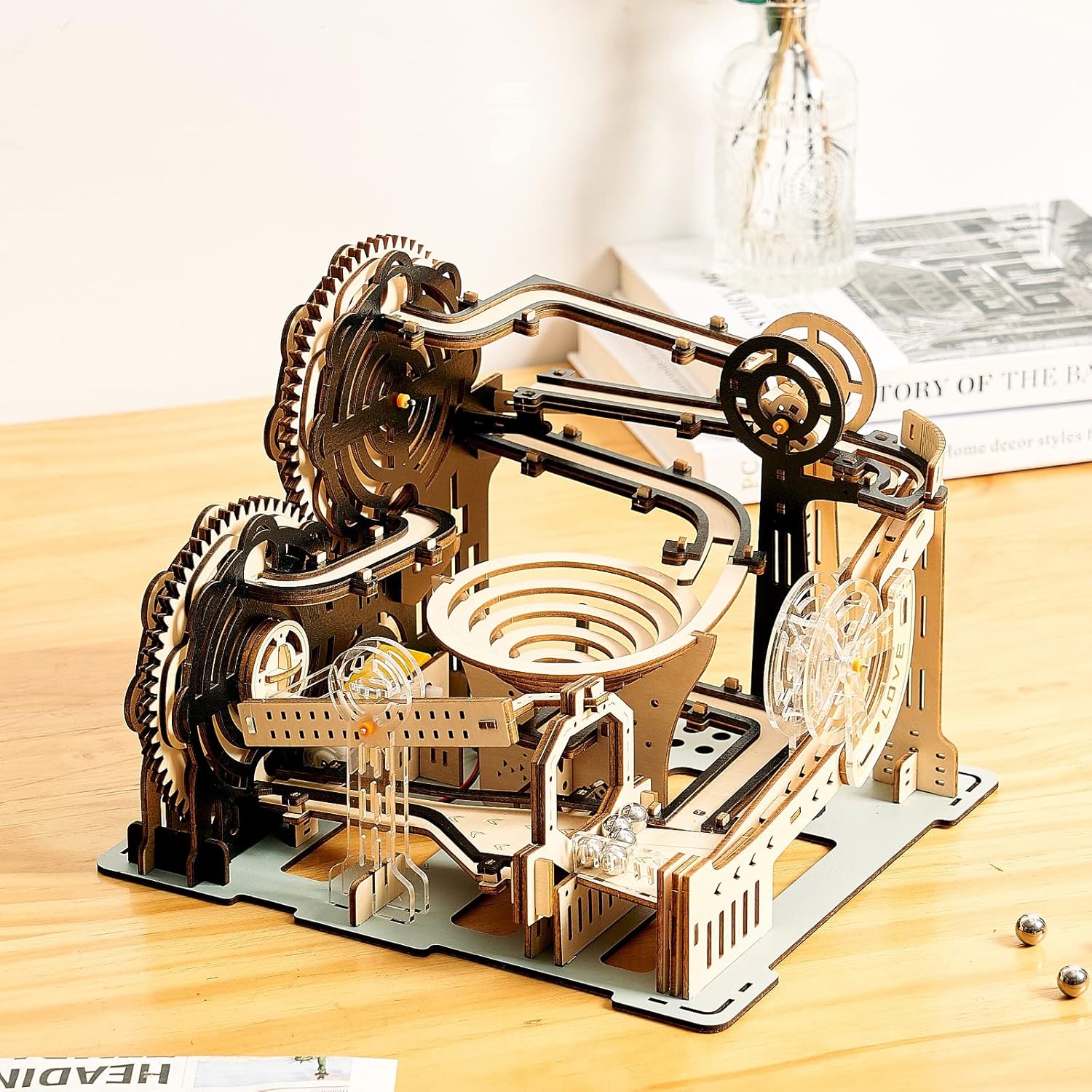

Image: The fully assembled bennama 3D Wooden Puzzles Marble Run Set, showcasing its intricate design and functional marble pathways.

Mantemento

To ensure the longevity and smooth operation of your Marble Run Set, follow these maintenance guidelines:

• Limpeza: Regularly dust the model with a soft, dry cloth to prevent accumulation that could hinder marble movement or gear function.
• Lubricación: If any moving parts (gears, tracks) experience friction, apply a small amount of wax (such as candle wax or the included wax, if any) to the contact points. Avoid liquid lubricants that could damage the wood.
• Almacenamento: Store the model in a dry environment away from direct sunlight and extreme temperature changes to prevent warping or damage to the wood.

Resolución de problemas

If you encounter any issues with your Marble Run Set, refer to the following common problems and solutions:

Marbles Not Moving Smoothly or Getting Stuck

• Comproba se hai obstáculos: Inspect all tracks and mechanisms for any small debris or misaligned pieces.
• Aliñación de pezas: Ensure all assembled parts are correctly aligned and securely fitted. Refer to the detailed instruction manual for correct positioning.
• Lubricación: Apply wax to any areas where marbles or gears experience friction.

Motor Not Functioning

• Comprobación da batería: Verify that batteries are inserted correctly with the proper polarity. Ensure batteries are fresh and fully charged.
• Posición do interruptor: Confirm the motor's power switch is in the "ON" position.
• Conexións: Check that all electrical connections to the motor are secure, as per the assembly instructions.

Especificacións

Garantía e Soporte

For any questions, concerns, or support regarding your bennama 3D Wooden Puzzles Marble Run Set, please contact the manufacturer directly through the retailer's platform or the official bennama website. Please retain your proof of purchase for warranty claims, if applicable. Specific warranty details may vary and are typically outlined in the product packaging or on the manufacturer's websitio.
