Five Bamboo 3-Tier Rolling Cart (H 80 cm) Instruction Manual

1. Instrucións de seguridade

Please read these safety instructions carefully before assembling and using the product. Failure to follow these instructions may result in injury or damage to the product.

• Asegúrese de que todas as pezas estean ben fixadas antes do uso.
• Do not allow children to play on, with, or around the trolley.
• Do not exceed the maximum weight capacity of 20 kg (44 lbs). Distribute weight evenly across the shelves.
• Avoid placing hot items directly on the bamboo surface without protection.
• Use the wheel stoppers to secure the cart in place when not in motion.

2. Produto rematadoview

The Five Bamboo 3-Tier Rolling Cart is a functional and aesthetic storage solution designed to keep your items organized and within reach. Its compact design makes it ideal for small spaces and corners.

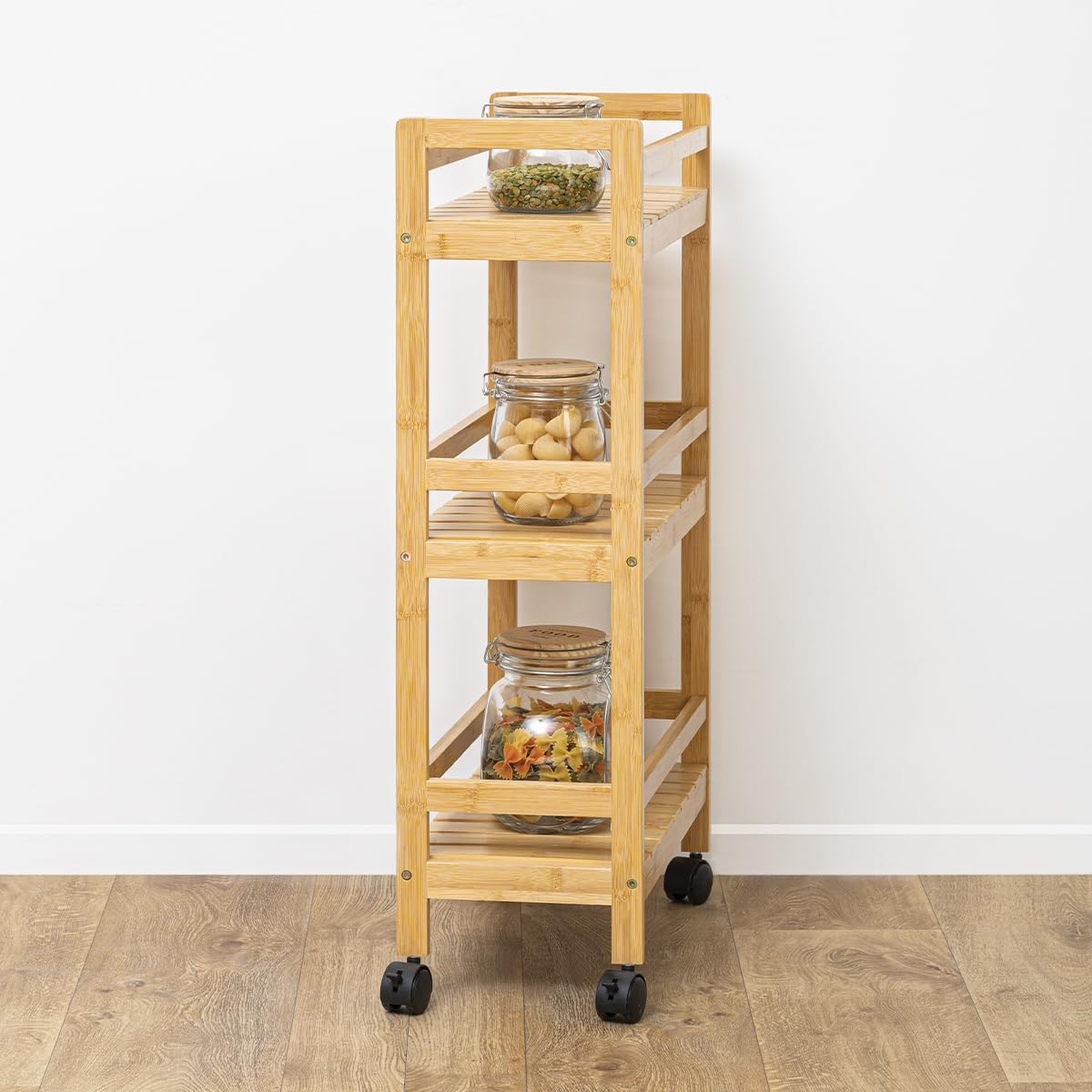

Figure 1: Five Bamboo 3-Tier Rolling Cart (Overall View)

This image displays the fully assembled Five Bamboo 3-Tier Rolling Cart, showcasing its natural bamboo finish and three spacious shelves. The cart is equipped with wheels for easy mobility.

Características principais:

• Deseño de 3 niveis: Proporciona ample espazo de almacenamento.
• Natural Bamboo Material: Duradeiro e esteticamente agradableasing.
• Rodas rodantes: Equipped with wheels for easy movement, two of which have stoppers for stability.
• Shelf Reinforcements: Designed to prevent items from falling off.
• Tamaño compacto: Ideal for optimizing space in various rooms.

Figura 2: Diagrama das características principais

This diagram highlights the key features of the cart, including the shelf reinforcements, wheels (two with stoppers), and its suitability for small spaces.

3. Contido do paquete

Before assembly, please ensure all components are present and undamaged. If any parts are missing or damaged, contact customer support.

• Bamboo side frames (2)
• Bamboo shelves (3)
• Wheels (4, including 2 with stoppers)
• Ferraxes de montaxe (parafusos, chave Allen)
• Manual de instrucións

Figure 3: Product in Original Packaging

This image shows the product as it appears in its original packaging, indicating the compact way it is shipped before assembly.

4. Instrucións de montaxe

Este produto require montaxe. Siga estes pasos con atención. Recoméndase montar o carro sobre unha superficie suave e limpa para evitar rabuñaduras.

1. Colocación de rodas: Carefully insert the four wheels into the designated holes at the bottom of one of the bamboo side frames. Ensure the two wheels with stoppers are placed on the same side for easier access.
2. Secure Shelves to First Frame: Align the first bamboo shelf with the lowest set of pre-drilled holes on the side frame with the wheels. Use the provided screws and Allen key to secure the shelf firmly. Repeat this for the middle and top shelves.
3. Attach Second Frame: Once all three shelves are attached to the first side frame, align the second bamboo side frame with the open ends of the shelves. Secure each shelf to the second frame using the remaining screws and Allen key.
4. Aperte todos os parafusos: Double-check all screws and tighten them to ensure the cart is stable and secure. Do not overtighten.

Figure 4: Detail of Wheel with Stopper

Esta imaxe ofrece un primeiro plano view of one of the cart's wheels, clearly showing the integrated stopper mechanism for locking the wheel in place.

5. Instrucións de funcionamento (uso)

• Mobilidade: To move the cart, release the stoppers on the wheels by pushing the lever upwards. Gently push or pull the cart to its desired location.
• Estabilidade: To secure the cart in place, push the levers on the two stopper wheels downwards until they lock. This prevents unintended movement.
• Cargando: Place items evenly on the three shelves. The shelf reinforcements are designed to help keep items from sliding off. Do not overload any single shelf or the entire cart beyond the 20 kg (44 lbs) maximum capacity.
• Colocación: The compact design is ideal for kitchens, bathrooms, offices, or any area requiring additional, movable storage.

6. Mantemento

Proper care will extend the life and appearance of your bamboo rolling cart.

• Limpeza: Wipe the bamboo surfaces with a soft, damp cloth. Avoid using abrasive cleaners or harsh chemicals, as these can damage the bamboo finish.
• Secado: After cleaning, dry the surfaces immediately with a clean, dry cloth to prevent water stains or moisture damage.
• Comprobacións periódicas: Comprobe periodicamente todos os parafusos e conexións para asegurarse de que permanecen ben axustados. Volva a apertalos se é necesario.
• Ambiente: Avoid prolonged exposure to direct sunlight or extreme humidity, which can affect bamboo.

7 Solución de problemas

If you encounter any issues with your rolling cart, refer to the following common problems and solutions:

8. Especificacións

Figura 5: Diagrama de dimensións do produto

This diagram illustrates the precise dimensions of the assembled rolling cart: 80 cm in height, 22 cm in depth, and 45.3 cm in width.

9. Garantía e soporte

Specific warranty information for this product is not provided in the available data. For warranty details, technical support, or to inquire about replacement parts, please contact the manufacturer, 5 five simply smart, or your retailer directly.

Please have your model number (FIVE23-189605) and purchase information ready when contacting support.
