Introdución
This manual provides detailed instructions for the installation, operation, maintenance, and troubleshooting of your INLAND TD510 1TB PCIe 5.0 M.2 SSD. Please read this manual thoroughly before using the product to ensure optimal performance and longevity.
Figure 1: INLAND TD510 1TB PCIe 5.0 M.2 SSD with integrated heatsink and fan.
Configuración e instalación
Proper installation is crucial for the performance of your INLAND TD510 SSD. Ensure your system meets the necessary requirements before proceeding.
Requisitos do sistema:
- PCIe 5.0 compatible M.2 slot (M-key, 2280 form factor)
- Compatible operating system (Windows 10/11, Linux, macOS)
- Available SATA power connector for the heatsink fan (if applicable)
Instalación física:
- Prepara o teu sistema: Apaga o ordenador e desconecta todos os cables. Abre a carcasa do ordenador.
- Locate the M.2 slot: Identify an available PCIe 5.0 M.2 slot on your motherboard. Refer to your motherboard's manual for exact location.
- Inserir o SSD: Gently insert the INLAND TD510 SSD into the M.2 slot at a 30-degree angle. Push down until it clicks into place.
- Protexer o SSD: Use the provided screw (or motherboard's M.2 screw) to secure the SSD to the motherboard standoff.
- Connect the heatsink fan: If your SSD model includes an active cooling fan, connect its power cable to an available SATA power connector from your power supply.
Figure 2: INLAND TD510 SSD showing the heatsink and the fan's power cable connection.
Figure 3: The INLAND TD510 SSD correctly installed in an M.2 slot on a motherboard.
Configuración inicial do sistema:
- Configuración da BIOS/UEFI: After physical installation, power on your computer and enter the BIOS/UEFI settings. Ensure the M.2 slot is enabled and configured for NVMe operation. Save changes and exit.
- Inicialización e formatación da unidade:
- Windows: Open Disk Management (right-click Start, select Disk Management). Locate the new SSD, initialize it (GPT partition style recommended), and then create a new simple volume, assigning a drive letter and formatting it (NTFS file system recommended).
- Linux: Usa ferramentas como
fdiskorgpartedto partition and format the drive (e.g., ext4 file sistema). - macOS: Use Disk Utility to erase and format the drive (APFS file system recommended).
Funcionamento do SSD
The INLAND TD510 SSD is designed for high-speed data access and storage. Once installed and formatted, it functions like any other storage drive in your system.
Uso xeral:
- Operating System Drive: For optimal system responsiveness, install your operating system on the TD510 SSD.
- Application and Game Storage: Install frequently used applications and games on the SSD to benefit from faster load times.
- Almacenamento de datos: Garda grande files, media, and projects that require quick access.
Consideracións de rendemento:
To achieve the advertised speeds of up to 9,500 MB/s sequential read and 8,500 MB/s sequential write, ensure your motherboard's M.2 slot supports PCIe Gen5 x4. Performance may vary based on system hardware, software, and usage patterns.
Figure 4: Illustrates the sequential read and write speeds of the INLAND TD510 SSD.
Mantemento
Regular maintenance helps ensure the longevity and consistent performance of your SSD.
Actualizacións de firmware:
Check the INLAND official website periodically for firmware updates. Firmware updates can improve performance, stability, and compatibility. Follow the provided instructions carefully when updating firmware.
Comando TRIM:
The INLAND TD510 supports the TRIM command, which helps maintain write performance over time by allowing the operating system to inform the SSD which data blocks are no longer in use and can be erased. Ensure TRIM is enabled in your operating system (it is usually enabled by default for SSDs).
Monitoring Drive Health (SMART):
The SSD supports SMART (Self-Monitoring, Analysis, and Reporting Technology) commands. Use compatible software utilities to monitor the drive's health status, temperature, and other parameters. This can help predict potential issues before they lead to data loss.
Heatsink and Fan Maintenance:
The integrated aluminum heatsink with an active fan is designed to disperse heat and maintain stable performance. Periodically inspect the heatsink for dust buildup and clean it gently with compressed air to ensure optimal airflow. Ensure the fan is spinning freely.

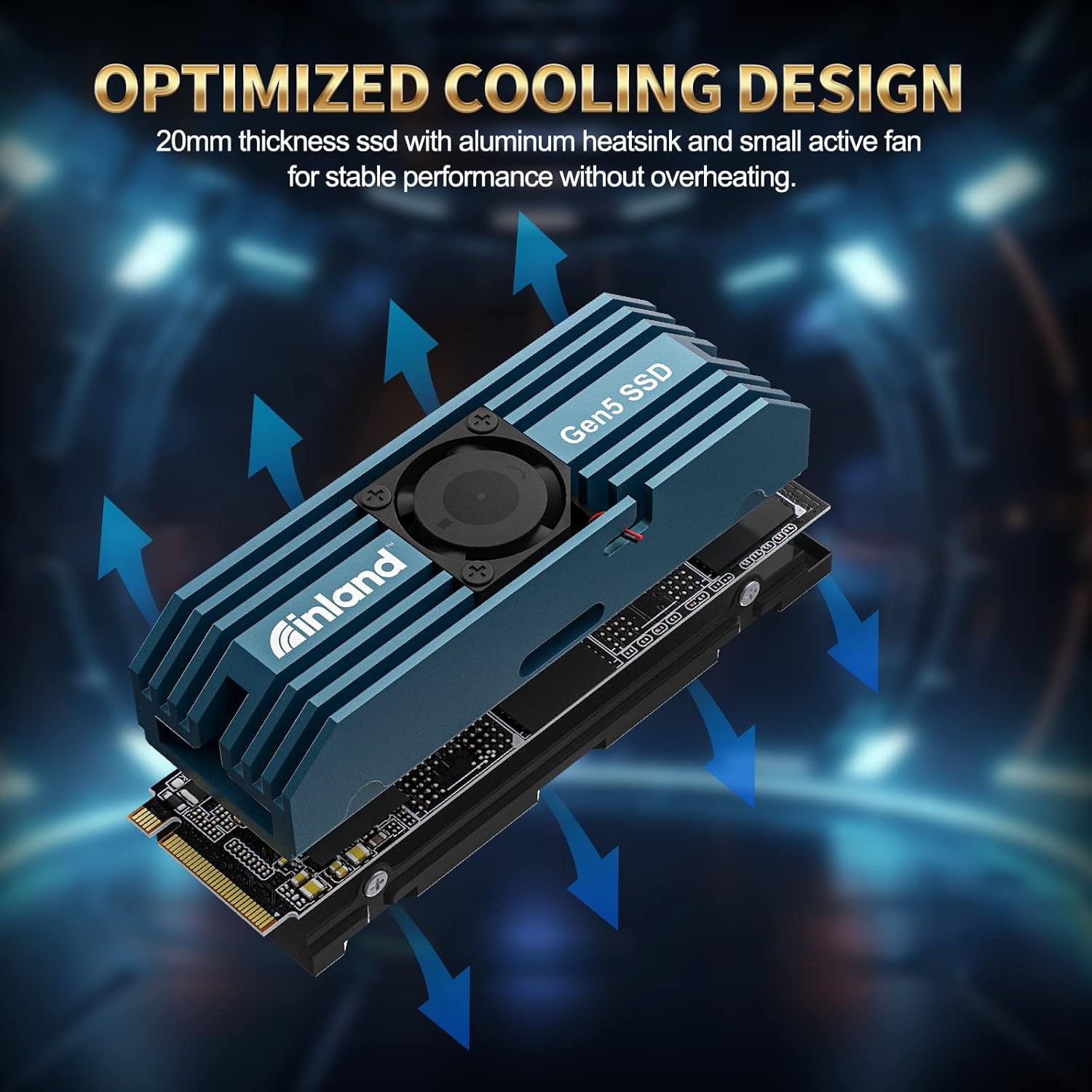

Figure 5: Optimized cooling design of the INLAND TD510 SSD, showing heat dissipation.
Resolución de problemas
If you encounter issues with your INLAND TD510 SSD, refer to the following common problems and solutions.
Unidade non detectada:
- Check physical connection: Ensure the SSD is correctly seated in the M.2 slot and secured. Verify the heatsink fan power cable is connected if applicable.
- BIOS/UEFI settings: Confirm the M.2 slot is enabled and configured for NVMe in your system's BIOS/UEFI.
- Instalación de controladores: Ensure your operating system has the necessary NVMe drivers installed. Windows 10/11 typically includes these by default.
- Compatibilidade da placa base: Verify your motherboard supports PCIe 5.0 NVMe SSDs.
Rendemento lento:
- Ranura PCIe: Ensure the SSD is installed in a PCIe 5.0 x4 M.2 slot. Using a lower generation slot (e.g., PCIe 4.0 or 3.0) will limit performance.
- TRIM enabled: Verify that the TRIM command is enabled in your operating system.
- Temperatura: Monitor the SSD's temperature using SMART tools. Excessive heat can cause thermal throttling, reducing performance. Ensure proper airflow around the heatsink.
- System resources: Other system components (CPU, RAM) or background processes can affect overall storage performance.
Sobrequecemento:
- Fluxo de aire: Asegúrate de que haxa un fluxo de aire axeitado dentro da carcasa do teu ordenador.
- Heatsink fan: Verify the heatsink fan is functioning correctly and free of obstructions.
- Carga de traballo: Sustained heavy workloads can generate significant heat. Ensure your system's cooling is sufficient for your usage.
Prevención da perda de datos:
While SSDs are generally reliable, it is always recommended to regularly back up important data to another storage device or cloud service to prevent data loss from unforeseen circumstances.
Especificacións
The following table outlines the key technical specifications for the INLAND TD510 1TB PCIe 5.0 M.2 SSD.
| Característica | Especificación |
|---|---|
| Marca | INTERIOR |
| Serie modelo | TD510 |
| Capacidade de almacenamento dixital | 1 TB (1024 GB) |
| Interface de disco duro | NVMe (PCIe Gen5 x 4) |
| Factor de forma | M.2 2280 |
| Tipo NAND | 232-Layer 3D TLC NAND |
| Velocidade de lectura secuencial | Ata 9,500 MB/s |
| Velocidade de escritura secuencial | Ata 8,500 MB/s |
| IOPS de lectura aleatoria | 1,300K IOPS |
| IOPS de escritura aleatoria | 1,400K IOPS |
| Total de bytes escritos (TBW) | 700 TBW |
| Tempo medio entre fallos (MTBF) | 1,600,000 horas |
| Disipador de calor | Integrated aluminum heatsink with active fan |
| DRAM | Si |
| Power Management Support | APST / ASPM / L1.2 |
| Funcións avanzadas | SMART, TRIM, Advanced Wear Leveling, Bad Block Management, Over-Provision |
| Dispositivos compatibles | Escritorio, consola de xogos, portátil, tableta |
| Plataforma de hardware | Linux, Mac, PC |
Figure 6: Key features including power management, stability, and reliability of the TD510 SSD.
Garantía e Soporte
Información da garantía:
The INLAND TD510 SSD comes with a Garantía limitada de 6 anosEsta garantía cobre defectos de materiais e fabricación en condicións normais de uso. Conserve o comprobante de compra para reclamacións de garantía.
Figure 7: The INLAND TD510 SSD offers a 6-year limited warranty and is built with shock-resistant, vibration-resistant, high-quality components.
Soporte técnico:
For technical assistance, warranty claims, or further inquiries, please visit the official INLAND website or contact their customer support. Contact details can typically be found on the product packaging or the manufacturer's websitio.
