FOREVER Sunari FLS-03 Solar LED Lamp Manual de usuario

1. Introdución

Thank you for choosing the FOREVER Sunari FLS-03 Solar LED Lamp. This manual provides essential information for the safe and efficient installation, operation, and maintenance of your solar-powered outdoor lighting solution. Please read these instructions carefully before use and retain them for future reference.

2. Información de seguridade

• Ensure the product is installed in a location where it receives direct sunlight for optimal charging.
• Non intente desmontar nin modificar o lampIsto pode anular a garantía e supoñer riscos para a seguridade.
• Manteña limpo o panel solar para garantir unha carga eficiente.
• This product is designed for outdoor use and is IP65 rated for water resistance. However, avoid submerging it in water.
• Manipula o produto con coidado para evitar danos.

3. Contido do paquete

Comprobe se o paquete contén os seguintes elementos:

• FOREVER Sunari FLS-03 Solar LED Lamp
• Accesorios de montaxe (parafusos, tacos)
• Manual de usuario

4. Características do produto

• Alimentación solar: Utilizes a powerful solar panel for energy efficiency, eliminating the need for external power sources.
• Instalación flexible: O lamp and solar panel are connected by a 5-meter cable, allowing for optimal placement of the solar panel in direct sunlight while the lamp can be mounted in a less exposed area.
• Motion and Dusk Sensor: Equipped with an integrated PIR motion sensor and a dusk-to-dawn sensor, the lamp activates automatically when motion is detected in low light conditions, conserving energy.
• Tres modos de iluminación: Offers three adjustable lighting modes to suit various needs and conserve energy.
• Deseño duradeiro: Features an IP65 waterproof rating, ensuring reliable performance in various outdoor weather conditions.
• Alto Brillo: Provides 600 lumens of bright, cold white LED light (6000K).

5. Configuración e instalación

The FOREVER Sunari FLS-03 is designed for easy installation. Follow these steps for optimal performance:

1. Escolle unha localización: Select a mounting location for the lamp that provides the desired illumination area. For the solar panel, choose a spot that receives maximum direct sunlight throughout the day. The 5-meter cable allows for separation between the lamp and the solar panel.
2. Montar o panel solar: Secure the solar panel using the provided mounting accessories (screws and wall plugs). Ensure it is angled to capture the most sunlight.
3. Monta o Lamp: Adxunta o lamp to your chosen surface (e.g., wall, balcony railing) using the mounting accessories. The lightweight design facilitates this process.
4. Conecte o cable: Connect the 5-meter cable from the solar panel to the lamp. Ensure the connection is secure.
5. Axustar Lamp Xefes: The two outer lamp heads can be adjusted up to 180 degrees horizontally, and the central lamp head has a motion sensor. Adjust them to cover your desired lighting area.

Image: The FOREVER Sunari FLS-03 Solar LED Lamp showing its dimensions and adjustable lamp heads. The solar panel measures 15cm in length and 10.5cm in width. The overall lamp width is 28.5cm, and the height of the lamp heads is 7.5cm. The outer lamp heads can rotate 180 degrees, and the central lamp head has a motion sensor.

Image: The solar panel absorbing sunlight to charge the internal battery, indicated by a battery icon. The image also highlights the 5-meter motion detection range.

6. Instrucións de funcionamento

The FLS-03 lamp operates automatically based on its integrated sensors:

• Dusk Sensor: O lamp will only activate when ambient light levels are low (at dusk or in darkness). During daylight hours, the solar panel charges the battery.
• Sensor de movemento (PIR): Cando o lamp is in an active mode (after dusk), it will turn on to full brightness when motion is detected within its range (up to 5 meters).
• Modos de iluminación: O lamp features three distinct lighting modes. These modes can typically be cycled through using a button on the device. Refer to the specific product labeling for detailed mode descriptions and selection. These modes are designed to optimize energy usage and light output.

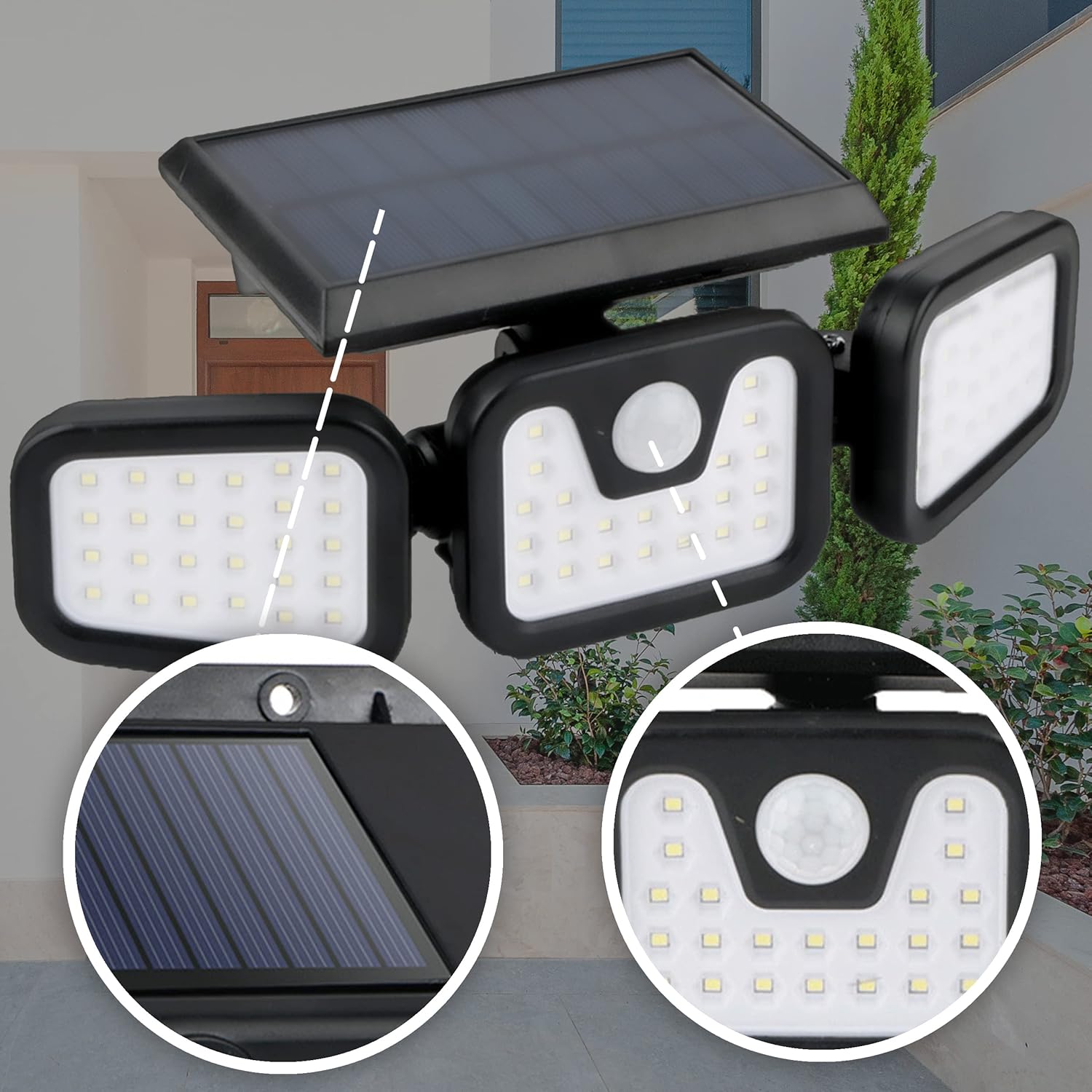

Imaxe: Primeiro plano view of the solar panel and the central lamp head, highlighting the integrated motion sensor for automatic activation.

7. Mantemento

To ensure the longevity and optimal performance of your solar LED lamp, siga estas pautas de mantemento:

• Limpar o panel solar: Limpe o panel solar regularmente cun pano suave eamp cloth to remove dust, dirt, and debris. A clean panel ensures maximum sunlight absorption and efficient battery charging.
• Inspeccionar conexións: Periodically check the cable connection between the solar panel and the lamp to ensure it remains secure and free from damage.
• Eliminar obstáculos: Ensure no trees, bushes, or other objects are blocking direct sunlight from reaching the solar panel, especially during seasonal changes.
• Protección ambiental: Mentres o lamp is IP65 rated, extreme weather conditions (e.g., heavy snow, prolonged freezing temperatures) may temporarily affect performance.

Image: The FOREVER Sunari FLS-03 Solar LED Lamp shown operating in rainy conditions, demonstrating its IP65 water resistance rating.

8 Solución de problemas

If your FOREVER Sunari FLS-03 lamp non funciona como se espera, teña en conta o seguinte:

• Lamp Not Turning On at Night:
  • Asegúrate de que o panel solar reciba suficiente luz solar directa durante o día (polo menos 6-8 horas).
  • Check if the solar panel is dirty or obstructed. Clean it if necessary.
  • Verify that the dusk sensor is not being affected by other light sources (e.g., streetlights, windows) that might trick it into thinking it's daytime.
  • Confirm the cable connection between the solar panel and the lamp é seguro.
• Light is Dim or Short-Lived:
  • The battery may not be fully charged. Ensure the solar panel has adequate sun exposure.
  • Consider seasonal changes; shorter daylight hours in winter may result in reduced performance.
• Motion Sensor Not Activating:
  • Asegúrate de que o sensor de movemento non estea obstruído.
  • Verifique que o lamp is in an active mode that utilizes the motion sensor.
  • Test the sensor's range (up to 5 meters).
• Lamp Stops Working After Prolonged Sun Exposure: Se o lamp ceases to function after extended periods of strong sunlight, contact customer support. Do not attempt to open or repair the device yourself.

9. Especificacións

10. Garantía e soporte

For warranty information or technical support, please contact the retailer where you purchased the FOREVER Sunari FLS-03 Solar LED Lamp or visit the official FOREVER websitio. Garda o comprobante de compra para reclamacións de garantía.
