1. Introdución
Grazas pola compraasing the SLuB 15000mAh Mobile Battery. This device is designed to provide reliable and fast charging for your electronic devices, featuring a large capacity, built-in cables, and an integrated AC adapter for ultimate convenience. Please read this manual carefully before use to ensure safe and optimal performance.
2. Información de seguridade
Para evitar lesións ou danos no dispositivo, observe as seguintes precaucións de seguridade:
- Non expoñas o dispositivo a temperaturas extremas, á luz solar directa nin ao lume.
- Non mergullo o dispositivo en auga ou outros líquidos.
- Non desmonte, repare nin modifique o dispositivo.
- Manter fóra do alcance dos nenos.
- Use só cables de carga e adaptadores compatibles.
- Evite deixar caer ou someter o dispositivo a fortes impactos.
- If the device swells, overheats, or emits an unusual odor, discontinue use immediately.
Figure 2.1: The mobile battery is equipped with multiple safety protection functions, including over-discharge, over-voltage, protección contra curtocircuítos, sobrecargas, sobrecorrentes e temperatura.
3. Produto rematadoview
The SLuB Mobile Battery is a versatile charging solution with multiple features:
- Gran capacidade: 15000mAh battery for multiple charges.
- Adaptador de CA integrado: Built-in foldable plug for direct wall charging.
- Cables incorporados: Includes Type-C, Lightning, and Micro USB cables.
- Múltiples portos de saída: USB-A and Type-C ports for additional device charging.
- Carga simultánea: Carga ata 5 dispositivos á vez.
- Carga rápida: Supports QC22.5W and PD20W fast charging protocols.
- Indicador LED: Four LED lights display remaining battery level.
- Compacto e portátil: Lightweight (290g) and pocket-sized design with a strap function.
- Proteccións de seguridade: Sobrevoltage, over-current, short-circuit, over-charge, over-discharge, and temperature protection.

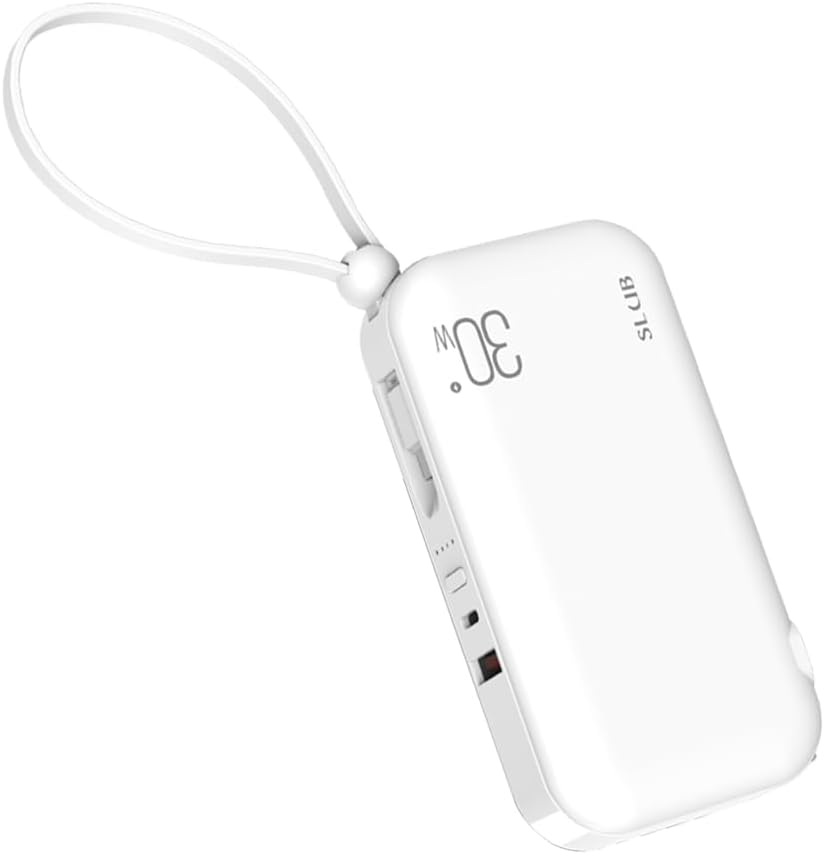

Figure 3.1: SLuB 15000mAh Mobile Battery in white, showing its compact design and strap.
Figure 3.2: Key features of the SLuB Mobile Battery, including 15000mAh capacity, 5-device simultaneous charging, fast charging, no external cables needed, high-quality core, built-in plug, and airline carry-on compatibility.
Figure 3.3: The compact size and foldable plug make the mobile battery highly portable and convenient for travel.
Figure 3.4: The mobile battery supports 110-240V input, making it suitable for worldwide use, and is approved for airline carry-on.
4. Configuración
4.1 Initial Charging of the Mobile Battery
Before first use, it is recommended to fully charge your SLuB Mobile Battery.
- Usando a ficha de CA:
- Fold out the integrated AC plug.
- Plug the mobile battery directly into a wall outlet (110V-240V compatible).
- The LED indicator lights will illuminate, showing the charging progress. All four lights will be solid when fully charged.
- Using the Type-C Input Port:
- Connect a Type-C charging cable (not included for input) to the Type-C input port on the mobile battery.
- Connect the other end of the cable to a compatible USB charger.
- The LED indicator lights will show charging progress.
Figure 4.1: The mobile battery can be charged via its built-in AC plug or the Type-C input port.
The LED indicator lights show the remaining battery level:
- ●○○○: 1-25%
- ●●○○: 26-50%
- ●●●○: 51-75%
- ●●●●: 76-100%
Figure 4.2: Visual representation of the LED battery level indicator.
5. Instrucións de funcionamento
5.1 Carga dos seus dispositivos
The SLuB Mobile Battery offers multiple ways to charge your devices:
- Usando cables integrados:
The power bank includes three built-in cables: Lightning (for iPhone), Micro USB, and Type-C. Simply pull out the appropriate cable and connect it to your device.

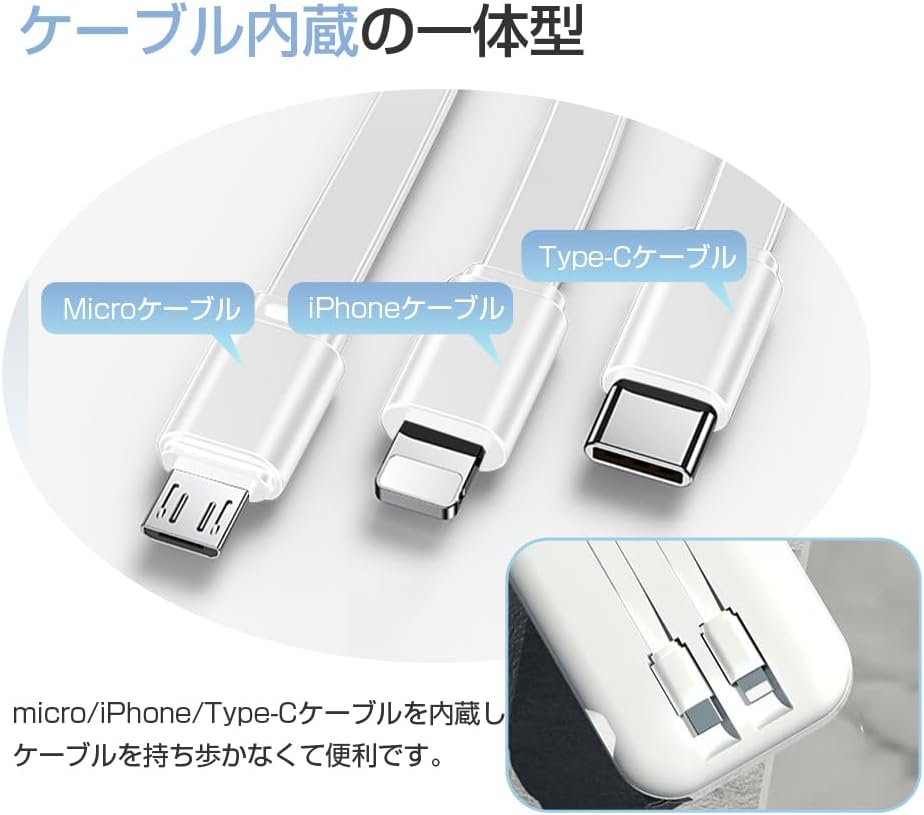

Figure 5.1: The three built-in cables (Micro USB, Lightning, Type-C) for convenient charging.
- Usando o porto de saída USB-A:
Connect your device's USB-A charging cable to the USB-A output port on the power bank. This port supports up to 22.5W fast charging.
- Usando o porto de saída tipo C:
Connect your device's Type-C charging cable to the Type-C output port on the power bank. This port supports up to 20W PD fast charging.
You can charge up to 5 devices simultaneously using a combination of the built-in cables and the USB-A/Type-C output ports.
Figura 5.2: Examples of fast charging performance with the Type-C PD output for iPad Pro and USB-A QC output for Xiaomi 10 Pro.
Figure 5.3: The built-in Type-C cable supports fast charging for compatible devices.
6. Mantemento
- Limpeza: Limpe o dispositivo cun pano suave e seco. Non empregue produtos químicos agresivos nin produtos de limpeza abrasivos.
- Almacenamento: Store the mobile battery in a cool, dry place away from direct sunlight and extreme temperatures.
- Saúde da batería: For optimal battery life, fully charge and discharge the battery at least once every three months if not in regular use.
7 Solución de problemas
| Problema | Causa posible | Solución |
|---|---|---|
| O dispositivo non se está cargando. | Low battery on power bank; incorrect cable/port; device not compatible. | Recharge the power bank; ensure correct cable and port are used; check device compatibility. |
| Carga lenta. | Cable not supporting fast charge; multiple devices charging simultaneously; device not supporting fast charge. | Use a fast-charging compatible cable; try charging fewer devices; ensure your device supports fast charging protocols. |
| Os indicadores LED non funcionan. | Power bank is completely discharged or faulty. | Try charging the power bank for an extended period. If issue persists, contact support. |
| Power bank overheating. | Overload; faulty unit. | Disconnect all devices and allow to cool. If overheating persists or is severe, discontinue use and contact support. |
8. Especificacións
| Característica | Detalle |
|---|---|
| Número de modelo | PB-807 |
| Capacidade da batería | 15000mAh / 55.5Wh |
| Entrada AC | 110-240 V ~ 50/60 Hz 0.3 A |
| Entrada tipo C | 5V-3A, 9V-2A, 12V-1.5A |
| Saída tipo C | 5V-3A, 9V-2.22A, 12V-1.67A |
| iPhone/Micro Output Cable | 5V-2A |
| Type-C Output Cable | 5V-3A, 9V-2A, 12V-1.5A |
| Saída USB-A | 5V-4.5A, 9V-2A, 12V-1.5A |
| Tipo de batería | Batería de polímero |
| Temperatura de funcionamento | -10 °C ~ 40 °C |
| Peso do produto | 290 g |
| Dimensións | 17.4 x 9 x 3.4 cm |
Figura 8.1: Máisview of product packaging contents and detailed technical specifications.
9. Garantía e soporte
For warranty information and customer support, please refer to the contact details provided with your purchase or visit the official SLuB websitio. Garde o recibo da compra como proba de compra para calquera reclamación de garantía.
For further assistance, you may contact SLuB customer service via their Amazon store page: SLuB Store on Amazon.co.jp
