Durastar DRAW06F1B Mini Split Indoor Unit Manual de usuario

1. Introdución

This manual provides essential information for the safe and efficient operation, installation, and maintenance of your Durastar DRAW06F1B Mini Split Wall Mount Indoor Unit. This unit is designed to provide both cooling and heating capabilities for your space. Please read this manual thoroughly before installation and operation, and keep it for future reference.

Nota importante: This is an indoor evaporator unit only. An outdoor condenser unit is required for proper functionality. Mini split systems must be installed by a qualified HVAC professional in accordance with all local codes and regulations. Failure to do so will void the manufacturer's warranty.

2. Información de seguridade

Your safety and the safety of others are very important. Please read and follow all safety messages outlined in this manual.

• Instalación profesional necesaria: Installation, maintenance, and repair of this unit must be performed by a certified HVAC technician. Improper installation can lead to electric shock, fire, water leakage, or other serious injuries.
• Fonte de alimentación: Ensure the power supply matches the unit's specifications (208 / 230 Volt). Always disconnect power before performing any maintenance or service.
• Conexión a terra: A unidade debe estar debidamente conectada a terra para evitar descargas eléctricas.
• Liquidacións: Maintain adequate clearances around the indoor unit for proper airflow and maintenance access.
• Nenos e animais: Manteña os nenos e as mascotas lonxe da unidade durante o funcionamento e o mantemento.
• Materiais inflamables: Non coloque materiais inflamables nin pulverice aerosois preto da unidade.

3. Product Features and Technologies

The Durastar DRAW06F1B unit incorporates several features designed for enhanced comfort and efficiency:

• Swing/Gentle Airflow: Allows for optimized air circulation and direction throughout the room, ensuring even temperature distribution.
• Modo de suspensión: Reduces energy consumption by gradually adjusting the temperature and automatically turning off after 8 hours, returning to normal operation.
• Wireless Remote Control with "Follow Me" Technology: The remote control features a built-in temperature sensor. When activated, the unit will optimize the temperature based on the remote's location, providing maximum comfort where you are.
• Reinicio automático: In the event of a power failure, the unit will automatically restart with the previously set operating parameters once power is restored.
• 24-Hour Timer Feature: Allows you to program the unit to automatically turn on or off at a specified time within a 24-hour period.
• Anti-Corrosive Fin Coating (Golden Fin Coating): Both indoor and outdoor units feature this specialized coating to protect against corrosion, enhancing the longevity and reliability of the system.
• Funcionamento silencioso: Engineered for low noise levels, ensuring a peaceful indoor environment.

4. Configuración e instalación

As previously stated, the installation of this mini split indoor unit requires professional expertise. This section provides a general overview for informational purposes.

4.1. Comprobación previa á instalación

• Verificar que todos os compoñentes estean presentes e sen danos.
• Ensure the installation location meets clearance requirements and can support the unit's weight.
• Confirm compatibility with your outdoor condenser unit.

4.2. Pasos de instalación (máis alá)view para profesionais)

1. Mounting Plate Installation: Securely attach the mounting plate to the wall, ensuring it is level.
2. Wall Hole Drilling: Drill a hole through the wall for refrigerant piping, drain hose, and electrical wiring.
3. Piping and Wiring Connection: Connect the refrigerant lines, drain hose, and electrical cables between the indoor and outdoor units. This step requires specialized tools and knowledge.
4. Indoor Unit Mounting: Carefully mount the indoor unit onto the mounting plate.
5. Vacuuming and Refrigerant Charging: Evacuate the refrigerant lines and charge the system with the correct amount of refrigerant.
6. Test Run: Perform a test run to ensure proper operation and check for leaks.

Image: The Durastar mini split indoor unit seamlessly integrated into a modern living room, demonstrating its wall-mounted design. Adjacent to this, an outdoor condenser unit is shown installed on the side of a house, illustrating the complete system setup.

5. Instrucións de funcionamento

Your Durastar mini split unit is operated primarily via the wireless remote control.

Image: The Durastar indoor unit, a sleek white rectangular device designed for wall mounting, is shown alongside its compact wireless remote control. The remote features a digital display and various buttons for mode selection, temperature adjustment, and fan speed.

5.1. Funcións de control remoto

• Botón de encendido: Acende ou apaga a unidade.
• Botón de modo: Cambia ciclicamente polos modos de funcionamento: Automático, Refrixeración, Secado, Quecemento e Ventilador.
• Botóns de axuste da temperatura (frechas arriba/abaixo): Aumenta ou diminúe a temperatura configurada.
• Botón de velocidade do ventilador: Axusta a velocidade do ventilador (Automático, Baixa, Media, Alta).
• Botón de balance: Activates or deactivates the automatic louver swing for even air distribution.
• Botón de durmir: Activates Sleep Mode for energy-efficient nighttime operation.
• Botón do temporizador: Axusta o temporizador de acendido/apagado de 24 horas.
• "Follow Me" Button: Activates the "Follow Me" function, allowing the unit to sense temperature at the remote's location.

5.2. Funcionamento básico

1. Point the remote control directly at the indoor unit.
2. Prema o botón de acendido para acender a unidade.
3. Press the Mode button to select your desired operating mode (e.g., Cool for cooling, Heat for heating).
4. Use the Temperature Adjustment buttons to set your desired room temperature.
5. Adjust the Fan Speed or activate the Swing function as needed for comfort.

6. Mantemento

Regular maintenance ensures optimal performance and longevity of your mini split system. Always disconnect power to the unit before performing any maintenance.

6.1. Limpeza do filtro de aire

• The air filters should be cleaned every two weeks, or more frequently depending on usage and air quality.
• Abra o panel frontal da unidade interior.
• Retire os filtros de aire.
• Limpa os filtros cun aspirador ou lávaos con auga morna e deterxente suave.
• Deixe que os filtros sequen completamente antes de volvelos instalar.

6.2. Coil Cleaning

• The indoor coil should be inspected and cleaned annually by a professional technician.
• The outdoor coil should also be cleaned regularly to remove dirt, leaves, and debris.

6.3. Inspección Xeral

• Check for any unusual noises or odors.
• Ensure the drain hose is clear and not obstructed.
• Inspeccione as conexións eléctricas para detectar calquera signo de desgaste ou dano.

7 Solución de problemas

Before contacting customer support, please refer to the following common issues and solutions. For complex problems, always consult a qualified technician.

8. Especificacións

Key technical specifications for the Durastar DRAW06F1B Mini Split Indoor Unit:

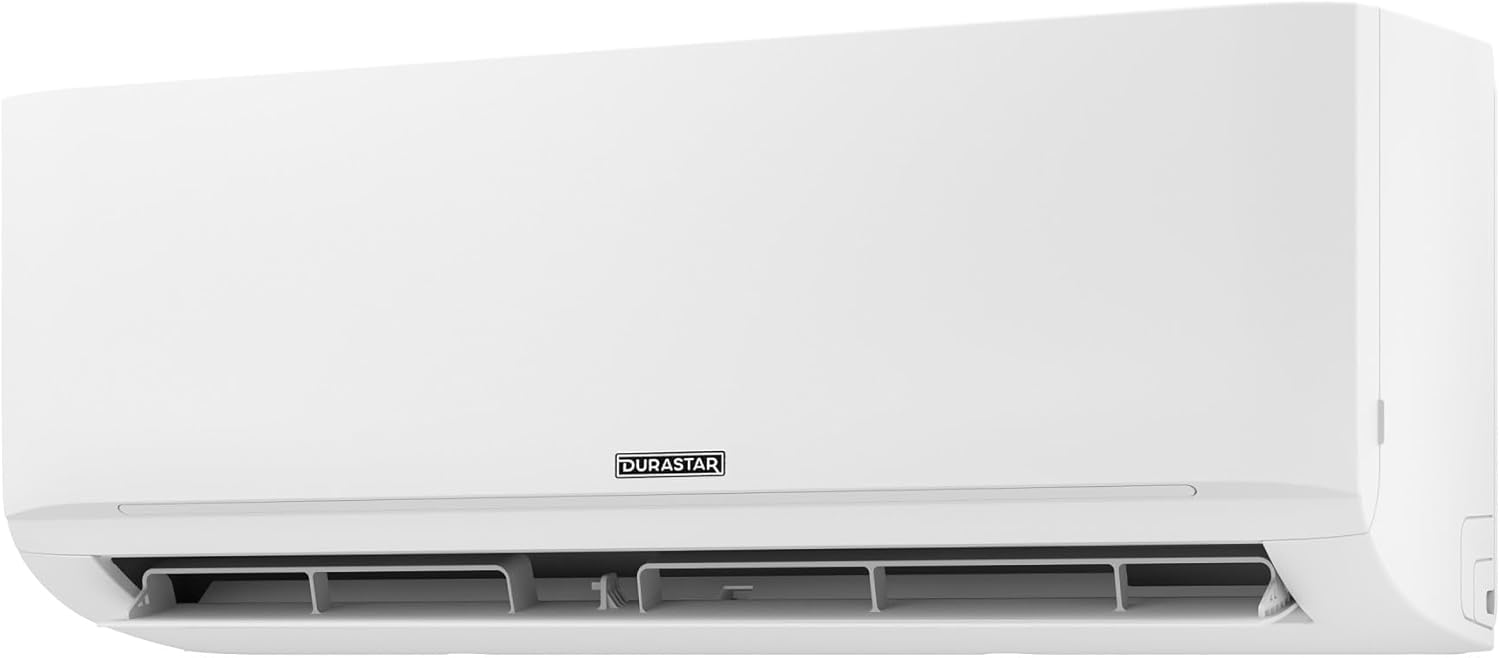

Imaxe: Un profesional secundariofile view of the Durastar indoor unit, highlighting its slim design and wall-mounting capabilities.

9. Garantía e soporte

Durastar products are engineered for durability and performance.

9.1. Información da garantía

Please note that any manufacturer warranty for this mini split unit will be voided if the installation is not performed by a professional in accordance with local codes. For specific warranty terms and conditions, please refer to the warranty card included with your product or contact Durastar customer service.

9.2. Atención ao cliente

For questions, assistance with multi-zone systems, or technical support, please contact Durastar experts at:

Teléfono: (855) 484-3292

Our support team is available to assist you with any inquiries regarding your Durastar mini split system.
