1. Introdución
This manual provides essential information for the setup, operation, maintenance, and troubleshooting of your GenMachine Mini PC AMD Ryzen 5 3550H. Please read this manual thoroughly before using the product to ensure optimal performance and longevity.
The GenMachine Mini PC is a compact yet powerful computing solution designed for a variety of tasks, including gaming, office work, and design. It features an AMD Ryzen 5 3550H processor, 16GB DDR4 RAM, and a 512GB SSD with M.2 NVMe support, offering high performance in a small form factor.
Figura 1.1: Fronte view of the GenMachine Mini PC, showcasing its compact white design with front USB ports and power button.
2. Configuración
2.1 Desembalaxe da caixa
Carefully unpack all components from the packaging. Ensure all items listed in the packing list are present.

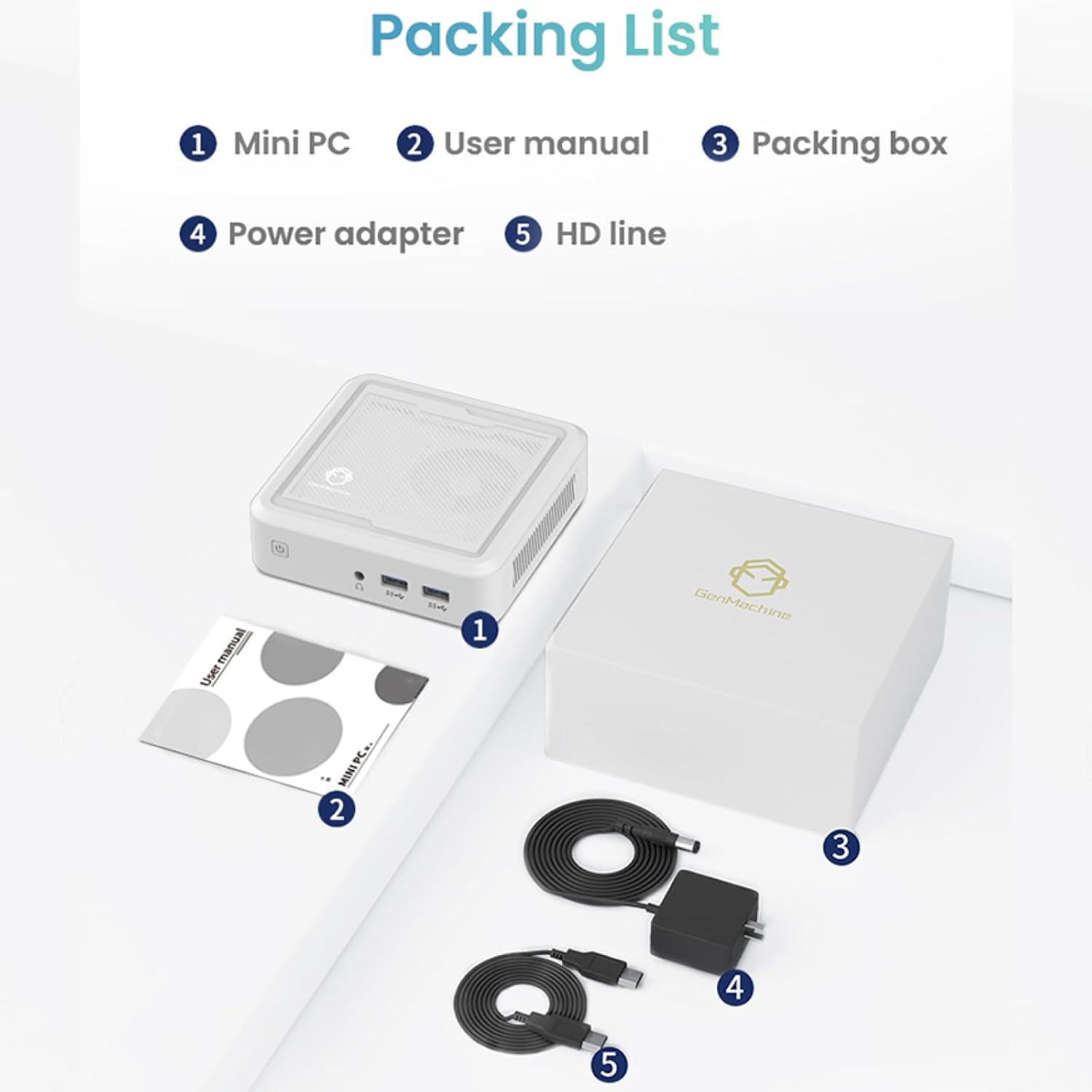

Figure 2.1: The packing list includes the Mini PC unit, user manual, packing box, power adapter, and HD line (HDMI cable).
2.2 Conexión de periféricos
Connect your monitor(s), keyboard, mouse, and other necessary peripherals to the Mini PC. The device supports multiple display options via HDMI and DisplayPort.
- Connect your monitor(s) to the HDMI or DisplayPort outputs.
- Connect your keyboard and mouse to the available USB 3.0 ports.
- For wired network access, connect an Ethernet cable to the LAN port.
- Connect the power adapter to the Mini PC and then to a power outlet.
Figura 2.2: Máisview of the Mini PC's interfaces, including power supply, network interface (LAN), DisplayPort (DP), HDMI interface, USB interfaces, and audio port.
2.3 Encendido inicial
Press the power button located on the front of the Mini PC. The system will boot up. Follow the on-screen instructions for initial operating system setup.
3. Funcionamento
3.1 Uso xeral
The GenMachine Mini PC is designed for versatile use, from demanding gaming sessions to professional design work and everyday office tasks. Its AMD Ryzen 5 3550H processor ensures smooth performance across various applications.
Figure 3.1: The AMD Ryzen 5 3550H processor features 4 cores, 8 threads, and a boost clock up to 3.7GHz, providing powerful performance for various computing needs.
3.2 Configuración de varias pantallas
Utilize the HDMI and DisplayPort outputs to connect up to two 4K displays simultaneously, enhancing productivity and immersive experiences.
Figure 3.2: The Mini PC supports dual 4K displays via HD (HDMI) and DP (DisplayPort) outputs, allowing for an expanded workspace.
3.3 Expansión de almacenamento e memoria
The Mini PC comes with 16GB DDR4 RAM and a 512GB SSD. It supports dual-channel DDR4 memory up to 64GB and M.2 NVMe SSDs up to 2TB for significant storage and performance upgrades.
Figure 3.3: Illustration showing support for up to 64GB DDR4 RAM and 3000MB/s M.2 NVMe SSD (PCIe 3.0 X4) for enhanced performance and storage.
3.4 Conectividade
The Mini PC includes WiFi 5 and Bluetooth 4.2 for wireless connectivity, ensuring high-speed internet access and seamless pairing with wireless peripherals.
3.5 Demostración en vídeo
Watch this official video from GenMachine for a visual overview of the Mini PC's features and capabilities.
Video 3.1: An official video demonstrating the GenMachine Mini Personal Desktop Computer, highlighting its compact size, various interfaces, and suitability for office and media server use.
4. Mantemento
4.1 Limpeza
Regularly clean the exterior of the Mini PC with a soft, dry cloth. Use compressed air to gently clear dust from the ventilation grilles to ensure proper airflow and prevent overheating.

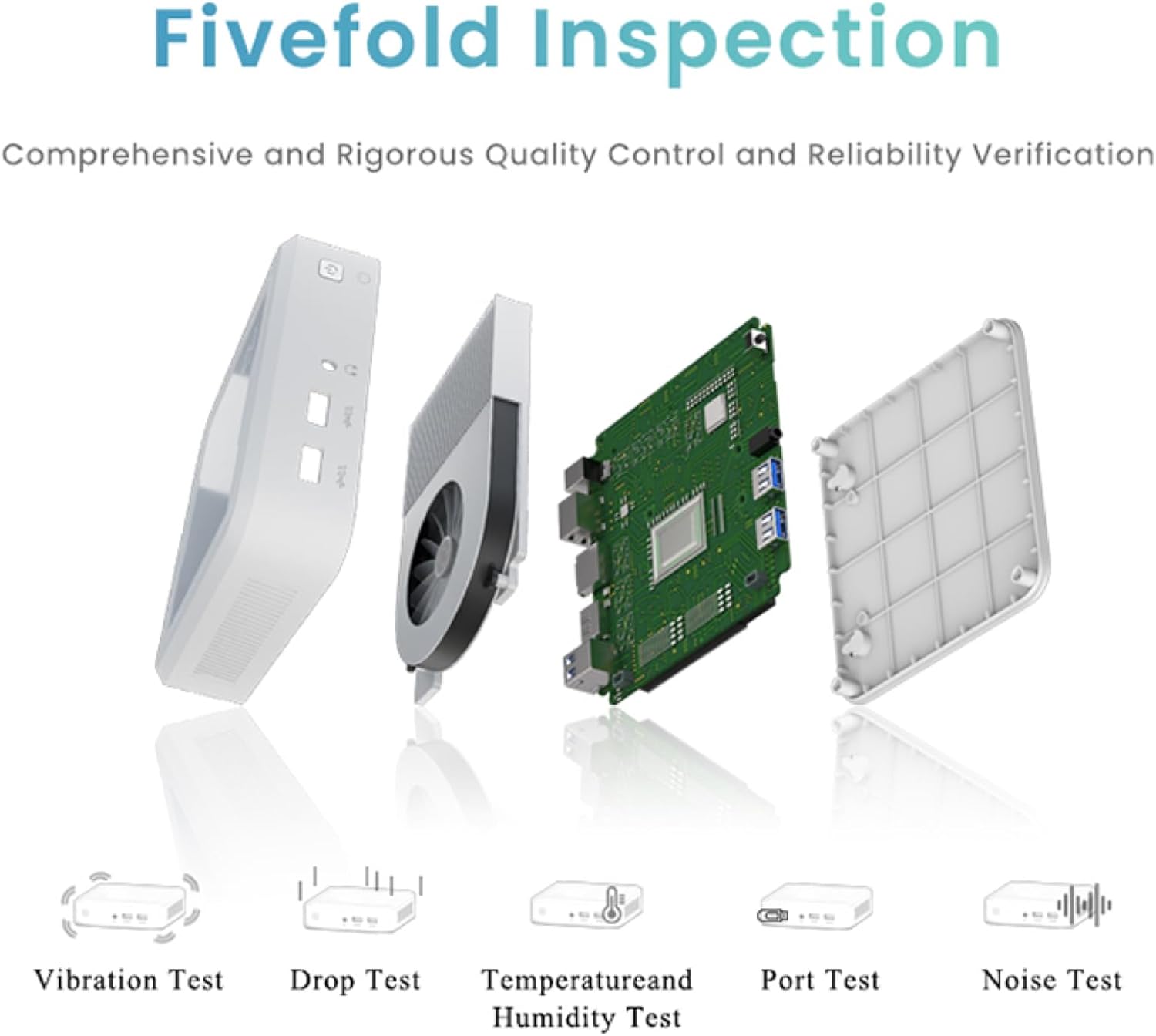

Figure 4.1: The Mini PC undergoes rigorous quality control, including vibration, drop, temperature/humidity, port, and noise tests, ensuring durability and reliability.
4.2 Xestión da calor
Ensure the Mini PC is placed in a well-ventilated area. Avoid blocking the air vents to allow for efficient heat dissipation. The device is designed with mesh ventilated heat dissipation to maintain optimal operating temperatures.
Figure 4.2: The GenMachine Mini PC operates at a low noise level of approximately 35 decibels, comparable to a quiet library environment.
5 Solución de problemas
5.1 Problemas comúns e solucións
- Sen enerxía:
- Asegúrate de que o adaptador de corrente estea conectado correctamente tanto ao Mini PC como a unha toma de corrente que funcione.
- Verifica que a toma de corrente funcione conectando outro dispositivo.
- Sen visualización:
- Check that the HDMI or DisplayPort cable is firmly connected to both the Mini PC and the monitor.
- Asegúrate de que o monitor estea acendido e configurado na fonte de entrada correcta.
- Try a different cable or monitor if possible.
- Rendemento lento:
- Pecha as aplicacións innecesarias que se executan en segundo plano.
- Comprobe se hai espazo libre suficiente no SSD.
- Ensure the Mini PC is well-ventilated to prevent thermal throttling.
- Consider upgrading RAM or SSD if performance issues persist (refer to Section 3.3).
- No Wi-Fi/Bluetooth:
- Check if Wi-Fi and Bluetooth are enabled in the operating system settings.
- Ensure drivers are correctly installed. Visit the manufacturer's websitio para os controladores máis recentes.
- Reinicie o miniordenador.
6. Especificacións
Below are the key technical specifications for the GenMachine Mini PC AMD Ryzen 5 3550H:
| Característica | Detalle |
|---|---|
| Procesador | AMD Ryzen 5 3550H (Up to 3.7GHz, 4 Cores, 8 Threads) |
| RAM | 16 GB de DDR4 (ampliable ata 64 GB) |
| Almacenamento | 512GB SSD (M.2 NVMe support up to 2TB) |
| Coprocesador gráfico | Gráficos Integrados |
| Sistema Operativo | SO (preinstalado ou instalable polo usuario) |
| Conectividade | WiFi 5, Bluetooth 4.2, LAN (Ethernet) |
| Saída de vídeo | HDMI, DisplayPort (Supports Dual 4K Displays) |
| Portos USB | 2x USB 2.0, 2x USB 3.0 |
| Audio | 3.5mm Jack de audio |
| Dimensións (LxWxH) | 5 x 5 x 1.45 polgadas (12.9 x 12.9 x 3.7 cm) |
| Peso do elemento | 1.7 libras |
Figure 6.1: The compact dimensions of the GenMachine Mini PC, measuring 12.9 x 12.9 x 3.7 cm, making it suitable for various workspaces.
7. Garantía e soporte
For detailed warranty information and technical support, please refer to the official GenMachine websitio web ou póñase en contacto directamente co servizo de atención ao cliente. Garde o recibo da compra como proba de compra para reclamacións de garantía.
The product typically includes a standard manufacturer's warranty. Additional protection plans may be available from your retailer at the time of purchase.
Información de contacto: Please visit the official GenMachine website for the most up-to-date contact details for support and service.
