EdenPURE GEN40 PLUS Infrared Space Heater & Cooler User Manual

1. Introdución

The EdenPURE GEN40 PLUS is an infrared space heater and cooler designed to provide supplemental zone heating and refreshing airflow for year-round comfort. It features a 1500W PTC-ceramic far-infrared heating element, fan-only mode, and oscillation, making it suitable for spaces up to 1,000 sq ft in well-insulated areas. This manual provides essential information for the safe and efficient operation of your device.

2. Información importante de seguridade

Lea todos os avisos e instrucións de seguridade antes de usar este quentador para reducir o risco de incendio, descarga eléctrica ou lesións. Garde este manual para futuras consultas.

• Conecte sempre os quentadores directamente a unha toma/receptáculo de parede. Nunca use cun cable de extensión ou toma de alimentación reubicable.
• Este aquecedor está quente cando está en uso. Para evitar queimaduras, non deixe que a pel espida toque superficies quentes.
• Manteña os materiais combustibles, como mobles, almofadas, roupa de cama, papeis, roupa e cortinas a polo menos 3 pés (0.9 m) da parte frontal do quentador e mantelos lonxe dos lados e da parte traseira.
• É necesario ter extrema precaución cando calquera aquecedor é usado por nenos ou persoas inválidas ou preto de eles e sempre que o aquecedor se deixa en funcionamento e sen vixilancia.
• Desenchufe sempre o aquecedor cando non estea en uso.
• Non opere ningún calefactor cun cable ou enchufe danado ou despois de que o calefactor funcione mal, caese ou danouse de calquera xeito.
• Non use ao aire libre.
• This heater includes an automatic tip-over switch and overheat protection. If the heater tips over or overheats, it will automatically shut off.
• Always place the unit on a flat, level surface with proper clearance around it for optimal airflow.

3. Características do produto

• Far-Infrared PTC Ceramic Heating Technology: Delivers fast, even warmth without drying the air.
• Dual Heat and Cool Function: Offers high heat, low heat, or fan-only mode for year-round use.
• Wide-Area Coverage with Oscillation: Designed to cover up to 1,000 sq ft in well-insulated spaces, distributing heat or airflow evenly.
• Seguridade integrada: Features automatic tip-over and overheat shut-off protection.
• Portátil e compacto: Lightweight design with a built-in carry handle for easy room-to-room use.
• Controis sinxelos: Straightforward operation with quick mode changes.

4. Compoñentes Overview

5. Configuración

1. Desempaquetar: Carefully remove the heater from its packaging. Retain packaging for storage.
2. Colocación: Place the heater on a firm, level surface. Ensure there is at least 3 feet (0.9 m) of clearance from any walls, furniture, or other objects. Do not block air intakes or outlets.
3. Conexión de alimentación: Plug the power cord directly into a grounded 110V AC wall outlet. Do not use extension cords or power strips.

6. Instrucións de funcionamento

The control panel is located on the front of the unit. It includes buttons for Power, Set Temperature, Room Temperature display, Mode selection, and Up/Down arrows for temperature adjustment.

1. Encendido/apagado: Preme o POTENCIA button to turn the unit on or off. The unit will enter standby mode when first plugged in.
2. Seleccionar modo: Despois de acender, prema o botón MODO button to cycle through available modes: AUTO, HIGH, LOW, and FAN-ONLY. The corresponding indicator light will illuminate.
3. Adjust Temperature (Heat Modes): In AUTO, HIGH, or LOW heat modes, use the Arriba (▲) e Abaixo (▼) arrows to set your desired room temperature. The display will blink to confirm the setting.

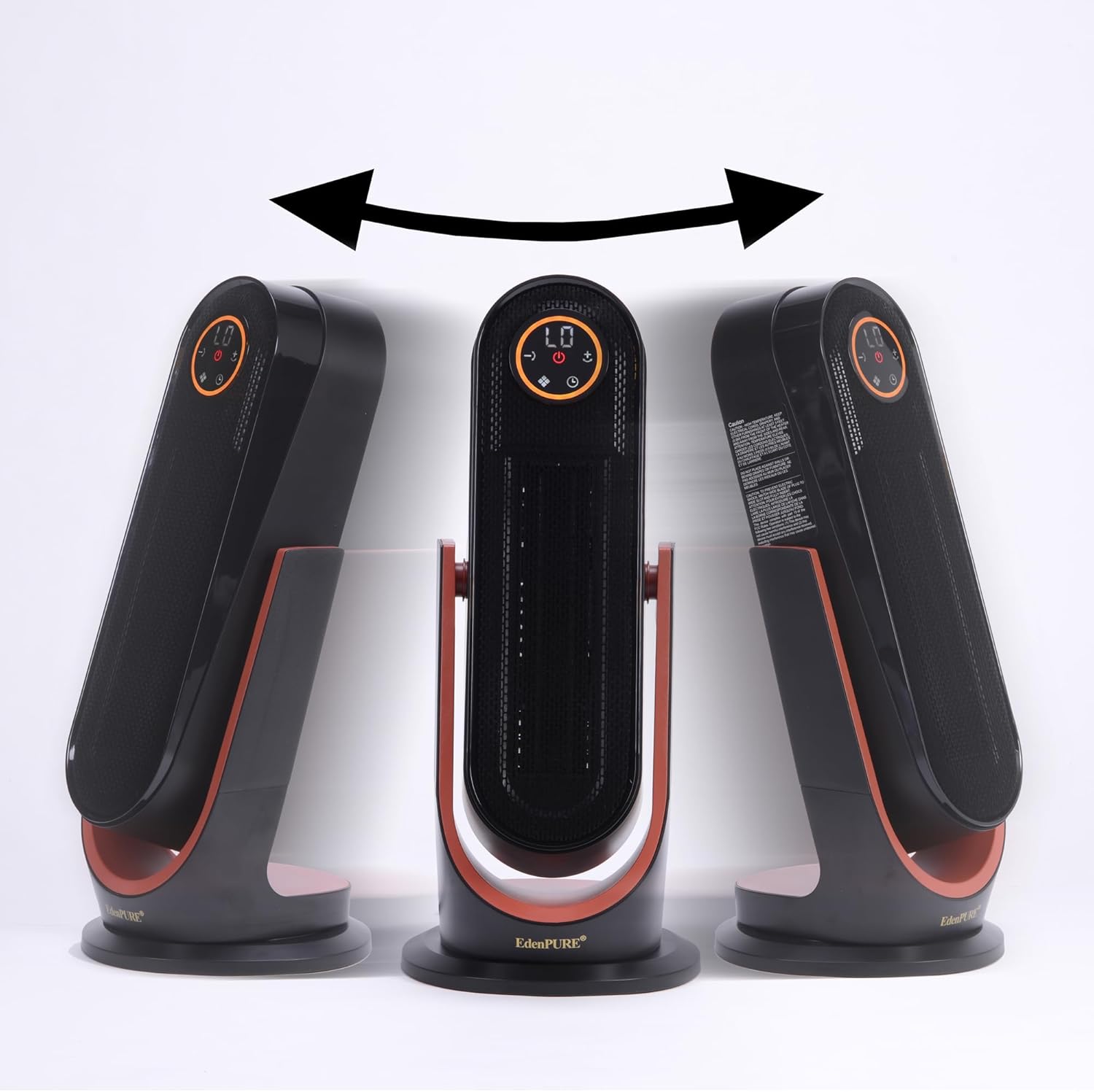

4. Oscilación: Preme o OSCILACIÓN button (often integrated with mode or a separate button, refer to specific unit markings) to activate or deactivate the wide-angle oscillation feature.
5. Modo só con ventilador: Select FAN-ONLY mode for refreshing airflow without heat.

7. Mantemento

Regular maintenance ensures optimal performance and longevity of your EdenPURE GEN40 PLUS heater.

1. Limpeza de filtros: The heater is equipped with a reusable metal mesh filter located at the back. Regularly check and clean the filter to prevent dust buildup, which can affect performance. To clean, gently remove the filter, wash it in the sink with water, and ensure it is completely dry before reinserting.
2. Limpeza exterior: Limpe o exterior do quentador cun pano suave eamp pano. Non use produtos de limpeza ou disolventes abrasivos.
3. Almacenamento: Cando non estea en uso, garde o quentador nun lugar fresco e seco, preferiblemente na súa embalaxe orixinal.

8 Solución de problemas

9. Especificacións

10. Garantía e soporte

For warranty information or technical support, please contact EdenPURE customer service. Refer to the product packaging or the official EdenPURE websitio web para obter os datos de contacto máis actualizados.
