ABBIDOT Dog Training Collar User Manual

1. Introdución

This manual provides comprehensive instructions for the safe and effective use of your ABBIDOT Dog Training Collar. This device is designed to assist in training dogs weighing 10-120 lbs, offering 151 levels of static stimulation and 5 training modes including beep, vibration, and static shock. The receiver collar is IPX7 waterproof, making it suitable for various training environments. The remote control is not waterproof.

Please read this manual thoroughly before operating the device to ensure proper usage and to maximize training effectiveness while prioritizing your dog's safety and comfort.

2. Contido do paquete

Upon opening your ABBIDOT Dog Training Collar package, please verify that all components are present and in good condition:

• 1 x mando a distancia
• 1 x Receiver Collar with Adjustable Strap
• 1 x cable de carga USB
• 2 x Sets of Contact Points (Short and Long)
• 1 ferramenta de luz de proba
• 1 x Manual de usuario (este documento)

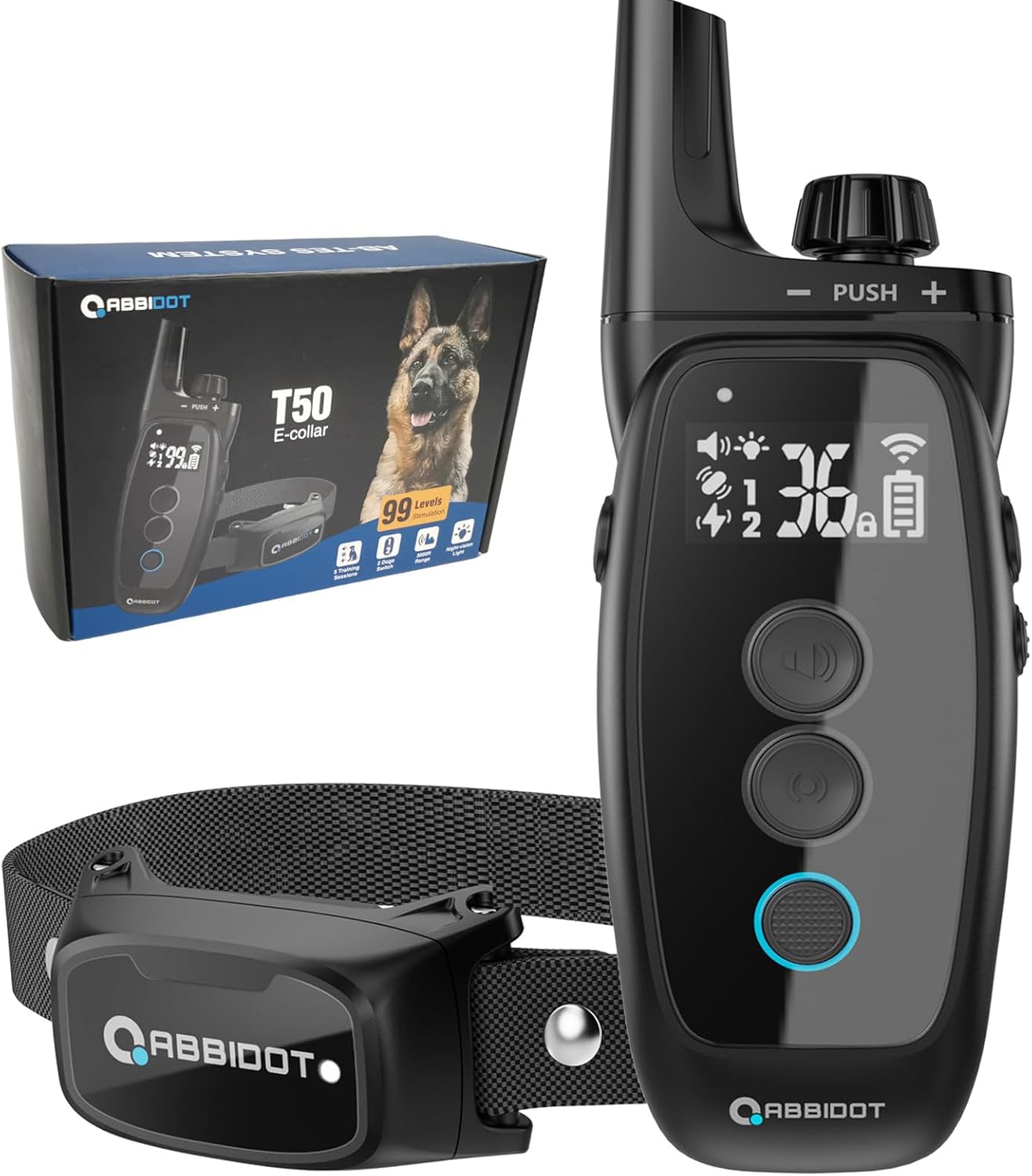

3. Produto rematadoview

Familiarize yourself with the main components of your training system:

3.1 Control remoto

• Pantalla LCD: Shows battery level, training mode, intensity level, and dog selection.
• Intensity Adjustment Buttons (PUSH +/-): Used to increase or decrease stimulation levels.
• Botón de modo: Cycles through training modes (Beep, Vibration, Static Stimulation).
• Botón de estimulación: Activates the selected training mode.
• Botón de canle: Selects which receiver collar to control (if multiple collars are paired).
• Porto de carga: USB-C port for recharging the remote.

3.2 Receiver Collar

• Puntos de contacto: Deliver static stimulation. Choose appropriate length for your dog's fur.
• Botón de encendido: Turns the receiver on/off and can be used for pairing.
• Porto de carga: USB-C port for recharging the receiver.
• Luz indicadora: Shows power status, charging status, and mode activation.
• Correa axustable: Securely holds the receiver on your dog's neck.

4. Configuración

4.1 Carga dos dispositivos

Before first use, fully charge both the remote control and the receiver collar. The devices come with built-in Lithium Ion batteries.

1. Connect the USB charging cable to the charging ports on both the remote and the receiver.
2. Plug the other end of the cable into a standard USB power adapter (not included).
3. The indicator lights will show charging status (e.g., solid red while charging, green when full).
4. Charging typically takes approximately 2 hours. The remote offers up to 10 days of standby time, and the collar up to 16 days of work time on a full charge.

4.2 Attaching Contact Points

Select the appropriate length of contact points (short or long) based on your dog's fur length. For dogs with thick fur, use longer contact points to ensure proper skin contact. Screw the chosen contact points firmly onto the receiver collar.

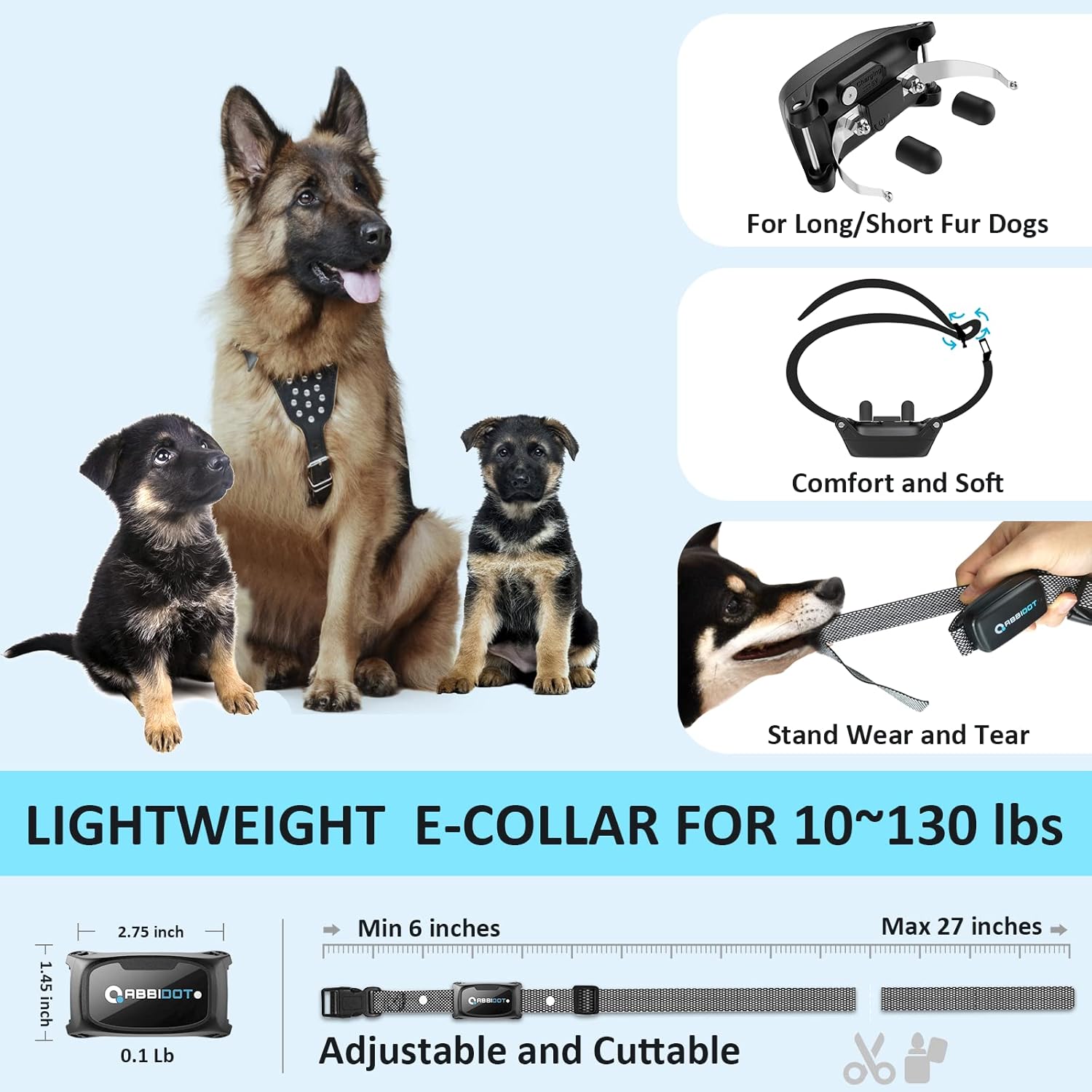

4.3 Fitting the Receiver Collar

O axuste correcto do colar receptor é crucial para un funcionamento eficaz e seguro.

1. Place the receiver collar around your dog's neck, ensuring the contact points are positioned underneath, making direct contact with the skin.
2. Adjust the strap so it is snug but not too tight. You should be able to fit two fingers comfortably between the strap and your dog's neck.
3. The collar is adjustable and cuttable, suitable for dogs from 10 to 130 lbs. Ensure the collar is not worn for more than 12 hours a day to prevent skin irritation.

4.4 Pairing the Remote and Receiver

The devices are usually pre-paired from the factory. If re-pairing is needed:

1. Ensure both devices are fully charged and turned off.
2. Press and hold the power button on the receiver collar until the indicator light flashes rapidly.
3. Within 10 seconds, press the Stimulation button on the remote control.
4. If pairing is successful, the receiver's indicator light will flash slowly, and the remote will show the selected dog channel.

5. Instrucións de funcionamento

The ABBIDOT Dog Training Collar offers 5 distinct training modes to suit various training needs.

5.1 Encendido/apagado

• Para activar: Press and hold the power button on both the remote and the receiver until the indicator lights illuminate.
• Para desactivar: Press and hold the power button on both devices until the indicator lights turn off.

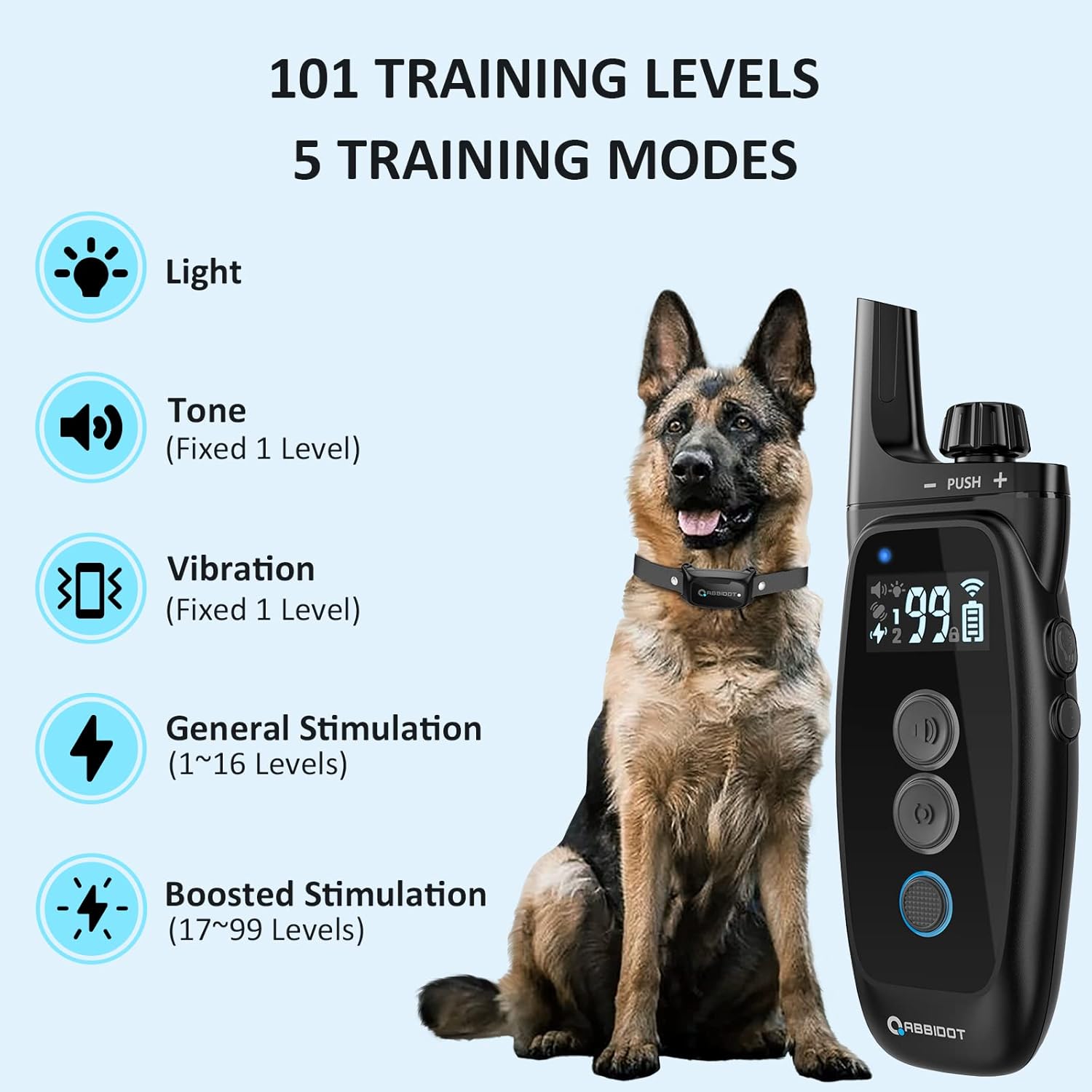

5.2 Selecting Training Modes

Press the 'Mode' button on the remote control to cycle through the available training modes:

1. Modo de luz: Activates a light on the receiver collar. Useful for locating your dog in low light conditions.
2. Tone (Beep) Mode: Emits an audible beep from the receiver. This mode has a fixed intensity level.
3. Modo de vibración: Delivers a non-harmful vibration to the receiver. This mode has a fixed intensity level.
4. General Stimulation Mode: Delivers static stimulation with adjustable levels from 1 to 16.
5. Boosted Stimulation Mode: Delivers static stimulation with adjustable levels from 17 to 99. This mode provides higher intensity for more stubborn dogs or specific training situations.

The remote offers a total of 151 levels of static stimulation, combining the general and boosted ranges, allowing for precise adjustment to your dog's temperament and training needs.

5.3 Adjusting Intensity Levels

For General and Boosted Stimulation modes, use the 'PUSH +' and 'PUSH -' buttons on the remote to adjust the intensity level. Always start with the lowest effective level and gradually increase if necessary, observing your dog's reaction.

5.4 Activating Training Modes

Once a mode and intensity level (if applicable) are selected, press the large 'Stimulation' button on the remote to activate the chosen correction.

5.5 Training Range

The ABBIDOT Dog Training Collar system has an effective range of up to 3300 feet (approximately 1000 meters) in open areas, allowing for flexible training in various outdoor environments.

5.6 Función impermeable

The receiver collar is IPX7 waterproof, meaning it can be submerged in water up to 1 meter for 30 minutes. This allows for training in wet conditions or if your dog enjoys swimming. The remote control is NOT waterproof and should be kept dry.

6. Mantemento

Proper maintenance ensures the longevity and optimal performance of your training collar.

• Manter seco: As per care instructions, keep the remote control dry at all times. While the receiver collar is waterproof, it is recommended to dry it thoroughly after exposure to water.
• Puntos de contacto limpos: Regularly clean the contact points on the receiver collar to ensure good skin contact and prevent dirt buildup.
• Inspect Collar: Periodically check the collar strap for wear and tear. Replace if damaged.
• Carga regularmente: To maintain battery health, charge both devices regularly, even if not in frequent use.
• Almacenamento: Garda o dispositivo nun lugar fresco e seco cando non estea en uso.

7 Solución de problemas

If you encounter issues with your ABBIDOT Dog Training Collar, refer to the following common problems and solutions:

8. Especificacións

9. Garantía e soporte

Your ABBIDOT Dog Training Collar is covered by a 1 ano de garantía from the date of purchase, protecting against manufacturing defects.

For technical support, warranty claims, or any questions regarding your product, please contact ABBIDOT customer service through the retailer's platform or the official ABBIDOT website. Please have your purchase receipt and product model information ready when contacting support.
