Thule Urban Glide 4-Wheel Stroller User Manual

Produto rematadoview

The Thule Urban Glide 4-wheel is an all-terrain stroller designed for urban environments and various terrains. It offers a blend of comfort, functionality, and ample storage, suitable for newborns and toddlers. Its design prioritizes maneuverability for navigating tight spaces and diverse surfaces.

Image: The Thule Urban Glide 4-Wheel Stroller in black, showcasing its sleek design and four large wheels.

Características principais:

• Capacidade todoterreo: Designed for both city streets and rougher terrains with large 16-inch air-filled tires and a full-suspension system.
• Manillar axustable: Ergonomic and adjustable handle for comfortable pushing, suitable for various user heights.
• Dobrado compacto: Features a one-handed compact fold with a self-standing design for easy storage and transport.
• Seguridade mellorada: Includes a padded 5-point harness, foot-activated parking brake, and reflective details on the canopy and wheels for visibility.
• Comfort for Child: Offers a comfortable, near-flat reclining seat with a built-in leg rest and a large full-coverage canopy with a peek-a-boo window.
• AmpAlmacenamento: Equipped with a large storage basket with a zipper cover to secure belongings.
• Compatibilidade do asento do coche: Can be used from birth with Thule Bassinet, Car Seat Adapter(s), or Newborn Inlay/Nest Accessories (sold separately).


  Image: The stroller shown with a bassinet attachment, demonstrating its adaptability for newborns with separately sold accessories.

Configuración e montaxe

Before first use, ensure all components are present and correctly assembled. Assembly is generally straightforward, primarily involving attaching the wheels and canopy.

1. Desembalaxe: Retire con coidado todos os compoñentes da embalaxe. Comprobe que estean presentes todas as pezas listadas na lista de embalaxe.
2. Fixación da roda:

   Attach the rear wheels by pressing the release button (if present) and sliding the wheel axle into the designated slot until it clicks securely into place. Repeat for both rear wheels.

   For the front wheels, align the wheel posts with the front fork openings and push firmly until they lock. Ensure all wheels rotate freely and are securely attached by gently pulling on them.



   Imaxe: Primeiro plano view of the stroller's front wheels, highlighting their robust design for all-terrain use.

3. Instalación de canopy: Attach the canopy to the designated points on the stroller frame. Ensure it is securely fastened and can be adjusted smoothly.
4. Axuste do manillar: Adjust the handlebar to a comfortable height using the adjustment mechanism. Refer to the "Operating" section for details on handlebar adjustment.
5. Comprobación de seguridade: Before first use, perform a thorough safety check. Ensure all locking mechanisms are engaged, wheels are secure, and the harness functions correctly.

Instrucións de funcionamento

Opening and Folding the Stroller:

• Apertura: Release the folding latch. Hold the handlebar and lift the stroller until it fully extends and locks into the open position. Ensure all frame locks are engaged before placing a child in the stroller.
• Plegable: Locate the folding mechanism (typically near the handlebar or seat). Activate the release and guide the stroller frame downwards until it collapses into a compact, self-standing position.


  Image: The stroller shown in its compact, folded state, demonstrating its ease of storage and transport.

Axuste do manillar:

The handlebar height can be adjusted to suit the user's preference. Locate the adjustment buttons or levers on the sides of the handlebar. Press or release them and pivot the handlebar to the desired angle. Ensure it locks securely in place before use.

Image: A visual representation of the adjustable handlebar, showing its range of motion for ergonomic comfort.

Sistema de freos:

• Freo de estacionamento: The foot-activated parking brake is located near the rear wheels. Press down firmly on the brake pedal to engage it. Ensure the stroller is stationary before releasing your grip. To disengage, lift the pedal.
• Freo de man: For speed control, especially during jogging or downhill travel, use the convenient twist hand brake located on the handlebar. Gently twist the lever to apply braking force.

Seat Recline and Harness:

• Seat Recline: The seat offers a near-flat recline position. Adjust the recline using the strap mechanism located behind the seat. This allows for comfortable naps on the go.


  Image: The stroller seat reclined, demonstrating the comfortable position for a child, ideal for naps.
• Arnés de 5 puntos: Always secure your child with the adjustable padded 5-point harness. Ensure the straps are snug but not too tight, and the buckle is fully engaged. Adjust shoulder strap height as your child grows.

Canopy and Storage:

• Tapa: Extend the full-coverage canopy to protect your child from sun and elements. Utilize the peek-a-boo window to check on your child without disturbing them.
• Cesta de almacenamento: The large storage basket beneath the seat features a zipper cover. Use this for carrying essentials. Do not exceed the maximum weight capacity of 34 kg (75 lbs) for the stroller, including cargo.


  Imaxe: A view of the stroller's spacious, covered cargo basket, designed for secure storage of personal items.

Mantemento

Regular maintenance ensures the longevity and safe operation of your Thule Urban Glide 4-Wheel Stroller.

• Limpeza:
  • Partes de tecido: Clean fabric parts with a mild soap and water solution. Do not use harsh detergents or bleach. Air dry thoroughly.
  • Marco: Limpar o marco co anuncioamp pano. Secar inmediatamente para evitar a oxidación.
  • Rodas: Keep wheels clean and free of dirt and debris. Periodically remove wheels for thorough cleaning of axles and bearings.
• Lubricación: Periodically lubricate moving parts such as wheel axles and folding mechanisms with a silicone-based lubricant. Avoid lubricating brake components.
• Presión dos pneumáticos: Maintain proper air pressure in the tires as indicated on the tire sidewall. Under-inflated tires can affect maneuverability and ride comfort.
• Almacenamento: Store the stroller in a dry, cool place away from direct sunlight and extreme temperatures. If storing for an extended period, ensure it is clean and dry.
• Inspeccións: Regularly inspect the stroller for any signs of wear, damage, or loose parts. Pay close attention to the harness, brakes, wheels, and frame connections. If any damage is found, discontinue use and contact customer support.

Resolución de problemas

Especificacións

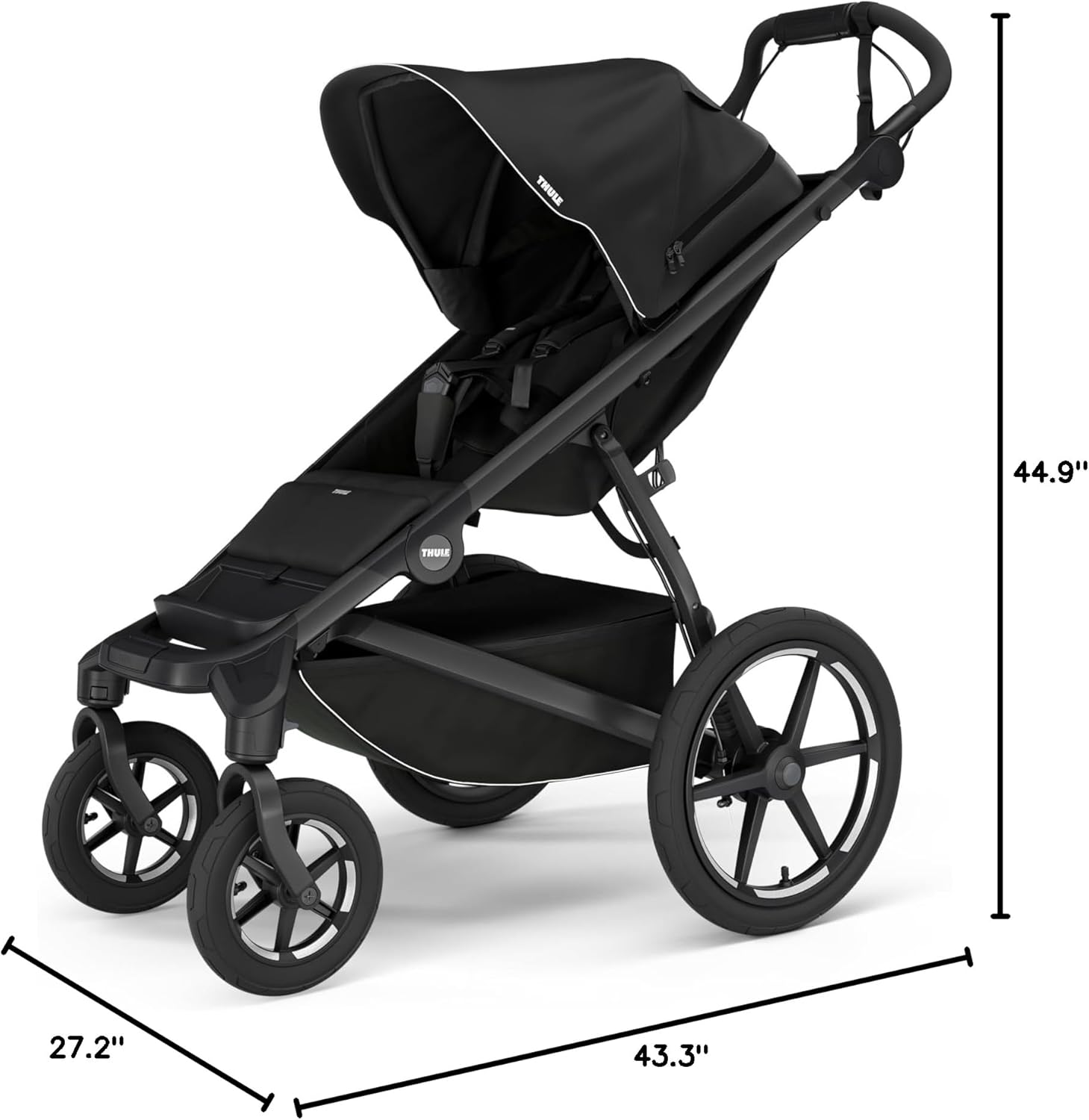

Image: Diagram showing the key dimensions of the Thule Urban Glide 4-Wheel Stroller.

Garantía e Soporte

Información da garantía:

O carriño de catro rodas Thule Urban Glide inclúe... Garantía limitada de por vida from the manufacturer. This warranty covers defects in materials and workmanship under normal use and service. Please retain your proof of purchase for warranty claims.

For detailed warranty terms and conditions, please refer to the official Thule websitio web ou póñase en contacto directamente co servizo de atención ao cliente de Thule.

Atención ao cliente:

For technical assistance, troubleshooting not covered in this manual, or warranty claims, please contact Thule customer support:

• Thule Oficial Websitio: www.thule.com
• Consulte o website for regional contact information, phone numbers, and email support.

When contacting support, please have your stroller's model number (10101976) and UPC (872299049639) readily available.
