Manual do usuario do conxunto de teclado e rato plegable ergonómico ProtoArc XKM03

1. Introdución

The ProtoArc XKM03 is an ergonomic, foldable Bluetooth keyboard and mouse combo designed for portability and comfortable use across various devices. This manual provides instructions for setup, operation, maintenance, and troubleshooting to ensure optimal performance.

Image: The ProtoArc XKM03 foldable keyboard, ergonomic mouse, and protective carrying case.

Características principais:

• Deseño ergonómico dividido: The keyboard features a V-shape with a 166-degree angle and split keyset to promote a natural typing posture and reduce wrist strain.
• Ultra-Slim and Foldable: The keyboard folds for compact storage and portability, with automatic power on/off upon unfolding/folding.
• Ergonomic Mouse: The wireless mouse is designed with a contoured shape for palm and thumb support, reducing wrist discomfort. It offers adjustable DPI settings up to 2400.
• Conectividade multidispositivo: Connects to up to three Bluetooth devices simultaneously, allowing for easy switching between them.
• Ampla compatibilidade: Compatible with Mac OS, iOS, Android, and Windows operating systems on iPads, iPhones, tablets, cellphones, and laptops.

2. Contido do paquete

• ProtoArc XKM03 Foldable Bluetooth Keyboard
• ProtoArc Ergonomic Bluetooth Mouse
• Cable de carga USB-C
• Manual de usuario
• Maletín de transporte

3. Configuración e conexión

3.1 Carga dos dispositivos

Before initial use, fully charge both the keyboard and the mouse using the provided USB-C charging cable. The charging port for the keyboard is typically located on the side or back edge. The mouse charging port is usually on the front edge.

• Unha carga completa leva aproximadamente 2 horas.
• The keyboard has a standby time of up to 250 hours on a full charge.

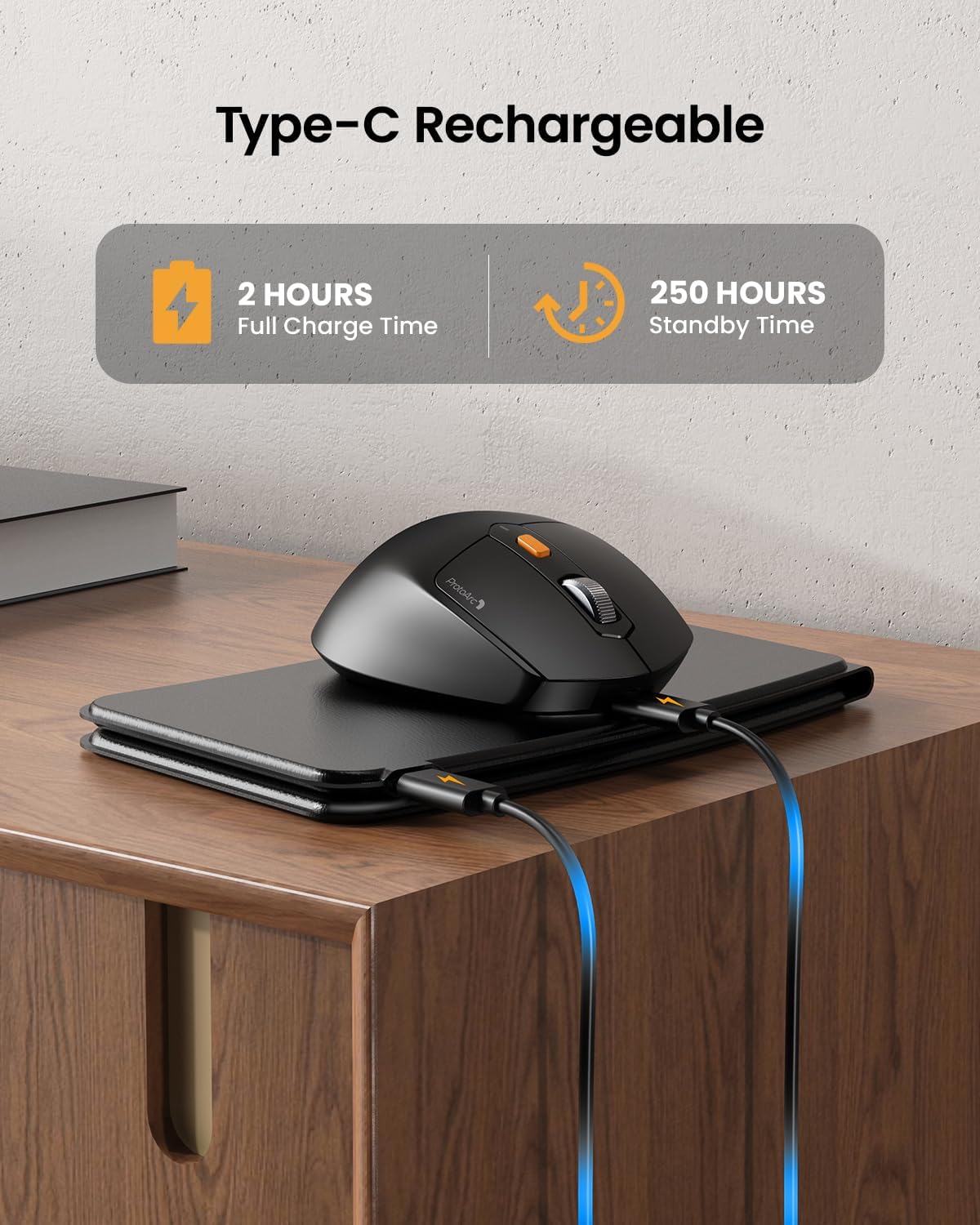

Image: The keyboard and mouse connected to power via USB-C cables for charging.

3.2 Keyboard Bluetooth Pairing

1. Unfold the keyboard. This action automatically powers on the keyboard.
2. Manteña premido o Fn tecla e unha das teclas do canal Bluetooth (BT1, BT2, ou BT3) for 3-5 seconds until the corresponding indicator light flashes rapidly. This indicates the keyboard is in pairing mode.
3. On your device (iPad, tablet, iPhone, laptop), go to Bluetooth settings and search for available devices.
4. Seleccionar "ProtoArc XKM03 Keyboard"da lista.
5. Unha vez conectado, o indicador luminoso deixará de parpadear e permanecerá fixo durante uns segundos antes de apagarse.

3.3 Mouse Bluetooth Pairing

1. Acenda o rato usando o interruptor de acendido situado na súa parte inferior.
2. Press the Bluetooth pairing button (usually on the underside or top near the scroll wheel) for 3-5 seconds until the indicator light flashes rapidly.
3. No teu dispositivo, vai á configuración de Bluetooth e busca os dispositivos dispoñibles.
4. Seleccionar "ProtoArc XKM03 Mouse"da lista.
5. Unha vez conectado, o indicador luminoso deixará de parpadear.

Image: The keyboard and mouse wirelessly connected to a laptop, tablet, and smartphone, illustrating multi-device capability.

4. Instrucións de funcionamento

4.1 Uso do teclado

The XKM03 keyboard features an ergonomic split design for comfortable typing. An initial adaptation period may be required to become accustomed to the layout.

Image: A user's hands positioned on the V-shaped split keyboard, demonstrating the ergonomic design.

Encendido/apagado automático:

• Desprega o teclado para acendelo.
• Fold the keyboard to power it off.
• The keyboard also features magnetic closure to prevent accidental unfolding.

Image: The keyboard shown in both folded and unfolded states, highlighting its magnetic closure mechanism.

4.2 Cambio entre dispositivos

To switch between paired Bluetooth devices, simply press the Fn key along with the corresponding Bluetooth channel key (BT1, BT2, ou BT3) that your desired device is paired to.

4.3 Teclas de función multimedia

The keyboard includes multimedia function keys. Refer to the keycap legends for specific functions (e.g., volume control, media playback).

• Preme F1-F10 directly to access number 1-0.
• Preme Fn+F1-F12 to activate multimedia functions.
• Preme Shift + F1-F12 to input symbols like !, @, #.
• Preme Fn + Shift + F1-F12 to access F1-F12 functions.

Image: A visual guide to the multimedia function keys and their combinations on the keyboard.

4.4 Uso do rato

The ergonomic mouse provides comfortable navigation. It features adjustable DPI settings and additional navigation buttons.

• Axuste de DPI: Press the DPI button (usually located behind the scroll wheel) to cycle through different sensitivity levels (e.g., 800, 1200, 1600, 2400 DPI).
• Botóns de avance/retroceso: Use the side buttons for quick navigation in web navegadores ou file exploradores.

Image: Diagram illustrating the adjustable DPI settings of the mouse.

Image: Diagram showing the location of the forward and backward buttons on the mouse.

5. Mantemento e coidados

• Limpeza: Usa un pano suave e seco para limpar o teclado e o rato. Para a sucidade persistente, usa un pano lixeiramente seco.amp Pódese usar un pano con xabón suave, garantindo que non entre líquido nos dispositivos.
• Almacenamento: When not in use, fold the keyboard and store both devices in the provided carrying case to protect them from dust and damage.
• Cargando: Recharge the devices when the battery indicator light shows low power. Avoid prolonged exposure to extreme temperatures.
• Material: The keyboard features a wear-resistant PU leather exterior.

Imaxe: Primeiro plano view of the keyboard's surface, highlighting the PU leather material.

6 Solución de problemas

7. Especificacións

Image: Diagram showing the folded dimensions of the keyboard.

8. Garantía e soporte

For warranty information and technical support, please refer to the official ProtoArc website or contact their customer service directly. Contact details are typically found on the product packaging or the manufacturer's websitio.

Fabricante: ProtoArco
