Muzata WT08 Wood Post Base Plate & WT02 Aluminum Deck Baluster Installation Manual

1. Produto rematadoview

This manual provides instructions for the installation and use of the Muzata WT08 Wood Post Foot Base Plates and Muzata WT02 Aluminum Round Deck Balusters. These components are designed to create stable and aesthetically pleasing deck railings.

Imaxe: Unha vez máisview of the Muzata WT08 Wood Post Base Plates and WT02 Aluminum Round Deck Balusters, showing the individual components and a completed deck railing installation.

2. Contido do paquete

Verifique que todos os elementos que se indican a continuación estean presentes no seu paquete:

• 4 x WT08 Wood Post Base Plates
• 36 x M8 Self-Tapping Wood Screws
• 1 x T40 Star Drive Bit
• 25 x 26-inch Aluminum Round Deck Balusters (WT02)
• 1 x Drill Bit (for 19mm holes)

Image: A visual representation of the WT08 post base components, including four post bases, thirty-six screws, and one T40 star drive bit.

Image: A visual representation of the WT02 baluster components, including twenty-five 26-inch aluminum balusters and one drill bit for 19mm holes.

3. Configuración e instalación

3.1. WT08 Wood Post Base Plate Installation

The WT08 post base plates are designed to secure 3.5" to 4" wood posts to either wood or concrete surfaces, protecting the base of the wood post from direct contact with the ground.

1. Posicionamento: Place the post base plate at the desired location for your wood post. Ensure proper alignment for your railing structure.
2. Securing to Surface (Wood): For wood surfaces, use the provided M8 self-tapping wood screws and the T40 star drive bit to firmly attach the base plate to the deck or floor. The base plate has four outer holes for this purpose.
3. Securing to Surface (Concrete): For concrete surfaces, it is recommended to use M8 expansion screws (not included) to secure the base plate. Drill appropriate pilot holes for the expansion screws before fastening.
4. Attaching Wood Post: Once the base plate is secured, insert your 3.5" to 4" wood post into the center of the base plate. The base plate features five central holes to increase the stability of the post. Use additional screws (not included) through these central holes into the wood post for maximum stability.

Image: A comparison illustrating the robust construction of the Muzata post base, emphasizing its carbon steel material, higher thickness, and superior force-bearing capacity compared to softer alternatives.

3.2. WT02 Aluminum Round Deck Baluster Installation

The 26-inch WT02 aluminum balusters are designed for constructing 36-inch high wood and composite deck railings. Their 3/4" diameter ensures compatibility with most baluster connectors or shoes.

1. Planificación: Determine the desired spacing for your balusters. Ensure spacing does not exceed 4 inches to comply with building codes.
2. Buratos de perforación: Use the provided 19mm drill bit to create holes in your top and bottom railing rails where the balusters will be inserted.
3. Cutting Balusters (Optional): If a different height is required, the aluminum balusters can be cut to size using appropriate metal cutting tools.
4. Inserción: Insert the balusters into the pre-drilled holes in your railing structure. Ensure they are securely seated.
5. Aseguramento (opcional): Depending on your railing design, additional baluster connectors or shoes (not included) may be used to further secure the balusters.

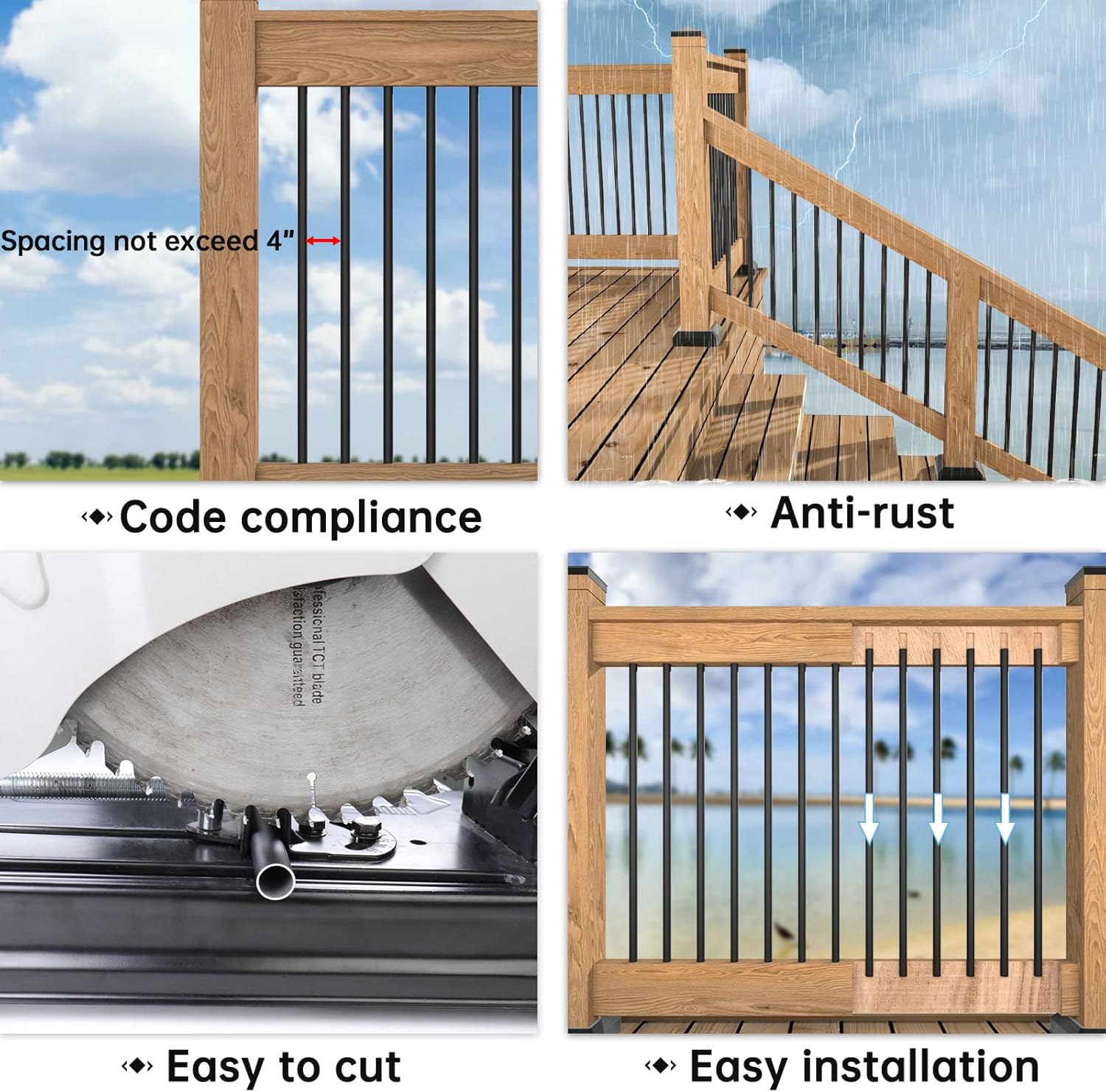

Image: A collage demonstrating key features of the WT02 balusters, including adherence to code compliance (spacing not exceeding 4 inches), anti-rust properties, the ability to be easily cut, and straightforward installation into a deck railing.

4. Funcionamento e uso

Once installed, the Muzata WT08 post base plates and WT02 aluminum balusters form a robust and secure railing system. The post base plates provide a stable foundation for your wood posts, preventing direct ground contact and enhancing longevity. The balusters contribute to the structural integrity and safety of the railing, meeting common safety standards for spacing.

5. Mantemento

The WT08 post base plates and WT02 aluminum balusters are constructed from high-quality aluminum and carbon steel, offering excellent rust resistance and durability. Minimal maintenance is required:

• Limpeza: Periodically clean the components with mild soap and water to remove dirt and debris. Avoid abrasive cleaners.
• Inspección: Regularly inspect all installed components for any signs of wear, damage, or loosening. Tighten any loose screws as needed.
• Idoneidade ambiental: These products are suitable for both indoor and outdoor applications, including seaside environments, due to their corrosion-resistant materials.

6 Solución de problemas

Se tes problemas durante ou despois da instalación, ten en conta o seguinte:

• Post Instability: Ensure the post base plate is securely fastened to the ground surface. For wood posts, verify that screws are used through the central holes of the base plate into the post itself.
• Baluster Looseness: Confirm that balusters are properly seated in their drilled holes. If using baluster connectors or shoes, ensure they are correctly installed and tightened.
• Corrosión: While highly rust-resistant, prolonged exposure to harsh chemicals or extreme conditions without cleaning can affect appearance. Clean regularly as per maintenance instructions.

7. Especificacións

8. Garantía e soporte

For specific warranty information regarding your Muzata WT08 Wood Post Base Plates and WT02 Aluminum Round Deck Balusters, please refer to the product packaging or contact Muzata directly. For technical support or further assistance, please visit the official Muzata websitio ou póñase en contacto co seu departamento de atención ao cliente.

Official Muzata Store: Muzata Store on Amazon
