1. Introdución
This user manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your INOKIM OX Hero Electric Scooter. Please read this manual thoroughly before your first ride to ensure proper usage and to maximize the lifespan of your scooter.
Figure 1: The INOKIM OX Hero Electric Scooter, showcasinpolo seu deseño elegante e a súa robusta construción.
2. Pautas de seguridade
A súa seguridade é primordial. Siga sempre as seguintes pautas:
- Use casco: Usa sempre un casco homologado e outro equipo de protección (rodilleras, cóbadas) cando conduzas.
- Consulta as leis locais: Be aware of and comply with all local laws and regulations regarding electric scooter usage.
- Comprobación previa á viaxe: Before each ride, inspect the brakes, tires, and folding mechanism to ensure they are in good working order.
- Límite de peso: Non excedas o límite de peso máximo de 265 libras (120 kg).
- Condicións meteorolóxicas: Avoid riding in heavy rain, snow, or icy conditions. The scooter is not waterproof.
- Visibilidade: Use the integrated lights for enhanced visibility, especially during dawn, dusk, or night riding.
- Superficie de condución: Exercise caution on uneven or slippery surfaces.
3. Compoñentes Overview
Familiarize yourself with the main components of your INOKIM OX Hero Electric Scooter:
3.1. Handlebars and Display
The handlebars feature user-friendly controls and a smart control digital display for monitoring speed, battery level, and other ride data.
Figure 2: Close-up of the digital display and dual braking system, showing the front and rear disc brakes.
3.2. Motor and Tires
Equipped with a powerful 1000W brushless hub motor (peak 1300W) and 10-inch pneumatic tires for a smooth and powerful ride.
Figure 3: Detail of the 10-inch pneumatic tires and the powerful 1300W peak motor, highlighting the dual shock absorption system.
3.3. Suspension System
Features the Patented Adjustable Suspension (PAS) with two rubber suspensions, allowing adjustment for city riding (low center of gravity) or off-road terrain (higher clearance for comfort).
3.4. Sistema de freado
The scooter utilizes a front drum brake and a rear hydraulic disc brake for reliable and precise stopping power in various conditions.
3.5. Sistema de iluminación
A comprehensive 6-light system includes 2 headlights, 2 side mood lights, 1 tail light, and 1 brake light for enhanced visibility and safety.
Figure 4: Illustration of the INOKIM OX Hero's 6-light system, including headlights, side mood lights, tail light, and brake light.
3.6. Mecanismo de pregamento
The quick folding design allows the scooter to be folded in approximately 5 seconds for easy transport and storage.

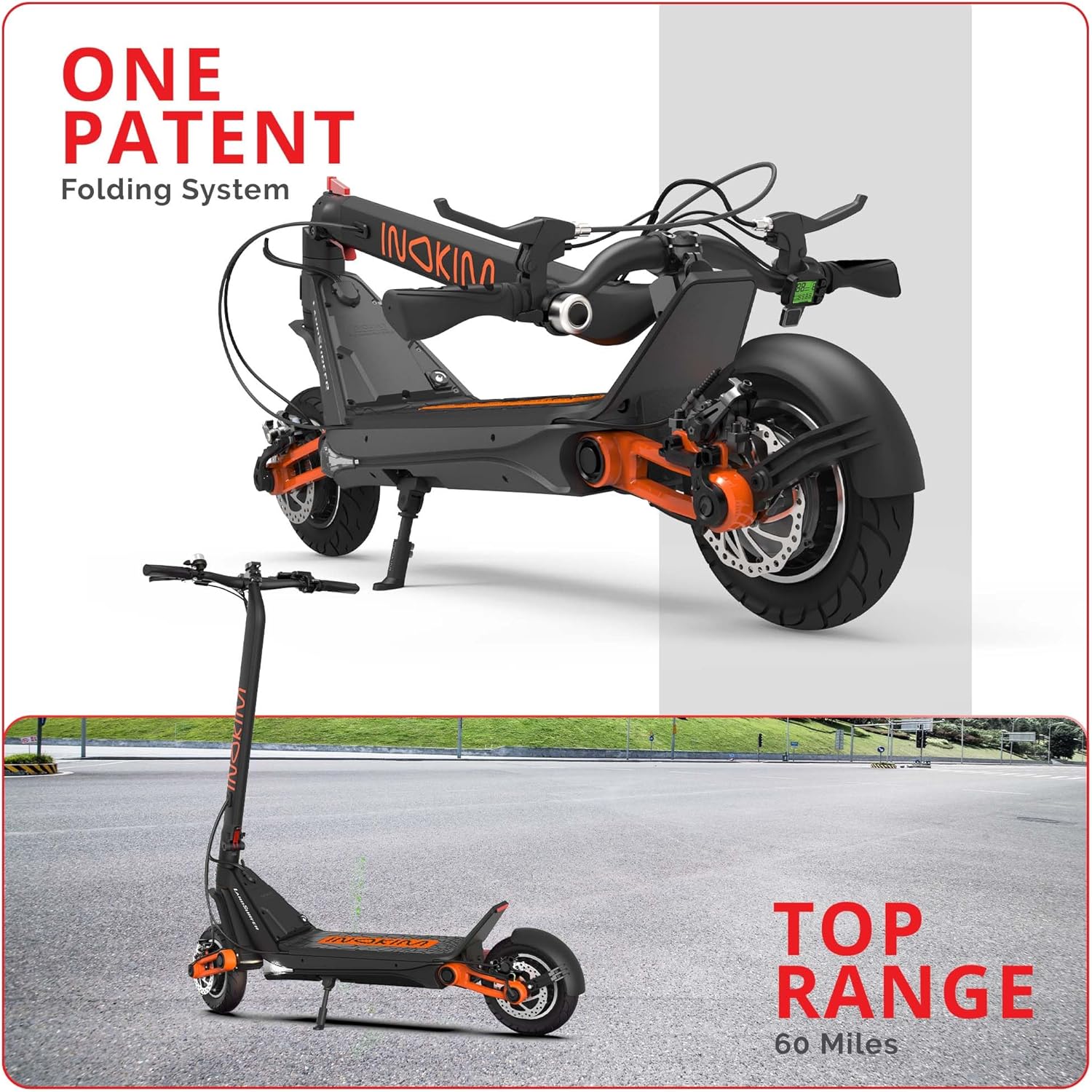

Figure 5: The INOKIM OX Hero in both unfolded and folded states, demonstrating its patented folding system for portability.
4. Configuración e primeiro uso
- Desembalaxe: Retire con coidado o escúter e todos os accesorios da embalaxe. Garde a embalaxe para futuros transportes ou almacenamentos.
- Desdobramento:
- Coloque o scooter nunha superficie plana.
- Locate the quick-release lever for the folding mechanism.
- Release the latch and carefully unfold the stem until it locks securely into place.
- Axuste do manillar: Adjust the handlebar height to a comfortable position and secure it firmly.
- Carga inicial:
- Before first use, fully charge the battery. The charging time is approximately 4-7 hours.
- Connect the charger to the scooter's charging port and then to a power outlet. Ensure the charging port cover is securely closed after charging to protect against elements.
- The charging connector is located near the footrest.
- Comprobación da presión dos pneumáticos: Verify that the pneumatic tires are inflated to the recommended pressure for optimal performance and safety.
- Suspension Adjustment (PAS): The Patented Adjustable Suspension allows you to fine-tune the ride.
- Configuración baixa: Ideal for city riding, providing a lower center of gravity for stability and speed.
- Configuración alta: Suitable for off-road or rough terrain, offering a softer, more comfortable ride.
- Refer to the detailed instructions in the separate suspension adjustment guide (if provided) for precise adjustments.
5. Instrucións de funcionamento
- Encendido/apagado: Manteña premido o botón de acendido na pantalla para acender ou apagar o escúter.
- Modos de velocidade: The scooter offers three selectable speed modes. Use the mode button on the display to cycle through them. The top speed is 27.9 mph (approximately 45 km/h).
- Aceleración: Use the thumb throttle to control your speed. Apply gentle pressure to accelerate smoothly.
- Freado:
- Engage the brake levers on the handlebars to activate the front drum brake and rear hydraulic disc brake.
- Apply both brakes simultaneously for optimal stopping power.
- User-adjustable sensitivity for brakes is available.
- Luces: Activate the integrated LED lights for improved visibility, especially in low-light conditions. Refer to the display controls for light operation.
- Pregado para transporte: To fold the scooter, reverse the unfolding steps. Ensure the quick-release lever is securely latched when folded.
Video 1: "OX Feel The Ride" - This video demonstrates the INOKIM OX Hero in various riding environments, highlighting its suspension, speed, and overall performance. It shows the scooter handling different terrains and its quick folding feature.
6. Mantemento
Un mantemento regular garante a lonxevidade e o rendemento óptimo do seu scooter:
- Coidado da batería:
- Cargue a batería regularmente, mesmo se non a está a usar, para manter o seu estado.
- Evite esgotar completamente a batería.
- Garda o escúter nun lugar fresco e seco cando non o uses durante períodos prolongados.
- The high-capacity 57.6V 13 Ah battery offers a range of up to 37 miles on a single charge.
- Mantemento de pneumáticos:
- Check tire pressure weekly and inflate to the recommended PSI.
- Inspeccione os pneumáticos para detectar desgaste, pinchazos ou danos.
- Inspección de freos: Regularly check the brake levers, cables, and pads for wear. Adjust or replace as necessary to ensure effective braking.
- Limpeza: Limpa o scooter cun anuncioamp pano. Non empregues chorros de auga a alta presión nin mergulles o escúter na auga.
- Inspección xeral: Periodically check all screws and bolts for tightness. Ensure the folding mechanism operates smoothly and locks securely.
7 Solución de problemas
Esta sección aborda problemas comúns cos que podes atoparte:
| Problema | Causa posible | Solución |
|---|---|---|
| A scooter non se acende. | Batería baixa ou esgotada; conexión da batería solta. | Charge the battery fully. Check battery connections. |
| Velocidade ou autonomía reducidas. | Low battery charge; incorrect speed mode; tire pressure too low; rider weight exceeds limit; riding uphill frequently. | Ensure battery is fully charged. Select a higher speed mode. Inflate tires to recommended pressure. Reduce load if possible. |
| Error Code 30 on display. | Motor or controller communication issue. | Turn the scooter off and on again. If the error persists, contact customer support. |
| Brakes feel weak or squeaky. | Worn brake pads; misaligned caliper; loose brake cable. | Inspect brake pads for wear and replace if necessary. Adjust the brake caliper or cable tension. |
| Folding mechanism is stiff or stuck. | Falta de lubricación; residuos no mecanismo. | Clean the mechanism and apply a small amount of lubricant. Ensure no debris is obstructing the latch. |
8. Especificacións
Key technical specifications for the INOKIM OX Hero Electric Scooter:
| Característica | Detalle |
|---|---|
| Marca | INOKIM |
| Nome do modelo | OX Hero |
| Potencia do motor | 1000W Brushless Hub Motor (Peak 1300W) |
| Velocidade máxima | 27.9 mph |
| Batería | 57.6V 13 Ah Lithium-ion |
| Alcance máximo de distancia | Ata 37 millas |
| Tempo de carga | 4-7 horas |
| Límite de peso | 265 libras (120 kg) |
| Peso do elemento | 62 libras |
| Dimensións do produto (L x W x H) | 47 cm de longo x 51 cm de ancho x 23 cm de alto |
| Tamaño da roda | 10 polgadas |
| Tipo de roda | Pneumático |
| Estilo de freo | Front Drum Brake, Rear Hydraulic Disc Brake |
| Material | Aluminum 6061 T6 |
Figura 6: Superposición de dimensiónsview of the INOKIM OX Hero Electric Scooter, showing its length, width, and height.
9. Garantía e soporte
The INOKIM OX Hero Electric Scooter comes with a Garantía limitada do fabricante de 2 anos. For warranty claims, technical support, or replacement parts, please contact INOKIM customer service.
You can visit the official INOKIM store for more information and support: INOKIM Official Store.
