Introdución
The MONTECH HyperFlow ARGB 360 is an advanced All-In-One (AIO) liquid CPU cooler designed to provide superior thermal performance for both Intel and AMD processors. Featuring a high-speed 3100 RPM water pump, a slim 27mm radiator with a 20 FPI fin design, and three Metal Pro 12 ARGB fans, this cooler ensures efficient heat dissipation and vibrant customizable lighting. This manual provides essential information for installation, operation, maintenance, and troubleshooting to help you maximize your cooling experience.
Contido do paquete
Verifique que estean presentes todos os compoñentes antes de continuar coa instalación.
- MONTECH HyperFlow ARGB 360 AIO Liquid Cooler (Radiator, Pump, Tubes)
- 3 x Metal Pro 12 ARGB Ultimate Cooling Fans (pre-installed on radiator)
- Intel Mounting Hardware (LGA 1700/1200/15X/2066)
- AMD Mounting Hardware (AM3/AM4/AM5)
- Thermal Paste (pre-applied on cold plate, stencil included for reapplication)
- Manual de usuario
Configuración e instalación
Antes de Comezar
- Asegúrate de que o teu ordenador estea apagado e desconectado da toma de corrente.
- Reúne as ferramentas necesarias: un destornillador Phillips.
- Consult your motherboard manual for CPU socket type and available mounting points for a 360mm radiator.
- The cooler comes with pre-installed fans and pre-applied thermal paste for convenience.
Pasos de instalación
Preparar o radiador: The three Metal Pro 12 ARGB fans are pre-installed on the 360mm radiator. Ensure they are oriented correctly for optimal airflow (typically pushing air through the radiator and out of the case).
This image displays the complete MONTECH HyperFlow ARGB 360 AIO liquid cooler assembly, featuring the 360mm radiator, three ARGB fans, and the distinctive gemstone-design pump with integrated ARGB lighting.
Instalar radiador: Mount the radiator to an available 360mm fan mount location in your PC case (e.g., top, front). Secure it using the provided screws.
A vertical perspective of the MONTECH HyperFlow ARGB 360, highlighting the compact design of the radiator and the three vertically aligned ARGB fans.
Preparar o socket da CPU: Select the appropriate mounting hardware for your Intel (LGA 1700/1200/15X/2066) or AMD (AM3/AM4/AM5) CPU socket. Follow the specific instructions for your socket type to install the backplate and standoffs.
This image illustrates the broad compatibility of the MONTECH HyperFlow ARGB AIO with various Intel (LGA 1700/1200/15X/2066) and AMD (AM3/AM4/AM5) CPU sockets. It also highlights the simplified cable management with a pre-connected 7-pin cable, ready for 4-pin and 5V3pin connectors, and includes features like organizer tube holders and a thermal paste stencil for reinstallation.
Montar a bomba: Carefully place the pump block onto your CPU, aligning it with the standoffs. The thermal paste is pre-applied. Secure the pump block using the provided thumb screws or nuts, tightening them in a diagonal pattern until snug.

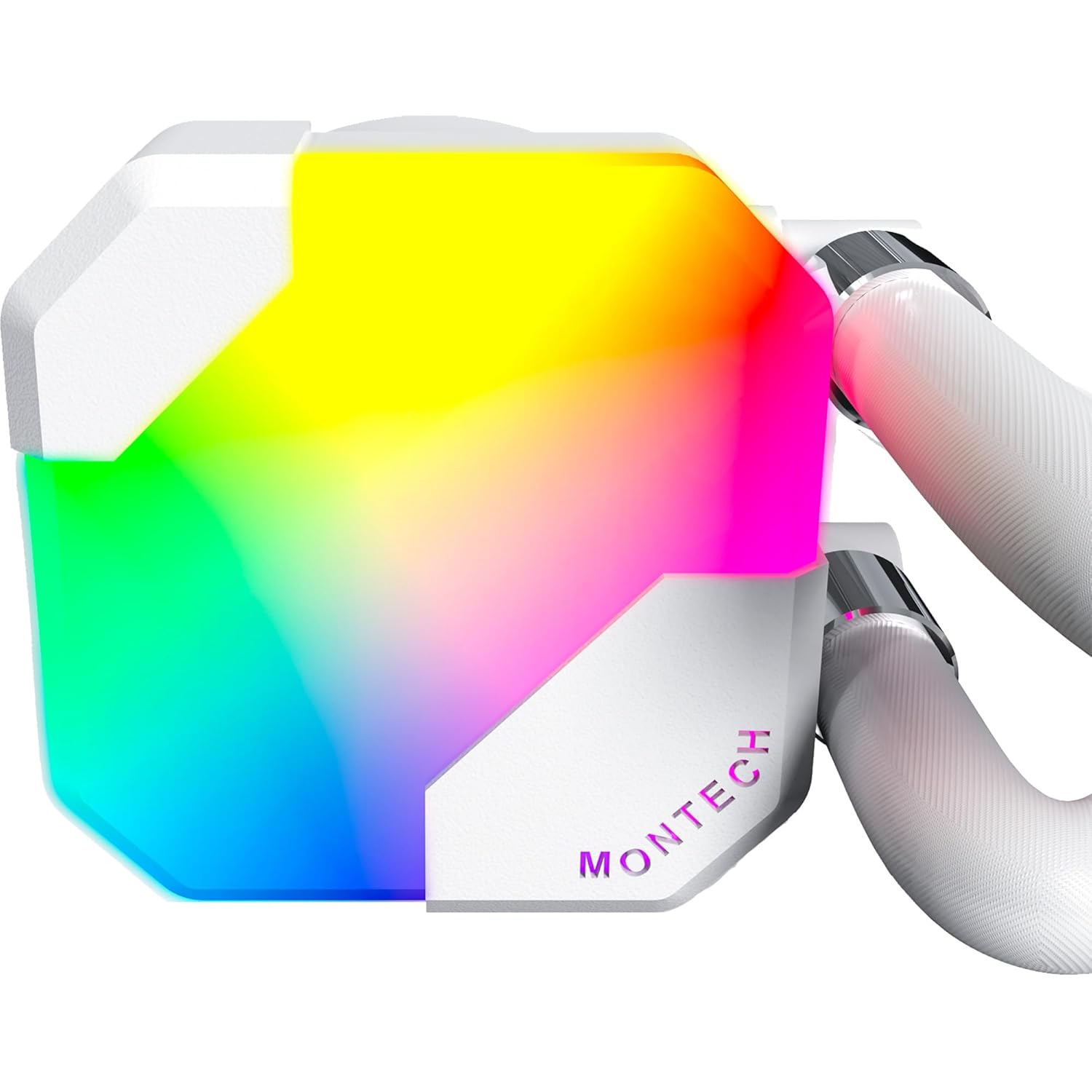

A detailed close-up of the MONTECH HyperFlow ARGB 360 pump, emphasizing its gemstone design and vibrant ARGB illumination.
Cables de conexión: The cooler features simplified cable management with a pre-connected 7-pin short cable. Connect this cable to the appropriate 4-pin CPU_FAN header on your motherboard for pump power and speed control. Connect the 5V3pin ARGB connector to a compatible 5V ARGB header on your motherboard for lighting control. Ensure all fan cables are connected to the appropriate fan headers, either directly to the motherboard or via a fan hub/controller.
Xestión de cables Route all cables neatly to ensure proper airflow within your case. Use cable ties or straps if necessary.
Operación
Encendido inicial
After completing the installation, power on your computer. The pump and fans should begin operating. You may hear a slight gurgling sound initially as air bubbles are purged from the loop; this should subside within a few minutes of operation. Monitor your CPU temperatures using system monitoring software to ensure proper cooling.
Control de iluminación ARGB
The HyperFlow ARGB 360 features addressable RGB lighting on both the pump and fans. If connected to a compatible 5V ARGB header on your motherboard, you can control the lighting effects using your motherboard's RGB software (e.g., ASUS Aura Sync, MSI Mystic Light Sync, GIGABYTE RGB Fusion, ASRock Polychrome Sync). Refer to your motherboard's manual for specific software instructions.
Seguimento do rendemento
It is recommended to regularly monitor your CPU temperatures and cooler performance. Software tools can display pump RPM, fan RPM, and CPU temperature. The pump operates at a rapid 3100 RPM, and the Metal Pro 12 ARGB fans operate at up to 2200 RPM, providing robust cooling performance.
This graphic provides detailed specifications for the Metal Pro 12 ARGB fans, including their maximum rotation speed of 2200 RPM, low noise level of 29.1 dB(A), high airflow of 76.2 CFM, and strong static pressure of 3.81mmH2O, indicating powerful and quiet operation.
Mantemento
The MONTECH HyperFlow ARGB 360 is a closed-loop system and requires minimal maintenance. However, regular cleaning can help maintain optimal performance.
- Limpeza do po: Periodically clean the radiator fins and fan blades to prevent dust buildup, which can impede airflow and cooling performance. Use compressed air or a soft brush. Ensure fans are not spinning during cleaning.
- Inspección de tubos: Occasionally inspect the tubing for any signs of kinks, leaks, or damage. While highly durable, ensuring the tubes are not excessively bent will maintain optimal flow.
- Reaplicación de pasta térmica: If you ever remove the pump block from the CPU, it is recommended to clean off the old thermal paste from both the CPU and the cold plate and apply new thermal paste before reinstallation. A stencil is included for this purpose.
Resolución de problemas
This section addresses common issues you might encounter with your AIO liquid cooler.
| Problema | Causa posible | Solución |
|---|---|---|
| Temperaturas altas da CPU | Improper pump mounting; insufficient thermal paste; fans not spinning; radiator clogged with dust; pump failure. | Ensure pump is securely mounted and making full contact with CPU. Verify thermal paste application. Check fan connections and ensure they are spinning. Clean radiator fins. Check pump cable connection to CPU_FAN header. |
| Os ventiladores non xiran / O ARGB non se ilumina | Loose cable connections; incorrect header connection; software issue. | Verify all fan power cables are securely connected to motherboard fan headers or fan controller. Ensure ARGB cable is connected to a 5V ARGB header (not 12V RGB). Check motherboard BIOS/UEFI settings for fan control. Reinstall or update motherboard RGB software. |
| Unusual Noise (Gurgling/Whining) | Air bubbles in the loop (gurgling); pump noise (whining). | Gurgling usually subsides after a few minutes of operation. Ensure the radiator is mounted higher than the pump if possible to allow air to collect at the highest point. If whining persists, ensure pump is not running at excessively high RPM if controllable. |
Especificacións
| Característica | Especificación |
|---|---|
| Nome do modelo | HyperFlow ARGB 360 White |
| Dimensións do radiador (L x A x H) | 15.63" x 4.72" x 1.06" (397 mm x 120 mm x 27 mm) |
| Material do radiador | Aluminio |
| Tipo de ventilador | Metal Pro 12 ARGB |
| Velocidade do ventilador | Ata 2200 RPM |
| Ventilador de fluxo | 76.2 CFM |
| Presión estática do ventilador | 3.81 mm H2O |
| Nivel de ruído do ventilador | 29.1 dB(A) |
| Velocidade da bomba | 3100 RPM |
| Nivel de ruído da bomba | 28 dB |
| Tipo de conector de alimentación | 4-Pin (Pump), 7-Pin (Fans/ARGB combined) |
| Conector ARGB | 5V 3-Pin |
| Soquetes de CPU compatibles | Intel LGA 1700/1200/15X/2066, AMD AM3/AM4/AM5 |
| Método de arrefriamento | Líquido (auga) |
| Wattage | 14.28 vatios |
| Voltage | 5 voltios |
Información da garantía
MONTECH provides an industry-leading 6 ano de garantía for the HyperFlow ARGB 360 AIO CPU Liquid Cooler. This warranty covers defects in materials and workmanship under normal use. Please retain your proof of purchase for warranty claims. For detailed warranty terms and conditions, please refer to the official MONTECH websitio ou póñase en contacto co servizo de atención ao cliente.
An image emphasizing the 6-year warranty period for MONTECH HyperFlow ARGB AIO coolers, providing assurance of product quality and reliability.
Apoio
For technical assistance, troubleshooting, or warranty inquiries, please visit the official Montech website or contact their customer support team. You can typically find contact information, FAQs, and driver downloads on their support page.
Websitio: www.montechpc.com
Please note that contact methods may vary by region.
