SENGBIRCH iPad Pro 13 Inch Keyboard Case User Manual

1. Introdución

This manual provides detailed instructions for the SENGBIRCH iPad Pro 13-inch Keyboard Case. Please read this manual carefully before use to ensure proper operation and to maximize the product's lifespan. Keep this manual for future reference.

Contido do paquete:

• 1 x SENGBIRCH Keyboard Case
• 1 x cable de carga USB-C
• 1 x Manual de usuario
• Note: iPad tablet and Apple Pencil are not included.

2. Compatibilidade

Esta funda con teclado está deseñada especificamente para os seguintes modelos de iPad:

• iPad Pro 13-inch (M4) 2024
• iPad Pro 13-inch (M5) 2025

Important: This case is not compatible with any other iPad models, including previous generations of iPad Pro 13-inch or other iPad sizes.

3. Guía de configuración

3.1 Inserting Your iPad

1. Abre a funda do teclado.
2. Align your iPad Pro 13-inch with the case's frame, ensuring the camera cutout matches the iPad's camera.
3. Gently press the iPad into the case until it is securely seated. Ensure all edges are properly protected.

3.2 Carga do teclado

Before initial use, fully charge the keyboard. The keyboard has a built-in rechargeable battery.

• Locate the USB-C charging port on the side of the keyboard case.
• Connect the provided USB-C cable to the keyboard's charging port and the other end to a USB power adapter (not included).
• The charging indicator light will illuminate. Once fully charged, the light will change or turn off. A full charge takes approximately 3 hours.

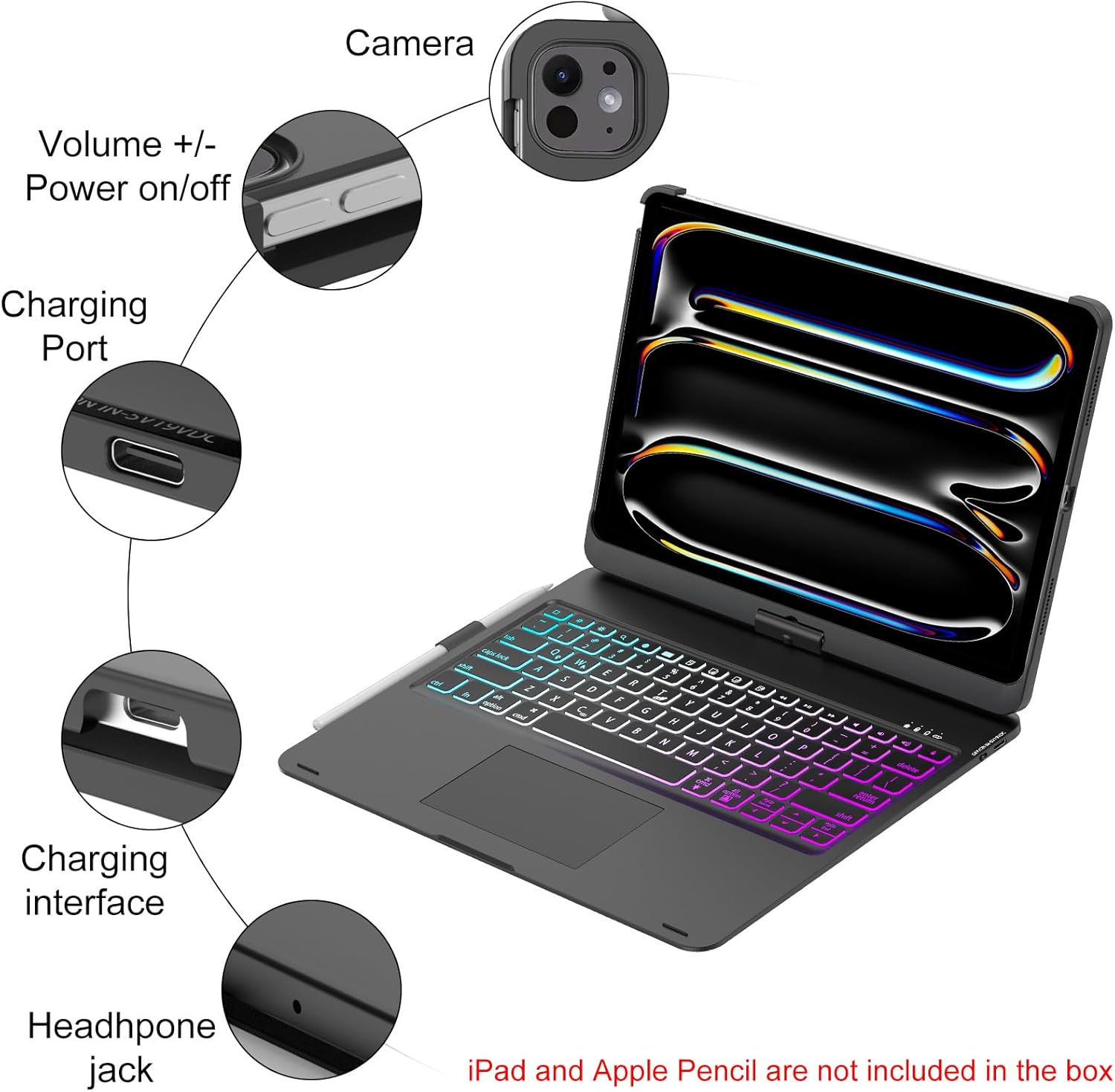

Imaxe: Detallada view of the keyboard case ports and slots, including the USB-C charging interface, power switch, camera hole, Apple Pencil loop, and durable hinge.

3.3 Emparejamento Bluetooth

To connect the keyboard to your iPad:

1. Asegúrate de que o teclado estea cargado.
2. Turn on the keyboard using the power switch (usually located near the charging port). The indicator light will flash, indicating it's in pairing mode.
3. No teu iPad, vai a Configuración > Bluetooth.
4. Activa o Bluetooth. O teu iPad buscará os dispositivos dispoñibles.
5. Select "SENGBIRCH Keyboard" (or similar name) from the list of devices.
6. If prompted, enter the pairing code displayed on your iPad screen using the keyboard, then press Enter.
7. Once paired, the indicator light on the keyboard will stop flashing, and your iPad will show the keyboard as "Connected."

4. Instrucións de funcionamento

4.1 Funcións do teclado

The keyboard features a standard 83-key layout with additional function keys for iPad control.

• Atallos multimedia: A full row of multimedia shortcuts allows easy control of volume, media playback, and other iPad functions.
• Control de retroiluminación: The keyboard features a 7-color rainbow backlight.
• Preme o Bombilla key to cycle through backlight colors.
• Preme Fn + Lámpada key to adjust backlight brightness (3 levels) or turn it off.
• Breathing frequency adjustment is also available for the backlight.

Imaxe: Máis deview of keyboard functionality, including 360° rotation, backlight options, and battery performance (3 hours charging, 60 days standby, 90 hours work time with backlight off).

4.2 Uso do panel táctil

The integrated touchpad supports multi-touch gestures for enhanced productivity.

• Activar/Desactivar: Preme Fn + T to enable or disable the touchpad.
• Control do cursor: Move your finger across the touchpad to control the cursor on your iPad screen.
• Toca simple: Funciona como un clic esquerdo.
• Desprazamento con dous dedos: Swipe two fingers up or down to scroll through content.
• Multi-touch Gestures: Refer to your iPad's settings for additional gesture customization and functionality.

Image: The keyboard's multitouch trackpad, illustrating its location and the key combination for activation/deactivation.

4.3 360° Rotation and Usage Modes

The case features a 360° rotatable hinge and a 180° flip capability, allowing for versatile usage modes.

• Modo portátil: Use your iPad like a traditional laptop for typing and productivity.
• Modo de soporte: Fold the keyboard back to prop up your iPad for viewing contido.
• Modo tenda: Invert the case to create a stable tent-like stand, ideal for watching videos or presentations.
• Modo tableta: Fold the keyboard completely behind the iPad for a pure tablet experience.
• Corner Mode: Adjust the angle for comfortable drawing or writing.
• Modo de compartir: Rotate the screen to easily share content with others.
• Protect Mode: Close the case to fully protect your iPad and keyboard.

Image: Visual representation of the seven adaptable usage modes, showcasing the case's flexibility for different scenarios.

5. Mantemento

5.1 Limpeza

• To clean the case exterior, use a soft, damp pano. Evite produtos químicos agresivos ou produtos de limpeza abrasivos.
• For the keyboard keys, use a soft brush or compressed air to remove dust and debris. Wipe gently with a slightly damp pano se é necesario.
• Ensure no liquid enters the keyboard or charging ports.

5.2 Coidado coa batería

• Para prolongar a duración da batería, evite descargar completamente o teclado con frecuencia.
• Carga o teclado con regularidade, mesmo se non o usas constantemente.
• Garde o teclado nun lugar fresco e seco cando non o use durante períodos prolongados.

6 Solución de problemas

O teclado 6.1 non se conecta por Bluetooth

• Comprobar a batería: Asegúrate de que o teclado estea suficientemente cargado.
• Encendido: Comprobe que o interruptor de acendido do teclado estea na posición "ON".
• Bluetooth On iPad: Confirm Bluetooth is enabled on your iPad (Settings > Bluetooth).
• Volver emparellar: If previously paired, try forgetting the device on your iPad and re-pairing it. Go to iPad Bluetooth settings, tap the 'i' icon next to the keyboard name, and select 'Forget This Device'. Then, repeat the pairing steps.
• Reiniciar dispositivos: Restart both your iPad and the keyboard, then attempt pairing again.

6.2 As teclas non responden

• Comprobar a conexión: Asegúrate de que o teclado estea conectado correctamente mediante Bluetooth.
• Nivel de batería: Unha batería baixa pode provocar unha resposta intermitente das teclas. Cargue o teclado.
• Interferencia: Afastese doutros dispositivos sen fíos que poidan causar interferencias.

6.3 Touchpad Not Working

• Activate Touchpad: Ensure the touchpad is enabled by pressing Fn + T.
• Conexión Bluetooth: Verify the keyboard is connected to the iPad.
• Configuración do iPad: Check iPad accessibility settings for any touchpad-related configurations.

6.4 Problemas de retroiluminación

• Axuste de brillo: Preme Fn + Lámpada para alternar entre os niveis de brillo.
• Nivel de batería: Backlight functionality may be limited or disabled at very low battery levels. Charge the keyboard.

7. Especificacións

Image: Dimensions and weight specifications of the keyboard case.

8. Garantía e soporte

8.1 Garantía do produto

SENGBIRCH products are manufactured with quality and reliability in mind. For specific warranty details and terms, please refer to the product packaging or contact SENGBIRCH customer support.

8.2 Atención ao cliente

If you encounter any issues or have questions regarding your SENGBIRCH iPad Pro 13-inch Keyboard Case, please contact our customer support team. We are committed to providing assistance and ensuring your satisfaction.

• Método de contacto: Please refer to the contact information provided on the product packaging or the official SENGBIRCH websitio.
• When contacting support, please have your product model number and purchase details ready.
