TOOQ DB1202TN-B Dual Monitor Desk Mount with Laptop Tray Instruction Manual

1. Introdución

This manual provides detailed instructions for the assembly, installation, operation, and maintenance of your TOOQ DB1202TN-B Dual Monitor Desk Mount with Laptop Tray. Please read this manual thoroughly before installation and use to ensure proper setup and safe operation. Keep this manual for future reference.

Figure 1: TOOQ DB1202TN-B Dual Monitor Desk Mount with Laptop Tray in use.

2. Información de seguridade

• Le todas as instrucións: Ensure you understand all instructions and warnings before installation and use.
• Capacidade de peso: Do not exceed the maximum weight capacity of 9 kg (19.8 lbs) per monitor arm and 9 kg (19.8 lbs) for the laptop tray. Exceeding this limit may result in serious injury or property damage.
• Tamaño do monitor: This mount is designed for monitors between 17 and 32 inches.
• Laptop Size: The tray is suitable for laptops between 12 and 17 inches.
• Compatibilidade VESA: Ensure your monitors are VESA compatible (75x75mm or 100x100mm).
• Espesor da mesa: Verify your desk thickness is within the specified range for clamp o instalación de ojales.
• Montaxe: Assemble the product according to the instructions. Incorrect assembly can lead to product failure or injury.
• Nenos: Manteña as pezas pequenas lonxe dos nenos.
• Mantemento: Regularly check that the mount is secure and all fasteners are tight.

3. Contido do paquete

Comprobe que todos os compoñentes estean presentes e non estean danados antes de continuar coa instalación. Se falta algunha peza ou está danada, póñase en contacto co servizo de atención ao cliente.

• 1x Main Pole
• 2x Monitor Arms
• 1x Laptop Tray
• 1x Desk Clamp Asemblea
• 1x Grommet Mount Assembly
• 1x Hardware Kit (screws, washers, Allen keys)
• 1 x manual de instrucións

Figure 2: Included mounting hardware (M-A: M4x12, M-B: M5x12, M-C: D5 washers).

4. Especificacións

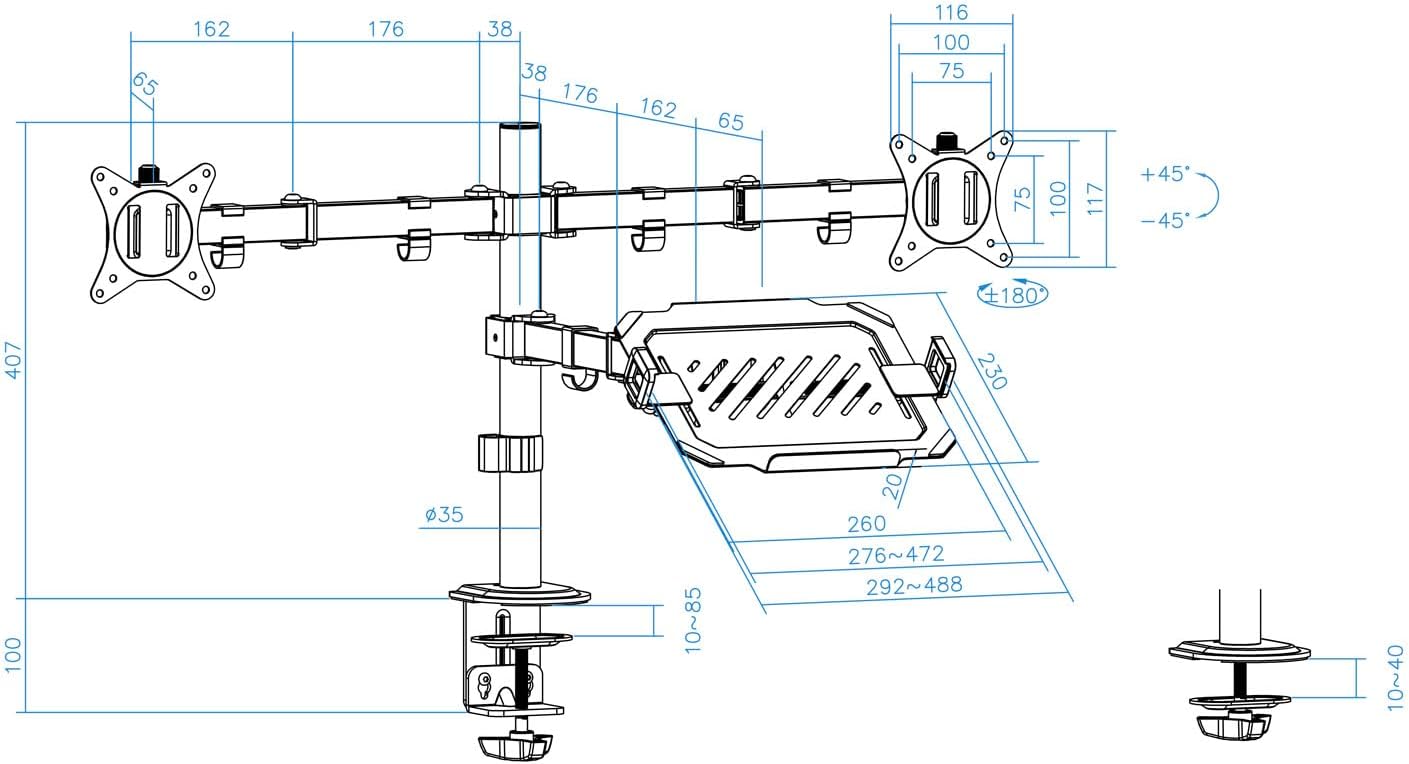

Figure 3: Detailed technical drawing with dimensions.

5. Configuración e instalación

The TOOQ DB1202TN-B offers two installation options: desk clamp or grommet mount. Choose the method best suited for your desk.

5.1 Escritorio Clamp Instalación

1. Coloque o escritorio clamp base to the main pole using the provided screws.
2. Coloque o clamp on the edge of your desk. Ensure the desk thickness is compatible with the clamp's range.
3. Apretar o clamp parafuso ata que o soporte estea firmemente fixado ao escritorio. Non o aperte demasiado.

Figura 4: Agulla de escritorioamp instalación.

5.2 Instalación do soporte con ilhós

1. If your desk has a grommet hole, remove the existing grommet cover.
2. Assemble the grommet base components as per the diagram in the manual (not provided here, but implied).
3. Insert the main pole through the grommet hole.
4. Secure the grommet base from underneath the desk using the provided plate and nut. Tighten firmly.

Figure 5: Grommet mount installation.

5.3 Attaching Monitor Arms and Laptop Tray

1. Slide the monitor arms onto the main pole at your desired height. Secure them with the locking collars.
2. Slide the laptop tray arm onto the main pole and secure it.
3. Attach the VESA plates to the back of your monitors using the appropriate M4x12 or M5x12 screws and D5 washers from the hardware kit. Ensure the screws are not overtightened and do not damage the monitor.
4. Carefully slide the monitors (with VESA plates attached) onto the monitor arms. Ensure they click into place securely.
5. Place your laptop onto the laptop tray. Adjust the width-adjustable claws to securely hold your laptop.

Figure 6: Attaching monitor arms and adjusting height.

Figure 7: Laptop holder with adjustable width claws (276-472mm).

6. Operating Instructions and Adjustments

This monitor mount offers various adjustment options to achieve an ergonomic setup.

• Axuste de altura: Loosen the locking collar on the main pole to slide the monitor arms and laptop tray up or down. Retighten the collar once the desired height is reached.
• Axuste de inclinación: The monitor and laptop tray can be tilted +45° to -45°. Use the provided Allen key to adjust the tension if the screen does not hold its position.
• Axuste de xiro: Swivel your monitors up to 90° horizontally or vertically.
• Axuste de rotación: Rotate your monitors +180° to -180° for portrait or landscape orientation.
• Laptop Tray Tilt: The laptop tray also offers tilt adjustment for comfortable typing and viewángulos de inflexión.

Figure 8: Laptop tray tilt adjustment.

Figure 9: Monitor swivel and rotation capabilities.

6.1 Xestión de cables

Utilize the integrated cable clips along the arms and main pole to route and organize your monitor and laptop cables. This helps maintain a clean and tidy workspace.

Figure 10: Cable management clips.

7. Mantemento

• Limpeza: Limpa a montura cun pano suave eamp pano. Evite produtos de limpeza abrasivos ou solventes.
• Comprobación de estanqueidade: Periodically check all screws and fasteners to ensure they remain tight and secure. Retighten as necessary.
• Lubricación: No lubrication is required for normal operation.

8 Solución de problemas

• O monitor afúndese ou non mantén a posición:
  • Ensure the monitor weight does not exceed the maximum capacity (9 kg per arm).
  • Tighten the tilt adjustment screw on the VESA plate using the provided Allen key.
• A montaxe é inestable:
  • Verify the desk clamp or grommet mount is securely tightened to the desk.
  • Ensure the main pole and arm collars are tightened.
• Laptop tray sags:
  • Ensure the laptop weight does not exceed the maximum capacity (9 kg).
  • Tighten the tilt adjustment screw for the laptop tray.
• Pezas que faltan:
  • Refer to the "Package Contents" section. If parts are missing, contact customer support.

9. Garantía e soporte

For warranty information or technical support, please refer to the documentation included with your purchase or visit the official TOOQ websitio. Garde o recibo da compra como xustificante da mesma.
