Yaheetech 5-Tier Standing Shelf Unit Instruction Manual

1. Introdución

Thank you for choosing the Yaheetech 5-Tier Standing Shelf Unit. This heavy-duty shelving unit is designed for versatile storage in various environments such as garages, basements, warehouses, kitchens, and offices. Its robust construction and adjustable design provide a practical solution for organizing your space. This manual provides essential information for safe assembly, operation, and maintenance of your new shelving unit.

2. Información de seguridade

• Lea atentamente todas as instrucións antes de montar e usar.
• Asegúrate de que todos os compoñentes estean presentes e non estean danados antes de comezar a montaxe. Non o uses se falta algunha peza ou está rota.
• Assemble the unit on a flat, stable surface to prevent tipping.
• Always use the provided anti-tipping over unit to secure the shelf to a wall, especially in areas with children or pets, or if the unit will hold heavy items.
• Distribute weight evenly across shelves. Do not exceed the maximum weight capacity per shelf or for the entire unit.
• Do not climb on the shelving unit.
• Manteña as pezas pequenas fóra do alcance dos nenos durante a montaxe para evitar riscos de asfixia.
• Wear appropriate safety gear, such as gloves, during assembly to avoid cuts or pinches.

3. Contido do paquete

Please verify that all parts are included before starting assembly. If any parts are missing or damaged, please contact customer support.

• Metal uprights (vertical posts)
• Metal crossbeams (horizontal supports for shelves)
• MDF boards (for shelves)
• Patas de plástico (16 unidades)
• Anti-tipping over unit (wall anchors and screws)
• Instrucións de montaxe

4. Especificacións

Image: Detailed specifications of the Yaheetech 5-Tier Standing Shelf Unit, including dimensions and weight capacity.

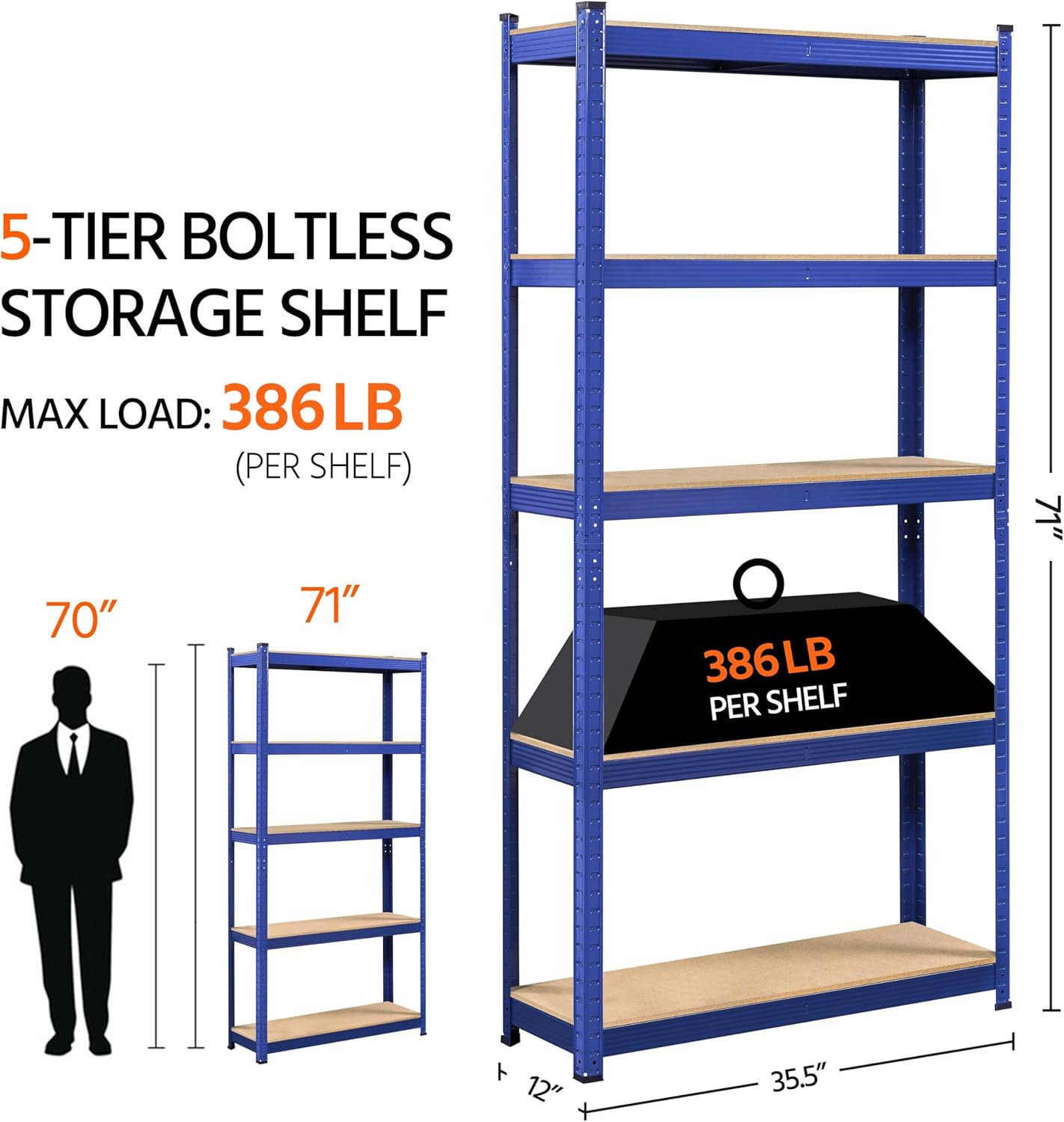

Image: Diagram illustrating the dimensions (71" H x 35.5" L x 12" W) and maximum load capacity of 386 lbs per shelf for the Yaheetech 5-Tier Boltless Storage Shelf.

5. Instrucións de configuración e montaxe

The Yaheetech 5-Tier Standing Shelf Unit features a boltless design for easier assembly. Follow these steps carefully:

1. Preparar a base: Attach the 16 plastic feet to the bottom of the vertical posts. Ensure they are securely fitted to protect your floor and provide stability.
2. Montar o cadro: Connect the metal uprights and crossbeams according to the diagrams provided in your package. The boltless construction allows components to slot and lock into place. Ensure all connections are firm and stable.
3. Instalar estantes: Place the MDF boards onto the assembled crossbeams for each tier. The middle supporting beam on each tier helps hold the MDF board firmly.
4. Axustar a altura da balda: The shelves are height-adjustable. You can customize the shelf height to accommodate items of various sizes by repositioning the crossbeams in the desired slots on the uprights.
5. Secure with Anti-Tipping Unit: For enhanced stability and safety, fix the anti-tipping over unit to the back of the shelf and secure it to an adjacent wall using the provided hardware.

Image: Key features for assembly and stability, including reinforced support, embedded connections, high-quality MDF boards, corner reinforcement, boltless construction, and non-slip pads.

Image: Illustration of the height-adjustable shelves, demonstrating how to customize shelf spacing to fit different item sizes.

Image: The anti-tipping over unit, including wall anchors and screws, designed to prevent wobbling and ensure extra safety by securing the shelf to a wall.

6. Instrucións de funcionamento (uso)

Your Yaheetech 5-Tier Standing Shelf Unit is designed for versatile storage. Here are guidelines for optimal use:

• Cargando: Place items on the shelves, ensuring weight is distributed as evenly as possible. Avoid concentrating heavy loads on one side or corner of a single shelf.
• Capacidade de peso: Do not exceed the maximum weight capacity of 386 lbs per shelf or the total unit capacity of 1930 lbs. Overloading can compromise stability and safety.
• Deseño axustable: The unit can be configured vertically as a tall 5-tier shelf or horizontally as a workbench with two shorter units. You can also remove a shelf board to create larger vertical space for taller items.
• Colocación: Suitable for various rooms including garages, kitchens, basements, pantries, closets, sheds, warehouses, and offices.

Image: The Yaheetech 5-Tier Standing Shelf Unit utilized in a kitchen, demonstrating its capacity for storing kitchen essentials and small appliances.

Image: The Yaheetech 5-Tier Standing Shelf Unit in a garage environment, showcasing its use for organizing tools, automotive supplies, and other heavy items.

Image: Multiple Yaheetech 5-Tier Standing Shelf Units configured in a supermarket or warehouse, illustrating their utility for commercial storage and display of goods.

7. Mantemento

To ensure the longevity and appearance of your shelving unit, follow these simple maintenance guidelines:

• Limpeza: Wipe the metal frame and MDF boards with a dry cloth. For stubborn dirt, a slightly damp cloth can be used, followed immediately by a dry cloth to prevent moisture damage to the MDF.
• Inspección: Comprobe periodicamente todas as conexións e os elementos de fixación para garantir que estean ben axustados e seguros. Volva a apertalos se é necesario.
• Prevención de danos: Avoid exposing the MDF boards to excessive moisture or direct water, as this can cause swelling or warping.
• Distribución de peso: Regularmente review the load on your shelves to ensure weight is still evenly distributed and within capacity limits.

8 Solución de problemas

If you encounter any issues with your Yaheetech 5-Tier Standing Shelf Unit, consider the following common solutions:

• A unidade está inestable:
  • Ensure all connections between uprights and crossbeams are fully engaged and locked.
  • Verify the unit is on a level surface. Adjust plastic feet if necessary.
  • Confirm the anti-tipping over unit is properly installed and secured to the wall.
• Shelf Boards Don't Fit:
  • Check that the crossbeams are correctly installed and spaced.
  • Ensure the MDF boards are oriented correctly.
• Dificultade de montaxe:
  • Refer to the assembly diagrams provided in your package.
  • Ensure components are aligned correctly before attempting to slot them together. A rubber mallet (not included) can sometimes assist with seating components firmly.

9. Garantía e soporte

For any questions, concerns, or to report missing/damaged parts, please contact Yaheetech customer support. Please have your model number (YT-00139227) and purchase information ready when contacting support.

While specific warranty details are not provided in this manual, Yaheetech is committed to customer satisfaction. Please refer to your purchase documentation or the retailer's website for information regarding returns, replacements, or warranty claims.
