1. Introdución
Grazas pola compraasing the Waleaf Fireplace TV Stand. This product combines a modern entertainment center with an integrated 18-inch electric fireplace, offering both functional storage and ambient heating. This manual provides essential information for safe assembly, operation, maintenance, and troubleshooting to ensure optimal performance and longevity of your TV stand.
Lea este manual detidamente antes da montaxe e o uso, e gárdeo para futuras consultas.
2. Información de seguridade
WARNING: Important Safety Instructions. Read and understand all instructions before using this appliance.
- Always unplug the electric fireplace from the power outlet before cleaning, performing maintenance, or relocating the unit.
- Non fagas funcionar a lareira cun cable ou enchufe danados, ou se o quentador funcionou de forma avariada, se deixou caer ou sufriu danos de calquera xeito.
- Manteña os materiais combustibles, como mobles, almofadas, roupa de cama, papeis, roupa e cortinas a polo menos 0.9 m da parte dianteira do quentador e lonxe dos laterais e da parte traseira.
- Non insira nin permita que entren obxectos estraños en ningunha abertura de ventilación ou escape, xa que isto pode provocar unha descarga eléctrica ou incendio, ou danar o quentador.
- This TV stand is designed for indoor use only.
- Ensure the TV stand is placed on a level, stable surface to prevent tipping.
- Non exceda a capacidade de peso máxima de 300 libras para a superficie superior.
- Assembly requires two people. Follow all assembly steps carefully.
3. Contido do paquete
Your Waleaf Fireplace TV Stand will arrive in two separate boxes. Please ensure you have received both packages before beginning assembly. Carefully unpack all components and verify against the parts list provided in the included assembly instructions. If any parts are missing or damaged, contact customer service immediately.
- 58-inch TV Stand components (Box 1)
- 18-inch Electric Fireplace insert (Box 2)
- Control remoto para lareira eléctrica
- Kit de hardware de montaxe
- Detailed Assembly Instructions Manual
4. Instrucións de configuración e montaxe
Assembly of the Waleaf Fireplace TV Stand requires careful attention to detail and is best performed by two adults. Please follow the step-by-step instructions provided in the separate assembly manual included with your product. Ensure all parts are present and undamaged before starting.
Características principais da montaxe:

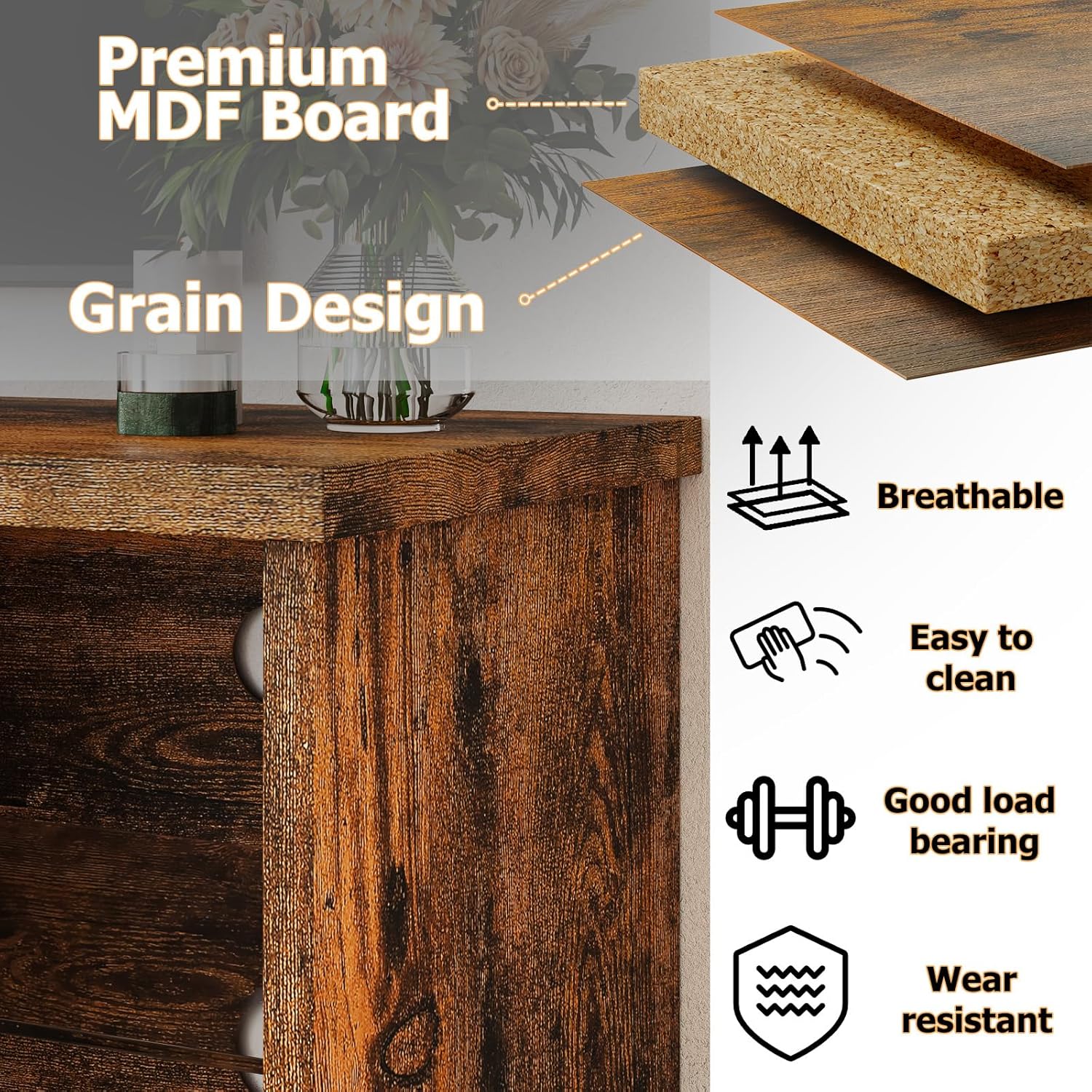

- Construción duradeira: The TV stand is constructed from MDF (Medium-Density Fiberboard) with a classic wood grain finish, designed for durability and scratch resistance.

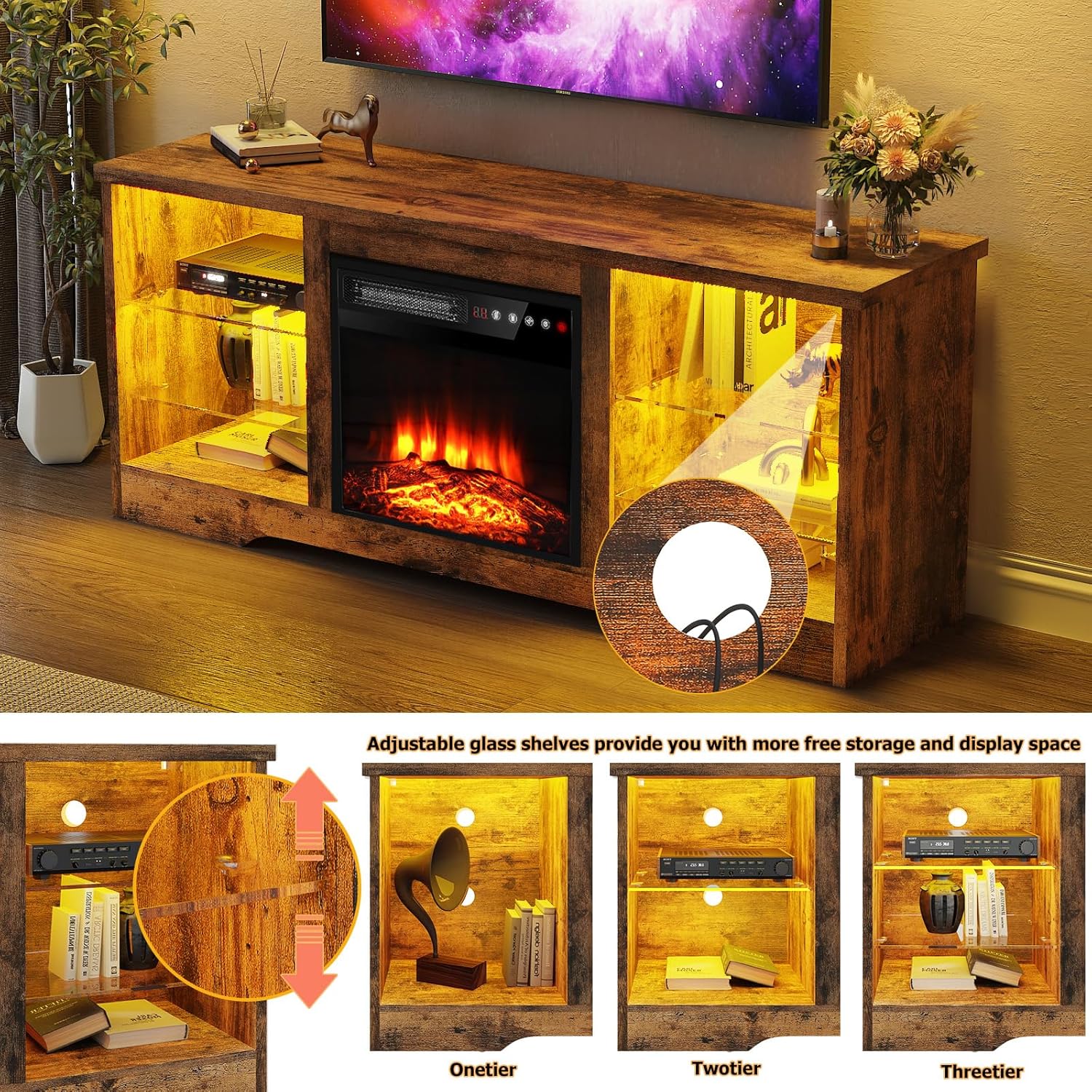

- Baldas de vidro axustables: The side compartments feature four adjustable tempered glass shelves, allowing customization of storage space for media players, game consoles, and decorative items.
- Xestión de cables Integrated cable holes in the back panel help organize and conceal wires, maintaining a tidy appearance.
5. Instrucións de funcionamento
5.1. TV Stand Usage
- Place your television on the top surface. This stand is suitable for TVs up to 65 inches and can support up to 300 pounds.
- Utilize the open storage compartments and adjustable glass shelves for media devices, gaming consoles, books, or decorative items.
- Route power cords and signal cables through the designated cable holes to maintain a neat and organized appearance.
5.2. Sistema de iluminación LED
The TV stand features built-in LED lights with 6 different color options to enhance your living space. The LED lights are typically controlled via a remote control or a switch on the unit. Refer to the specific instructions for the LED lighting system included in your package for detailed operation.
5.3. Funcionamento da lareira eléctrica
The 18-inch electric fireplace provides warmth and ambiance. It can be operated with or without heat, allowing for year-round enjoyment of the flame effect. Use the included remote control or the control panel on the fireplace unit to adjust settings.
- Encendido/apagado: Prema o botón de acendido para acender ou apagar a lareira.
- Configuración de calor: Choose between 750W (energy-saving) and 1500W (adequate heating) options. The heating area covers up to 400 square feet.
- Función de temporizador: Set the operational timer for 1 to 8 hours.
- Cores das chamas: Select from 12 different flame colors to match your mood or decor.
- Flame Brightness (Dimmer): Adjust the brightness of the flame effect (5 levels).
- Velocidade da chama: Adjust the speed of the flame effect (5 levels).
6. Mantemento
6.1. Coidado do soporte de TV
- Limpe as superficies cun suave, damp pano. Evite produtos químicos agresivos ou produtos de limpeza abrasivos.
- For glass shelves, use a standard glass cleaner.
- Comprobe periodicamente todas as conexións de hardware e aperte se é necesario.
- Keep the TV stand away from direct sunlight and excessive moisture to prevent warping or discoloration.
6.2. Coidado da cheminea eléctrica
- Asegúrate de que a lareira estea desconectada e fría antes de limpala.
- Limpe as superficies exteriores cun suave, damp cloth. Do not use abrasive cleaners or spray liquids directly onto the unit.
- Keep the air intake and exhaust vents clear of dust and debris to ensure proper airflow and prevent overheating.
7 Solución de problemas
If you encounter issues with your Waleaf Fireplace TV Stand, please refer to the following common problems and solutions:
| Problema | Causa posible | Solución |
|---|---|---|
| A lareira non se acende. | Sen electricidade, cable de alimentación solto, disyuntor saltado. | Check if the unit is plugged in securely. Verify the wall outlet is functional. Reset the circuit breaker if necessary. |
| Sen calor da lareira. | Heat function not activated, thermostat setting too low, safety cut-off activated. | Ensure the heat setting (750W/1500W) is selected. Increase the thermostat setting. Unplug the unit for 5 minutes to reset the safety cut-off, then plug back in. |
| O efecto da chama non é visible ou parpadea. | Flame brightness set too low, LED bulb issue. | Adjust the flame brightness setting using the remote or control panel. If the issue persists, contact customer support. |
| LED lights on TV stand not working. | Power connection loose, remote battery low, LED strip damage. | Check the power connection for the LED lights. Replace remote batteries. If still not working, contact customer support. |
| O soporte da TV parece inestable. | Chanzo irregular, ferraxes de montaxe soltas. | Ensure the stand is on a level surface. Re-tighten all assembly screws and bolts. |
For issues not covered here, please refer to the detailed troubleshooting section in your separate assembly manual or contact Waleaf customer service.
8. Especificacións
| Característica | Especificación |
|---|---|
| Marca | Waleaf |
| Nome do modelo | W58-TV (Item model number: 58TVS) |
| Dimensións do produto (global) | 15.75" D x 58.07" W x 24.06" H |
| Material | Engineered Wood (MDF), Tempered Glass |
| Cor | marrón |
| Tipo de acabado | Pulido |
| Tipo de instalación | Autónomo |
| Peso do elemento | 80 libras |
| Tamaño máximo de TV compatible | Ata 65 polgadas |
| Max Weight Capacity (Top) | 300 libras |
| Tamaño da lareira eléctrica | 18 polgadas |
| Fonte de enerxía | Eléctrico con cable |
| Configuración de calor | 750 W / 1500 W |
| Cobertura de calefacción | Ata 400 pés cadrados |
| Función de temporizador | 1-8 horas |
| Cores de chama | 12 opcións |
| LED Lights (TV Stand) | 6 opcións de cores |
| Compoñentes incluídos | 18'' Electric Fireplace, 58'' TV Stand, Instructions, Remote Control |
9. Garantía e soporte
Waleaf provides a limited warranty for this product. Please refer to the warranty information included in your product packaging for specific terms and conditions. For any questions, missing parts, or assistance with assembly or operation, please contact Waleaf customer service. Your satisfaction is important to us.
For customer service inquiries, please refer to the contact information provided in your product's packaging or visit the official Waleaf websitio.
