alpina 2L Air Fryer Instruction Manual

1. Introdución

This manual provides essential information for the safe and efficient operation of your alpina 2L Air Fryer. This appliance is designed for preparing meals for 2 to 3 people, offering a healthier alternative to traditional frying by using hot air circulation. It functions as a hot air oven, allowing for faster cooking with less space and no gas. Please read all instructions carefully before first use and retain this manual for future reference.

2. Instrucións de seguridade importantes

WARNING: To prevent electric shock, fire, or injury, always follow basic safety precautions.

• Le todas as instrucións antes de usar o aparello.
• Do not immerse the cord, plug, or the appliance housing in water or other liquids.
• É necesaria unha estreita supervisión cando calquera aparello é usado por nenos ou preto de eles.
• Desenchufe da toma cando non estea en uso e antes de limpalo. Deixar arrefriar antes de poñer ou quitar pezas.
• Non faga funcionar ningún aparello cun cable ou enchufe danados, ou despois de que o aparello funcione mal ou teña dano dalgún xeito.
• Non use anexos non recomendados polo fabricante do aparello.
• Non o coloque sobre ou preto dun queimador eléctrico ou de gas quente, nin nun forno quente.
• Débese ter moito coidado ao mover un aparello que conteña aceite quente ou outros líquidos quentes.
• Non utilice o aparello para outra cousa que non sexa o seu uso previsto.
• Asegúrese de colocar o aparello nunha superficie estable e resistente á calor.
• Non bloquee ningunha abertura de ventilación.
• The outer surfaces may become hot during use. Avoid touching hot surfaces directly.

3. Produto rematadoview

The alpina 2L Air Fryer features a compact design with intuitive controls for temperature and time. It includes a removable basket and grilling plate for easy food preparation and cleaning.

Imaxe 1: Fronte view of the alpina 2L Air Fryer, showcasinpolo seu deseño compacto e o seu panel de control.

Compoñentes:

• Unidade principal: Alberga o elemento calefactor e o ventilador.
• Panel de control: Features a temperature dial and a timer dial.
• Cesta extraíble: Para suxeitar alimentos durante a cocción.
• Grilling Plate: Inserted into the basket for optimal air circulation and crisping.
• Manexar: For safely removing the basket from the main unit.
• Luz indicadora de potencia: Ilumínase cando o aparello está en funcionamento.

Image 2: The removable basket and grilling plate, designed for easy cleaning and efficient cooking.

4. Configuración

1. Desempaquetar: Retire con coidado todos os materiais de embalaxe e as etiquetas promocionais da freidora de aire.
2. Limpar: Wash the removable basket and grilling plate with warm, soapy water. Rinse thoroughly and dry completely. Wipe the interior and exterior of the main unit with a damp pano.
3. Colocación: Place the air fryer on a stable, level, heat-resistant surface, away from walls or other appliances to ensure proper ventilation. Ensure there is at least 10 cm of free space on the back and sides, and 10 cm above the appliance.
4. Execución inicial (opcional): For the first use, it is recommended to run the air fryer empty for about 10-15 minutes at 200°C to burn off any manufacturing residues. A slight odor may be present, which is normal. Ensure the area is well-ventilated.

5. Instrucións de funcionamento

Follow these steps to operate your alpina 2L Air Fryer:

1. Preparar comida: Place your ingredients into the removable basket. Do not overfill the basket to allow for proper air circulation.
2. Inserir cesta: Deslice a cesta de volta na unidade principal ata que encaixe firmemente no seu lugar.
3. Conectar: Conecte o cable de alimentación a unha toma eléctrica conectada a terra.
4. Temperatura establecida: Turn the temperature dial to your desired cooking temperature (80°C to 200°C).
5. Establecer temporizador: Turn the timer dial to the required cooking time (up to 60 minutes). The power indicator light will illuminate, and the air fryer will begin heating.
6. Proceso de cocción: The air fryer will automatically turn off when the timer reaches zero. For even cooking, especially with items like fries, shake the basket halfway through the cooking time. To do this, carefully pull out the basket by its handle, shake the contents, and then reinsert it. The air fryer will resume cooking.
7. Eliminar comida: Once cooking is complete, carefully pull out the basket and place it on a heat-resistant surface. Use tongs to remove the cooked food.
8. Desconectar: Desenchufe sempre o aparello despois do uso.

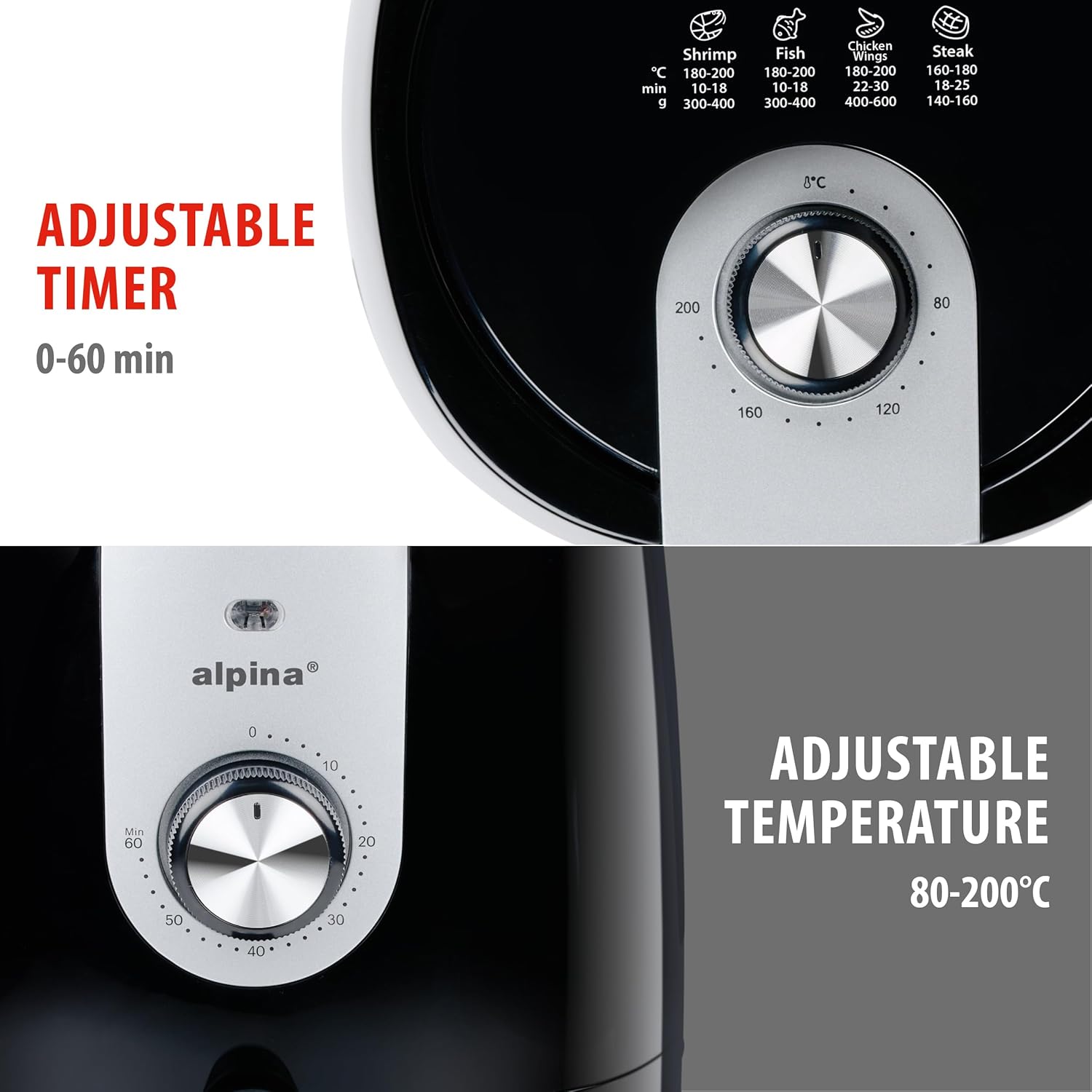

Image 3: The mechanical dials for setting temperature (80-200°C) and time (0-60 minutes).

6. Guía de cociña

The following table provides general guidelines for cooking various foods. Cooking times and temperatures may vary based on food quantity, size, and desired crispness. Always ensure food is cooked thoroughly.

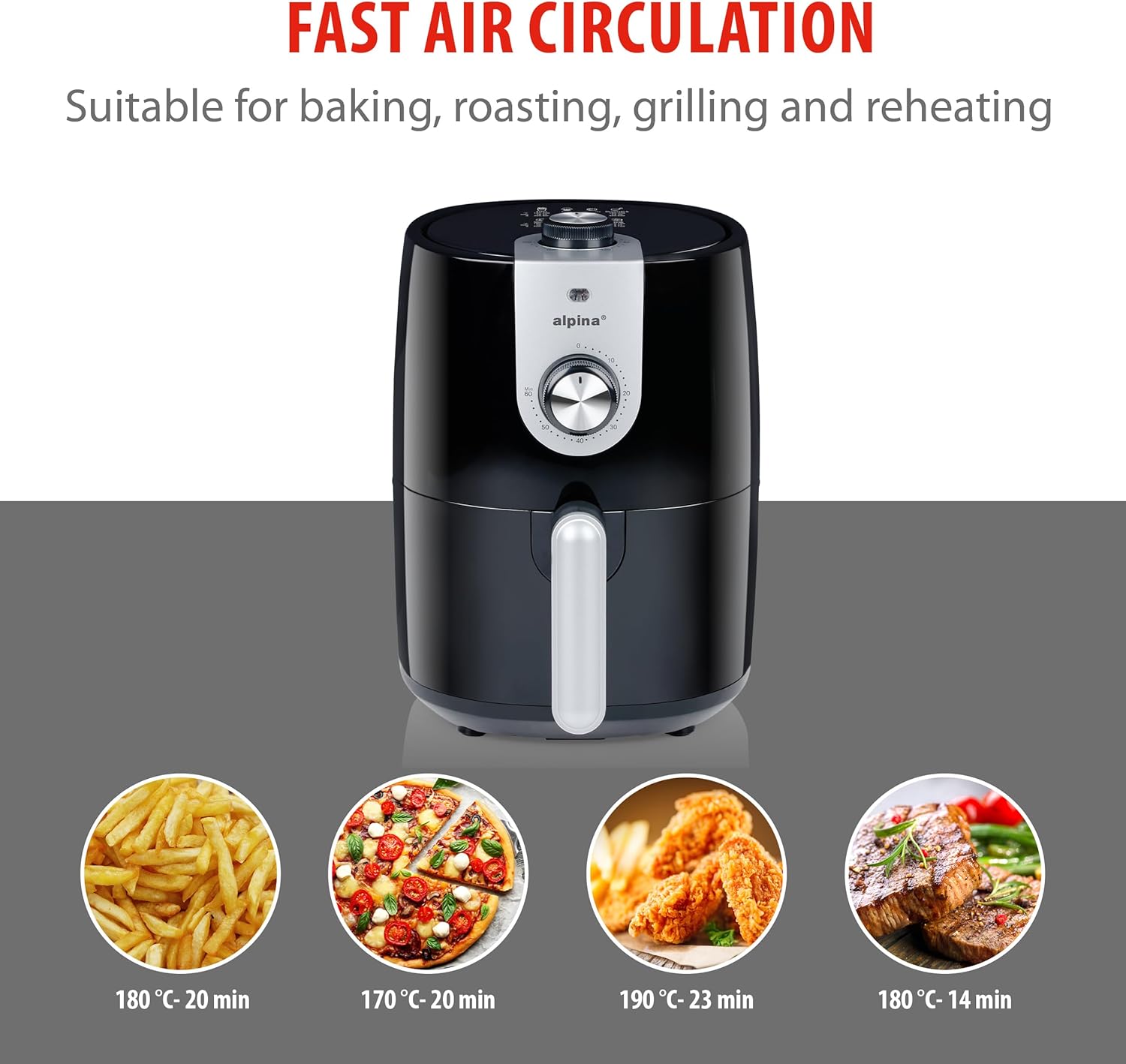

Imaxe 4: Ex.amples of food cooked in the air fryer with suggested time and temperature settings.

7. Limpeza e Mantemento

Unha limpeza regular garante un rendemento óptimo e prolonga a vida útil da túa freidora de aire.

1. Desconecta e refresca: Desconecte sempre a freidora de aire e deixe que arrefríe completamente antes de limpala.
2. Clean Basket and Grilling Plate: Wash the removable basket and grilling plate with hot water, dish soap, and a non-abrasive sponge. The non-stick coating should not be damaged by harsh scrubbing. These parts are non apto para lavalouzas.
3. Interior limpo: Limpe o interior do aparello cun damp cloth. For stubborn food residues, use a mild detergent. Avoid abrasive cleaners or metal scouring pads.
4. Exterior limpo: Limpe o exterior da freidora con anuncioamp pano. Non use produtos químicos agresivos ou materiais abrasivos.
5. Almacenamento: Asegúrese de que todas as pezas estean limpas e secas antes de gardar o aparello nun lugar fresco e seco.

8 Solución de problemas

Se tes problemas coa túa freidora de aire, consulta os seguintes problemas e solucións comúns:

9. Especificacións

Image 5: Detailed dimensions of the alpina 2L Air Fryer.

10. Garantía e soporte

For warranty information or technical support, please refer to the documentation included with your purchase or contact alpina customer service. Keep your proof of purchase for any warranty claims.
