YELLOW JACKET Refrigerant Scale

1. Introdución

This manual provides essential information for the safe and efficient operation of your YELLOW JACKET ASRCS-110L Refrigerant Scale. Please read these instructions thoroughly before use to ensure proper function and to prevent damage to the unit or injury to yourself.

Image 1.1: The YELLOW JACKET Refrigerant Scale in operation, demonstrating its use with a refrigerant tank.

2. Información de seguridade

• Coloque sempre a báscula sobre unha superficie estable e nivelada para garantir lecturas precisas.
• Do not exceed the maximum weight capacity of 110 lbs (50 kg). Overloading can damage the scale's sensor.
• Keep the scale away from extreme temperatures, moisture, and direct sunlight.
• Do not immerse the scale or remote display in water.
• Use only the specified DV 9V dry battery. Remove the battery if the scale will not be used for an extended period to prevent leakage.
• Handle refrigerant tanks with care and follow all safety guidelines for refrigerant handling.

3. Contido do paquete

Comprobe que todos os artigos estean presentes e en bo estado ao desembalar:

• Refrigerant Scale Platform
• Remote Display Unit with coiled cable
• Portable Hard Carrying Case
• DV 9V Dry Battery
• Manual de instrucións (este documento)

Image 3.1: Included accessories: the scale, remote, 9V battery, and hard carrying case.

4. Características do produto

• Medición de alta precisión: Maximum capacity of 110 lbs (50 kg) with an accuracy of ±0.05% readings +5g and a resolution of 2g/0.1oz. Supports g/Kg/Oz/Lb units.
• Ultra-large LCD Screen: Provides clear readings even in low-light conditions. The remote display features a 110° extensible bracket for hands-free viewing.
• Construción duradeira: Equipped with a high-quality aluminum alloy frame and a 9" x 9" weighing platform with non-slip rubber pads to prevent tank movement.
• Portable Hard Case: Waterproof, dustproof, and anti-collision case ensures safe transport and storage.
• Múltiples funcións de protección: Displays "FULL" if weight exceeds capacity, preventing damage. Features automatic shut-off after 10 minutes of non-use to conserve battery. Backlight automatically turns off after 10 seconds, with an option for continuous illumination.

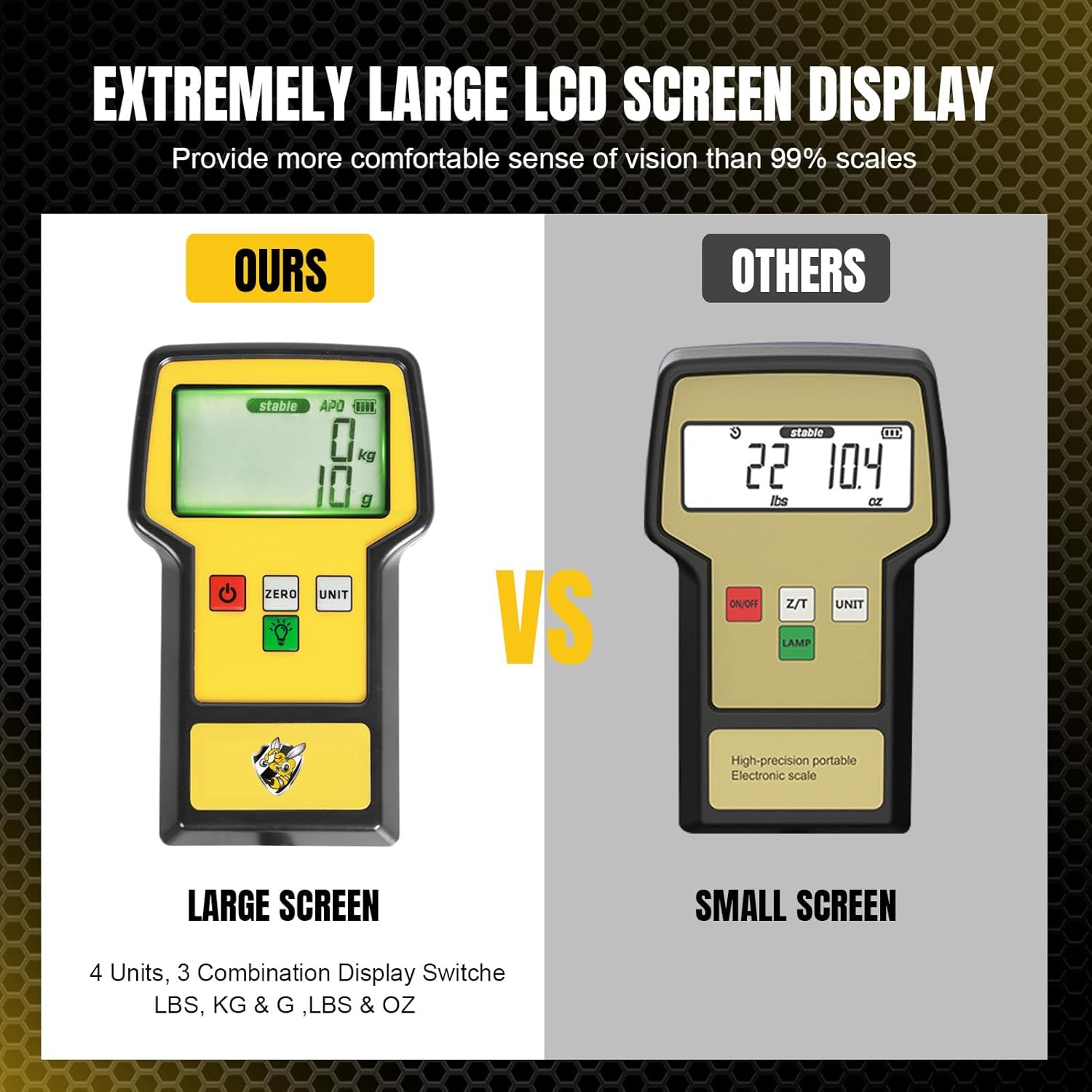

Image 4.1: The large LCD screen offers improved readability compared to smaller displays.

Image 4.2: Details of the sturdy aluminum frame and non-slip rubber platform for enhanced stability.

Image 4.3: The portable hard case provides secure storage and protection for the scale.

5. Configuración

1. Desempaquetar: Retire con coidado todos os compoñentes da caixa de transporte.
2. Instalar batería: Open the battery compartment on the remote display unit and insert the provided DV 9V dry battery, ensuring correct polarity.
3. Position Scale: Place the scale platform on a firm, level, and stable surface. Ensure there are no obstructions that could interfere with the weighing process.
4. Conectar o control remoto: The remote display unit is connected to the scale platform via a coiled cable. Ensure the connection is secure.

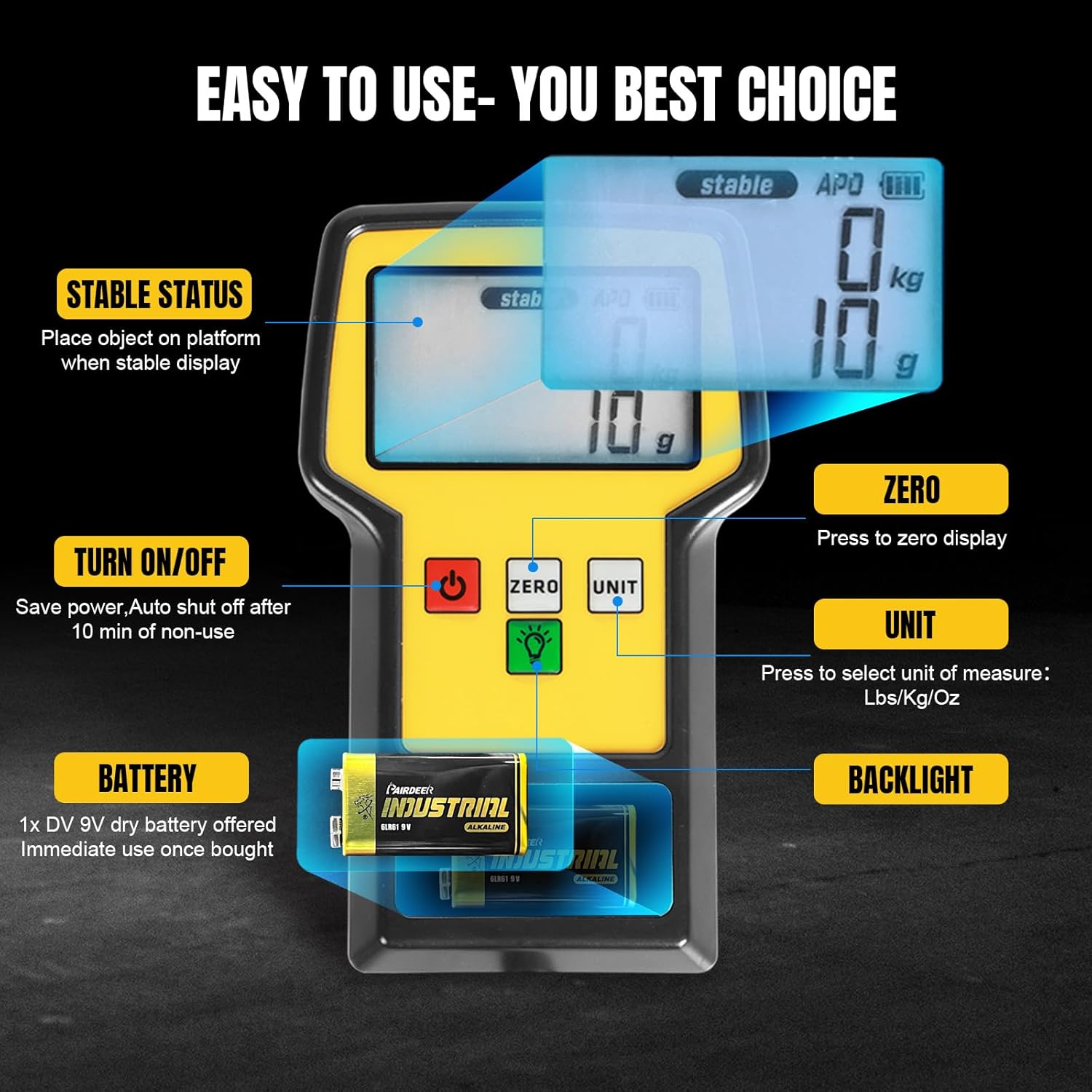

Image 5.1: Remote display controls and battery installation.

6. Instrucións de funcionamento

1. Encendido/apagado: Preme o ON/OFF button to turn the scale on. The display will show a self-test sequence and then settle at zero. Press and hold the ON/OFF button to turn the scale off. The scale will automatically shut off after 10 minutes of inactivity.
2. Puesta a cero da escala: Before placing any item on the platform, ensure the display reads "0". If not, press the CERO button to reset the reading to zero. This is crucial for accurate measurements, especially when using a container or hose.
3. Conversión de unidades: Preme o UNIDADE button to cycle through the available measurement units: g (grams), Kg (kilograms), Oz (ounces), and Lb (pounds). The display will indicate the currently selected unit.
4. Control de retroiluminación: Preme o Retroiluminación button (light bulb icon) to turn the backlight on. The backlight will automatically turn off after 10 seconds to save power. To keep the backlight continuously on, press and hold the Retroiluminación button for 3 seconds until a beep is heard.
5. Using the Extensible Bracket: The remote display unit features a 110° extensible bracket on the back. Pull out the bracket to prop up the display for a comfortable, hands-free viewángulo de ing.
6. Pesaxe: Place the item (e.g., refrigerant tank) gently on the center of the scale platform. The weight will be displayed on the remote unit.

Image 6.1: The extensible bracket allows for hands-free operation and optimal viewing.

Image 6.2: Energy-saving features for backlight and auto shut-off.

7. Mantemento

• Limpeza: Wipe the scale platform and remote display with a soft, damp pano. Non use produtos de limpeza ou disolventes abrasivos.
• Coidado da batería: Replace the 9V battery when the low battery indicator appears on the display. If the scale will not be used for an extended period (e.g., several months), remove the battery to prevent potential leakage and damage to the unit.
• Almacenamento: Store the scale and its components in the provided hard carrying case in a dry, cool place, away from direct sunlight and extreme temperatures.

8 Solución de problemas

Image 8.1: Overload detection warning on the display.

9. Especificacións

Image 9.1: Detailed dimensions of the refrigerant scale.

10. Garantía e soporte

For warranty information or technical support, please refer to the documentation included with your purchase or contact YELLOW JACKET customer service. You can also visit the official YELLOW JACKET store for more information:

Visit the YELLOW JACKET Store
