Rfiver Mobile TV Cart Instruction Manual

1. Introdución e presentación do produtoview

The Rfiver Mobile TV Cart is a versatile and robust solution designed to provide a portable and adjustable viewing experience for your television. Equipped with a built-in power outlet, height adjustment capabilities, and lockable wheels, this stand offers convenience and flexibility for various environments, including home, office, and outdoor settings. It is engineered for stability and ease of use, accommodating a wide range of TV sizes.

Figure 1: Rfiver Mobile TV Cart with TV and laptop on shelf.

2. Características do produto

• Toma de corrente integrada: Features a power socket with 4 AC outlets and a 6.5-foot 16 AWG pure copper wire (12A capacity) for powering multiple media devices simultaneously. Includes a one-key switch for convenient power control and enhanced safety. The socket's height is adjustable along with the shelf.

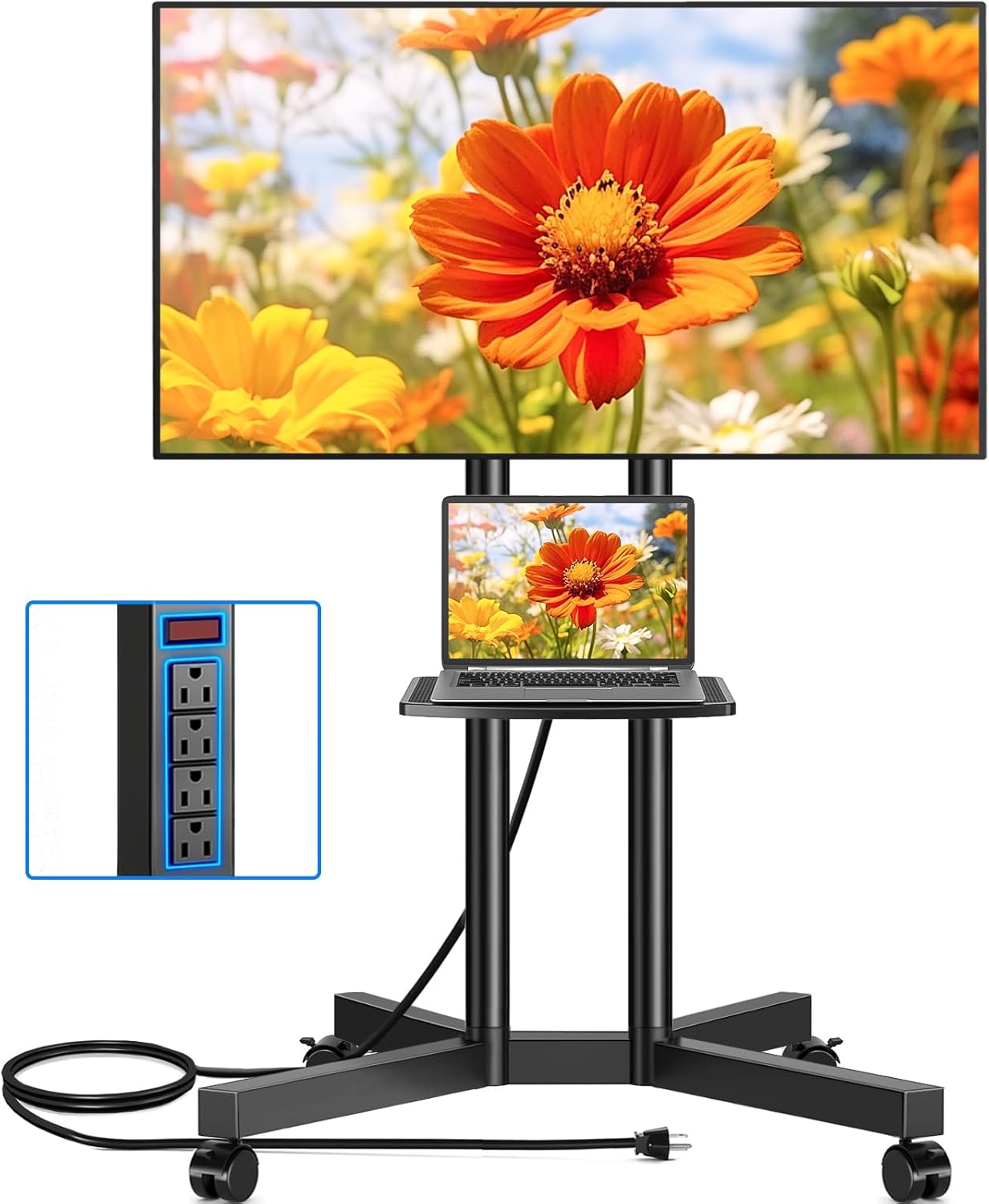

  Figure 2: Detail of the built-in power strip with 4 AC outlets and a power switch.

• Ampla compatibilidade: Compatible with most flat/curved TVs ranging from 32 to 75 inches. Supports VESA sizes from 100x100mm to 400x400mm. The overall load capacity is 88 lbs, and the media shelf can hold up to 22 lbs.


  Figure 3: Compatibility details for TV sizes, VESA patterns, and weight limits.
• 15-Level Height Adjustment: Offers 15 levels of height adjustment, with 5 levels for the support pole and 3 for the wall mount. Each level adjusts by 1.97 inches, allowing the TV cart to be set between 44.1 inches and 56 inches for optimal viewángulos de inflexión.


  Figure 4: Visual representation of the 15-level height adjustment feature.

• 360° Rotating Lockable Wheels: Equipped with four upgraded 360° rotating silent wheels for smooth and scratch-free movement on various floor types. Wheels include fixed locks to secure the cart in place.


  Figure 5: The TV cart's mobility with 360° lockable wheels.
• Sturdy and Safe Structure: Constructed with high-quality thickened steel support tubes and an X-shaped base for enhanced stability and reduced tilting. Features a safety lock design to prevent the TV from falling.


  Figure 6: Structural safety features including reinforcement bracket, safety lock, and thickened steel.



  Figure 7: The stable X-shaped steel base design.

3. Especificacións

4. Configuración e montaxe

Please follow these steps carefully for safe and proper assembly. It is recommended to have a second person assist with mounting the TV.

4.1 Desembalaxe e identificación das pezas

• Abra a embalaxe con coidado e retire todos os compoñentes.
• Verify all parts are present against the included parts list (refer to your product's specific parts diagram).
• Manteña as pezas pequenas lonxe dos nenos.

4.2 Conxunto base

• Attach the four base legs to the central support structure, ensuring they are securely fastened.
• Install the 360° rotating wheels into the designated slots on each leg. Ensure all wheels are firmly seated.
• Verify that the X-shaped base is stable and level.

4.3 Column and Shelf Installation

• Securely attach the vertical support columns to the assembled base.
• Slide the media shelf onto the support columns at your desired height. Tighten the locking mechanism to fix the shelf in place.
• Mount the power strip to the side of the shelf or column using the provided hardware.

4.4 TV Bracket Attachment

• Attach the TV mounting brackets to the back of your television, aligning with the VESA holes. Ensure the brackets are securely tightened.
• With assistance, carefully lift your TV and hook the mounted brackets onto the vertical support columns of the TV cart.
• Engage the safety lock mechanism on the TV brackets to prevent accidental dislodgement.
• Adjust the TV's height on the support columns as desired, then tighten all securing bolts.

5. Instrucións de funcionamento

5.1 Moving the TV Cart

• To move the cart, ensure all four wheels are unlocked.
• Gently push or pull the cart to your desired location. Avoid sudden jerks or excessive force.
• Once in position, press down on the locking levers on each wheel to secure the cart and prevent accidental movement.

5.2 Axustar a altura do televisor

• To adjust the TV height, loosen the securing bolts on the TV mounting brackets and the support columns.
• With assistance, carefully raise or lower the TV to the desired viewing altura.
• Once the desired height is achieved, securely tighten all securing bolts on the brackets and columns to ensure stability.

5.3 Using the Power Outlet

• Plug the power cord from the integrated power strip into a standard wall outlet.
• Connect your media devices (e.g., TV, DVD player, router, laptop) to the AC outlets on the power strip.
• Use the red one-key switch on the power strip to turn power on or off to all connected devices.

6. Mantemento

• Limpeza: Limpe o soporte cun suave, damp pano. Evite produtos de limpeza abrasivos ou solventes que poidan danar o acabado.
• Comprobacións periódicas: Periodically check all bolts and screws to ensure they remain tight and secure, especially after moving the cart or adjusting the TV height.
• Coidado das rodas: Keep the wheels free of debris to ensure smooth operation.
• Tira de alimentación: Ensure the power cord is not pinched or damaged. Do not overload the power strip beyond its rated capacity (12A).

7 Solución de problemas

8. Garantía e soporte

For warranty information or technical support, please contact Rfiver customer service. Refer to your purchase documentation or the official Rfiver websitio web para obter datos de contacto e condicións específicas de garantía.

Rfiver Official Websitio: Visit the Rfiver Store on Amazon
