VEVOR 16-Inch Dual Layer Commercial Electric Pizza Oven

1. Introdución

Thank you for choosing the VEVOR 16-Inch Dual Layer Commercial Electric Pizza Oven. This appliance is designed for baking pizzas and other items with efficiency and precision. Constructed from food-grade stainless steel, it features dual baking chambers, each capable of accommodating pizzas up to 16 inches. The oven incorporates three heating tubes for 360-degree uniform baking and offers intelligent temperature and time control for optimal cooking results.

Please read this instruction manual thoroughly before operating the oven to ensure safe and proper use, and retain it for future reference.

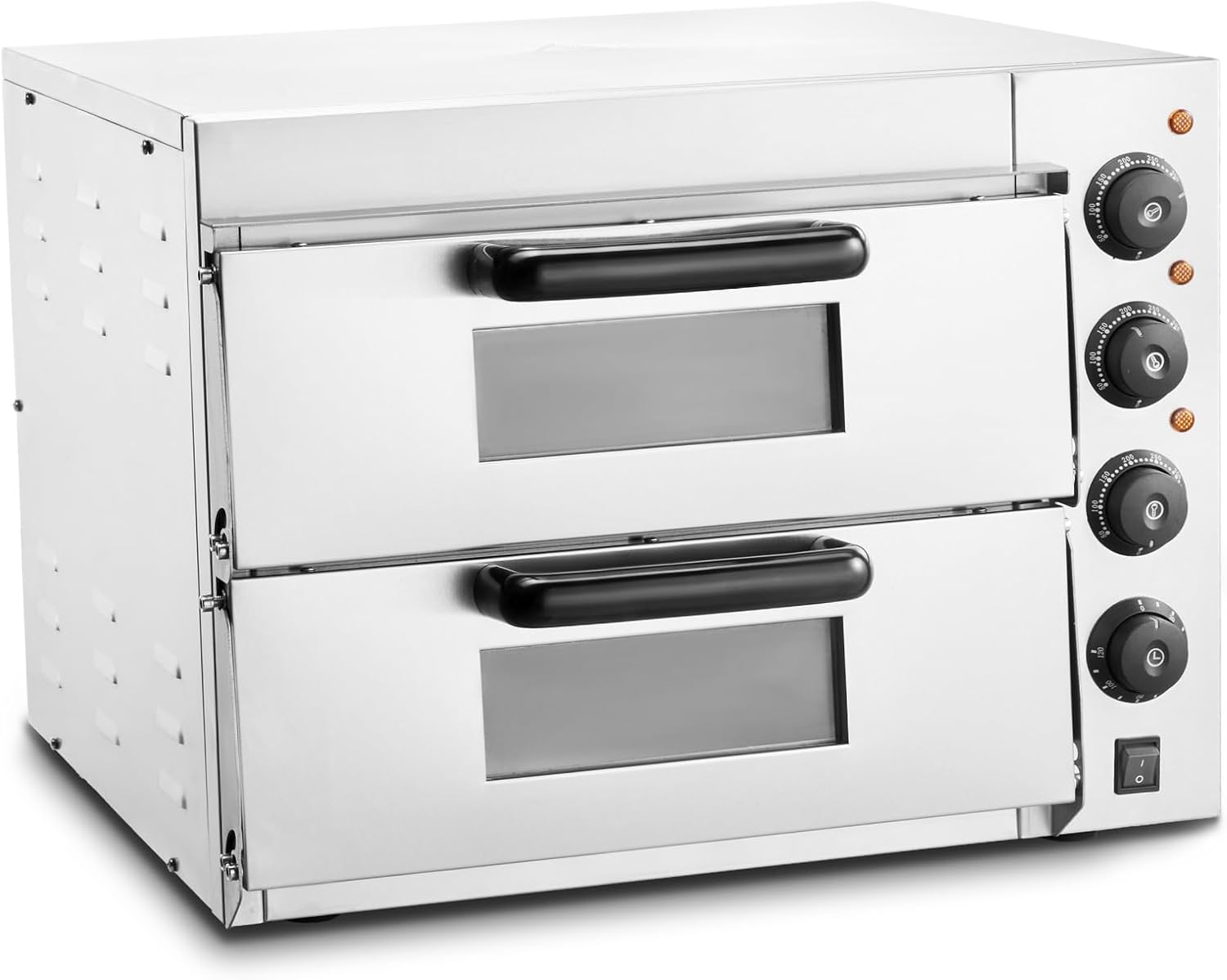

This image shows the VEVOR 16-Inch Dual Layer Commercial Electric Pizza Oven, highlighting its compact countertop design and dual baking chambers.

2. Instrucións de seguridade

• Le todas as instrucións antes de usar o aparello.
• Asegúrese de que a fonte de alimentación voltagcoincide coa etiqueta de clasificación do forno.
• This oven requires two separate power circuits. Connect each power cord to a dedicated 15A (or higher) circuit to prevent circuit overload.
• Place the oven on a stable, heat-resistant, non-flammable surface. Maintain adequate clearance from walls and other appliances for ventilation.
• Do not touch hot surfaces. Use oven mitts or the provided door handles.
• Non mergulle o aparello, o cable nin os enchufes en auga ou outros líquidos.
• Unplug from the outlet when not in use and before cleaning. Allow to cool before adding or removing parts.
• Non faga funcionar ningún aparello cun cable ou enchufe danados, ou despois de que o aparello funcione mal ou teña dano dalgún xeito.
• É necesaria unha estreita supervisión cando calquera aparello é usado por nenos ou preto de eles.
• Non use ao aire libre.
• Non o coloque sobre ou preto dun queimador eléctrico ou de gas quente, nin nun forno quente.
• Non utilice o aparello para outra cousa que non sexa o seu uso previsto.

3. Que hai na caixa

Carefully unpack all components and check for any damage. Ensure all items are present before discarding packaging materials.

• 1 x VEVOR Commercial Electric Pizza Oven (Model FY-EP-2)
• 2 x 16-Inch Pizza Stones
• 2 tiradores de porta

4. Configuración

1. Colocación: Position the oven on a flat, stable, and heat-resistant surface. Ensure there is sufficient space around the oven for proper ventilation (at least 4 inches on all sides and top).
2. Instalación do mango: Attach the provided door handles to each oven door using the included screws. Ensure they are securely fastened.
3. Pizza Stone Placement: Carefully slide one pizza stone into each baking chamber. Ensure they are seated correctly on the internal supports.
4. Conexión de alimentación: The oven is equipped with two power cords. Connect each power cord to a separate, grounded electrical outlet. It is crucial to use two independent 15A (or higher) circuits to prevent tripping circuit breakers, as noted in user feedback.
5. Queimadura inicial: Before first use, operate the oven empty at its maximum temperature (662°F / 350°C) for approximately 30 minutes to burn off any manufacturing residues. This may produce a slight odor; ensure the area is well-ventilated.

5. Instrucións de funcionamento

The VEVOR pizza oven features independent temperature controls for each deck and a timer function for precise cooking.

This image displays the control panel, featuring four independent knobs for adjusting upper, middle, and bottom temperatures, and setting the cooking timer.

5.1. Controis sobreview

• Temperature Knobs: Three knobs control the upper, middle (shared between decks), and bottom heating elements. Temperature range: 122°F to 662°F (50-350°C).
• Timing Function Knob: Sets the cooking time from 0 to 120 minutes. The oven will automatically shut off heating when the timer expires.
• Interruptor de alimentación: Turns the entire oven on or off.

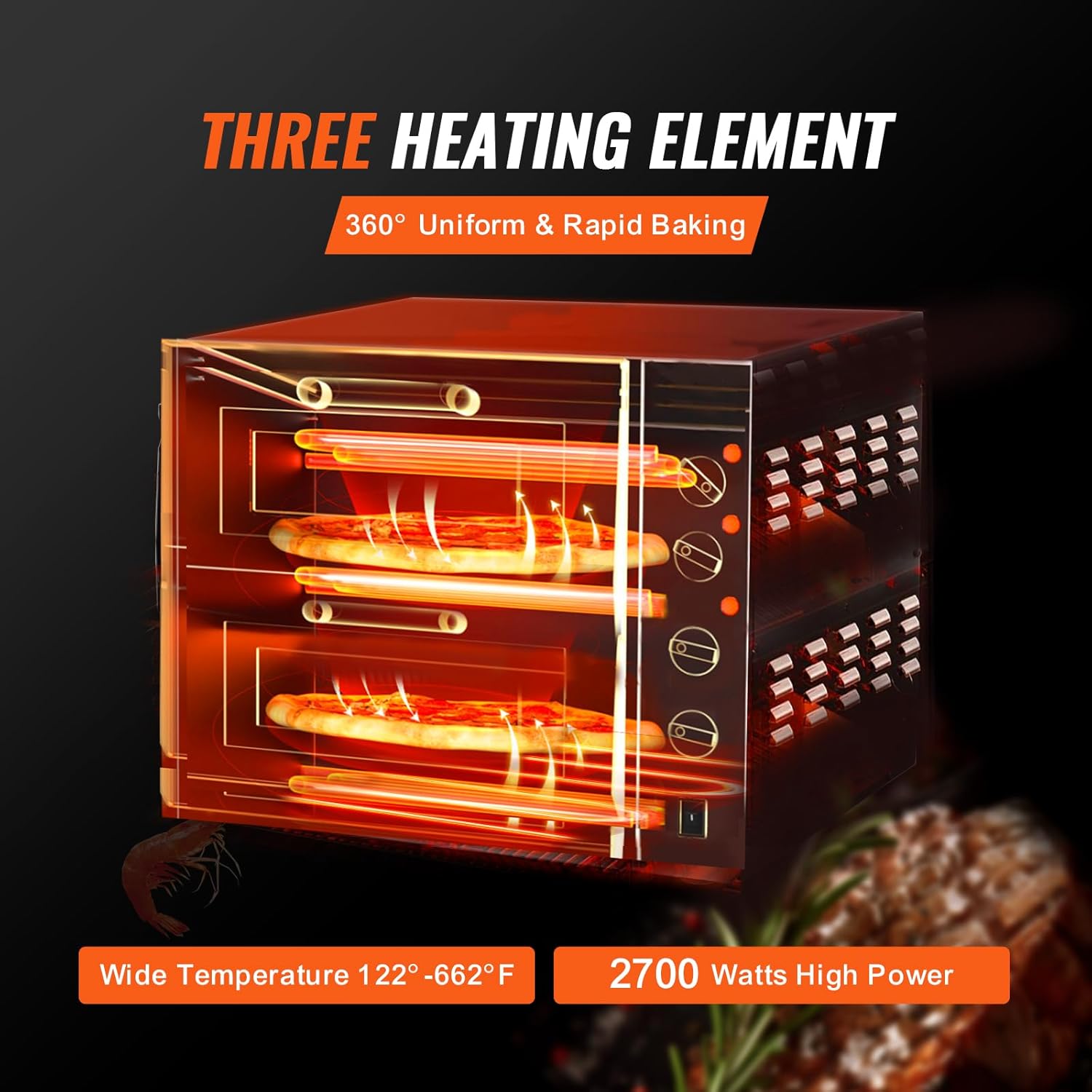

This diagram illustrates the internal structure of the oven, showing the three heating elements designed for 360-degree uniform and rapid baking.

5.2. Baking Process

1. Encendido: Xire o interruptor principal á posición "ON".
2. Temperatura establecida: Rotate the temperature knobs to your desired baking temperature for the upper, middle, and bottom elements. For optimal pizza baking, a common starting point is 200°C (392°F) for the bottom and 275°C (527°F) for the top, as suggested by user experience. Adjust as needed for different recipes.
3. Precalentar: Allow the oven to preheat for 20-30 minutes until it reaches the set temperature. The indicator lights will show when heating elements are active.
4. Cargar comida: Carefully place your pizza or other food items onto the pizza stone using a pizza peel.
5. Establecer temporizador: Turn the timer knob to your desired cooking duration (e.g., 7 minutes for a medium-thick crust pizza). The timer will count down and alert you when finished.
6. Monitor de cociña: Use the visual doors to monitor the cooking progress. Adjust temperature or time if necessary.
7. Eliminar comida: Once cooked, carefully remove the food using appropriate utensils.
8. Apagado: After use, turn the power switch to 'OFF' and unplug the oven.

5.3. Versatile Baking

This oven is suitable for baking a variety of items beyond pizza, including pretzels, potatoes, bread, cakes, pies, pastries, and chicken wings.

This image highlights the oven's versatility, showcasing its ability to cook various food items such as pizza, steak, toast, and chicken wings.

6. Mantemento

6.1. Limpeza

• Desconecte sempre o forno e déixeo arrefriar completamente antes de limpalo.
• Exterior: Limpe o exterior de aceiro inoxidable con anuncioamp cloth and mild detergent. Do not use abrasive cleaners or scouring pads, as they can scratch the surface.
• Interior: Para o interior, limpe con adamp cloth. For stubborn stains, a non-abrasive oven cleaner can be used sparingly, ensuring to wipe thoroughly with a clean, damp cloth afterward to remove all residue.
• Pizza Stones: The pizza stones are easily removable for cleaning. Scrape off any baked-on food residue with a spatula or stiff brush. Do not use soap or detergent on the pizza stone, as it can be absorbed and affect the taste of food. For deep cleaning, bake the stone at high temperature to burn off residue, then scrape.
• Non mergullo o forno en auga.

The oven's construction from durable stainless steel is shown, along with a visual door for monitoring cooking progress and emphasizing its easy-to-clean surfaces.

7 Solución de problemas

8. Especificacións

This diagram provides a visual representation of the oven's dimensions and lists its key specifications, including model number, power, temperature range, and weight.

9. Vídeos oficiais de produtos

10. Garantía e soporte

Para obter información sobre a garantía e a atención ao cliente, consulte a documentación incluída coa súa compra ou visite o sitio web oficial de VEVOR. website. Keep your purchase receipt for warranty claims. The product typically includes a standard manufacturer's warranty, and additional protection plans may be available for purchase.

For technical assistance or service inquiries, please contact VEVOR customer support through their official channels.
