COMFIER CF-9212BR3 Massage Chair User Manual

Introdución

Thank you for choosing the COMFIER CF-9212BR3 Massage Chair. This manual provides essential information for the safe and effective operation, maintenance, and troubleshooting of your new massage chair. Please read it thoroughly before use and retain it for future reference.

Instrucións de seguridade importantes

To reduce the risk of electric shock, burns, fire, or injury, always follow these basic precautions:

• Read all instructions before using the massage chair.
• Non use accesorios non recomendados polo fabricante.
• Never operate the appliance if it has a damaged cord or plug, if it is not working properly, or if it has been dropped or damaged.
• Manteña o cable lonxe de superficies quentes.
• Non use ao aire libre.
• Non opere onde se utilicen produtos en aerosol (spray) ou onde se administre osíxeno.
• Para desconectar, xira todos os controis á posición OFF e, a continuación, retire o enchufe da toma de corrente.
• Este aparello está pensado só para uso doméstico.
• Consult a physician before using if you have any medical conditions.

Contido do paquete

Ao desembalar, asegúrese de que todos os elementos enumerados a continuación estean presentes e non estean danados:

• COMFIER CF-9212BR3 Massage Chair (fully assembled)
• Control remoto
• Cable de alimentación
• Coxín
• Manual de usuario (este documento)

Instrucións de configuración

1. Desembalaxe e colocación

The COMFIER CF-9212BR3 Massage Chair comes fully assembled in one package, requiring no complex assembly. Carefully remove the chair from its packaging.

Image: Minimum Door Entrance Size
Ensure your doorway has a minimum width of 30 inches (76.2 cm) to allow for easy passage of the packaged massage chair.

Place the massage chair on a flat, stable surface. Ensure there is sufficient space around the chair for reclining and operation, especially for the zero-gravity function.

2. Conexión de alimentación

1. Locate the power cord and connect it to the power inlet on the back or side of the massage chair.
2. Conecte o outro extremo do cable de alimentación a unha toma de corrente axeitada.
3. Ensure the power switch (if present) is in the OFF position before plugging in.

Instrucións de funcionamento

1. Control remotoview

The massage chair is operated using the wired remote control. Familiarize yourself with the buttons and their functions.

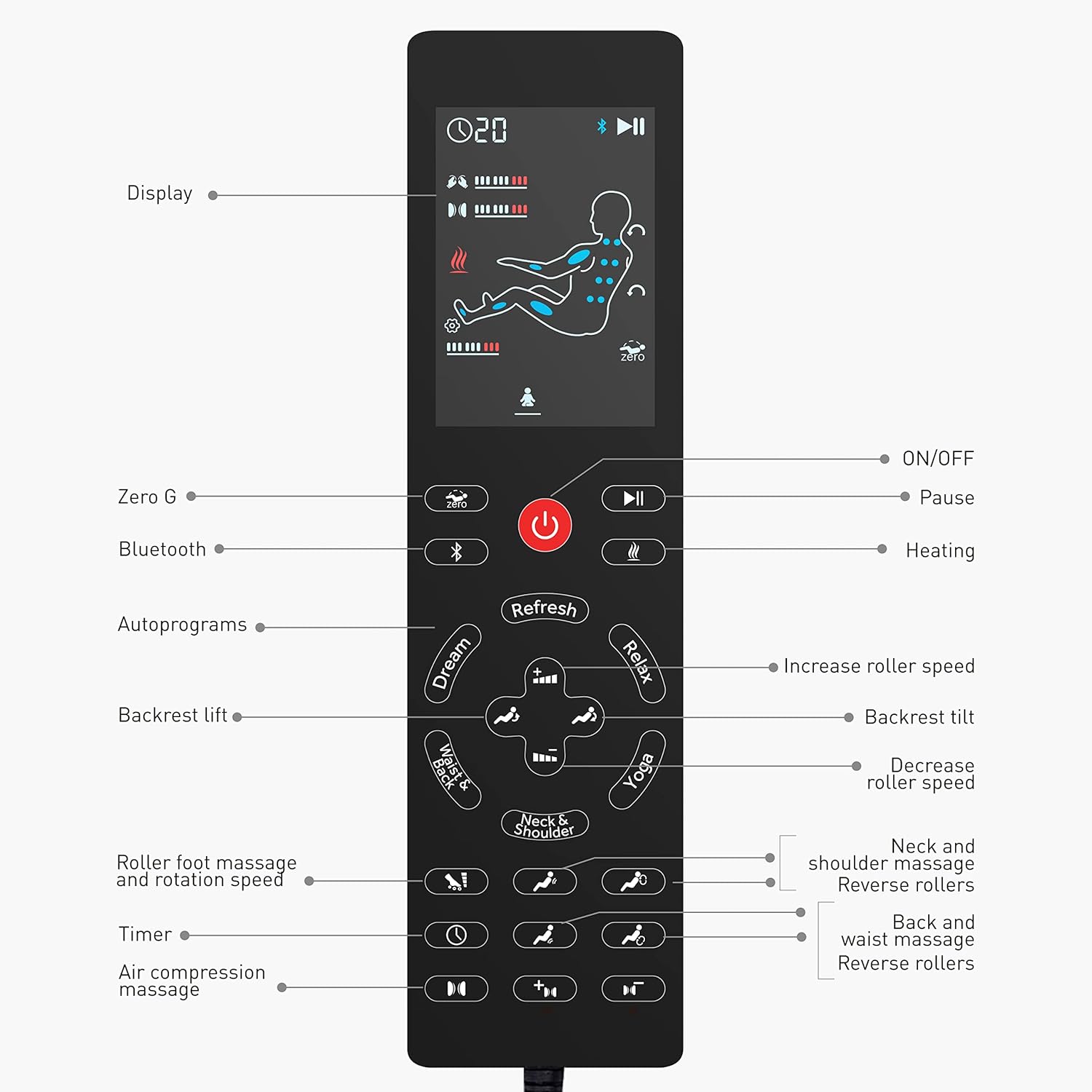

Imaxe: Deseño do control remoto
This image displays the remote control, highlighting the display, ON/OFF, Pause, Zero G, Bluetooth, Heating, Autoprograms (Dream, Refresh, Relax, Yoga, Neck & Shoulder, Waist & Back), Backrest lift/tilt, Roller speed adjustment, Roller foot massage, Timer, and Air compression massage controls.

• Visualización: Shows current settings and massage status.
• ON/OFF: Powers the chair on or off.
• Pausa: Temporarily stops the massage program.
• Cero G: Activates and adjusts the zero gravity recline.
• Bluetooth: Activates Bluetooth pairing for audio.
• Calefacción: Turns the heat function on or off.
• Autoprograms: Selects from pre-set massage routines (Refresh, Relax, Yoga, Neck and Shoulders, Waist and Back, Dream).
• Backrest Lift/Tilt: Adjusts the recline angle of the backrest.
• Roller Speed: Increases or decreases the speed of the massage rollers.
• Roller Foot Massage: Controls the foot rolling massage.
• Temporizador: Sets the duration of the massage.
• Masaxe de compresión de aire: Adjusts settings for shoulder, arm, hip, calf, leg, and foot compression.

2. Funcionamento básico

1. Sit comfortably in the chair.
2. Preme o ON/OFF button on the remote control to power on the chair.
3. Select your desired massage program or customize settings.
4. To stop the massage, press the ON/OFF botón de novo.

3. Massage Features

Simulated Masseuse Hands (Shiatsu Kneading)

The chair features 8 shiatsu rollers and 14 massage balls designed to provide deep tissue kneading massage along your body's curve, targeting the neck, shoulders, back, and waist.

Image: Simulate Masseuse Hands
This illustration details the placement of 8 shiatsu rollers and 14 massage balls within the chair, demonstrating how they provide kneading massage to the neck, shoulders, back, waist, and foot rolling massage.

Adjust the shiatsu intensity and roller speed using the remote control to suit your preference.

Full Body Air Compression Massage

Airbags provide compression massage to your shoulders, arms, hips, calves, legs, and feet. There are 3 adjustable intensity levels.

Image: Full Body Air Compression Massage
This image shows the areas covered by the air compression massage, including shoulders, arms, thighs, calves, and feet, with an indicator for 3 intensity levels.

Use the Air Compression Massage buttons on the remote to select your desired intensity and target zones.

Función de calor calmante

The chair offers a soothing heat function for the back and seat, reaching a maximum temperature of 131°F (55°C).

Image: Soothing Heat for Back and Seat
This image illustrates the heat function, showing warmth applied to the lower back and seat area, with a note indicating a maximum temperature of 131°F.

Activate or deactivate the heat function using the Calefacción botón do mando a distancia.

Reclinación de gravidade cero

The chair features 3 levels of zero gravity recline, designed to elevate your legs slightly above your heart, reducing pressure and promoting circulation.

Image: Space-Capsule Zero Gravity
This diagram illustrates the three distinct zero gravity positions: Initial, Comfort, and Deep Zero-Gravity, with the recline angle specified as 126° ± 5°.

Preme o Zero G button on the remote to cycle through the zero gravity positions.

Reprodución de música Bluetooth

Connect your smartphone or other Bluetooth-enabled device to the massage chair to enjoy your favorite music during your massage session.

Image: Connect Your Phone For Music
This image shows a user enjoying music via Bluetooth connectivity on the massage chair, with a note about the footrest being freely retractable up to 6.3 inches.

• Preme o Bluetooth botón do mando a distancia.
• On your device, search for "COMFIER Massage Chair" (or similar) in the Bluetooth settings and pair.
• Once connected, audio will play through the chair's speakers.

Extendable Footrest

The footrest can be extended up to 5 inches (or 6.3 inches as per image) to accommodate users of different heights, ensuring a comfortable fit for leg and foot massage.

Adjust the footrest manually by pushing or pulling it to the desired length.

Mantemento

1. Limpeza

• Always unplug the chair before cleaning.
• Limpa a superficie da cadeira cun pano suave eamp pano. Non use produtos de limpeza ou disolventes abrasivos.
• For leather surfaces, use a specialized leather cleaner if necessary, following the product's instructions.
• Asegúrate de que non entre líquido nos compoñentes internos.

2. Almacenamento

• When not in use for extended periods, unplug the chair and store it in a cool, dry place.
• Evita colocar obxectos pesados ​​enriba da cadeira.

Resolución de problemas

If you encounter any issues with your massage chair, please refer to the following common problems and solutions:

If the problem persists after attempting these solutions, please contact COMFIER customer support.

Especificacións

Imaxe: Dimensións do produto
This image provides detailed measurements of the massage chair in both its upright and reclined states, including height (40" upright, 30" reclined), width (29"), and depth (54" upright, 65" reclined).

Garantía e Atención ao Cliente

For warranty information, technical support, or any questions regarding your COMFIER CF-9212BR3 Massage Chair, please refer to the warranty card included with your purchase or visit the official COMFIER websitio. Tamén podes contactar co servizo de atención ao cliente a través do establecemento onde compraches o produto.

Please have your model number (CF-9212BR3) and purchase date available when contacting support.
