Manual do usuario da tableta SVITOO P10 con Android de 16 anos

1. Introdución

Welcome to the user manual for your new SVITOO P10 Android 16 Tablet. This guide provides detailed instructions on how to set up, operate, and maintain your device, ensuring you get the most out of its advanced features. Please read this manual carefully before using your tablet.

2. Produto rematadoview

The SVITOO P10 is a high-performance Android 16 tablet designed for both entertainment and productivity. It features a vibrant 10.1-inch IPS display, a powerful 8-core processor, and extensive storage options.

Características principais:

• Sistema operativo: Latest Android 16 with enhanced customization, privacy protection, and user assistance.
• Procesador: UNISOC T615 8-core CPU (1.8GHz) for fast and smooth multitasking.
• Memoria e almacenamento: Up to 20GB RAM (4GB + 16GB expansion) and 128GB internal storage, expandable up to 1TB via microSD card.
• Visualización: 10.1-inch IPS in-cell display with 1280x800 resolution, 6mm narrow bezels, and a 16:10 aspect ratio for vivid visuals and wide viewángulos de inflexión.
• Transmisión en tempo real: Widevine L1 support for 1080P HD streaming on platforms like YouTube, Netflix, Amazon Prime Video, Disney+, and Hulu.
• Navegación: Built-in GPS positioning system, ideal for maps and in-car navigation.
• Cámaras: 8MP main camera with autofocus and AI sub-camera, 2MP front camera for video calls and online classes.
• Conectividade: 2.4G/5G Wi-Fi (IEEE 802.11b/g/n/ac) and Bluetooth 5.0 for stable and high-speed connections.
• Batería: Large-capacity 6600mAh battery for extended usage.
• Características adicionais: Multi-screen connection, split-screen, floating window, wireless projection, face recognition unlock, and parental control functions.

Imaxes do produto:

Figura 2.1: Fronte view of the SVITOO P10 tablet, showcasincoa súa pantalla de 10.1 polgadas.

Figure 2.2: The SVITOO P10 tablet with on-screen graphics highlighting its 10.1-inch display, Android 16 OS, Bluetooth 5.0, 128GB storage, 20GB RAM expansion, 2.4G/5G Wi-Fi, 6600mAh battery, and Widevine L1 support.

Figure 2.3: The SVITOO P10 tablet displaying a vibrant image, emphasizing its 10.1-inch IPS display, 1280x800 pixel resolution, and 16:10 aspect ratio.

Figure 2.4: Internal components of the SVITOO P10, illustrating the 20GB RAM (4GB + 16GB expandable), 128GB ROM, 1TB microSD card support, and the efficient 8-core CPU (UNISOC T7250 shown in diagram, actual is T615).

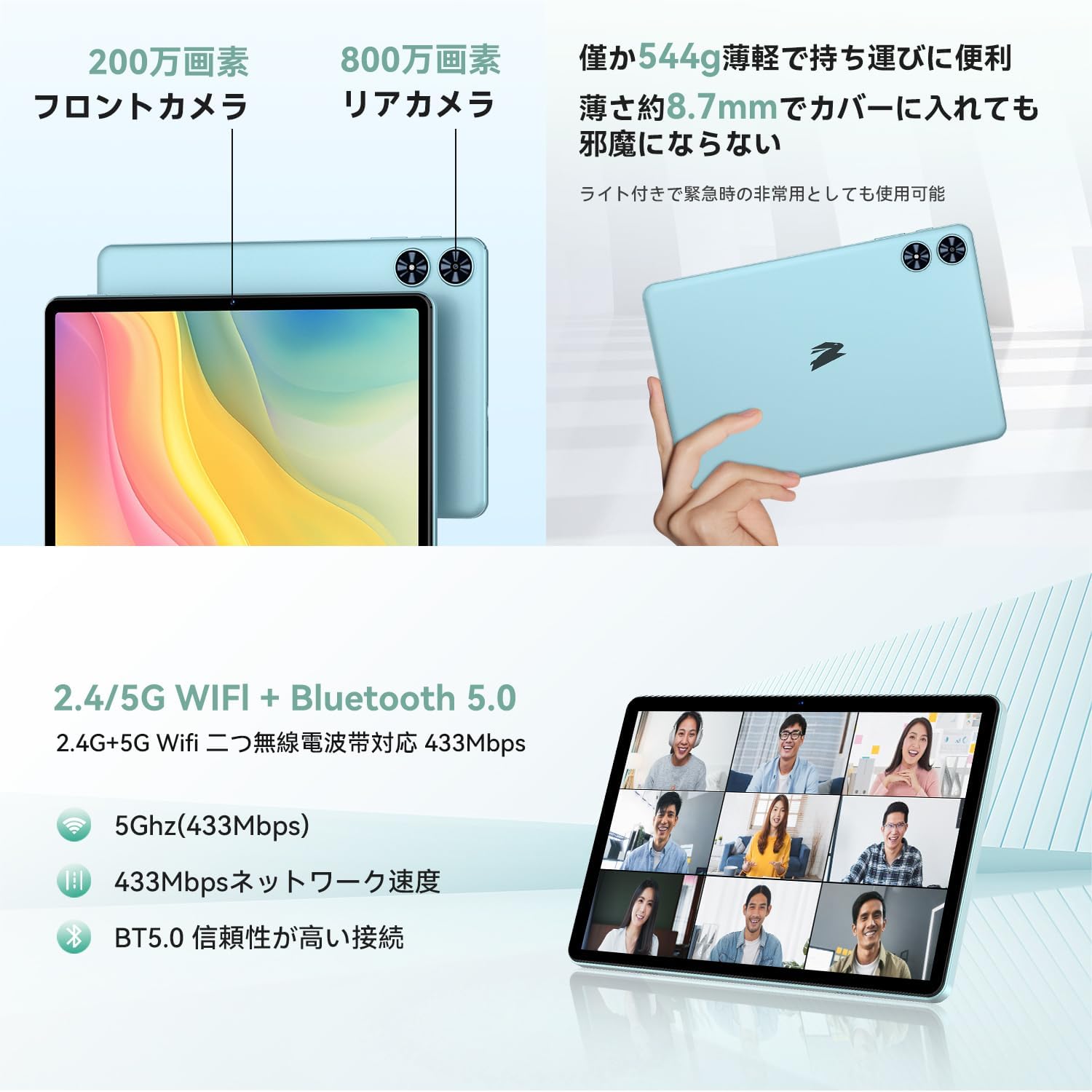

Figura 2.5: Traseira e dianteira views of the SVITOO P10 tablet, highlighting the 2MP front camera, 8MP rear camera, 2.4G/5G WiFi, and Bluetooth 5.0. An example of a video conference is shown on the screen.

Figure 2.6: Demonstrates the SVITOO P10's software capabilities, including convenient multi-window, wireless projection, face recognition unlock, and eye protection screen modes (reading mode, blue light reduction).

Vídeos do produto:

3. Configuración

3.1. Desembalaxe e Inspección Inicial

Upon receiving your SVITOO P10 tablet, carefully open the package and ensure all components are present:

• SVITOO P10 Tablet
• Cable de carga USB-C
• Adaptador de alimentación
• Adaptador de audio USB-C a 3.5 mm
• Manual de usuario
• SIM Ejector Pin (for microSD card slot)

Inspect the tablet for any physical damage. The screen comes with a pre-applied protective film.

3.2. Acendido/apagado

• Para acender: Press and hold the Power button (located on the side) until the SVITOO logo appears on the screen.
• Para apagar: Press and hold the Power button, then select 'Power off' from the options that appear.
• Para reiniciar: Mantén premido o botón de acendido e, a seguir, selecciona "Reiniciar" entre as opcións.

3.3. Asistente de configuración inicial

The first time you power on your tablet, you will be guided through an initial setup process:

1. Seleccione o seu idioma preferido.
2. Conéctate a unha rede wifi.
3. Inicia sesión coa túa conta de Google ou crea unha nova.
4. Siga as indicacións en pantalla para completar a configuración.

3.4. Inserción dunha tarxeta MicroSD

Para ampliar o almacenamento da túa tableta:

1. Localiza a bandexa da tarxeta SIM/microSD no lateral da tableta.
2. Insert the provided SIM ejector pin into the small hole next to the tray to open it.
3. Place your microSD card (up to 1TB, sold separately) into the designated slot on the tray.
4. Empurre suavemente a bandexa cara atrás na tableta ata que encaixe no seu lugar.

4. Instrucións de funcionamento

4.1. Navegación básica

The SVITOO P10 uses standard Android touch gestures:

• Toca: Selecciona un elemento ou abre unha aplicación.
• Pasar o dedo: Desprazarse por pantallas ou listas.
• Beliscar: Achegar ou afastar fotos e web páxinas.
• Prensa longa: Acceder a menús contextuais ou mover iconas.

4.2. Configuración da pantalla

Axusta o teu viewexperiencia:

• Brillo: Swipe down from the top of the screen to access Quick Settings, then adjust the brightness slider.
• Modo escuro: Ir a Settings > Display > Dark theme to enable or disable dark mode for a more comfortable viewexperiencia con pouca luz.
• Modo de lectura: Activate reading mode (often found in Quick Settings or Display settings) to reduce eye strain during prolonged reading.

4.3. Conectividade

• Wi-Fi: Ir a Configuración > Rede e internet > Wi-Fi to connect to available networks. The tablet supports 2.4G and 5G bands.
• Bluetooth: Ir a Configuración > Dispositivos conectados > Bluetooth to pair with Bluetooth 5.0 devices like headphones, speakers, or keyboards.
• GPS: The built-in GPS allows for accurate location tracking and navigation using map applications.

4.4. Multimedia

• Transmisión de vídeo: With Widevine L1 support, enjoy high-definition content from popular streaming services.
• Audio: The tablet features quad speakers for immersive sound. A 3.5mm headphone jack is also available via the included adapter.

4.5. Uso da cámara

The SVITOO P10 is equipped with an 8MP rear camera and a 2MP front camera.

• Abre o Cámara aplicación desde a pantalla de inicio ou o caixón de aplicacións.
• Cambia entre as cámaras dianteira e traseira usando a icona da cámara.
• Toca o botón do obturador para sacar unha foto ou gravar un vídeo.

4.6. Características de produtividade

• Pantalla dividida: Use the split-screen function to run two apps side-by-side for enhanced multitasking.
• Proxección sen fíos: Easily connect your tablet to a larger TV or display wirelessly for a broader visual experience.

4.7. Security and Parental Controls

• Recoñecemento facial: Configurar o recoñecemento facial en Configuración > Seguridade e privacidade > Desbloqueo facial to quickly and conveniently unlock your device.
• Controis parentais: Utilize the parental control features to manage screen time, app access, and prevent unauthorized purchases when children use the tablet.

5. Mantemento

5.1. Carga da batería

Charge your SVITOO P10 tablet using the provided USB-C cable and power adapter. The durable Type-C port ensures reliable charging. Avoid using damaged cables or chargers.

5.2. Xestión do almacenamento

Regularly manage your tablet's storage to maintain optimal performance. Delete unnecessary files and apps, or offload large media files to your microSD card (up to 1TB) or cloud storage.

5.3. Limpeza do dispositivo

Use a soft, lint-free cloth to clean the screen and body of your tablet. Avoid using harsh chemicals or abrasive materials that could damage the device.

6 Solución de problemas

If you encounter issues with your SVITOO P10 tablet, refer to the following common solutions:

6.1. O dispositivo non se acende

• Asegúrate de que a batería estea cargada. Conecta a tableta ao cargador durante polo menos 30 minutos.
• Mantén premido o botón de acendido/apagado durante 10-15 segundos para forzar un reinicio.

6.2. Problemas de conexión wifi

• Check if Wi-Fi is enabled in Configuración > Rede e internet > Wi-Fi.
• Reinicia o teu enrutador Wi-Fi.
• Esquece a rede e volve conectar introducindo de novo o contrasinal.

6.3. As aplicacións fallan ou o seu rendemento é lento

• Pechar aplicacións en segundo plano.
• Clear the cache of problematic apps (Configuración > Aplicacións > [Nome da aplicación] > Almacenamento e caché > Borrar caché).
• Ensure your tablet's software is up to date (Configuración > Sistema > Actualización do sistema).
• If issues persist, consider a factory reset (Configuración > Sistema > Opcións de restablecemento > Borrar todos os datos (restablecemento de fábrica)). Warning: This will delete all data on your tablet. Back up important information first.

7. Especificacións

8. Garantía e soporte

8.1. Garantía do fabricante

The SVITOO P10 tablet comes with a 1 anos de garantía do fabricante. Esta garantía cobre os defectos nos materiais e na fabricación no uso normal.

Returns or exchanges are accepted for defects found before use (after unboxing) or for initial defects discovered after use.

8.2. Atención ao cliente

For any inquiries, technical support, or warranty claims, please contact SVITOO customer service through your Amazon account:

1. Inicia sesión na túa conta de Amazon.
2. Vaia a "Historial de pedidos".
3. Locate your SVITOO P10 tablet order.
4. Click 'Contact Seller' to reach our support team.
