Introdución
This manual provides comprehensive instructions for the safe and efficient assembly, operation, and maintenance of your Outsunny 26' x 10' x 7' Portable Walk-in Tunnel Greenhouse. Please read all instructions carefully before beginning assembly and retain this manual for future reference.
Características principais:
- Marco de aceiro robusto: Crafted with a robust steel structure, this outdoor greenhouse boasts a galvanized finish that resists rust, corrosion, chipping, and peeling. Enhanced with four slant bracing tubes and middle reinforced tubes for superior stability.
- Expansive Walk-In Design: Great for lengthening your planting season, this spacious greenhouse enables easy cultivation and safeguards your plants from severe weather conditions.
- Durable Plastic Cover: Outfitted with a strong, green PE plastic cover, this tunnel greenhouse provides protection while ensuring your plants receive necessary sunlight.
- Ventilated Roll-Up Windows And Door: Features 12 roll-up side windows with netting for excellent air circulation and temperature management, along with protection from insects and external factors. Includes a large zipped roll-up door for convenient access.

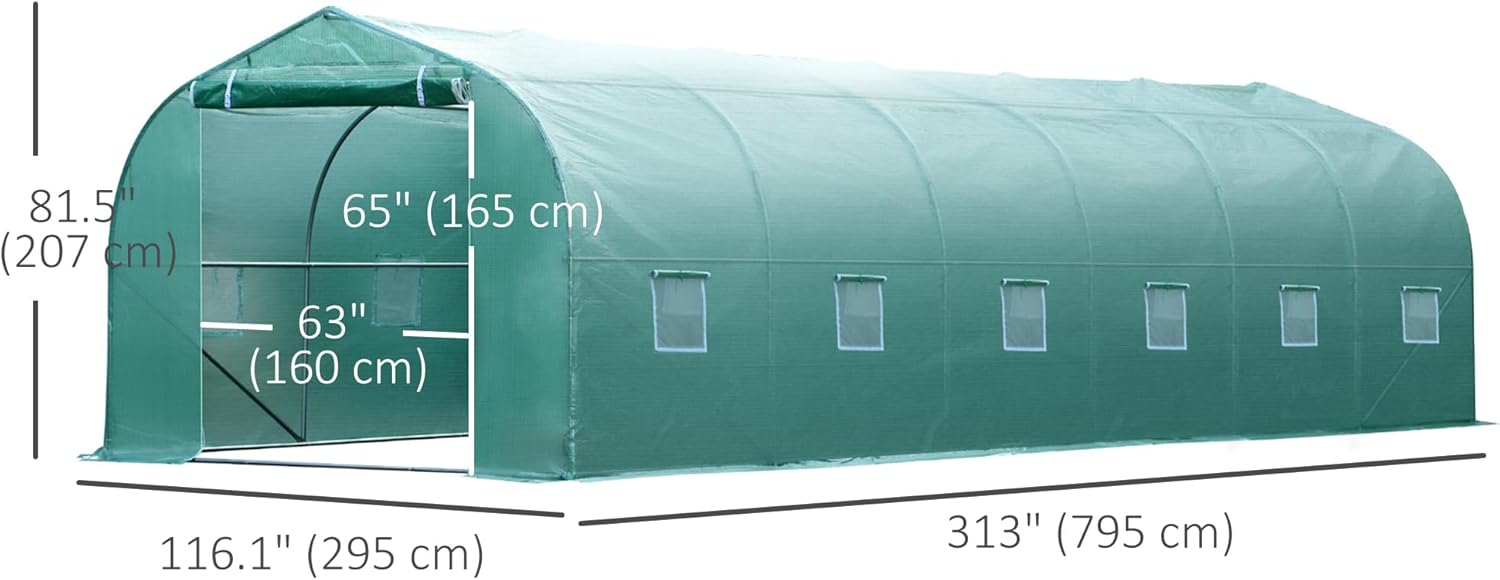

- Dimensións: Overall measurements: 26.1'L x 9.7'W x 6.8'H (7.95 x 2.95 x 2.07 m); Door measurements: 65.75"W x 67"H (160 x 165 cm); Window dimensions: 13.75" x 13.75" (35 x 35 cm).
Información de seguridade
Always assemble and disassemble with care to avoid injury from sharp edges and heavy components. Anchor the greenhouse securely to prevent collapse, especially in windy conditions. Protect the polyethylene cover from prolonged UV exposure to prevent degradation. Always follow the manufacturer's instructions for safe installation and maintenance.
Configuración e montaxe
Careful assembly is crucial for the stability and longevity of your greenhouse. Ensure all components are present before starting.
Compoñentes rematadosview:

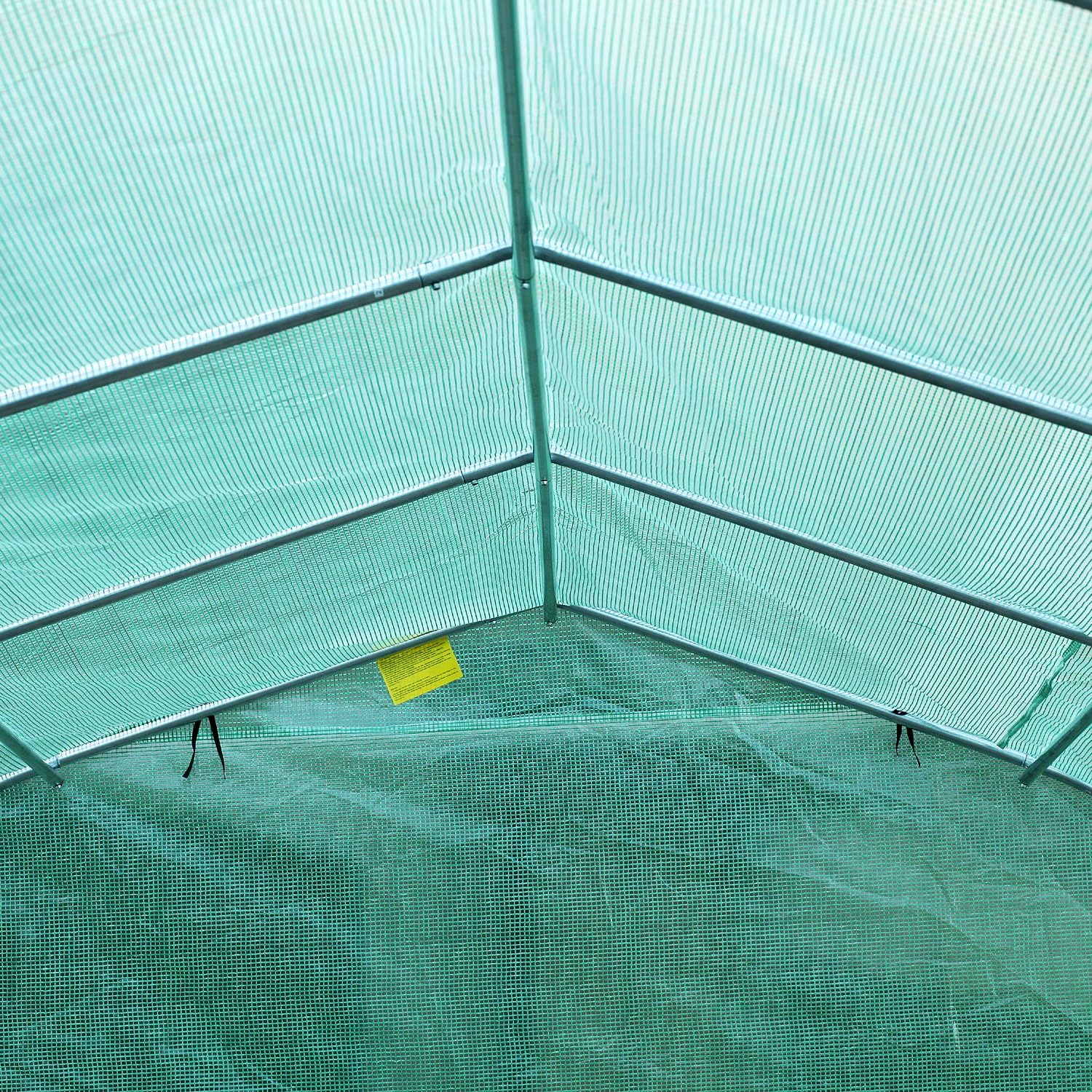

The greenhouse frame consists of galvanized alloy steel pipes and connectors. The cover is made of green PE plastic. Ensure all pipes, connectors, the cover, and anchoring ropes/stakes are accounted for.
Pasos de montaxe:
- Selección do sitio: Choose a level, well-drained area for your greenhouse. Consider sun exposure and protection from strong winds.
- Montaxe do cadro: Connect the galvanized steel pipes according to the included diagram. Ensure all connections are secure. The frame includes slant bracing tubes and middle reinforced tubes for added stability.
- Instalación de tapa: Carefully drape the green PE plastic cover over the assembled frame. Ensure it is centered and evenly distributed.
- Asegurar a cuberta: Attach the cover firmly to the steel frame using the provided fasteners. Ensure the 8-inch extended edges are deeply buried in the soil to prevent wind uplift and improve insulation.
- Window and Door Setup: The greenhouse features 12 roll-up side windows with netting and a large zipped roll-up door. Ensure these are properly aligned and functional for ventilation and access.
- Ancoraxe: Use the provided securing ropes and ground stakes to firmly anchor the entire greenhouse structure to the ground. This is critical for stability, especially in windy conditions.
Referencia do vídeo de montaxe:
Vídeo 1: Xeral rematadoview of an Outsunny Tunnel Greenhouse, demonstrating its features and potential use. This video provides a visual guide to the product type.
Video 2: Another visual demonstration of an Outsunny Tunnel Greenhouse, highlighting its structure and functionality.
Instrucións de funcionamento
Un funcionamento axeitado garante unhas condicións óptimas de crecemento para as túas plantas.
Ventilación e control de temperatura:
The greenhouse is equipped with 12 roll-up side windows with netting and a large zipped roll-up door. These features are essential for managing internal temperature and humidity.
- Opening Windows/Door: On warm days, or when humidity is high, roll up the windows and open the door to allow for cross-ventilation. This prevents overheating and reduces the risk of fungal diseases.
- Closing Windows/Door: Close windows and the door during cooler temperatures, at night, or during adverse weather conditions to retain heat and protect plants.
- Netting: The window netting provides protection against insects and other external factors while maintaining airflow.
Cultivo de plantas:
The expansive walk-in design allows for easy cultivation of various plants, extending your planting season.
- Utilize the space for starting seeds, growing vegetables, flowers, or other plants that require a controlled environment.
- Monitor soil moisture and plant health regularly.
Mantemento
Un mantemento regular prolongará a vida útil do teu invernadoiro e garantirá un rendemento óptimo.
- Comprobación de ancoraxe: Periodically inspect the ground stakes and securing ropes to ensure the greenhouse remains firmly anchored, especially after strong winds or heavy rainfall.
- Inspección da cuberta: Check the PE plastic cover for any tears, punctures, or signs of degradation. Repair small damages promptly to maintain insulation and protection.
- Limpeza: Clean the cover regularly to ensure maximum light penetration. Use mild soap and water; avoid harsh chemicals that could damage the material.
- Integridade do cadro: Inspect the steel frame for any signs of rust, corrosion, or loose connections. Tighten bolts and apply rust-preventative treatment as needed.
- Protección UV: While the cover provides some UV protection, prolonged exposure to intense sunlight can degrade the material over time. Consider additional shading during peak summer months if needed.
Resolución de problemas
| Problema | Causa posible | Solución |
|---|---|---|
| Greenhouse instability / Wind damage | Ancoraxe insuficiente; ventos fortes. | Ensure all ground stakes are deeply buried and ropes are taut. Consider additional anchoring methods (e.g., sandbags, heavy objects on extended edges). |
| Excessive heat inside | Poor ventilation; high external temperatures. | Open all roll-up windows and the main door for maximum airflow. Consider temporary shading during peak sun hours. |
| Low temperature inside | Inadequate insulation; cold external temperatures. | Ensure all windows and the door are securely closed. Verify the cover is properly attached and buried at the edges. Consider a small, safe greenhouse heater if necessary. |
| Tears or holes in cover | Wear and tear; accidental damage; UV degradation. | Patch small tears with greenhouse repair tape. For large damages, consider replacing the cover. Protect from sharp objects. |
Especificacións
- Número de modelo: 845-140 GN
- Marca: soleado
- Dimensións xerais: 26.1' L x 9.7' W x 6.8' H (7.95 x 2.95 x 2.07 m)
- Dimensións da porta: 65.75" de ancho x 67" de alto (160 x 165 cm)
- Window Dimensions: 13.75" x 13.75" (35 x 35 cm)
- Cor: Verde
- Material do cadro: aceiro de aliaxe galvanizado
- Material de cuberta: Polietileno (PE)
- Número de portas: 1 (Roll-up Zipper Door)
- Número de ventilacións: 12 (Roll-up Windows with Netting)
- Peso do artigo: 108 libras (48.99 kg)
- País de orixe: China
Garantía
This product comes with a 90-Day Warranty Against Manufacturer Defects. Please retain your proof of purchase for warranty claims.
Apoio
For any questions, assistance, or to report issues, please contact Aosom Canada customer support:
- Fabricante: Aosom Canadá
- Lugar de traballo: Markham, Ontario, California
- Teléfono: 1-416-792-6088
Tamén podes visitar o Tenda Outsunny en Amazon para obter información e recursos adicionais sobre o produto.
