1. Produto rematadoview
The KLARUS XT1C is a compact and powerful tactical flashlight designed for everyday carry (EDC) and various outdoor activities. It features a high-efficiency LED, delivering up to 1000 lumens of bright light, and is built with durable aerospace aluminum alloy.
Image: The compact KLARUS XT1C flashlight, demonstrating its small size when held in a hand.
Características principais:
- Alto Brillo: Maximum output of 1000 lumens for powerful illumination.
- Control de interruptor dual: Patented tactical tail cap dual switch for intuitive, one-handed operation, including one-touch strobe and one-touch high.
- Recargable: Built-in micro USB charging port for convenient battery recharging.
- Construción duradeira: Aerospace aluminum alloy body with Mil-Spec Hard Anodizing (HAIII) for lightweight and robust performance.
- Múltiples proteccións de seguridade: Includes thermal isolation system, low battery capacity protection, impact protection, high temperature protection, and reverse polarity protection.
- Impermeable: IPX8 waterproof rating, fully submersible down to 2 meters.
Image: The powerful beam of the XT1C flashlight illuminating a wide area in a forest at night, demonstrating its 1000-lumen output.
Image: A detailed diagram highlighting the advanced ergonomic design and key components of the XT1C flashlight, including the intelligent battery capacity indicator, polished reflector, heavy-duty clip, patented tactical dual-switch tail cap, and tempered glass lens.
2. Configuración
Instalación e carga da batería:
- Desenrosque a tapa da cola da lanterna.
- Insert the included 18650 Lithium-Ion battery with the positive (+) end facing towards the head of the flashlight.
- Atornille a tapa da cola de forma segura.
- To charge the battery, locate the micro USB port on the flashlight body (usually under a protective cover).
- Connect the provided charging cable to the flashlight's micro USB port and the other end to a USB power source (e.g., wall adapter, computer USB port).
- The battery capacity indicator will show charging status.
Image: Illustration showing how to insert the battery for charging and connecting the micro USB cable to the flashlight.
Image: Visual representation of the battery capacity indicator lights: Green (Over 70%), Orange (30%-70%), Red (Less than 30%), and Flashing Red (Less than 10%).
3. Funcionamento
Tail Cap Dual Switch Control:
The XT1C features a patented dual-switch tail cap for quick and intuitive control, even in low-light conditions. This allows for one-handed operation and instant access to key functions.
Image: A hand demonstrating the operation of the XT1C flashlight, highlighting the patented dual-switch tail cap for one-touch access to various modes.
Modos de funcionamento:
The XT1C offers two main operating settings: Tactical Setting and Outdoor Setting.
- Tactical Setting: Provides instant access to one-touch strobe and one-touch high brightness, ideal for self-defense or emergency situations.
- Outdoor Setting: Offers a range of brightness levels suitable for general use, hiking, camping e outras actividades ao aire libre.
Refer to the detailed instructions included in the product packaging for specific button presses to switch between modes and access different brightness levels (e.g., One Touch Strobe, One Touch Turbo, One Touch Low).
4. Mantemento
Proper maintenance ensures the longevity and optimal performance of your KLARUS XT1C flashlight.
- Limpeza: Wipe the flashlight body with a clean, soft cloth. For the lens, use a lens cleaning cloth and solution to avoid scratches.
- Lubricación: Periodically apply a thin layer of silicone grease to the O-rings and threads to maintain water resistance and smooth operation.
- Coidado da batería:
- Cargue a batería completamente antes do primeiro uso.
- Avoid over-discharging the battery. Recharge when the indicator shows low capacity.
- If storing the flashlight for an extended period, remove the battery to prevent leakage.
- Almacenamento: Garda a lanterna nun lugar fresco e seco lonxe da luz solar directa e de temperaturas extremas.
5. Seguridade e Precaucións
The KLARUS XT1C is designed with multiple safety features. Please observe the following precautions for safe use:
- Do Not Stare into Beam: The flashlight emits a powerful beam. Do not look directly into the light or shine it directly into anyone's eyes to prevent temporary vision impairment.
- Thermal Protection System (TPS): The flashlight incorporates a thermal isolation system that monitors internal temperature and adjusts output to prevent overheating, ensuring safety and stability.
- Resistencia á auga: The XT1C has an IPX8 waterproof rating, meaning it is protected against continuous immersion in water up to 2 meters. Ensure all caps and covers are securely closed before exposing to water.
- Seguridade da batería: Use only the recommended battery type. Do not mix old and new batteries or different battery types. Dispose of batteries responsibly.
- Protección contra impactos: The robust construction provides impact resistance, but avoid dropping the flashlight from excessive heights.
- Protección contra polaridade inversa: This feature protects the flashlight from damage if the battery is inserted incorrectly.

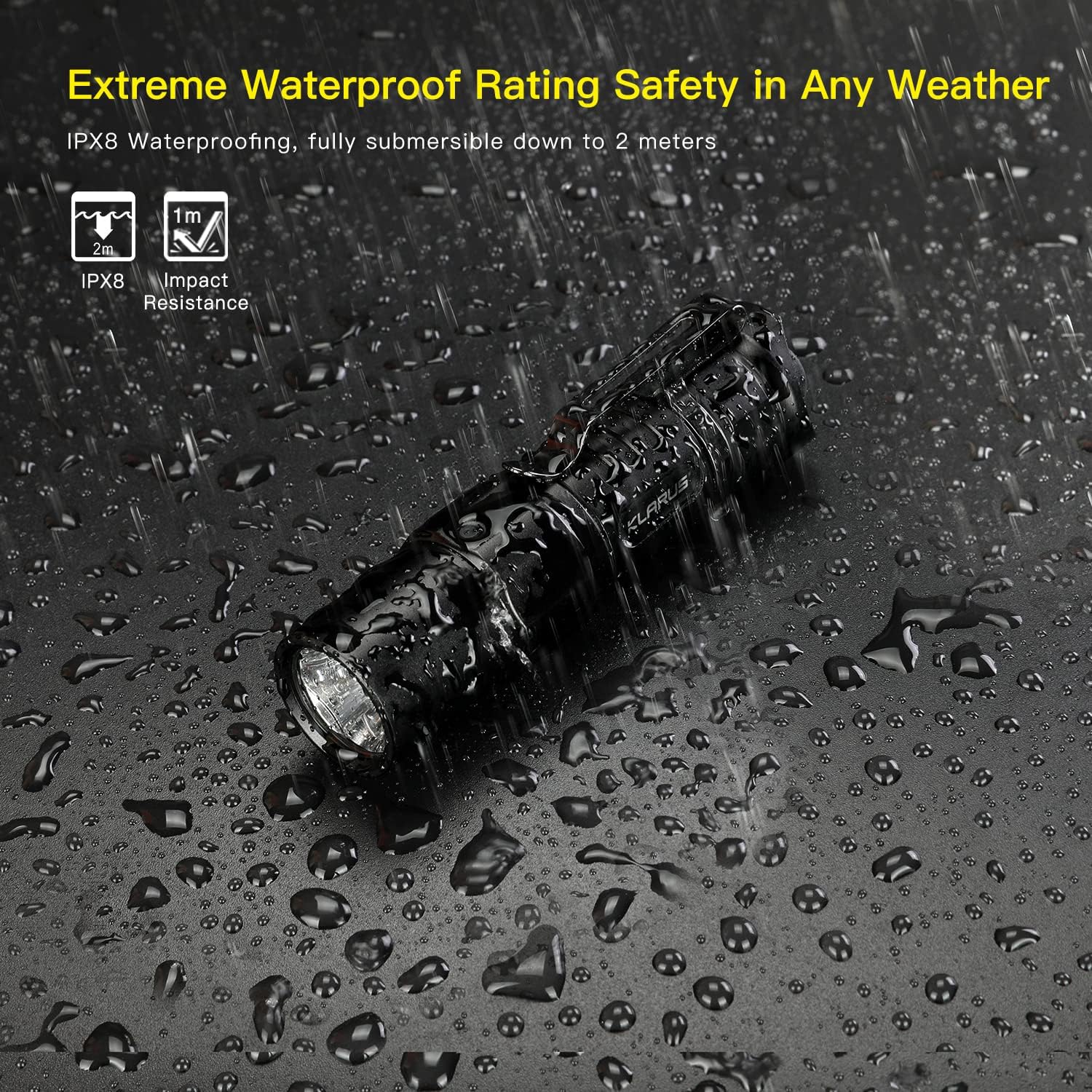

Image: The XT1C flashlight covered in water droplets, illustrating its IPX8 waterproof rating and ability to withstand wet conditions.
Image: A visual representation of the multi-safety protections integrated into the XT1C flashlight, including low battery capacity protection, impact protection, high temperature protection, and reverse polarity protection, alongside the Thermal Protection System (TPS).
6 Solución de problemas
| Problema | Causa posible | Solución |
|---|---|---|
| A lanterna non se acende. | Battery is dead or incorrectly inserted. Loose tail cap. | Charge or replace battery. Ensure battery is inserted with correct polarity. Tighten tail cap securely. |
| A luz é tenue ou parpadea. | Low battery. Dirty contacts. | Recharge battery. Clean battery contacts and flashlight contacts with a cotton swab. |
| Flashlight gets hot quickly. | Operating on high mode for extended periods. | This is normal due to high lumen output. The Thermal Protection System will automatically reduce output to prevent damage. Switch to a lower mode if prolonged use is needed. |
| Entrada de auga despois da exposición. | Tail cap or charging port cover not fully sealed. Damaged O-rings. | Ensure all covers are tightly closed before water exposure. Check O-rings for damage and replace if necessary. Apply silicone grease to O-rings. |
7. Especificacións
| Característica | Detalle |
|---|---|
| Modelo | XT1C |
| Brillo | 1000 lúmenes (máx.) |
| Tempo de execución | Ata 53 horas |
| Fonte de luz | LED |
| Material | Aerospace Aluminum Alloy (HAIII Anodized) |
| Dimensións (L x W x H) | 5" de profundidade x 0.9" de ancho x 0.9" de alto (aprox. 12.7 cm x 2.29 cm x 2.29 cm) |
| Peso | 3.84 onzas (aprox. 108.87 g) |
| Fonte de enerxía | Alimentado por batería (1 batería de iones de litio incluída) |
| Resistencia á auga | IPX8 (Submersible up to 2 meters) |
| Características especiais | Durable, Rechargeable, Tactical Dual Switch, Thermal Protection System |
| Compoñentes incluídos | Cable de carga |
8. Información da garantía
Specific warranty details for the KLARUS XT1C flashlight are typically provided with the product packaging or can be found on the official KLARUS websitio. Garde o comprobante de compra para reclamacións de garantía.
9. Atención ao cliente
For further assistance, technical support, or inquiries regarding your KLARUS XT1C flashlight, please visit the official KLARUS website or contact their customer service department. You can often find contact information or a support portal on the brand's official online store page.
Visita o KLARUS Store on Amazon para máis información e produtos.
