1. Introdución
Thank you for choosing the RCA RC-CAF4 Automatic Coffee Maker with Integrated Grinder. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new appliance. Please read it thoroughly before first use and keep it for future reference.
Instrucións de seguridade importantes
- Always unplug the coffee maker from the power outlet before cleaning or when not in use.
- Non mergullo o aparello, o cable de alimentación ou o enchufe en auga ou en calquera outro líquido.
- Manteña o aparello fóra do alcance dos nenos.
- Non faga funcionar o aparello cun cable ou enchufe danados, nin despois de que o aparello funcione mal ou teña dano dalgún xeito.
- Use só auga fría e fresca no depósito de auga.
- Ensure the lid of the grinding chamber is securely closed before operating the grinder.
2. Produto rematadoview

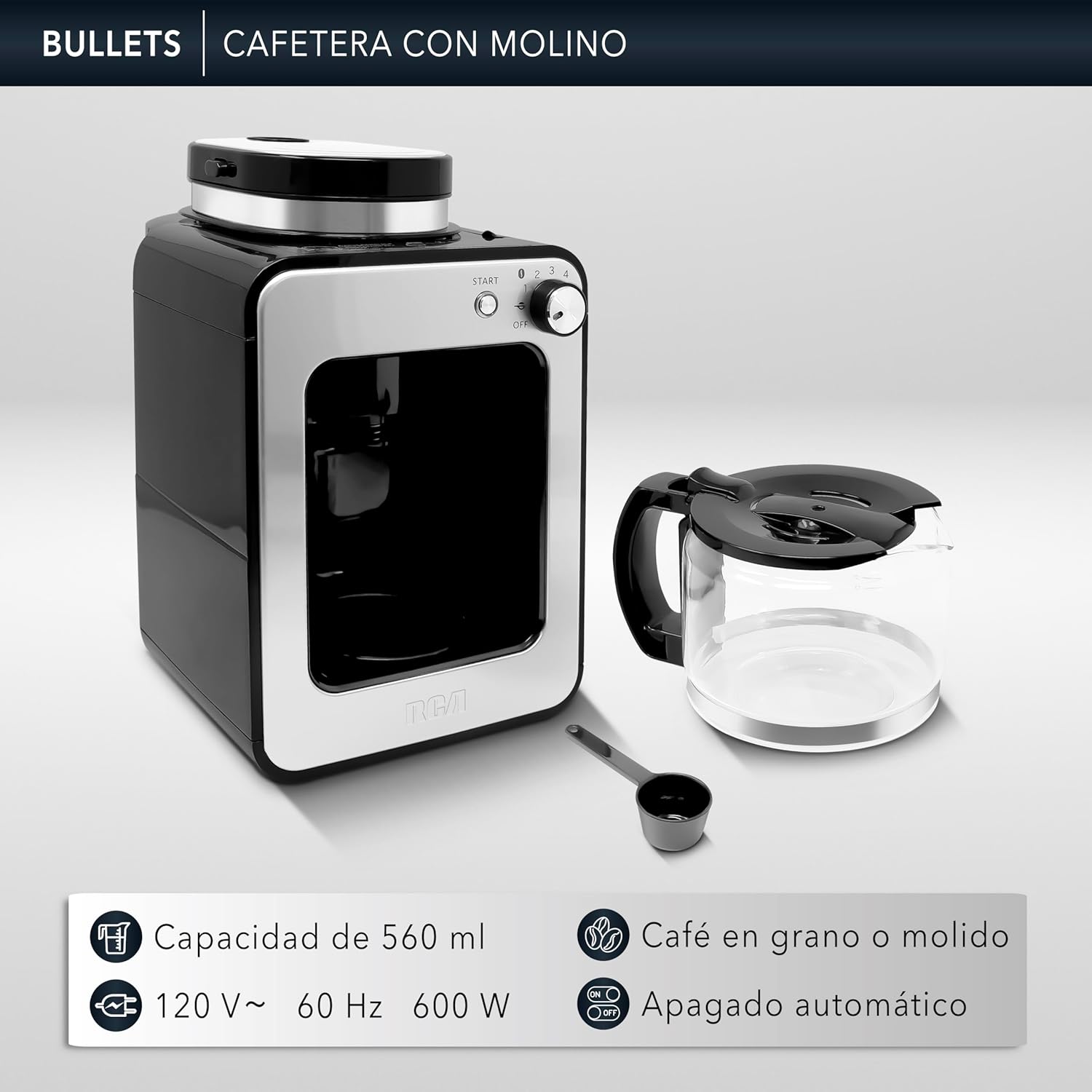

The RCA RC-CAF4 is a compact and versatile coffee maker designed to brew up to 4 cups of coffee using either whole beans or pre-ground coffee. It features an integrated grinder, automatic shut-off, anti-drip system, and a thermal plate to keep your coffee warm.
Compoñentes
- Unidade principal con panel de control
- Glass Carafe (560 ml capacity)
- Trituradora integrada
- Filtro reutilizable
- Depósito de auga con indicador de nivel
- Culler Medidora
- Thermal Plate
- Ventilación de vapor

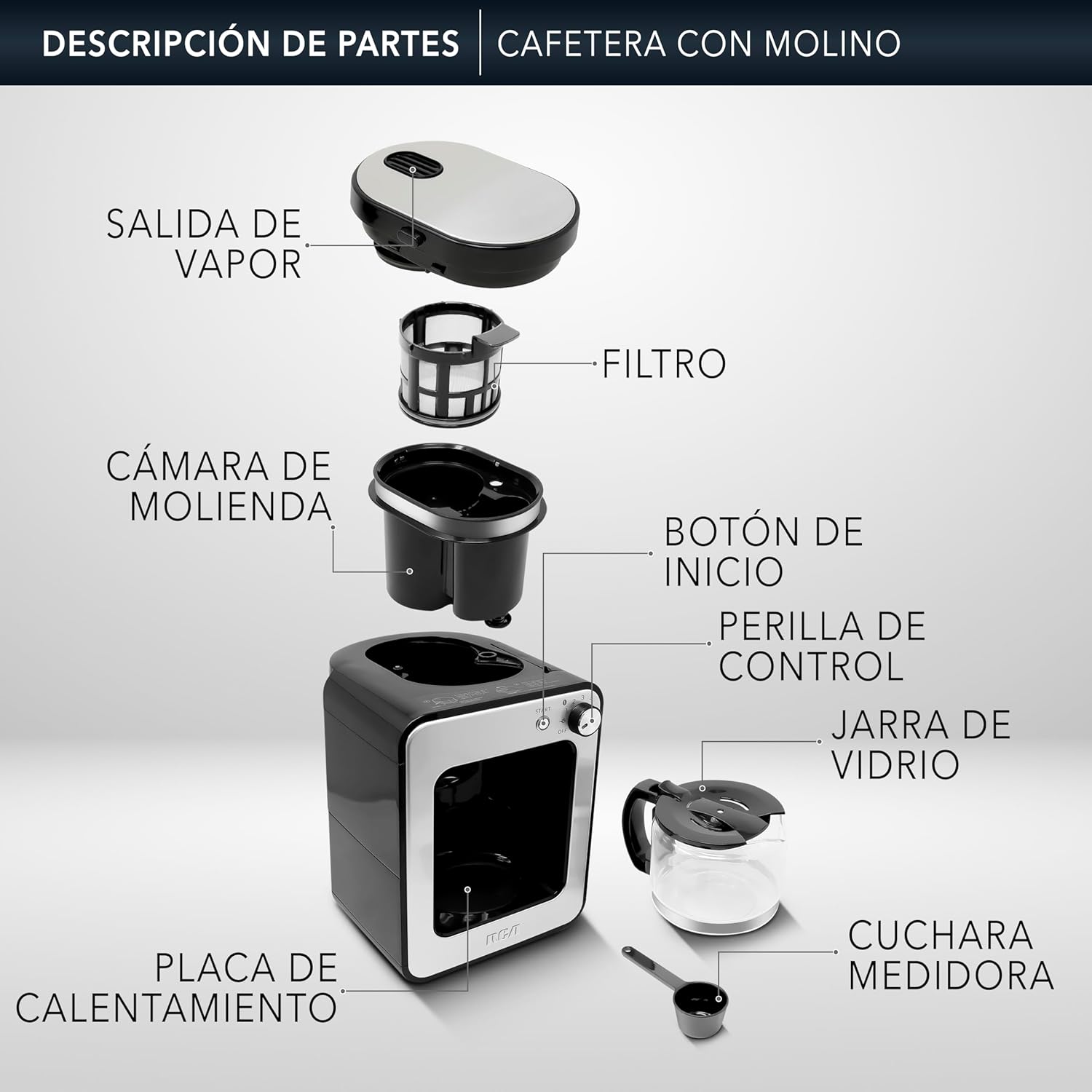

Figura 1: Description of Parts - RCA RC-CAF4 Coffee Maker with Grinder.
3. Configuración
Limpeza inicial
- Before first use, wash the glass carafe, reusable filter, and measuring spoon in warm, soapy water. Rinse thoroughly and dry.
- Limpe o exterior da cafeteira cun anuncioamp pano.
- Run a full cycle with only water to clean the internal components. Discard the water.
Asemblea
- Coloque a cafeteira nunha superficie plana e estable.
- Ensure the reusable filter is correctly seated in the grinding chamber.
- Place the glass carafe on the thermal plate.
Figura 2: Grinding Chamber with Reusable Filter.
Figura 3: Water Tank Capacity.
Video: Unboxing and Setup
This video demonstrates the unboxing and initial setup of a similar coffee maker, including placing components and adding water.
4. Instrucións de funcionamento
Brewing with Whole Beans
- Open the lid of the grinding chamber.
- Add the desired amount of whole coffee beans to the grinding chamber. Use the included measuring spoon (1 spoon per cup, adjust to taste). Do not exceed the MAX fill line.
- Close the lid securely. The coffee maker has a safety sensor that prevents operation if the lid is not properly sealed.
- Fill the water tank with fresh, cold water up to the desired number of cups (max 4 cups).
- Enchufe a cafeteira nunha toma de corrente.
- Use the control knob to select the number of cups (1-4) for grinding. The numbers indicate the amount of coffee beans to be ground.
- Press the START button. The coffee maker will grind the beans, then automatically proceed to brew the coffee. The indicator light will blink during brewing and remain steady when finished.
Preparación con café molido
- Ensure the reusable filter is in place.
- Add the desired amount of ground coffee directly into the reusable filter. (1 spoon per cup, adjust to taste).
- Pecha a tapa.
- Fill the water tank with fresh, cold water up to the desired number of cups (max 4 cups).
- Enchufe a cafeteira nunha toma de corrente.
- Press the START button. The coffee maker will immediately begin brewing. The indicator light will blink during brewing and remain steady when finished.
Figura 4: Control Knob Functions.
Figura 5: Start Button with Indicator Light.
Video: Operation Demonstration
This video illustrates the process of using the coffee maker, including adding coffee beans, water, and starting the brewing cycle.
5. Mantemento e Limpeza
Unha limpeza regular garante un rendemento óptimo e prolonga a vida útil da túa cafeteira.
Limpeza diaria
- Desenchufe sempre o aparello e deixe que se arrefríe completamente antes de limpalo.
- Remove the glass carafe, reusable filter, and grinding chamber lid. Wash them in warm, soapy water. Rinse thoroughly and dry.
- Limpe o exterior da cafeteira cun suave, damp pano. Non utilice produtos de limpeza abrasivos nin estropajos.
- Clean the thermal plate with a damp pano. Non use produtos químicos agresivos.
Descalcificación
Mineral deposits from water can affect the performance of your coffee maker. Descale your appliance every 2-3 months, or more frequently if you have hard water.
- Fill the water tank with a mixture of white vinegar and water (1:2 ratio).
- Place the carafe on the thermal plate.
- Executar un ciclo de preparación sen café.
- Despois do ciclo, deixe repousar a solución na xerra durante 15-20 minutos.
- Discard the solution and run 2-3 cycles with fresh water to rinse thoroughly.
Video: Cleaning Tips
This video provides additional details and tips for maintaining your coffee maker.
6 Solución de problemas
If you encounter any issues with your coffee maker, please refer to the following common problems and solutions:
| Problema | Causa posible | Solución |
|---|---|---|
| O café non se prepara. | No water in the tank, appliance not plugged in, lid not closed properly. | Fill water tank, check power connection, ensure grinding chamber lid is securely closed. |
| Café débil. | Not enough coffee, coffee too coarsely ground, clogged filter. | Add more coffee, use finer grind setting (if applicable), clean the filter. |
| O café desborda. | Too much coffee, clogged filter, carafe not placed correctly. | Reduce coffee amount, clean the filter, ensure carafe is centered on the thermal plate. |
| O moedor non funciona. | Lid not closed properly, no beans, grinder jammed. | Ensure lid is securely closed, add beans, clear any obstructions. |
Se o problema persiste, póñase en contacto co servizo de atención ao cliente.
7. Especificacións
- Marca: RCA
- Número de modelo: RC-CAF4
- Cor: Negro / Aceiro inoxidable
- Dimensións do produto: 47 x 52 x 34 cm
- Capacidade: 4 cuncas (560 ml)
- Voltage: 125 voltios
- Material: Aceiro inoxidable
- Características especiais: Integrated Coffee Grinder, Automatic Shut-off, Anti-drip System, Thermal Plate
- Peso do produto: 2 quilogramos
8. Garantía e soporte
Your RCA RC-CAF4 Coffee Maker is covered by a 1 ano de garantía against manufacturing defects and damage during shipping. Please retain your proof of purchase for warranty claims.
Figura 6: Warranty and Invoicing Information.
For technical support, warranty claims, or any questions regarding your product, please refer to the contact information provided with your purchase or visit the official RCA websitio.
