Manual de instrucións do triciclo evolutivo 3 en 1 Lulu de Mobiclinic

1. Introdución

The Mobiclinic Lulu 3-in-1 Evolutionary Tricycle is designed to adapt to your child's growth from 18 months to 5 years. This versatile tricycle offers three distinct modes, ensuring comfort, safety, and fun at every stage. Key features include a 360° swivel seat, adjustable parental handle, safety harness, and durable construction. This manual provides essential information for assembly, safe operation, and maintenance of your tricycle.

2. Advertencias de seguridade

Importante: Always read and understand all safety warnings and instructions before using the tricycle. Failure to follow these instructions may result in serious injury.

• Requírese supervisión dun adulto: Never leave a child unattended while using the tricycle.
• Montaxe: Ensure the tricycle is assembled correctly and all components are securely fastened before initial use.
• Terreo: Use the tricycle only on flat, even, and safe surfaces. Avoid uneven ground, steep slopes, stairs, or areas with vehicle traffic.
• Equipo de protección: Always ensure the child wears appropriate safety gear, such as a helmet, knee pads, and elbow pads.
• Límite de peso: Do not exceed the maximum weight limit of 25 kg (55 lbs).
• Harness and Bar: Always secure the child with the safety harness and protective bar when in stroller or guided tricycle mode.
• Freos: Familiarize yourself with the rear brake system and use it to control speed and stop safely.
• Inspección: Regularly inspect the tricycle for any signs of wear, damage, or loose parts. Discontinue use if any damage is found and contact customer support.
• Pezas móbiles: Keep fingers and clothing away from moving parts, especially wheels and pedals.

3. Características do produto

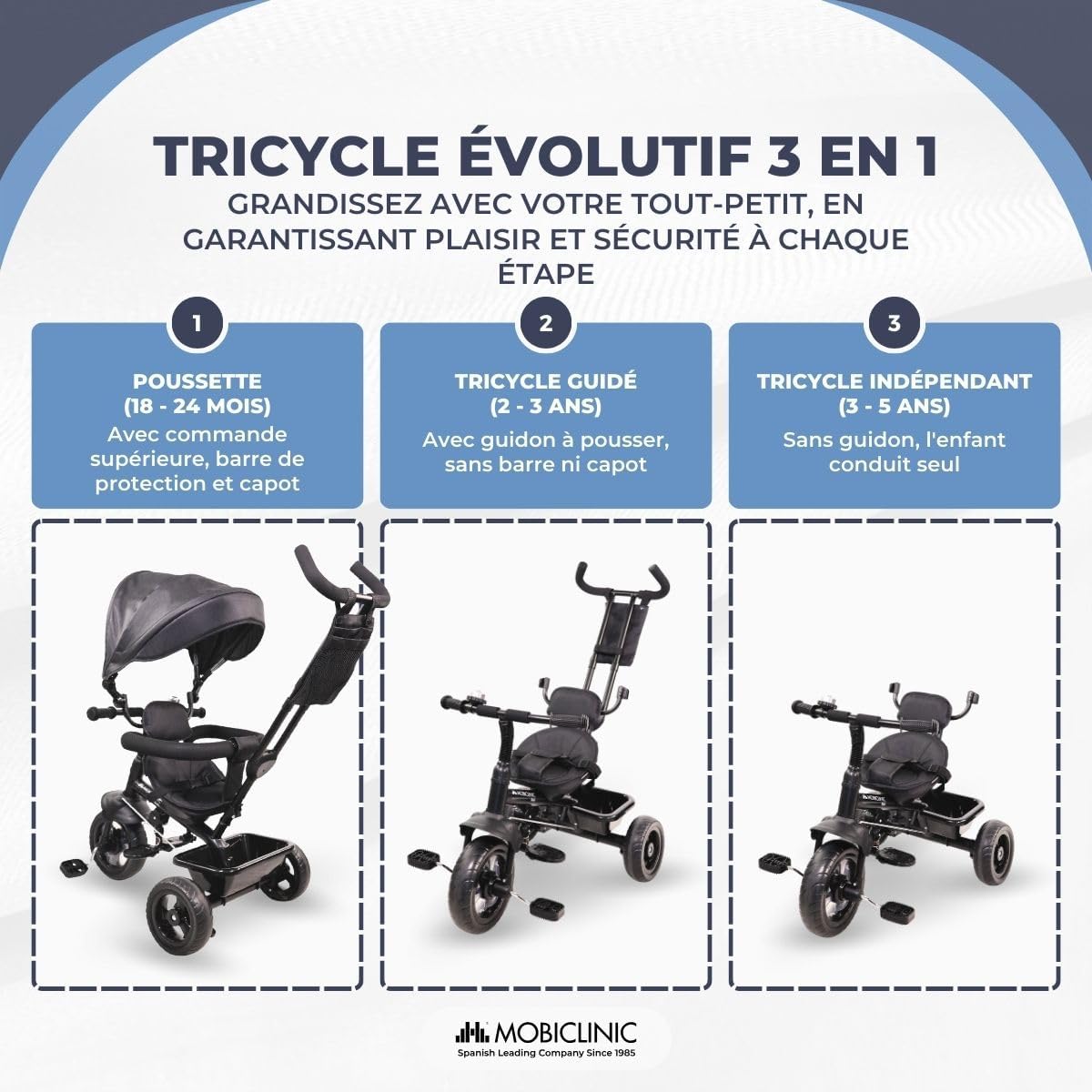

3.1. Evolutionary 3-in-1 Design

The Mobiclinic Lulu Tricycle adapts to your child's developmental stages:

• Mode 1: Stroller (18-24 months): Features a parental push handle, protective bar, and adjustable canopy for full control and child safety.
• Mode 2: Guided Tricycle (2-3 years): The protective bar and canopy can be removed, allowing the child more freedom while the parent still guides with the push handle.
• Mode 3: Independent Tricycle (3-5 years): The parental push handle is removed, enabling the child to ride independently and develop motor skills.

3.2. Enhanced Safety Features

• Arnés de seguridade: A secure harness system keeps your child safely seated.
• Protective Bar: Provides an additional layer of security, especially for younger children.
• Rear Wheel Brake: Easily accessible brake on the rear wheels for quick and secure stopping.
• Clutch System: Allows the child's pedals to be disengaged from the front wheel, preventing the pedals from spinning when the parent is pushing.
• Anti-slip EVA Tires: Durable and quiet tires provide a smooth ride on various surfaces.

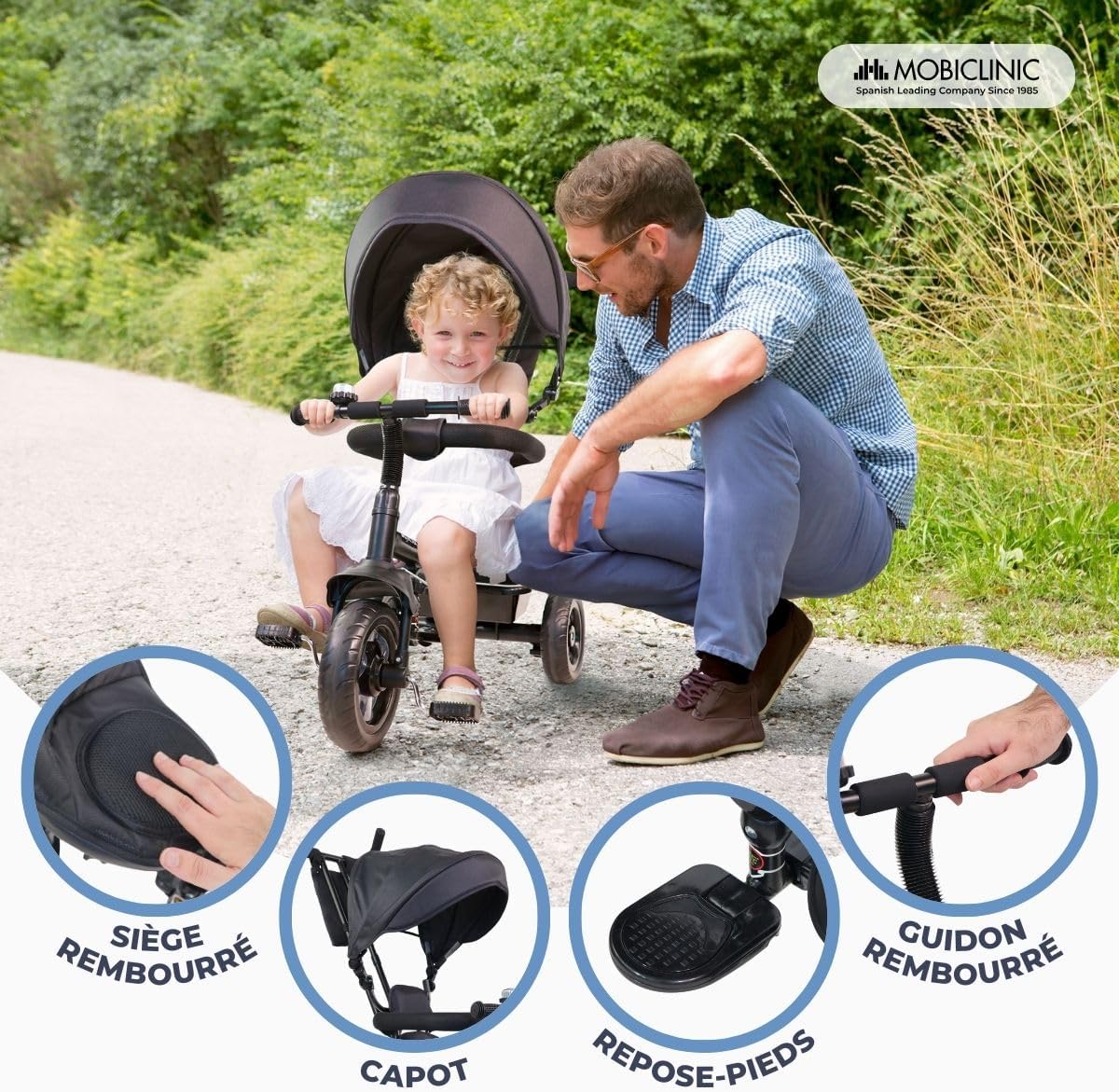

3.3. Comodidade e comodidade

• Asiento xiratorio de 360°: The seat can rotate, allowing the child to face forward or backward.
• Padded Backrest: Ensures a comfortable ride for your child.
• Toldo axustable: Protects your child from sun and wind.
• Adjustable Parental Push Handle: Telescopic handle with three height settings (110.5 cm, 107 cm, 103.5 cm) for ergonomic pushing.
• Opcións de almacenamento: Includes a spacious rear basket and a convenient handlebar pouch for carrying essentials.
• Padded Handlebar: Comfortable grip for the child.
• Repousapés: Provides support for younger children who are not yet pedaling.

3.4. Integrated Bell

The tricycle includes an integrated bell to enhance the child's experience, promote motor skill development, and introduce basic concepts of traffic awareness.

4. Montaxe e Montaxe

The Mobiclinic Lulu Tricycle requires some assembly. Please refer to the detailed assembly instructions provided in the product packaging. It is crucial to follow these instructions step-by-step to ensure correct and safe assembly. If you encounter any difficulties, consult the manufacturer's support resources.

Consellos para a Asemblea Xeral:

• Lay out all components and verify against the parts list in your manual.
• Empregar as ferramentas axeitadas segundo o especificado na guía de montaxe.
• Ensure all screws, bolts, and fasteners are tightened securely, but do not overtighten.
• Perform a safety check after assembly to confirm all parts are correctly installed and functioning.

5. Instrucións de funcionamento

5.1. Mode Transition

Refer to your product's specific assembly manual for detailed instructions on how to convert the tricycle between the Stroller, Guided Tricycle, and Independent Tricycle modes. Each mode involves adjusting or removing specific components like the parental handle, protective bar, and canopy.

5.2. Using the Parental Handle

The parental push handle can be adjusted to three different heights for comfortable steering. To adjust, locate the adjustment mechanism (usually a button or lever) on the handle and slide it to your desired height, ensuring it locks securely into place.

5.3. Swivel Seat Operation

The 360° swivel seat allows you to easily change the child's facing direction. Locate the release mechanism (typically under the seat) to unlock, rotate the seat to the desired position, and ensure it clicks back into place securely.

5.4. Sistema de freado

To engage the rear wheel brake, press down on the brake lever located near the rear wheels. Ensure both brakes are fully engaged when parking the tricycle. To release, lift the lever.

5.5. Pedal Clutch System

The clutch system on the front wheel allows you to control whether the pedals rotate with the wheel. Engage the clutch when the child is actively pedaling. Disengage the clutch (often by pushing a button or lever on the front wheel hub) when the child is not pedaling, allowing their feet to rest on the footrests without the pedals spinning.

6. Mantemento

Regular maintenance ensures the longevity and safe operation of your Mobiclinic Lulu Tricycle.

• Limpeza: The fabric components are removable and can be hand-washed with mild soap and cold water. Allow to air dry completely. Clean the frame, plastic parts, and wheels with a damp cloth and mild soap. Avoid using abrasive cleaners or solvents, as these can damage the materials.
• Inspección: Periodically check all screws, bolts, and fasteners to ensure they are tight. Re-tighten if necessary. Inspect the wheels and EVA tires for any signs of wear, cracks, or damage. Ensure the brake mechanism is clean and functioning smoothly.
• Lubricación: Apply a small amount of silicone-based lubricant to moving parts like wheel axles or pedal mechanisms if they become stiff or noisy. Avoid over-lubricating.
• Almacenamento: Store the tricycle in a dry, protected area away from direct sunlight, rain, and extreme temperatures. Prolonged exposure to harsh weather conditions can cause material degradation.

7 Solución de problemas

Esta sección aborda problemas comúns que podes atopar co teu triciclo.

• Tricycle feels unstable or wobbly: Check all assembly points, especially the connections for the wheels, handlebars, and seat. Ensure all fasteners are securely tightened.
• Difficulty steering or wheels not turning smoothly: Inspect the wheels for any debris (e.g., string, hair) that might be caught in the axles. Ensure the wheels are properly aligned and not rubbing against the frame.
• Pedals not engaging/disengaging: Verify the pedal clutch system is functioning correctly. Ensure the mechanism is clean and free of obstructions.
• Os freos non son eficaces: Check the brake levers and pads for wear. Ensure the brake mechanism is clear of dirt and properly aligned with the wheels.
• Ruídos de chirrido: Identify the source of the squeak. It might be a loose part that needs tightening or a moving part that requires a small amount of lubricant.

If you are unable to resolve an issue using these tips, please contact Mobiclinic customer support for further assistance.

8. Especificacións

9. Garantía e soporte

Mobiclinic products are manufactured with a commitment to quality and reliability. For detailed warranty information, product support, or to inquire about spare parts, please refer to the documentation included with your purchase. You may also visit the official Mobiclinic website for customer service contact details and additional resources. Mobiclinic has been providing quality products since 1985, ensuring customer satisfaction.
