1. Introdución
The EGO Power+ Edger & Power Head Kit (Model ME0820) is designed to create clean and precise edges around driveways, sidewalks, and patios. This kit includes the Power Head (PH1420) and an 8-inch Carbon Fiber Edger Attachment (EA0820). The Power Head is compatible with the full range of EGO POWER+ Multi-Head attachments, offering versatility for various yard projects.
Key features include a lightweight and durable carbon fiber shaft, an 8-inch edger blade, a guide wheel with depth adjustment, a high-efficiency brushless motor, and IPX4-rated weather-resistant construction. It is designed for use with all EGO POWER+ 56V ARC Lithium batteries (sold separately).
2. Información importante de seguridade
AVISO:
- Always wear eye protection when operating the edger.
- Avoid operating the tool near people or animals to prevent injury from flying debris.
- Be aware of flying debris and ensure the work area is clear before operation.
For detailed safety guidelines, refer to the complete safety manual provided with your product.
3. Configuración e montaxe
The EGO Power+ Edger & Power Head Kit requires minimal assembly. Follow these steps to prepare your tool for use:
- Coloque o asa: Secure the auxiliary handle to the power head shaft using the provided Allen wrench. Ensure it is tightened firmly for safe operation.
- Connect the Edger Attachment: Align the edger attachment with the power head and push until it clicks into place. Ensure the connection is secure.
- Inserir batería: Slide a fully charged EGO POWER+ 56V ARC Lithium battery (sold separately) into the power head until it locks.
Image: Fully assembled EGO Power+ Edger and Power Head Kit.
4. Instrucións de funcionamento
Operating the EGO Power+ Edger is straightforward. Ensure you have read and understood all safety warnings before beginning.
4.1 Starting the Edger
- Activar a seguridade: Press the safety button located on the top of the handle with your thumb.
- Activate Trigger: While holding the safety button, pull the power trigger at the bottom of the handle. The edger will start.
Image: Close-up of the digital two-speed selector and variable speed trigger.
4.2 Adjusting Speed and Depth
- Selector de velocidade: Use the digital two-speed selector on the power head to choose between high and low speeds, depending on the task and material.
- Axuste de profundidade: The edger features a guide wheel with a depth adjustment knob. Rotate this knob to set the desired cutting depth, up to a 3-inch maximum. This allows for precise control over your edging.

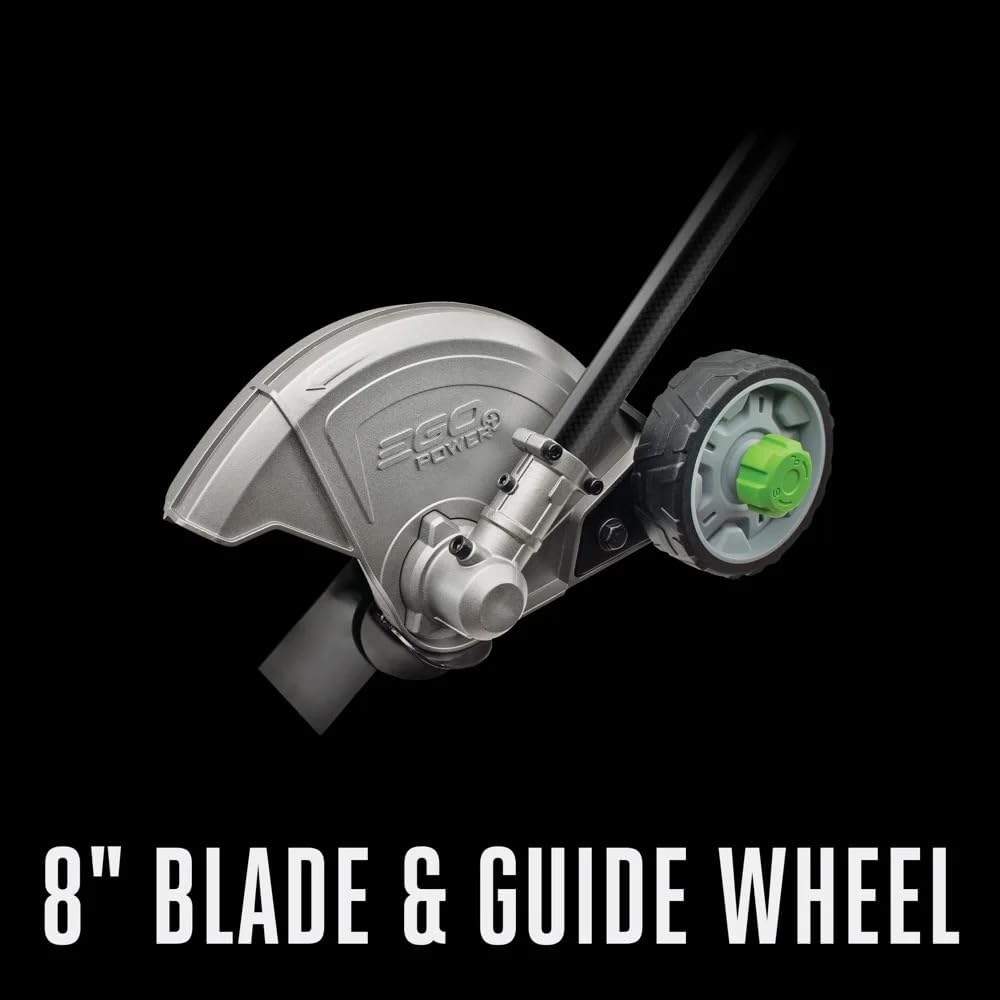

Image: The 8-inch edger blade and adjustable guide wheel for depth control.
4.3 Técnica de bordos
Push the edger along the edge of your driveway or sidewalk, allowing the guide wheel to roll along the hard surface. This helps maintain a consistent and straight edge. The powerful brushless motor will cut through grass and weeds effectively.
