1. Introdución
This manual provides detailed instructions for the setup, operation, and maintenance of your THOMSON 8-inch Digital Photo Frame (Model: TRDF-8001C). Please read this manual thoroughly before using the device to ensure proper functionality and to maximize your enjoyment of its features. This digital photo frame is designed to display your cherished photos and videos with an 8-inch IPS HD screen, offering a clear and vibrant viewexperiencia ing.
2. Que hai na caixa
Ao desembalar, asegúrese de que todos os elementos enumerados a continuación estean presentes e en bo estado:
- THOMSON 8-inch Digital Photo Frame
- Control remoto
- Adaptador de alimentación
- Soporte para marco de fotos
- Manual de usuario
Figure 2.1: Contents of the THOMSON Digital Photo Frame package.
3. Configuración
3.1 Conexión de alimentación
- Connect the power adapter to the DC-IN port on the back of the digital photo frame.
- Enchufe o adaptador de corrente a unha toma eléctrica estándar.
- O cadro acenderase automaticamente.
3.2 Configuración inicial
- Upon first startup, you will be prompted to select your preferred language. Use the navigation buttons on the remote control or the physical buttons on the back of the frame to select and confirm.
- Establece a data e a hora actual.

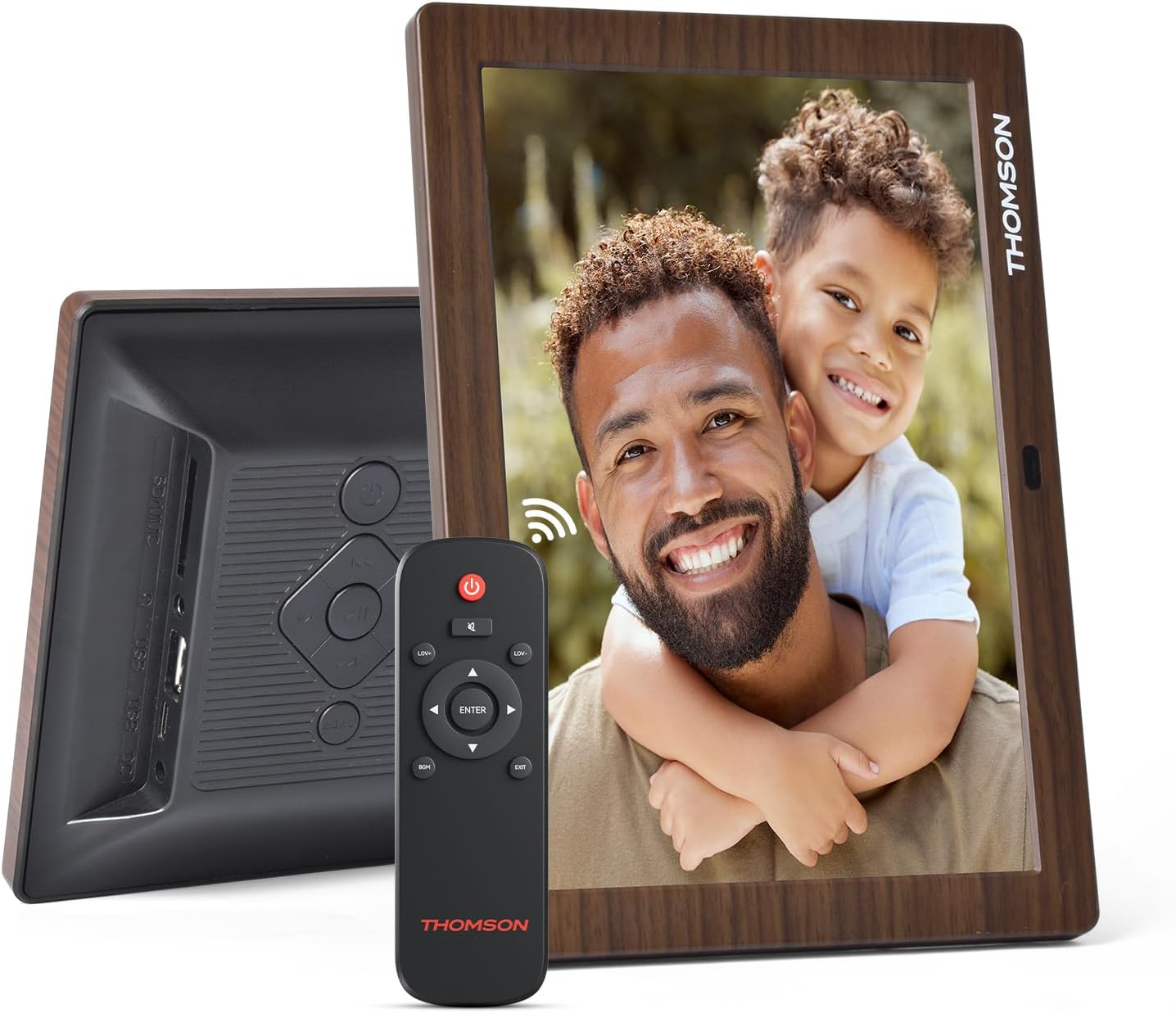

Figura 3.1: Traseira view of the frame with power input and physical controls.
3.3 Instalación do soporte
The digital photo frame can be placed on a flat surface using the included stand. Insert the stand into the designated slot on the back of the frame. The frame also supports wall mounting using the integrated mounting holes.
4. Instrucións de funcionamento
4.1 Características de visualización
- 8-inch IPS HD Screen: Enjoy clear and vibrant images with a 1280x800 resolution from various viewángulos de inflexión.
- Rotación automática: The built-in gravity sensor automatically adjusts the photo orientation (landscape or portrait) for optimal viewing.
Figure 4.1: The 8-inch IPS HD screen provides a high-quality display for your memories.
4.2 Reprodución multimedia
The frame supports playback of photos, music, and videos. You can navigate through your media using the remote control or the physical buttons.
- Photo Slideshow: Configure slideshow intervals and transition effects in the settings.
- Reprodución de música: Reproduce música de fondo mentres viewfotos.
- Reprodución de vídeo: Enjoy your favorite video clips directly on the frame.
Figure 4.2: User interface for media selection and playback options.
4.3 Remote Control and Physical Buttons
Control your digital photo frame conveniently using the included remote control or the physical buttons located on the back of the frame.
- Funcións de control remoto: Power on/off, adjust volume, navigate images, control background music, and access menus.
- Botóns físicos: Provide direct control for essential functions, useful for elderly users.
Figure 4.3: Remote control for convenient operation of the frame.
4.4 Expansion Modes
The frame supports various expansion options for storing your media:
- SD/SDHC/MMC Card: Expand storage up to 32 GB.
- USB-A/Type-C/U-disk: Connect USB drives for additional media.
- Nota: This frame does not have built-in storage. An external memory card or USB drive is required for media storage.
Figure 4.4: Memory expansion slots on the back of the frame.
4.5 Automatic Power On/Off
You can set a customized automatic start and stop time for the frame to conserve energy and manage display times.
Figure 4.5: Setting automatic power on/off times for convenience.
5. Mantemento
- Limpeza da pantalla: Use a soft, dry, lint-free cloth to gently wipe the screen. For stubborn marks, slightly dampEnxágüe o pano con auga ou unha solución para limpar pantallas. Evite produtos químicos agresivos.
- Limpeza do cadro: Limpe o marco cun pano suave e seco.
- Almacenamento: When not in use for extended periods, disconnect the power adapter and store the frame in a cool, dry place away from direct sunlight.
6 Solución de problemas
| Problema | Causa posible | Solución |
|---|---|---|
| O marco non se acende. | O adaptador de corrente non está conectado ou está avariado. | Asegúrate de que o adaptador de corrente estea conectado correctamente á estrutura e a unha toma de corrente que funcione. Proba cunha toma diferente. |
| Non se mostran imaxes/vídeos. | No memory card/USB drive inserted or media files are corrupted/unsupported. | Insert a memory card or USB drive with supported media files. Comproba file formats (JPEG for photos, MP4 for videos). Ensure the memory card/USB drive is properly inserted. |
| O control remoto non funciona. | Low battery or obstruction. | Replace the remote control battery. Ensure there are no obstructions between the remote and the frame's IR receiver. |
| Images are distorted or incorrect orientation. | Incorrect display settings or disabled auto-rotation. | Check display settings in the menu. Ensure the auto-rotation feature is enabled if desired. |
7. Especificacións
- Número de modelo: TRDF-8001C
- Tamaño da pantalla: 8 polgadas
- Resolución: 1280x800 (WXGA)
- Relación de aspecto: 16:10
- Tecnoloxía de visualización: IPS HD
- Conectividade: DC-4.0, USB-A, Type-C, SD Card, 3.5MM earphone jack
- Expansión de memoria: SD/SDHC/MMC card up to 32GB, U-disk
- Fonte de enerxía: Eléctrico con cable
- User Interface Input: Buttons, Remote Control
- Material do cadro: Plástico
- Dimensións do produto: 24.4 x 18 x 2.51 cm
- Peso do produto: 240 gramos
8. Garantía e soporte
For warranty information and customer support, please refer to the documentation included in your product packaging or visit the official Thomson websitio. Garde o recibo da compra como proba de compra para calquera reclamación de garantía.
