Amazon Basics Pro Series 4-in-1 USB-C Hub

Introdución

Thank you for choosing the Amazon Basics Pro Series 4-in-1 USB-C Hub. This compact and versatile hub is designed to expand the connectivity of your PC, MacBook, laptops, phones, monitors, and projectors, offering high-speed data transfer and seamless peripheral integration. This manual provides essential information for proper setup, operation, and maintenance of your device.

Produto rematadoview

The Amazon Basics Pro Series 4-in-1 USB-C Hub features a durable aluminum alloy and ABS housing, ensuring both portability and resilience. It includes a built-in 150mm USB-C cable for convenient connection to your host device.

Imaxe: Máis deview of the 4-in-1 versatile hub, highlighting its port configuration.

Características principais:

• Conexión de host USB-C: Provides a versatile bridge between your laptop and peripherals.
• Two USB-C Ports: Both support USB 3.2 Gen 2 standard for data transfer speeds up to 10 Gbps.
• Two USB-A Ports: Para conectar dispositivos USB estándar.
• Transferencia de datos de alta velocidade: Enables rapid transfer of large files.
• Plug and Play: Non se requiren controladores para a instalación.
• Construción duradeira: Aluminum alloy and ABS housing with a flexible TPE cable.

Configuración

The Amazon Basics Pro Series 4-in-1 USB-C Hub is designed for immediate use with its plug-and-play functionality. No software drivers are required for installation.

1. Conectar o concentrador: Insert the built-in USB-C cable of the hub into an available USB-C port on your host device (PC, MacBook, laptop, phone, etc.).
2. Recoñecemento de dispositivos: Your operating system will automatically detect and configure the hub. This process usually takes a few seconds.
3. Conectar periféricos: Once the hub is recognized, you can connect your USB-C and USB-A peripherals (e.g., external drives, keyboards, mice) to the corresponding ports on the hub.

Image: The USB-C hub connected to a laptop, demonstrating peripheral connections.

Instrucións de funcionamento

The hub facilitates high-speed data transfer and expands connectivity for various devices.

Transferencia de datos:

• Connect USB 3.2 Gen 2 compatible devices to the USB-C ports for data transfer speeds up to 10 Gbps.
• Connect USB-A devices to the USB-A ports for standard data transfer.
• Ensure your host device's USB-C port supports the required data transfer speeds to achieve optimal performance.

Image: The hub emphasizing its ultra-fast 10Gbps data transfer capability.

Compatibilidade universal:

The hub is compatible with a wide range of devices, including:

• PC
• MacBook
• Portátiles
• Teléfonos
• Monitores
• Proxectores

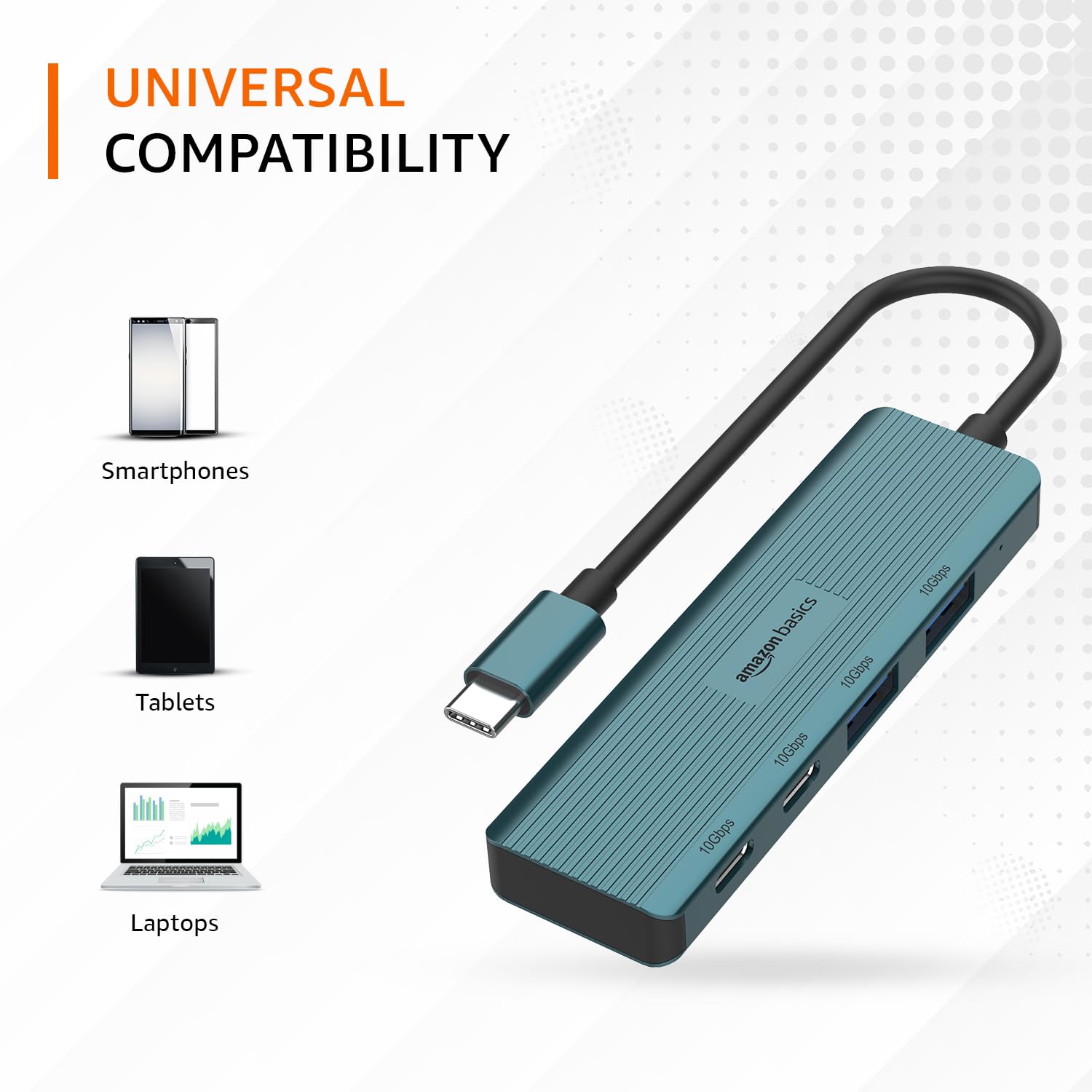

Image: The hub illustrating its compatibility with various devices like smartphones, tablets, and laptops.

Mantemento

To ensure the longevity and optimal performance of your USB-C hub, follow these maintenance guidelines:

• Limpeza: Usa un pano suave e seco para limpar o exterior do cubo. Evita usar produtos de limpeza líquidos ou solventes, xa que poden danar o acabado ou os compoñentes internos.
• Almacenamento: Cando non o use, garde o hub nun lugar fresco e seco, lonxe da luz solar directa e de temperaturas extremas.
• Manexo: Avoid dropping the hub or subjecting it to strong impacts. Do not bend the integrated cable excessively.
• Ventilación: Ensure the hub has adequate ventilation during operation to prevent overheating, especially during prolonged high-speed data transfers.

Resolución de problemas

If you encounter issues with your Amazon Basics Pro Series 4-in-1 USB-C Hub, refer to the following common troubleshooting steps:

• Dispositivo non recoñecido:
  • Ensure the hub's USB-C cable is fully inserted into your host device's USB-C port.
  • Tenta conectar o concentrador a un porto USB-C diferente do teu dispositivo anfitrión.
  • Restart your host device (computer, laptop, phone).
  • Verify that the connected peripheral devices are functioning correctly when connected directly to your host device (if applicable).
• Velocidades lentas de transferencia de datos:
  • Confirm that both your host device's USB-C port and the connected peripheral support USB 3.2 Gen 2 (10 Gbps) for optimal speeds.
  • Avoid connecting multiple high-bandwidth devices simultaneously if you experience performance degradation.
  • Ensure the cables used for connecting peripherals are of high quality and support the desired data transfer speeds.
• Conexión intermitente:
  • Check for loose connections at both the hub and the host device.
  • Ensure the hub is not being subjected to physical stress or excessive cable bending.
  • If using with a power-intensive device, ensure your host device can supply sufficient power, as this hub is not externally powered.

Especificacións

Image: Physical dimensions of the USB-C hub.

Garantía e Soporte

For warranty information and customer support regarding your Amazon Basics Pro Series 4-in-1 USB-C Hub, please refer to the Amazon Basics official website or contact Amazon customer service directly. Keep your purchase receipt for warranty claims.
