Introdución
Grazas pola compraasing the Northpoint DAB+ Digital Radio. This device combines a modern design with versatile functions, serving as a DAB+/FM radio, an alarm clock, a wireless charging station, a night light, and a USB charging port. This manual provides detailed instructions for setup, operation, and maintenance to ensure optimal performance and longevity of your device.
Contido do paquete
- Northpoint DAB+ Digital Radio
- Cable USB-C
- Adaptador de alimentación
Produto rematadoview
Familiarize yourself with the main components and controls of your Northpoint DAB+ Digital Radio.
Figura 1: Parte dianteira e superior View of the Northpoint DAB+ Digital Radio with Wireless Charging Function.

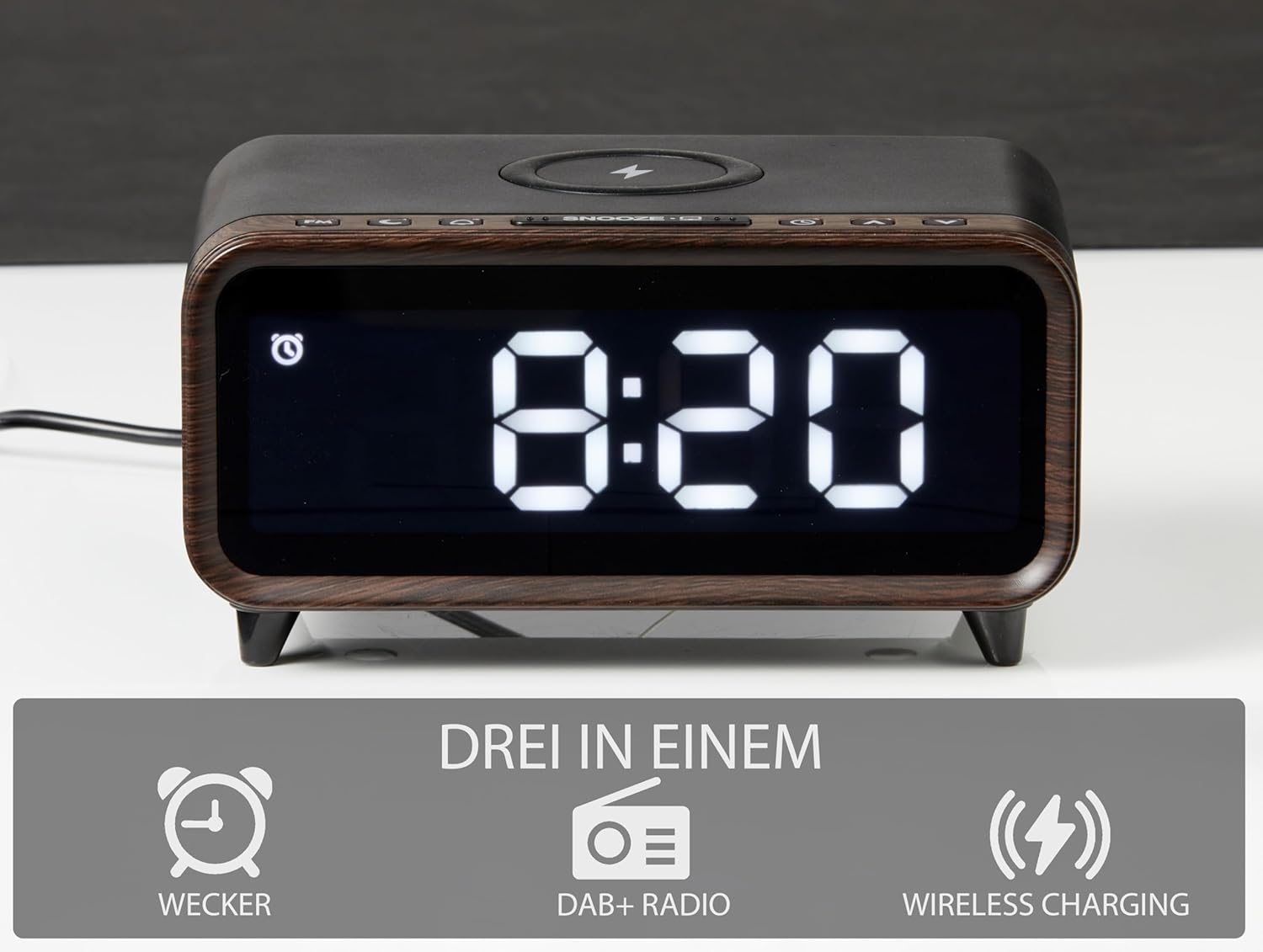

Figure 2: Key Features: Alarm Clock, DAB+ Radio, and Wireless Charging.
Figura 3: Traseira View with USB Charging Port and Power Input.

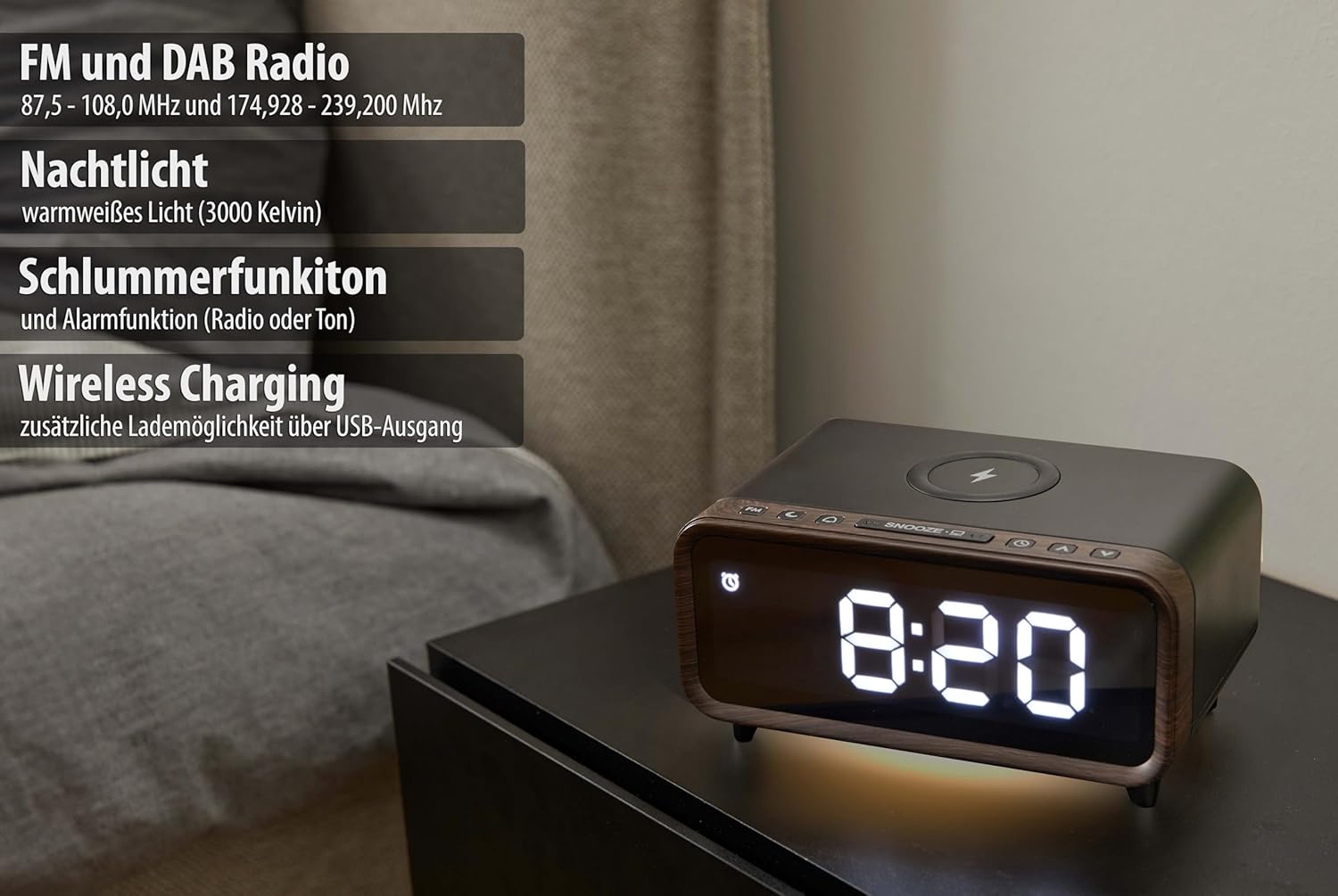

Figura 4: Máisview of Radio, Nightlight, Alarm, and Charging Features.
Configuración
1. Conexión de alimentación
- Connect the provided USB-C cable to the power input port on the rear of the radio.
- Plug the power adapter into a standard wall outlet. The display will illuminate.
2. Acendido inicial e axuste da hora
Upon first power-on, the device may automatically scan for DAB+ stations and set the time. If not, follow the instructions in the 'Operating Instructions' section to manually set the time and scan for radio stations.
Instrucións de funcionamento
1. Radio Operation (DAB+/FM)
- Modos de cambio: Press the 'Mode' button to switch between DAB+ and FM radio modes.
- Scanning Stations: In DAB+ mode, press the 'Scan' button to perform a full scan for available digital radio stations. In FM mode, press and hold the 'Scan' button to auto-scan and save stations.
- Afinación: Use the 'Tune' buttons (usually arrow keys) to navigate through available stations or frequencies.
- Axuste de volume: Press and hold the volume buttons to adjust the sound level. Short presses may not register.
2. Función de reloxo despertador
- Configuración da alarma: Press the 'Alarm' button to enter alarm setting mode. Use the navigation buttons to set the desired alarm time and select the alarm source (radio or tone).
- Activación/Desactivación da alarma: Press the 'Alarm' button repeatedly to toggle the alarm on or off. An alarm icon will appear on the display when active.
- Función de Snooze: When the alarm sounds, press the 'Snooze' button to temporarily silence the alarm for a set period (e.g., 9 minutes).
3. Luz nocturna
- Activación da luz nocturna: Locate the 'Night Light' button (or a dedicated light icon button) and press it to turn the night light on.
- Axuste do brillo: Press the 'Night Light' button repeatedly or use associated navigation buttons to cycle through brightness levels or adjust intensity.
4. Carga sen fíos
- Place your Qi-compatible smartphone centrally on the wireless charging pad located on top of the radio.
- Ensure the phone is correctly aligned for charging to begin. A charging indicator may appear on the radio's display or your phone.
- The wireless charger provides up to 5W of power.
5. Porto de carga USB
- Connect your device (e.g., tablet, headphones) to the USB-A output port on the rear of the radio using a compatible USB cable.
- This port provides an additional charging option for your electronic devices.
Mantemento
- Limpeza: Use a soft, dry cloth to clean the surface of the radio. Do not use abrasive cleaners, waxes, or solvents.
- Colocación: Place the radio on a stable, flat surface. Avoid direct sunlight, excessive heat, humidity, or dusty environments.
- Ventilación: Asegúrese de que haxa unha ventilación axeitada arredor do dispositivo para evitar o sobrequecemento.
Resolución de problemas
If you encounter issues with your Northpoint DAB+ Digital Radio, please refer to the following common problems and solutions:
- Sen enerxía: Asegúrate de que o adaptador de corrente estea conectado correctamente tanto á radio como a unha toma de corrente que funcione.
- Mala recepción de radio DAB+: DAB+ reception can be affected by location. Try repositioning the radio, especially near a window, to improve signal strength. Perform a full scan for stations again.
- Pantalla demasiado brillante/escura: The display brightness is adjustable. Refer to the operating instructions for adjusting display illumination settings.
- Volume Difficult to Adjust: For precise volume control, press and hold the volume buttons until the desired level is reached. Short presses may not provide fine adjustments.
- A carga sen fíos non funciona: Ensure your smartphone is Qi-compatible and placed centrally on the charging pad. Remove any thick phone cases that might interfere with charging.
- A alarma non soa: Verify that the alarm is set correctly and activated (alarm icon visible on display). Check the alarm volume setting.
Especificacións técnicas
- Marca: Northpoint
- Número de modelo: NP-RC-B1
- Dimensións (L x W x H): 22.15 x 3.81 x 10.4 cm (aproximadamente 8.72 x 1.5 x 4.09 polgadas)
- Frecuencias de radio: FM 87.5 - 108.0 MHz, DAB+ 174.928 - 239.200 MHz
- Saída de carga sen fíos: 5W
- USB Charging Port Output: 5 V/2 A
- Tipo de visualización: Dixital
- Características especiais: Adjustable Brightness, Multifunction Alarm, Wireless Charging, USB Charging Port, Ambient Night Light, DAB+ Radio, FM Reception
- Fonte de enerxía: Alimentado por CA.
- Material: Plástico
Garantía e Soporte
This Northpoint product is covered by a standard manufacturer's warranty. For detailed warranty information, technical support, or service inquiries, please refer to the documentation included with your purchase or contact Northpoint customer support through their official websitio. Garde o comprobante de compra para reclamacións de garantía.
