1. Introdución
Grazas pola compraasing the Aigostar 12L Air Fryer Oven, Model 300010YVM. This manual provides important information for the safe and efficient use of your appliance. Please read it thoroughly before first use and keep it for future reference.
2. Instrucións de seguridade importantes
Cando se utilicen aparellos eléctricos, débense seguir sempre as precaucións básicas de seguridade para reducir o risco de incendios, descargas eléctricas e lesións ás persoas, incluíndo as seguintes:
- Lea todas as instrucións antes de facer funcionar o aparello.
- Non toque superficies quentes. Use asas ou botóns.
- Para protexerse contra descargas eléctricas, non mergulle o cable, os enchufes nin a unidade principal en auga ou noutro líquido.
- É necesaria unha estreita supervisión cando calquera aparello é usado por nenos ou preto de eles.
- Desenchufe da toma cando non estea en uso e antes de limpalo. Deixar arrefriar antes de poñer ou quitar pezas.
- Non faga funcionar ningún aparello cun cable ou enchufe danados ou despois de que o aparello funcione mal ou teña dano dalgún xeito.
- O uso de accesorios non recomendados polo fabricante do aparello pode causar lesións.
- Non use ao aire libre.
- Non deixes que o cable colgue do bordo da mesa ou do mostrador nin toque superficies quentes.
- Non o coloque sobre ou preto dun queimador eléctrico ou de gas quente, nin nun forno quente.
- Débese ter moito coidado ao mover un aparello que conteña aceite quente ou outros líquidos quentes.
- Conecte sempre primeiro o enchufe ao electrodoméstico e, a seguir, o cable á toma de corrente. Para desconectalo, poña calquera control na posición de apagado e, a seguir, retire o enchufe da toma de corrente.
- Non use o aparello para outros usos que os previstos.
- Asegúrese de que haxa unha ventilación axeitada arredor do aparello durante o seu uso.
3. Produto rematadoview
The Aigostar 12L Air Fryer Oven is a versatile kitchen appliance designed for air frying, roasting, baking, and dehydrating with minimal oil. It features a large capacity and intuitive controls.
Características principais:
- Capacidade 12L: Ideal for cooking for 8-9 people or a whole chicken.
- Potencia: 1700 W Garante unha cocción rápida e eficiente.
- Pantalla táctil LED: Panel de control dixital doado de usar.
- 8 modos predefinidos: Optimized settings for various food types.
- 360° High-Speed Air Circulation: For crispy and evenly cooked results.
- XL Viewing Window & Interior Light: Monitor cooking progress without opening the door.
Accesorios incluídos:
- 1 x Rotating Basket
- 2 x Racks (for dehydrating or crispy food)
- 1 x Traditional Tray
- 1 x U-shaped Handle
- 1 x Rotisserie Spit (for whole chicken)
- 2 x Oil Sprayers
Figure 3.1: Aigostar 12L Air Fryer Oven with its LED touch screen and a view da cámara de cocción.

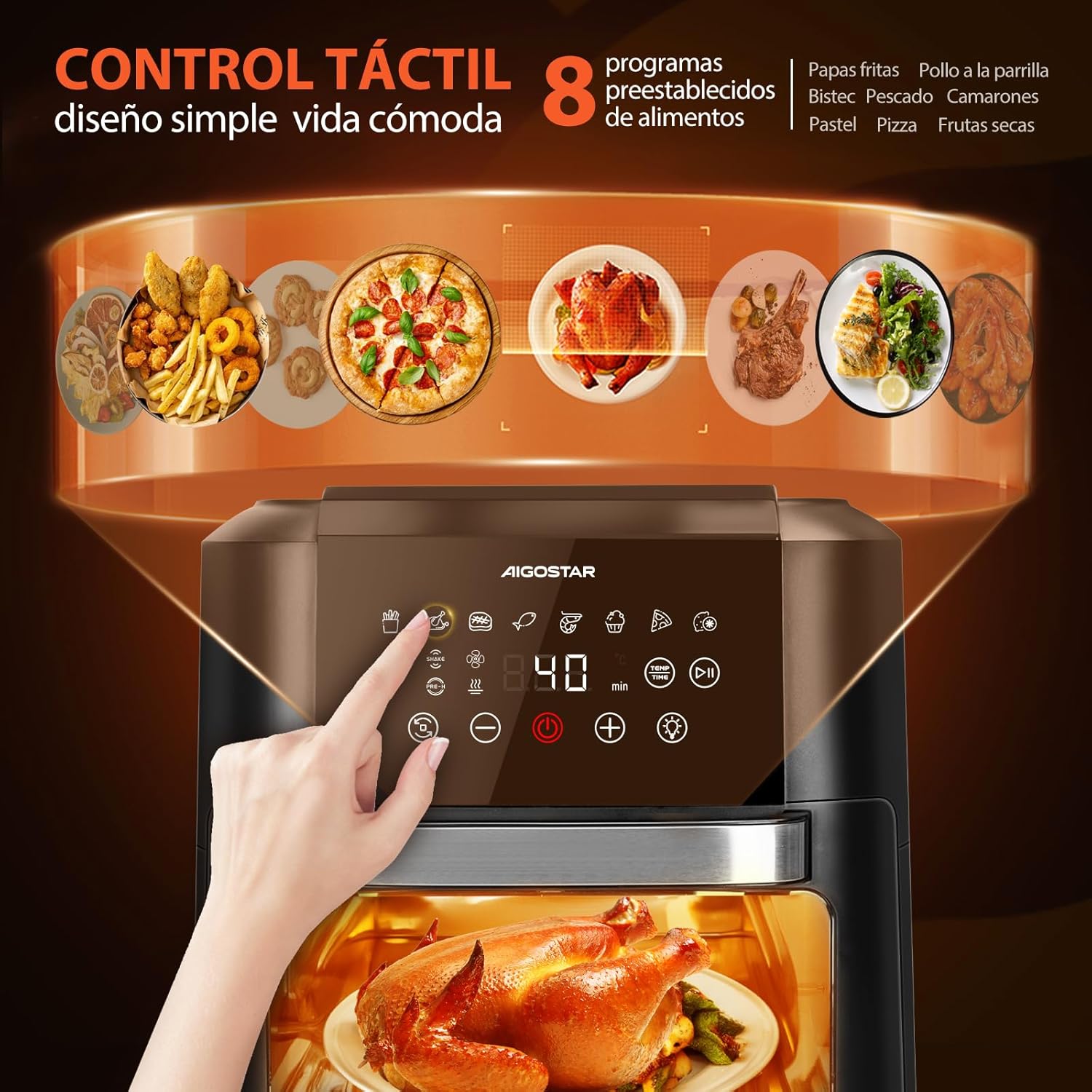

Figure 3.2: Close-up of the LED touch control panel displaying 8 preset cooking programs.

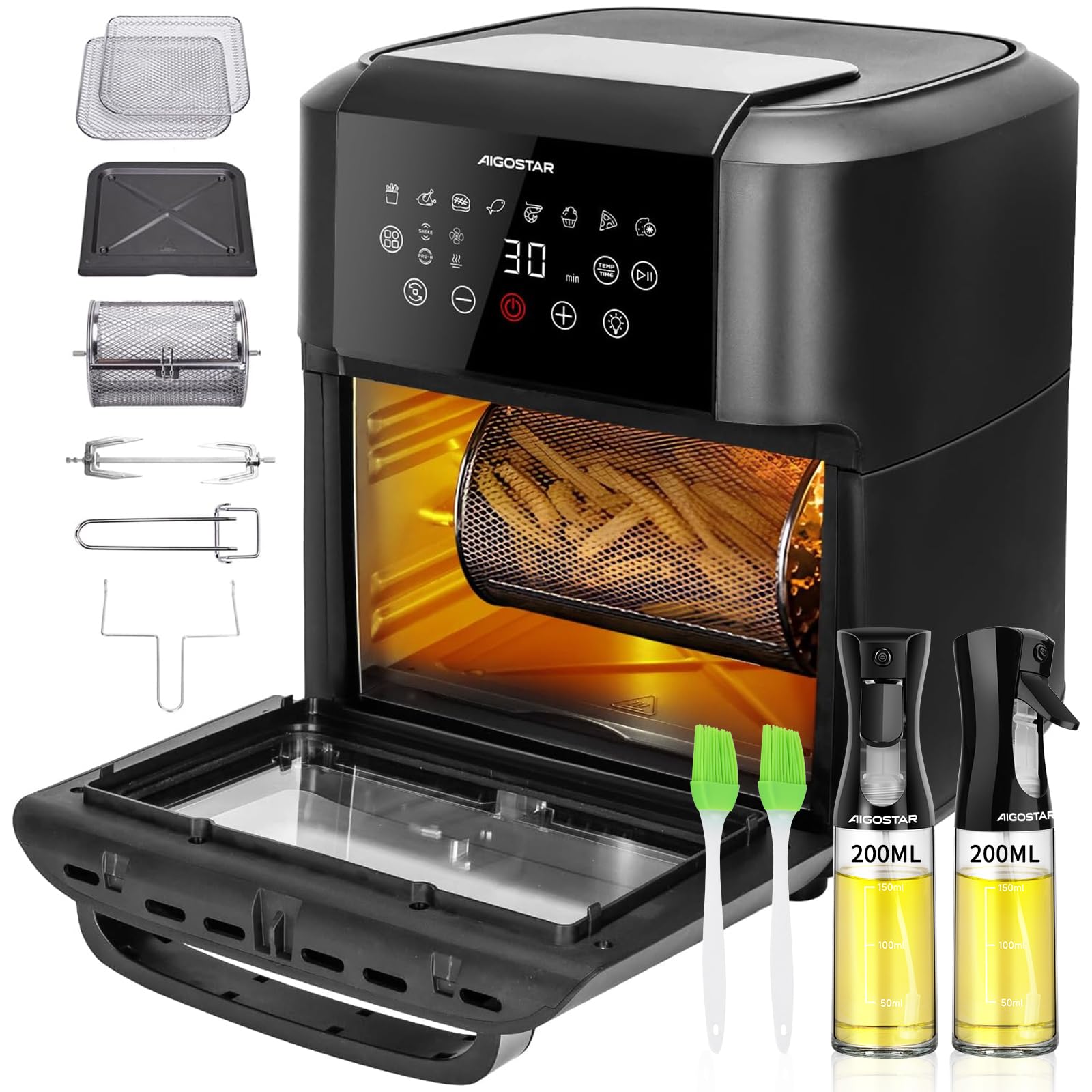

Figure 3.3: All 7 included accessories for the Aigostar 12L Air Fryer Oven, showing their various uses.
Figure 3.4: The two oil sprayers provided for even oil distribution.
4. Configuración
Desembalaxe:
- Remove all packaging materials from the appliance and its accessories.
- Check that all parts are present and in good condition.
- Retire calquera adhesivo ou etiqueta do aparello.
Antes do primeiro uso:
- Limpe o exterior do aparello cun anuncioamp pano.
- Clean the interior cavity and all accessories with hot water, a mild detergent, and a non-abrasive sponge. Rinse thoroughly and dry completely.
- Place the appliance on a stable, level, heat-resistant surface, away from water sources and other heat-generating appliances. Ensure there is at least 10 cm of free space on all sides for proper ventilation.
5. Instrucións de funcionamento
Operación básica:
- Conecta o aparello a unha toma de corrente con conexión a terra. O panel de control iluminarase.
- Place food inside the appliance using the appropriate accessory (e.g., rotating basket, racks, or tray).
- Pecha a porta do aparello de forma segura.
- Preme o botón de acendido para acender o aparello.
- Select a preset mode or manually adjust the temperature (65-205°C) and time (up to 90 minutes) using the touch controls.
- Prema o botón Inicio/Pausa para comezar a cociñar.
- The interior light can be turned on/off to monitor cooking.
- Once cooking is complete, the appliance will beep. Carefully remove food using heat-resistant gloves or the U-shaped handle for accessories.
Using Preset Modes:
The appliance features 8 preset modes for common dishes. Simply select the desired mode, and the appliance will automatically set the optimal temperature and time. You can adjust these settings manually if needed.
Uso de accesorios:
- Rotating Basket: Ideal for small items like fries, popcorn, or nuts that require constant tumbling for even cooking. Insert the basket into the rotisserie slots and ensure it is securely locked.
- Spit de asador: Use for roasting a whole chicken or larger cuts of meat. Secure the food onto the spit and insert it into the rotisserie slots.
- Bastidores: Use the two racks for cooking multiple layers of food, dehydrating fruits/vegetables, or achieving extra crispiness.
- Traditional Tray: Suitable for baking, roasting, or catching drips from other accessories.
- U-shaped Handle: Use this tool to safely insert and remove the rotating basket and rotisserie spit from the hot oven.
Video 5.1: Demonstration of the LLIVEKIT 12L Air Fryer Oven, showcasing various cooking functions and accessory usage. Note: This video is for a similar product and brand, but illustrates general air fryer oven operation.
Video 5.2: Product demonstration video, showing the air fryer oven in use with different foods and accessories.
6. Limpeza e Mantemento
Unha limpeza regular garante un rendemento óptimo e prolonga a vida útil do teu electrodoméstico.
- Always unplug the air fryer oven and allow it to cool completely before cleaning.
- Limpe o exterior cun anuncioamp pano. Non use produtos de limpeza abrasivos.
- Limpar a cavidade interior cun pano suave eamp un pano e un deterxente suave. Para manchas difíciles, use unha esponxa non abrasiva.
- All removable accessories (rotating basket, racks, tray, rotisserie spit) are dishwasher safe for easy cleaning. Alternatively, wash them in hot soapy water, rinse, and dry thoroughly.
- Asegúrese de que todas as pezas estean completamente secas antes de gardar ou reutilizar o aparello.
7 Solución de problemas
If you encounter issues with your air fryer oven, please refer to the following common problems and solutions:
| Problema | Causa posible | Solución |
|---|---|---|
| O aparello non se acende. | Not plugged in; power outlet malfunction; main unit not properly closed. | Ensure the power cord is securely plugged into a working outlet. Check the circuit breaker. Ensure the door is fully closed. |
| A comida non se cociña uniformemente. | Overcrowding the basket/racks; incorrect temperature/time settings. | Do not overcrowd the cooking area; cook in batches if necessary. Adjust temperature and time according to recipe or food type. Shake or turn food halfway through cooking. |
| Fume branco do aparello. | Residuos de graxa dun uso anterior; cocción de alimentos graxos. | Clean the appliance and accessories thoroughly after each use. For fatty foods, place a small amount of water in the drip tray to reduce smoke. |
| A comida non é crocante. | Too much moisture in food; insufficient oil; incorrect temperature. | Pat food dry before cooking. Lightly spray or brush food with oil. Increase temperature or cooking time slightly. |
8. Especificacións
| Especificación | Valor |
|---|---|
| Modelo | 300010YVM |
| Poder | 1700 W |
| Voltage | 220-240 V |
| Frecuencia | 50/60 Hz |
| Capacidade | 12 L |
| Dimensións (L x W x H) | 336.7 x 336.8 x 368 mm |
| Temporizador | Ata 90 minutos |
| Rango de temperatura | 65-205 °C |
| Materiais | Aluminum and PP |
9. Garantía e soporte
This Aigostar appliance comes with a standard manufacturer's warranty. For detailed warranty information, please refer to the warranty card included with your product or visit the official Aigostar websitio.
If you have any questions, require technical assistance, or need to report a fault, please contact Aigostar customer support. Contact details can typically be found on the product packaging or the official brand websitio.
