Güde GF 2436.1 Petrol Tiller Instruction Manual

1. Introdución e información de seguridade

Thank you for choosing the Güde GF 2436.1 Petrol Tiller. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new equipment. Please read this manual thoroughly before assembly, operation, or maintenance. Keep it in a safe place for future reference.

Avisos xerais de seguridade

• Use sempre o equipo de protección individual (EPI) axeitado, incluíndo lentes de seguridade, luvas, calzado resistente e protección auditiva.
• Asegúrate de que a zona de traballo estea libre de transeúntes, especialmente nenos e animais domésticos.
• Never operate the tiller under the influence of alcohol, drugs, or medication that may impair judgment.
• Before starting, inspect the tiller for any damage or loose parts. Do not operate if damaged.
• The tiller is equipped with a dead man's switch for high work safety. Release the lever to stop the engine immediately.
• Reabastecer de combustible nunha zona ben ventilada co motor apagado e frío. Evitar derramar combustible.
• Do not modify the tiller in any way. Use only original Güde spare parts.

2. Configuración e montaxe

The Güde GF 2436.1 Petrol Tiller may require some assembly before first use. Follow these steps carefully.

2.1 Desembalaxe

Carefully remove all components from the packaging. Check against the packing list to ensure all parts are present and undamaged. Dispose of packaging materials responsibly.

2.2 Montaxe do manillar

Attach the handlebar assembly to the main unit using the provided bolts and nuts. Ensure all connections are secure. The handlebar is designed for easy use and comfortable operation.

Image: The handlebar assembly, showing the grips and control levers.

2.3 Depth Guide and Transport Wheel

Install the depth guide and the swivel transport wheel. The transport wheel (Ø 150 mm) facilitates moving the tiller to and from the work area. The depth guide helps control the working depth of the tines.

Imaxe: Lateral view of the tiller, highlighting the transport wheel and tines.

2.4 Enchido de combustible e aceite

Before first use, fill the engine with the correct type and amount of fuel and oil.

• Aceite de motor: Fill with 0.5 liters of 15W40 engine oil. Check the oil level using the dipstick.
• Combustible: Fill the fuel tank with unleaded petrol. The tank capacity is 0.9 liters. Do not overfill.

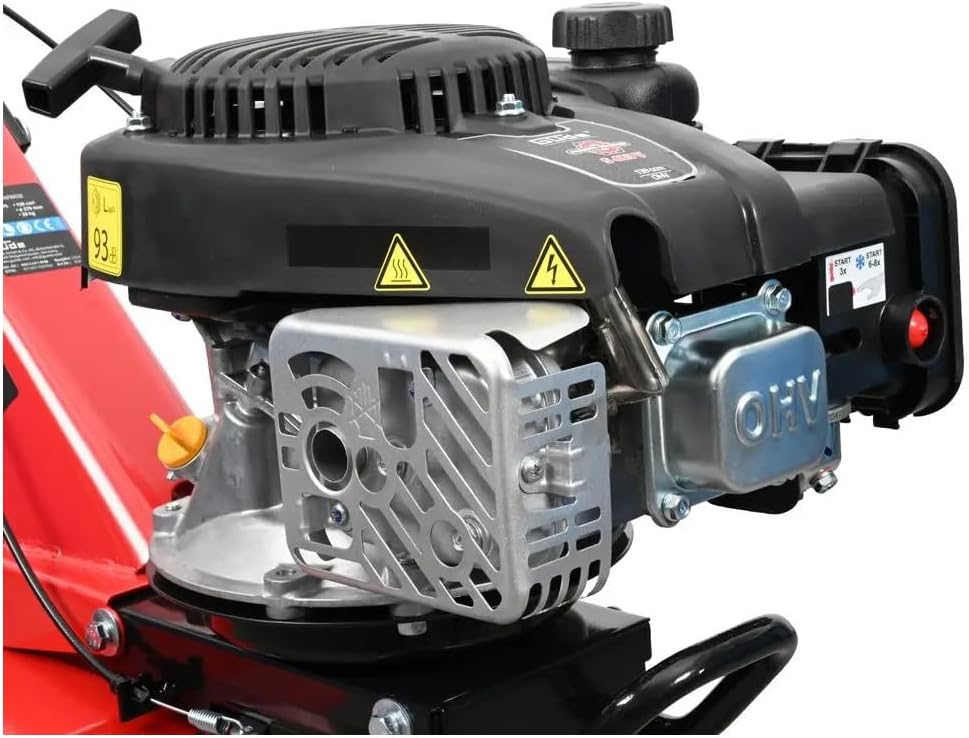

Image: Close-up of the 4-stroke engine, showing the fuel cap and oil fill point.

3. Instrucións de funcionamento

Follow these steps for safe and effective operation of your petrol tiller.

3.1 Comprobacións previas á operación

• Comprobe os niveis de combustible e aceite.
• Ensure all bolts and nuts are tight.
• Inspect tines for wear or damage.
• Clear the work area of any obstacles (stones, roots, debris).

3.2 Arranque do motor

1. Ensure the dead man's switch lever is engaged (pressed).
2. Set the choke lever to the 'START' position (if cold engine).
3. Tire firmemente da manivela do arrancador de retroceso ata que o motor arranque.
4. Once started, gradually move the choke lever to the 'RUN' position.
5. Deixe que o motor se quente uns intres antes de comezar a traballar.

3.3 Tilling Techniques

The Güde GF 2436.1 is ideal for small to medium-sized areas and for processing mulch, peat, sand, fertilizer, or compost.

• Adjust the working depth using the depth guide. For initial passes on hard soil, start with a shallower depth.
• Hold the handlebar firmly with both hands.
• Guide the tiller slowly and steadily. Do not force it.
• Overlap passes slightly to ensure even cultivation.
• For deeper cultivation, make multiple passes, increasing a profundidade con cada pasada.

Image: Full side view of the tiller, demonstrating its compact design for maneuverability.

3.4 Parar o motor

To stop the engine, simply release the dead man's switch lever. The engine will shut off automatically.

4. Mantemento

Regular maintenance ensures the longevity and optimal performance of your tiller.

4.1 Limpeza

• After each use, clean soil and debris from the tines and housing.
• Use a brush or cloth. Do not use high-pressure water cleaners directly on the engine.

4.2 Cambio de aceite do motor

Change the engine oil after the first 5 hours of operation, then every 25 hours or annually, whichever comes first. Refer to the engine manual for specific instructions.

4.3 Filtro de aire

Inspect and clean the air filter regularly, especially when working in dusty conditions. Replace if damaged or excessively dirty.

4.4 Bujía

Check the spark plug annually. Clean or replace if necessary. Ensure the correct gap is maintained.

4.5 Tine Inspection and Replacement

Regularly inspect the tines for wear, bending, or damage. Worn tines reduce tilling efficiency. Replace damaged tines immediately. The tines are made of wear-resistant steel for a long service life.

Imaxe: Primeiro plano view of the tiller's tines and the adjustable depth guide.

4.6 Almacenamento

• Before long-term storage, drain the fuel tank or add a fuel stabilizer.
• Limpar a fondo o cultivador.
• Gardar nun lugar seco e ben ventilado, lonxe da luz solar directa e de temperaturas extremas.

5 Solución de problemas

This section addresses common issues you might encounter with your Güde GF 2436.1 Petrol Tiller.

5.1 O motor non arranca

• Comprobar o nivel de combustible: Asegúrate de que haxa combustible dabondo no depósito.
• Comprobar o nivel de aceite: Low oil can prevent starting (some engines have low-oil shutdown).
• Posición de estrangulamento: Ensure the choke is in the correct position for starting (especially for a cold engine).
• Buxía: Inspect the spark plug. It might be fouled or wet. Clean or replace if necessary.
• Dead Man's Switch: Ensure the dead man's switch lever is fully engaged.

5.2 Poor Tilling Performance

• Worn Tines: Inspect tines for wear. Replace if dull or damaged.
• Profundidade de traballo: Adjust the working depth. Starting too deep on hard soil can reduce efficiency.
• Potencia do motor: Ensure the engine is running at full power. Check air filter and spark plug.

5.3 Vibración excesiva

• Pezas soltas: Comprobe que todos os parafusos e porcas están axustados.
• Damaged Tines: Bent or broken tines can cause imbalance and vibration. Replace as needed.

If problems persist after following these steps, please contact Güde customer support or a qualified service technician.

6. Especificacións técnicas

Below are the technical specifications for the Güde GF 2436.1 Petrol Tiller.

7. Garantía e soporte

For warranty information, please refer to the documentation provided with your purchase or visit the official Güde website. If you require technical assistance, spare parts, or have any questions not covered in this manual, please contact your retailer or Güde customer service.

Always provide the model number (GF 2436.1) and serial number (if applicable) when contacting support to ensure efficient service.
