Garvee 24V Ride On UTV User Manual

Introdución

Thank you for choosing the Garvee 24V Ride On UTV. This manual provides essential information for the safe assembly, operation, and maintenance of your new electric vehicle. Please read this manual thoroughly before use and retain it for future reference. This product is designed for children aged 3 years and up.

Imaxe: Fronte view of the Garvee 24V Ride On UTV, showcasing its yellow and black design with large wheels.

Información importante de seguridade

To ensure the safety of the user and others, please adhere to the following guidelines:

• Supervise sempre os nenos mentres conducen o vehículo.
• Keep the car and remote control away from water and rain to prevent electrical damage.
• Ensure the vehicle is fully charged at least once per month, even when not in use, to maintain battery health.
• Always use the provided seat belts.
• Do not exceed the maximum load capacity of 132 LBS (60 KG).
• Operate the vehicle on flat, dry surfaces. Avoid steep inclines, rough terrain, or public roads.
• Regularly inspect the vehicle for any loose parts, damage, or wear before each use.

Imaxe: Lateral view of the Garvee 24V Ride On UTV, highlighting its 15-inch large wheels and illustrating the soft braking system with a braking time of less than 0.5 seconds.

O que hai na caixa

Ao abrir o paquete, asegúrese de que todos os compoñentes estean presentes e sen danos:

• Garvee 24V Ride On UTV (main body)
• Control remoto
• Cargador
• 2 x 12V Batteries (pre-installed or separate, check packaging)
• Ferraxes de montaxe (parafusos, porcas, etc.)
• Manual de usuario (este documento)

Instrucións de montaxe

Assembly typically requires adult supervision and basic tools. Refer to the detailed diagrams in the included assembly guide for specific steps. General steps include:

1. Instalación da roda: Attach all four wheels securely using the provided hardware.
2. Montaxe do volante: Connect the steering wheel to the steering column.
3. Instalación do asento: Secure the seat(s) into position.
4. Conexión da batería: Conecte os terminais da batería. Asegúrese de manter a polaridade correcta.
5. Accesorios adxuntos: Install any additional accessories like mirrors or roll bars.

Antes do primeiro uso, cargue a batería completamente durante 8-12 horas.

Características do produto

Powerful 24V System and Long-Lasting Battery

The Garvee UTV is equipped with a robust 24V/4x75W motor system, providing strong and stable power for various terrains. The high-capacity 7AH battery offers approximately 50-70 minutes of continuous playtime, depending on load, speed, surface, and temperature. The full-metal suspension system enhances shock absorption for a smoother ride.

Imaxe: Traseira view of the Garvee 24V Ride On UTV in a desert environment, with graphical overlays indicating its 4-wheel drive, 24V 7AH battery, and 75W x 4 motors, and high speed capability.

2-Seater Design with Dual Driving Modes

Featuring an extended seat length of 24.8 inches, this UTV comfortably accommodates two children. It offers two driving modes: parental remote control for younger children and manual operation for older, more experienced users. Built-in seat belts ensure safety for both occupants.

Image: Two children seated in the Garvee 24V Ride On UTV, demonstrating its two-seater capacity. An inset image shows the remote control, indicating dual driving modes.

Smooth Braking and Easy-Drag 4WD

Advanced smart chips provide a customized soft braking system, ensuring smooth stops and reducing impact. The Easy-Drag technology automatically disengages the front wheel motor when the car is turned off, allowing for effortless manual movement of the vehicle.

Funcións de seguridade completas

The UTV includes 5 auto-reset overheat protectors to prevent motor and circuit overload. Wear-resistant wheels and full metal suspensions provide a stable ride. Double safety locks on the doors and a safety belt further enhance user protection.

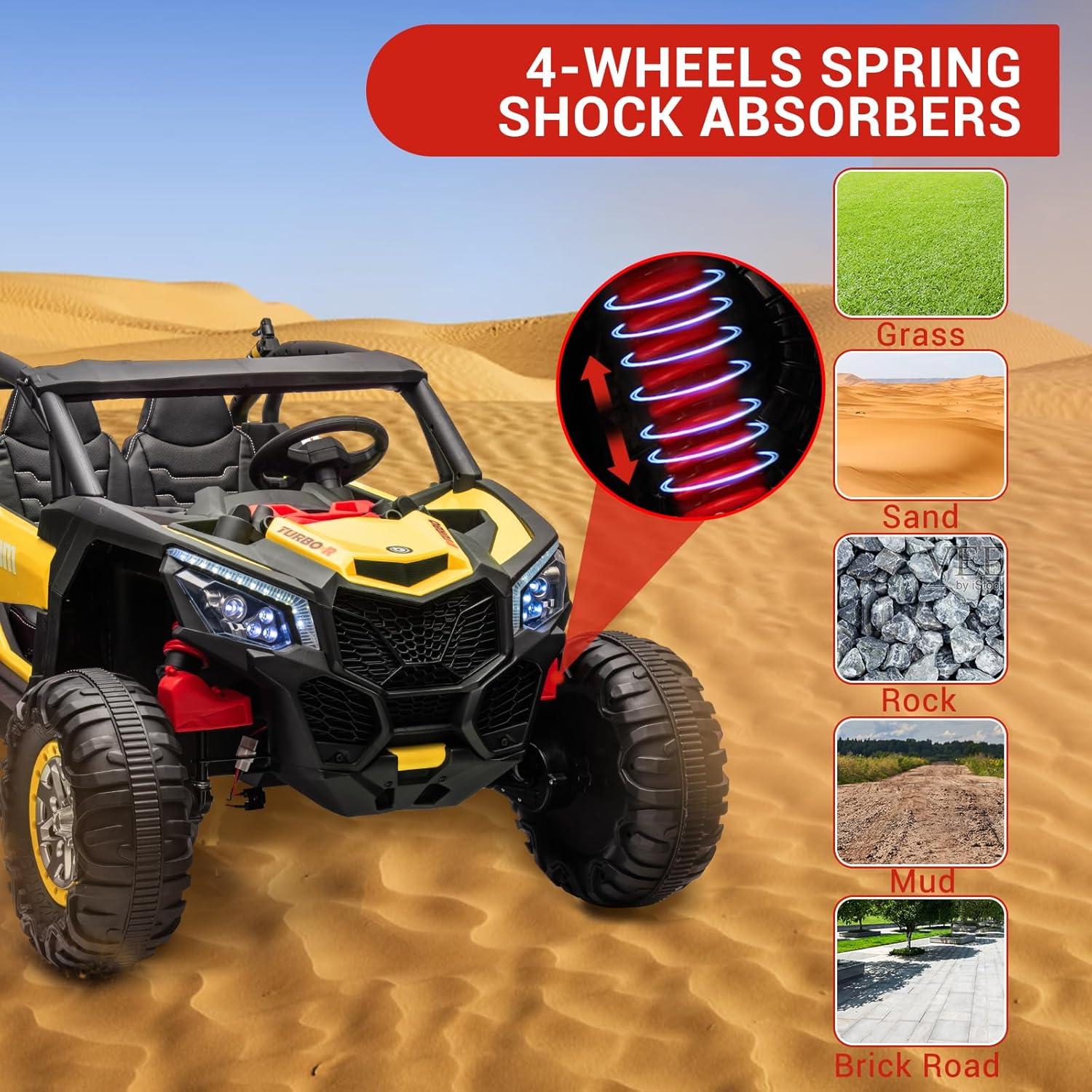

Imaxe: Fronte view of the Garvee 24V Ride On UTV in a desert setting, with an inset diagram illustrating the 4-wheel spring shock absorbers and their effectiveness on different surfaces like grass, sand, rock, mud, and brick roads.

Imaxe: Fronte view of the Garvee 24V Ride On UTV on a race track, emphasizing its wear-resistant tires.

Instrucións de funcionamento

Primeiro uso e carga

Before the first use, ensure the battery is fully charged. Connect the charger to the charging port (typically located near the dashboard or under the seat) and plug it into a standard wall outlet. The charging time is approximately 8-12 hours. Do not overcharge.

Operación manual

1. Ensure the vehicle is turned on using the power button.
2. The child can press the foot pedal to accelerate.
3. Dirixe usando o volante.
4. Release the foot pedal to engage the automatic braking system.

Operación de control remoto

The 2.4G remote control allows parents to safely guide the vehicle, especially for younger children.

1. Emparejamento: Follow the remote control's specific instructions for pairing with the vehicle.
2. Controis: The remote typically has buttons for forward/backward, left/right steering, speed selection (high/low), and an emergency stop button.
3. Prioridade: The remote control typically overrides manual operation for safety.

Funcións multimedia

The vehicle may include a music player, bright lights, and radio functionality. Refer to the dashboard controls for operation of these features.

Mantemento

Coidado da batería

• Cargue a batería completamente despois de cada uso.
• Se garda a batería durante períodos prolongados, cárguea polo menos unha vez ao mes.
• Non garde a batería a temperaturas extremas.
• Only use the charger provided by Garvee.

Limpeza e almacenamento

• Limpe o vehículo cun suave, damp pano. Non use produtos de limpeza ou disolventes abrasivos.
• Evite pulverizar auga directamente sobre os compoñentes eléctricos.
• Garde o vehículo no interior nun lugar seco, lonxe da luz solar directa e da humidade.

Inspección Xeral

• Regularly check all nuts and bolts for tightness.
• Inspeccione as rodas e os pneumáticos para detectar desgaste ou danos.
• Asegúrate de que todas as conexións eléctricas estean seguras.

Especificacións

Imaxe: Fronte view of the Garvee 24V Ride On UTV with graphical overlays indicating its dimensions (52.4" L, 36.2" W, 31.5" H) and key specifications like battery, motor, speed, age range, max capacity, playtime, and charging time.

Resolución de problemas

If you encounter issues with your Garvee UTV, please refer to the following common problems and solutions:

• Vehicle does not move:
  • Check if the power button is ON.
  • Asegúrese de que a batería estea completamente cargada e conectada correctamente.
  • Verify that the foot pedal is pressed down completely.
  • If using remote control, ensure it is paired and has fresh batteries.
• Tempo de xogo curto:
  • É posible que a batería non estea completamente cargada.
  • Operating on rough terrain or carrying heavy loads can reduce playtime.
  • Battery may be old and require replacement.
• Vehicle runs slowly:
  • A carga da batería é baixa.
  • Operating on an incline or soft surfaces.
  • Overload (exceeding maximum weight capacity).
• O control remoto non funciona:
  • Substitúe as pilas do control remoto.
  • Re-pair the remote control with the vehicle.

For issues not listed here, please contact Garvee customer support.

Garantía e Soporte

Garvee is committed to providing high-quality products. For any questions, concerns, or technical assistance, please contact our customer support team. Please have your model number (3Gxk_GcwcVpsin4lWytKow5u) and purchase information ready when contacting support.

For customer support, please visit the Garvee Store on Amazon or refer to the contact information provided with your purchase.

Safety Information Reminder: Keep car and remote away from water and rain. Keep full charging one time at least per month.
