suevery AMD Ryzen5 5600GT Gaming PC Instruction Manual

1. Introdución

Thank you for choosing the suevery AMD Ryzen5 5600GT Gaming PC. This high-performance desktop computer is designed to provide a seamless experience for gaming, e-learning, video and audio streaming, home entertainment, business office tasks, video conferencing, photo and video editing, and daily trading. This manual provides essential information for setting up, operating, maintaining, and troubleshooting your new PC to ensure optimal performance and longevity.

Imaxe 1: Fronte view of the suevery AMD Ryzen5 5600GT Gaming PC, showcasing its transparent side panel and vibrant RGB fans.

2. Información de seguridade

Please read and follow these safety guidelines carefully to prevent damage to your PC and ensure personal safety:

• Fonte de alimentación: Use only the power supply unit provided with your PC. Ensure the power outlet is properly grounded.
• Ventilación: Do not block any ventilation openings. Maintain adequate space around the PC for proper airflow to prevent overheating.
• Líquido e humidade: Keep the PC away from liquids, moisture, and extreme temperatures. Do not operate the PC with wet hands.
• Colocación: Coloca o PC sobre unha superficie estable e plana. Evita colocalo preto de fontes de calor ou baixo a luz solar directa.
• Servizo: Do not attempt to service the PC yourself. Refer all servicing to qualified service personnel. Opening the PC case may void your warranty.
• Limpeza: Desconecte o cable de alimentación antes de limpar. Use un pano suave e seco. Non empregue produtos de limpeza líquidos nin en aerosol.

3. Contido do paquete

Ao desembalar, comproba que se inclúen todos os seguintes elementos:

• suevery AMD Ryzen5 5600GT Gaming PC (Model: SUSU-V900W)
• Cable de alimentación
• Documentación (Guía de inicio rápido, Tarxeta de garantía)
• RGB Lighting (Integrated feature)

If any items are missing or damaged, please contact your retailer or suevery customer support immediately.

4. Guía de configuración

Follow these steps to set up your suevery Gaming PC:

1. Desembalar o PC: Carefully remove the PC from its packaging. Retain all packaging materials for future transport or servicing.
2. Conectar periféricos:
   • Monitor: Connect your monitor to the PC using an HDMI or VGA cable. The PC features one HDMI port and one VGA port.
   • Teclado e rato: Connect your keyboard and mouse to the available USB ports. The PC has 4 USB 2.0 ports and 2 USB 3.0 ports.
   • Outros dispositivos: Conecta calquera outro periférico como altofalantes, auriculares ou unidades externas.
3. Conectar á enerxía: Plug the power cable into the PC's power input and then into a grounded electrical outlet.
4. Conexión de rede: The PC supports Wi-Fi 802.11ax for wireless internet connectivity. An Ethernet port is also available for a wired connection.

Image 2: Rear panel of the PC, illustrating the available USB, HDMI, VGA, and audio ports for connecting peripherals.

Image 3: Diagram detailing the PC's dimensions and the location of front and rear USB ports, along with signal interfaces.

5. Instrucións de funcionamento

This section outlines the basic operation of your suevery Gaming PC.

5.1 Acendido/Apagado

• Para acender: Press the power button located on the front of the PC. The system will boot up, and the operating system (Windows) will load.
• Para apagar: It is recommended to shut down the PC through the operating system's shutdown procedure (Start Menu > Power > Shut down). Avoid direct power disconnection unless absolutely necessary.

5.2 Características do sistema

• Procesador: Equipped with an AMD Ryzen5-5600GT 6-core, 12-thread processor (3.6GHz base, up to 4.6GHz Turbo) for efficient multitasking and gaming.
• Memoria: 16GB of high-speed DDR4 RAM at 3200MHz ensures smooth performance across multiple applications and demanding games.
• Almacenamento: A 512GB NVMe SSD provides ultra-fast boot times, rapid application loading, and ample almacenamento para o seu files e xogos.
• Gráficos: Integrated AMD Radeon RX Vega7 Graphics (1.9G) supports popular games and provides clear visuals for 1080P gaming and 4K content streaming.

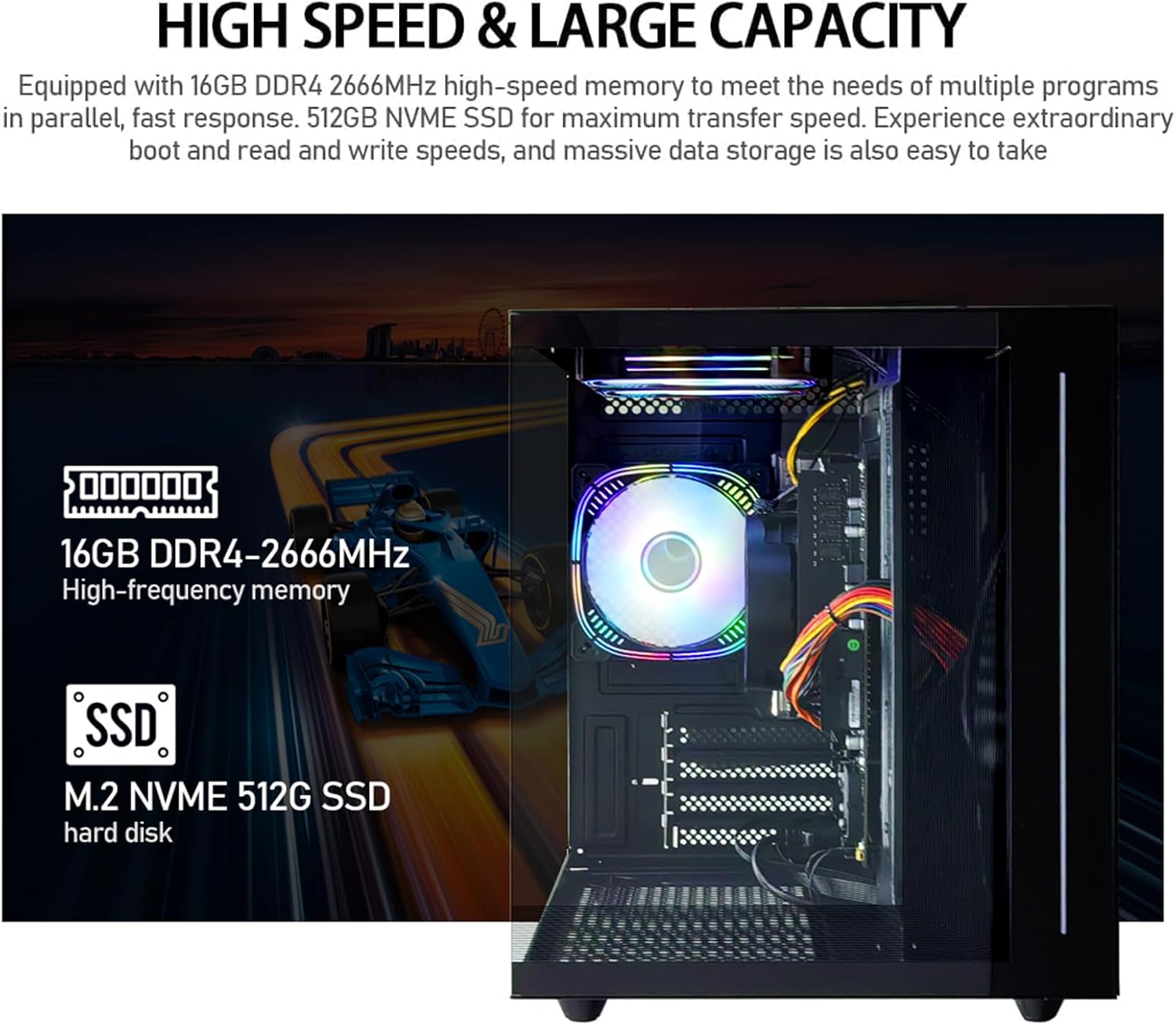

Imaxe 4: Interna view of the PC, emphasizing the 16GB DDR4 high-frequency memory and the M.2 NVMe 512GB SSD for high-speed data transfer.

Image 5: Visual representation of the AMD Radeon Vega Graphics 7 capabilities, suitable for esports games, video clips, graphic design, and corporate office tasks.

6. Mantemento

Proper maintenance ensures the longevity and performance of your PC.

6.1 Limpeza

• Exterior: Use a soft, lint-free cloth to wipe the exterior surfaces. For stubborn marks, slightly dampen o pano con auga.
• Ventilación: Regularly check and clean the ventilation grilles to prevent dust buildup, which can impede airflow and cause overheating. Use compressed air to gently clear dust from fan blades and vents.

6.2 Ventilation and Cooling

The PC is equipped with three built-in 120mm chassis fans for rapid heat dissipation and cooling, ensuring stable performance during intensive use. Ensure these fans are not obstructed.

Image 6: Illustration of the PC's cooling system, highlighting the RGB-enabled fans designed for rapid and silent heat dissipation.

6.3 Actualizacións de software

Keep your operating system, drivers, and applications updated to ensure security, stability, and optimal performance. Windows updates are managed through the operating system settings.

7 Solución de problemas

Esta sección ofrece solucións a problemas comúns cos que podes atoparte.

• Sen enerxía:
  • Asegúrate de que o cable de alimentación estea conectado correctamente tanto ao PC como á toma de corrente.
  • Verifica que a toma de corrente funcione conectando outro dispositivo.
  • Check the power switch on the back of the PC (if present) is in the 'On' position.
• Sen visualización no monitor:
  • Confirm the monitor is powered on and correctly connected to the PC's HDMI or VGA port.
  • Asegúrate de que estea seleccionada a fonte de entrada correcta no monitor.
  • Try connecting the monitor to a different port if available, or test with another monitor.
• System is Slow or Unresponsive:
  • Pecha as aplicacións innecesarias que se executan en segundo plano.
  • Comprobe se hai espazo libre suficiente no seu SSD.
  • Executar unha análise de virus para comprobar se hai software malicioso.
  • Asegúrate de que o teu sistema operativo e os controladores estean actualizados.
• Sen conexión a Internet:
  • For Wi-Fi, ensure the Wi-Fi adapter is enabled and you are connected to the correct network with the correct password.
  • For wired connection, ensure the Ethernet cable is securely connected to both the PC and the router/modem.
  • Reinicia o teu router/módem.

If you encounter issues not covered here, or if the problem persists, please contact suevery customer support.

8. Especificacións

9. Garantía e soporte

Your suevery AMD Ryzen5 5600GT Gaming PC comes with a standard manufacturer's warranty. Please refer to the warranty card included in your package for specific terms and conditions, including warranty duration and coverage details.

For technical support, service inquiries, or to report any issues, please contact suevery customer support through the contact information provided on your warranty card or the official suevery website. Please have your model number (SUSU-V900W) and purchase details ready when contacting support.
