POSEIDON Wireless Rotary Tattoo Machine Kit TK119-1 Instruction Manual

1. Introdución

Thank you for choosing the POSEIDON Wireless Rotary Tattoo Machine Kit TK119-1. This professional-grade kit is designed for precision and convenience, suitable for both beginners and experienced artists. It features a powerful rotary machine, dual rechargeable batteries for extended cordless operation, and a comprehensive set of sterile supplies to ensure a safe and efficient tattooing experience.

2. Que hai na caixa

Your POSEIDON Wireless Rotary Tattoo Machine Kit TK119-1 includes the following components:

• Wireless Tattoo Pen (HM119-1 model)
• 2 Rechargeable Batteries (1100mAh high-density)
• Type-C + RCA Cord (for wired operation and charging)
• 30ml Black Tattoo Ink
• 10 x 5ml Color Tattoo Inks
• 20 EO Gas-Sterilized Cartridge Needles (5x1205RL, 5x1207RL, 5x1209RS, 5x10207RM)
• 40 Ink Cups
• Luvas
• Funda de agarres
• Rotulador
• 2 Practice Skins
• 2 Transfer Papers
• 4 Mats

Image: All components included in the POSEIDON Wireless Rotary Tattoo Machine Kit TK119-1, neatly arranged.

Image: A collection of POSEIDON tattoo ink bottles, including a large black ink and several smaller colored inks, alongside ink caps.

3. Produto rematadoview

3.1 Wireless Rotary Tattoo Machine (HM119-1)

• Dimensións: 123 x 16 mm
• Peso: 116 g
• Trazo: 3.5 mm
• Compatibilidade: Works with all standard cartridge needles.
• Motor: High-quality 12V 12000 RPM motor for enhanced stability, reduced noise, and increased power.

Imaxe: Unha detallada view of the POSEIDON Tattoo Pen (HM119-1 model) highlighting its working voltage, stroke length, speed, and pen length.

3.2 Dual Power System

The kit includes two rechargeable batteries to ensure continuous operation.

• Capacidade da batería: 1100mAh high-density battery.
• Tempo de funcionamento: More than 5 hours of cordless tattooing per charge (at 8V).
• Cargando: USB-C fast-charging technology.
• Vol. axustabletage: 5-step adjustable voltage de 6V a 10V.

Image: Two portable tattoo batteries, one attached to the machine and another showing its display with voltage and battery capacity.

3.3 Sterile Cartridge System

The kit provides a variety of sterile needles for different tattooing techniques.

• Tipos de agulla: 5x1205RL, 5x1207RL, 5x1209RS, 5x10207RM.
• Esterilización: All needles are EO gas-sterilized and individually sealed.
• Deseño: Precision-engineered tips ensure stable needle motion, enhanced ink flow, and optimal pigment deposition.

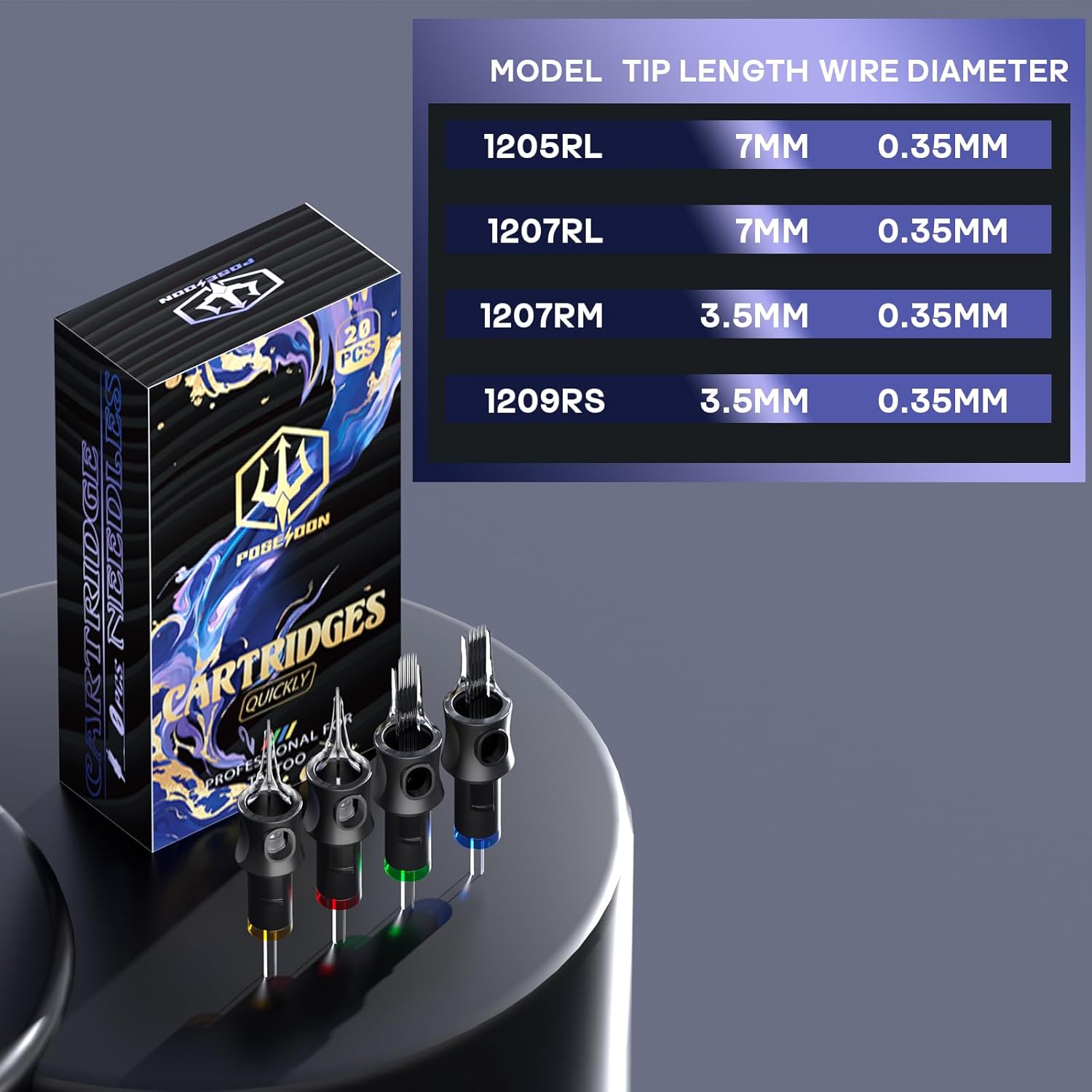

Image: A box of POSEIDON cartridge needles and a table detailing various needle models, tip lengths, and wire diameters.

4. Instrucións de configuración

1. Carga de baterías: Ensure both rechargeable batteries are fully charged using the provided USB-C cable. A full charge takes approximately 3.5 hours with a 1A+ charger. The battery display will show charging status (flashing to solid when full).
2. Attach Power Source: Screw one of the charged batteries onto the top of the wireless tattoo pen. Alternatively, connect the RCA cord to the machine for wired operation.
3. Inserir a agulla do cartucho: Carefully push a sterile cartridge needle into the machine's grip until it clicks securely into place.
4. Axustar a profundidade da agulla: Rotate the grip of the tattoo pen to adjust the needle protrusion to your desired depth.
5. Encendido: Hold the power button on the battery for 1.5 seconds to turn the machine on.
6. Axustar Voltage: Use the '+' and '-' buttons on the battery to select your desired voltage (6V-10V).

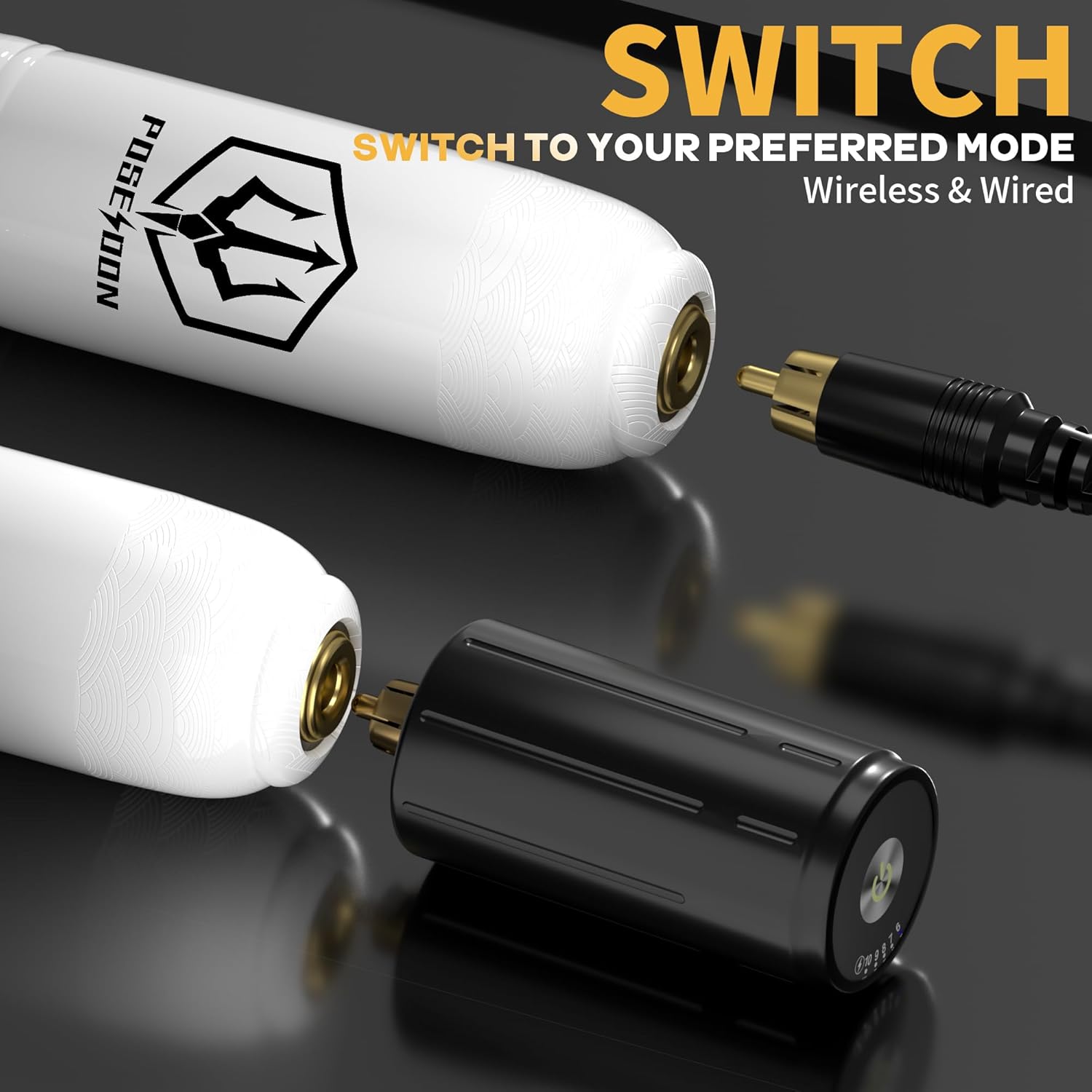

Image: Demonstrates how to switch between wireless operation (with battery) and wired operation (with RCA cord) for the tattoo machine.

5. Instrucións de funcionamento

1. Práctica primeiro: Before tattooing on skin, always practice on the provided practice skins to familiarize yourself with the machine's feel, needle depth, and ink flow.
2. Hixiene: Always wear gloves and maintain a sterile environment. Use the provided mats and grips cover to ensure cleanliness.
3. Aplicación: The 3.5mm stroke is versatile for lining, shading, and permanent makeup. Adjust voltage as needed for different techniques and skin types.
4. Pausa / Reanudar: Double-click the power button to pause the machine. Single-click to resume operation.

Image: A hand wearing a black glove uses the POSEIDON tattoo machine to draw on a yellow practice skin, demonstrating its use.

6. Mantemento

• Limpeza: After each use, carefully clean the machine's exterior with a suitable disinfectant. Do not immerse the machine in liquids.
• Eliminación de agullas: Always dispose of used cartridge needles in a proper sharps container.
• Almacenamento: Store the tattoo machine and accessories in a clean, dry place away from direct sunlight and extreme temperatures.
• Coidado da batería: Evita sobrecargar ou descargar completamente as baterías para prolongar a súa vida útil.

7 Solución de problemas

• A máquina non se acende:
  • Asegúrate de que a batería estea completamente cargada e ben conectada.
  • If using the RCA cord, ensure it is properly connected to a working power supply.
  • Hold the power button for 1.5 seconds to activate.
• Movemento inconsistente da agulla:
  • Check that the cartridge needle is correctly seated and locked into the grip.
  • Asegurar o voltage setting is appropriate for the needle type and task.
• A batería se descarga rapidamente:
  • Asegúrese de que as baterías estean completamente cargadas antes de usalas.
  • Operando a maior volumetages can consume battery faster.
  • Consider using the second battery or the wired RCA connection for extended sessions.

8. Especificacións

9. Garantía e soporte

POSEIDON offers a 100% satisfaction guarantee with a refund or replacement policy. For any questions or support needs, please refer to your purchase documentation or contact the seller directly. We stand behind every product in this professional tattoo set.

Política de devolución: Política de reembolso/substitución de 30 días.
