1. Produto rematadoview
The FIRMAN H03655 Dual Fuel Portable Generator is designed to provide reliable power for various applications, including home backup, RV travel, outdoor projects, and emergency response. This generator operates on either gasoline or propane, offering versatile fueling options. It features a Max Pro Series 208cc engine with a Phoenix Fat Head Block for efficient and durable performance. A built-in 3-in-1 Data Minder tracks voltage, frequency, and operating hours to simplify maintenance and extend the generator's lifespan.
Imaxe 1.1: Fronte view of the FIRMAN H03655 Dual Fuel Portable Generator, showcasinpolo seu robusto deseño e panel de control.
Image 1.2: The FIRMAN H03655 generator, highlighting its performance capabilities for various power needs.
2. Características e vantaxes principais
- Dual Fuel Versatility: Operates on both gasoline and propane, providing flexibility in fuel choice and availability.
- Potencia de saída fiable: Delivers 4550 starting watts and 3650 running watts on gasoline, or 4100 starting watts and 3300 running watts on propane.
- Tempo de execución estendido: A 5-gallon fuel tank allows for up to 14 hours of operation at 50% load.
- Funcionamento silencioso: Operates at a low noise level of 67 dB, suitable for residential and outdoor use.
- Seguridade avanzada: Equipped with a CO Alert Sensor that automatically shuts down the generator if dangerous carbon monoxide levels are detected.
- Portabilidade: Features 8-inch wheels and a folding handle for easy transport and maneuverability.
Image 2.1: Illustration of the dual fuel capability of the FIRMAN H03655 generator, showing its use with both gasoline and propane.
Image 2.2: Visual representation of the strong and steady power output of the FIRMAN H03655, capable of running various appliances.
Image 2.3: Close-up of the CO Alert indicator light on the FIRMAN H03655, demonstrating its safety feature.
3. Configuración e montaxe
Before operating your FIRMAN H03655 generator, ensure it is properly set up and all components are assembled according to the instructions. Always operate the generator outdoors in a well-ventilated area, far from windows, doors, and vents to prevent carbon monoxide accumulation.
3.1 Compoñentes incluídos
The generator comes with a full accessory kit to facilitate quick setup:
- LPG regulator with a hose holder
- Engine oil bottle & oil funnel
- Chave de ignición
- Two double open-ended wrenches (10mm x 12mm)
- Padded U-shaped handle
- 8" Never-flat wheels
Image 3.1: A visual guide to the accessories included with the FIRMAN H03655 generator, essential for initial setup.
3.2 Pasos iniciais
- Fixar as rodas e a asa: Securely attach the 8-inch never-flat wheels and the padded U-shaped handle for easy portability.
- Engadir aceite de motor: Using the provided oil funnel, add the recommended engine oil to the generator's crankcase. Refer to the oil capacity in the specifications section.
- Connect Fuel Source: Choose your desired fuel type (gasoline or propane). If using propane, connect the LPG regulator hose to the generator and the propane tank. If using gasoline, fill the 5-gallon tank.
- Comprobación previa á operación: Before starting, ensure all connections are secure, the fuel selector is set correctly, and the generator is on a level surface.
4. Instrucións de funcionamento
The FIRMAN H03655 generator is designed for straightforward operation. Always follow safety guidelines during use.
4.1 Arranque do xerador
- Posicionamento: Place the generator outdoors in a dry, well-ventilated area, at least 20 feet away from any buildings or combustible materials.
- Selección de combustible: Set the fuel selector switch to either 'Gasoline' or 'Propane' based on your chosen fuel source.
- Chokes: Move the choke lever to the 'Choke' position (cold start).
- Comezo: Pull the recoil start handle firmly and smoothly until the engine starts. Once started, gradually move the choke lever to the 'Run' position.
- Conectar dispositivos: Once the generator is running stably, you can connect your appliances and tools to the appropriate outlets.

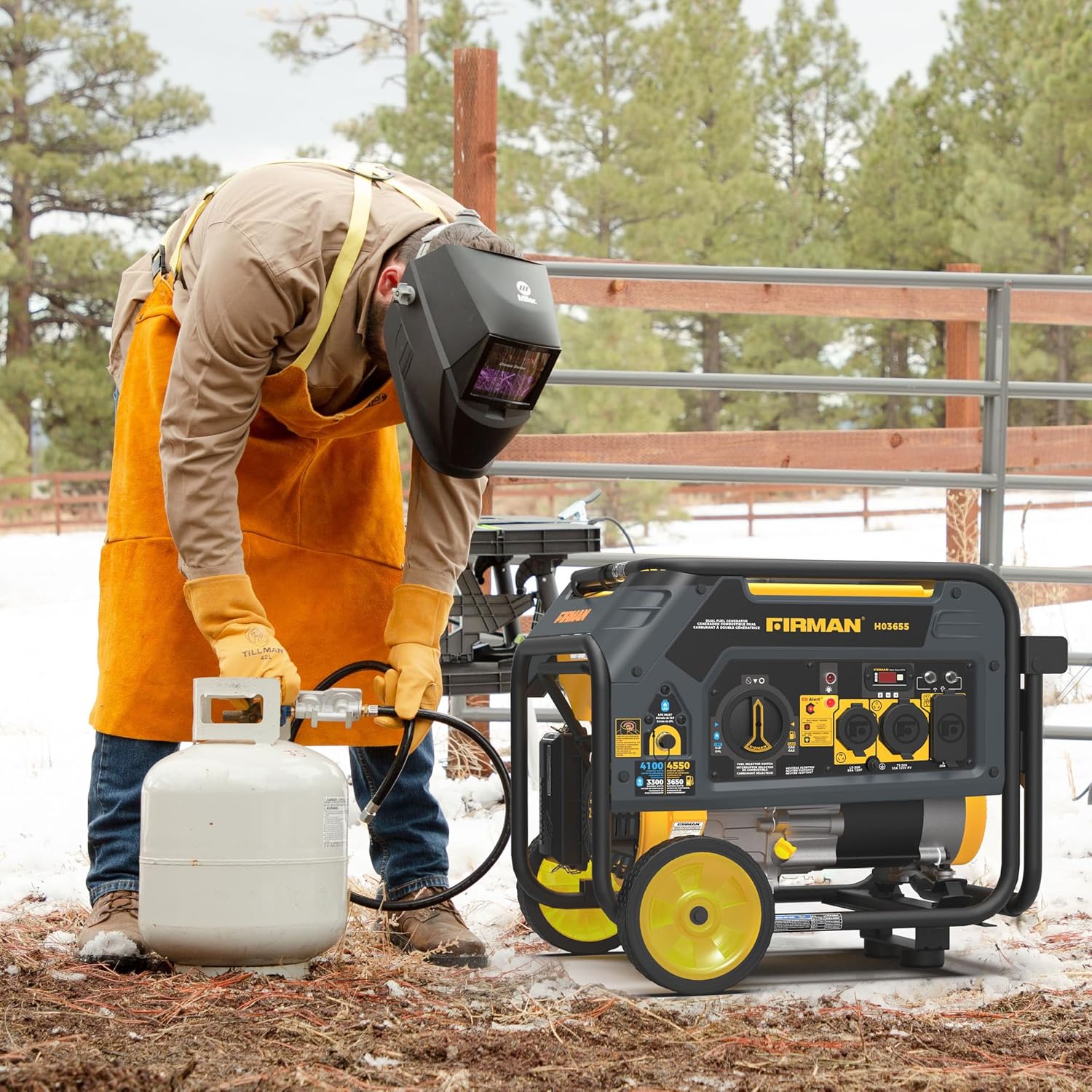

Image 4.1: A person connecting a propane tank to the FIRMAN H03655 generator, demonstrating the dual fuel setup.
4.2 Powering Your Needs
The H03655 generator is equipped with multiple outlets to power a variety of devices:
- Standard 120V AC outlets for common household appliances and tools.
- RV Ready outlet for recreational vehicles.
Image 4.2: Diagram illustrating the types of appliances and devices the FIRMAN H03655 generator can power, including A/C, power tools, RVs, refrigerators, smartphones, and laptops.
4.3 Apagar o xerador
- Desconectar carga: Desconecte todas as cargas eléctricas do xerador.
- Apagar o motor: Mova o interruptor do motor á posición "OFF".
- Válvula de combustible: Close the fuel valve (if applicable for gasoline) or the propane tank valve.
5. Mantemento
Regular maintenance is crucial for the longevity and optimal performance of your FIRMAN H03655 generator. Always ensure the generator is turned off and cooled down before performing any maintenance.
5.1 Programa de mantemento
| Elemento | Frecuencia |
|---|---|
| Comprobar o nivel de aceite do motor | Antes de cada uso |
| Filtro de aire limpo | Cada 50 horas ou anualmente |
| Cambiar aceite de motor | Primeiras 20 horas, despois cada 100 horas ou anualmente |
| Comprobar a bujía | Cada 100 horas ou anualmente |
| Inspeccionar o filtro de combustible | Cada 100 horas ou anualmente |
5.2 Almacenamento
For extended storage, ensure the fuel tank is empty (run the generator until it runs out of fuel if using gasoline) and the carburetor is drained. Store the generator in a clean, dry place, protected from extreme temperatures and direct sunlight.
6 Solución de problemas
This section provides solutions to common issues you might encounter with your FIRMAN H03655 generator. For problems not listed here, contact customer support.
| Problema | Causa posible | Solución |
|---|---|---|
| O motor non arrancará | No fuel, low oil, spark plug issue, choke position incorrect | Add fuel, check oil level, inspect/clean spark plug, adjust choke |
| Sen saída de enerxía | Circuit breaker tripped, overload, faulty connection | Reiniciar o disxuntor, reducir a carga, comprobar as conexións |
| O motor funciona áspero | Stale fuel, dirty air filter, spark plug issue | Drain old fuel and add fresh, clean air filter, inspect/replace spark plug |
| CO Alert sensor activated | High carbon monoxide levels, sensor fault | Move generator to open air, ensure proper ventilation. If issue persists, contact service. |
7. Especificacións técnicas
| Especificación | Valor |
|---|---|
| Nome do modelo | Xerador portátil de dobre combustible |
| Número de modelo do artigo | H03655 |
| Tipo de motor | 208cc Internal Combustion Engine |
| Comezando Wattage (gasolina) | 4550 vatios |
| Correndo Wattage (gasolina) | 3650 vatios |
| Comezando Wattage (propano) | 4100 vatios |
| Correndo Wattage (propano) | 3300 vatios |
| Tipo de combustible | Gasolina, gas licuado de petróleo |
| Volume do tanque | 5 litros |
| Runtime (50% Load) | Ata 14 horas |
| Nivel de ruído | 67 dB |
| Peso do elemento | 112 libras |
| Dimensións do produto (L x W x H) | 27.6" x 18.1" x 20.5" |
| Total de tomas de corrente | 3 |
| Características especiais | CO Sensor, Dual Fuel, Foldable Handle, Portable, Super Quiet |

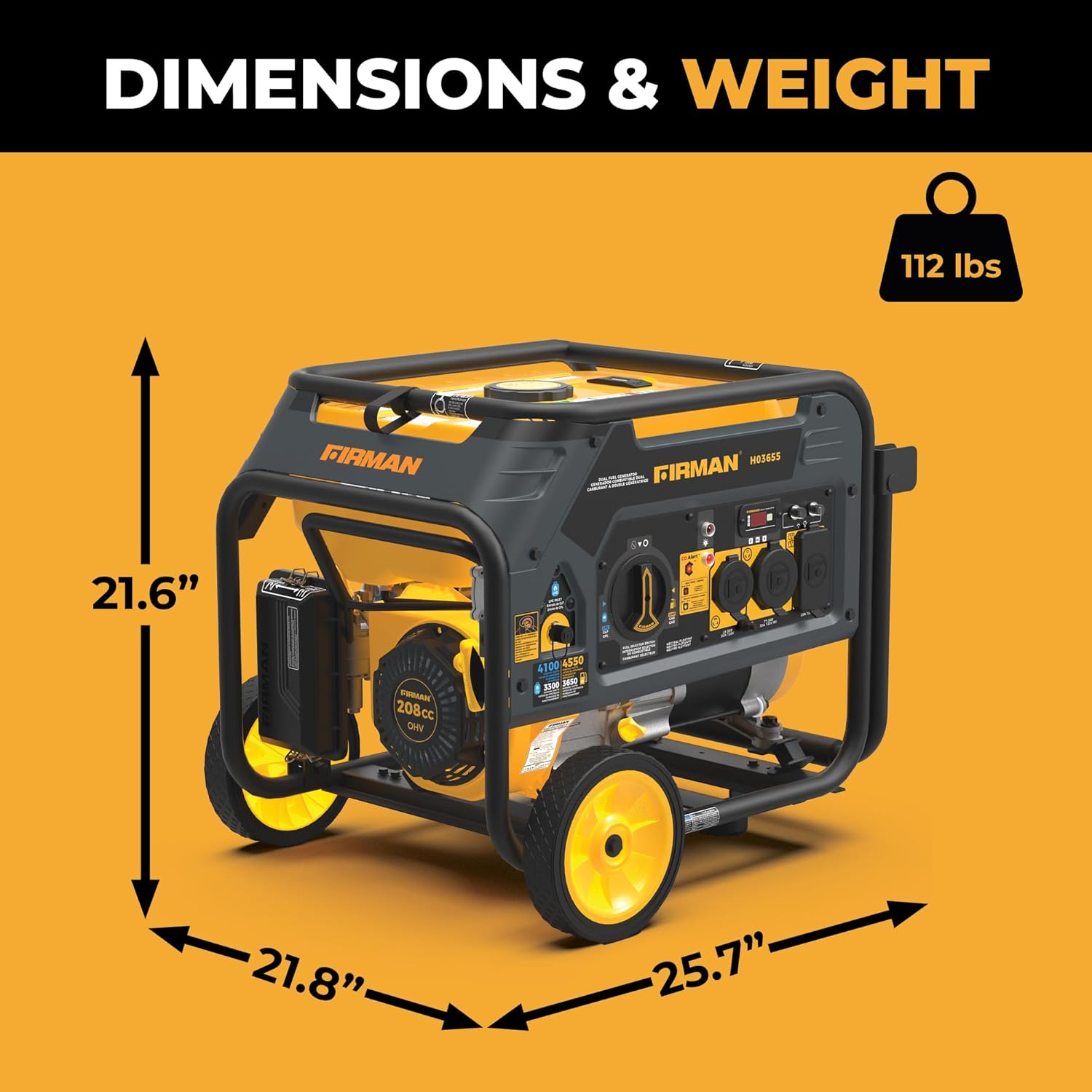

Image 7.1: Diagram showing the dimensions and weight of the FIRMAN H03655 generator.
8. Garantía e soporte
FIRMAN Power Equipment stands behind the quality of its products.
8.1 Información da garantía
The FIRMAN H03655 Dual Fuel Portable Generator comes with a 3 ano de garantía limitadaEsta garantía cobre defectos de material e fabricación en condicións de uso e mantemento normais. Conserve o comprobante de compra para reclamacións de garantía.
Image 8.1: The Firman Promise, highlighting 3-year protection and customer support.
8.2 Atención ao cliente
For technical assistance, parts, or warranty inquiries, please contact FIRMAN customer support. You can find more information and contact details by visiting the official Tenda Firman en Amazon ou o seu funcionario websitio.
