OUKITEL P1000 Plus Portable Power Station and 200W Solar Panel User Manual

Introdución

This manual provides essential instructions for the safe and efficient operation, maintenance, and troubleshooting of your OUKITEL P1000 Plus Portable Power Station and accompanying 200W Solar Panel. Please read this manual thoroughly before using the product to ensure optimal performance and longevity.

Contido do paquete

Upon unboxing, verify that all items listed below are present and in good condition:

Central eléctrica portátil OUKITEL P1000 Plus
Panel solar de 200 W
Cable de carga AC
Cable de carga de coche
Cable de carga solar
Manual de usuario (este documento)

Note: Due to the weight of the product, the power station and solar panel may be delivered in separate packages.

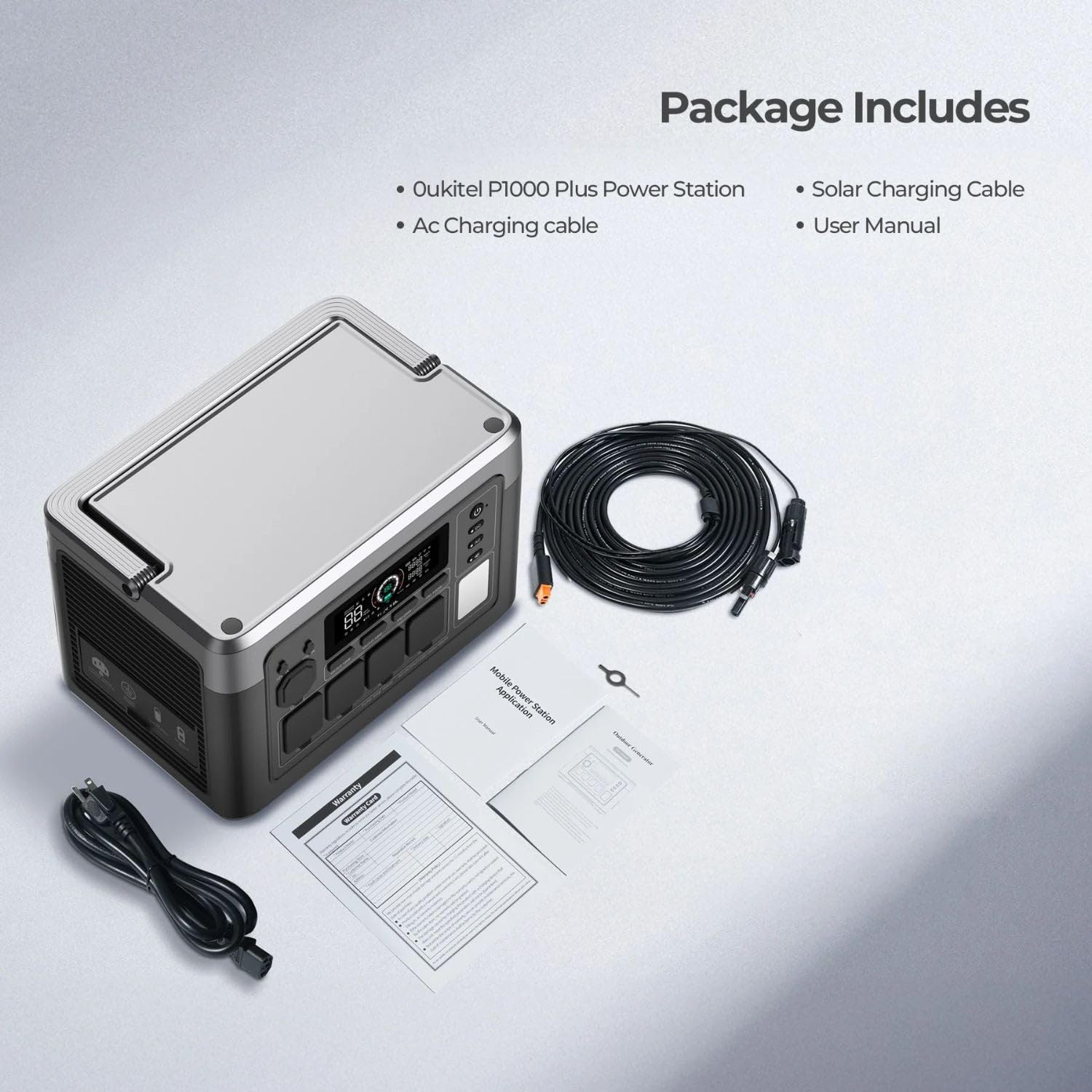

OUKITEL P1000 Plus package contents including power station, solar panel, and cables.

Image: OUKITEL P1000 Plus Portable Power Station and included accessories.

Características do produto

High Power Output & Capacity: The P1000 Plus offers an 1800W (3600W peak) AC output and a 1024Wh LiFePO4 battery capacity, suitable for various appliances.
Carga rápida: Achieves 0-100% charge in approximately 1 hour using 1200W AC input. Supports up to 500W solar input for efficient charging.
Batería LiFePO4 duradeira: Equipped with LiFePO4 batteries, providing over 3500 charge cycles and a lifespan exceeding 10 years.
Control intelixente da aplicación: Monitor and control the power station remotely via a dedicated smartphone application, checking power levels, input/output, charging time, and battery temperature.
Múltiples portos de saída: Features 11 output ports including 4 AC outlets, 2 USB-A Quick Charge 3.0 ports, 2 USB-C PD ports (20W, 100W), 2 DC outlets, and 1 cigarette lighter port.
Fonte de alimentación ininterrompida (UPS): Provides seamless power switching within 0.01 seconds during outages, protecting sensitive electronics.
Advanced Battery Management System (BMS): Monitores voltage, current, and temperature for safe and secure operation.
Funcionamento silencioso: Operates at less than 29 dB when output is below 500W, ensuring minimal disturbance.
Iluminación LED integrada: Features 3 LED modes (steady light, SOS, flashing) for various lighting needs.

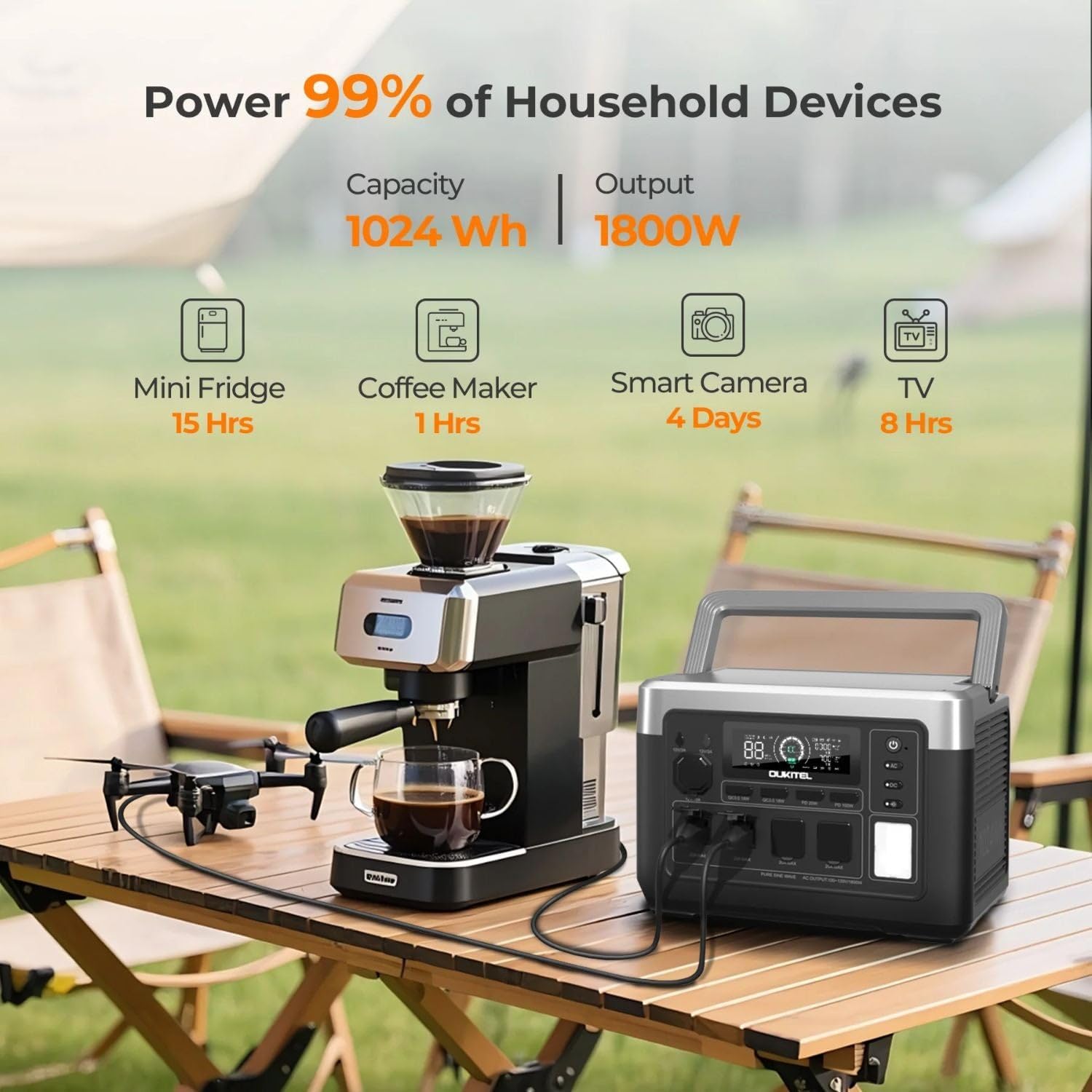

OUKITEL P1000 Plus powering various household devices like a mini fridge, coffee maker, smart camera, and TV.

Image: OUKITEL P1000 Plus powering common devices, highlighting its capacity and output.

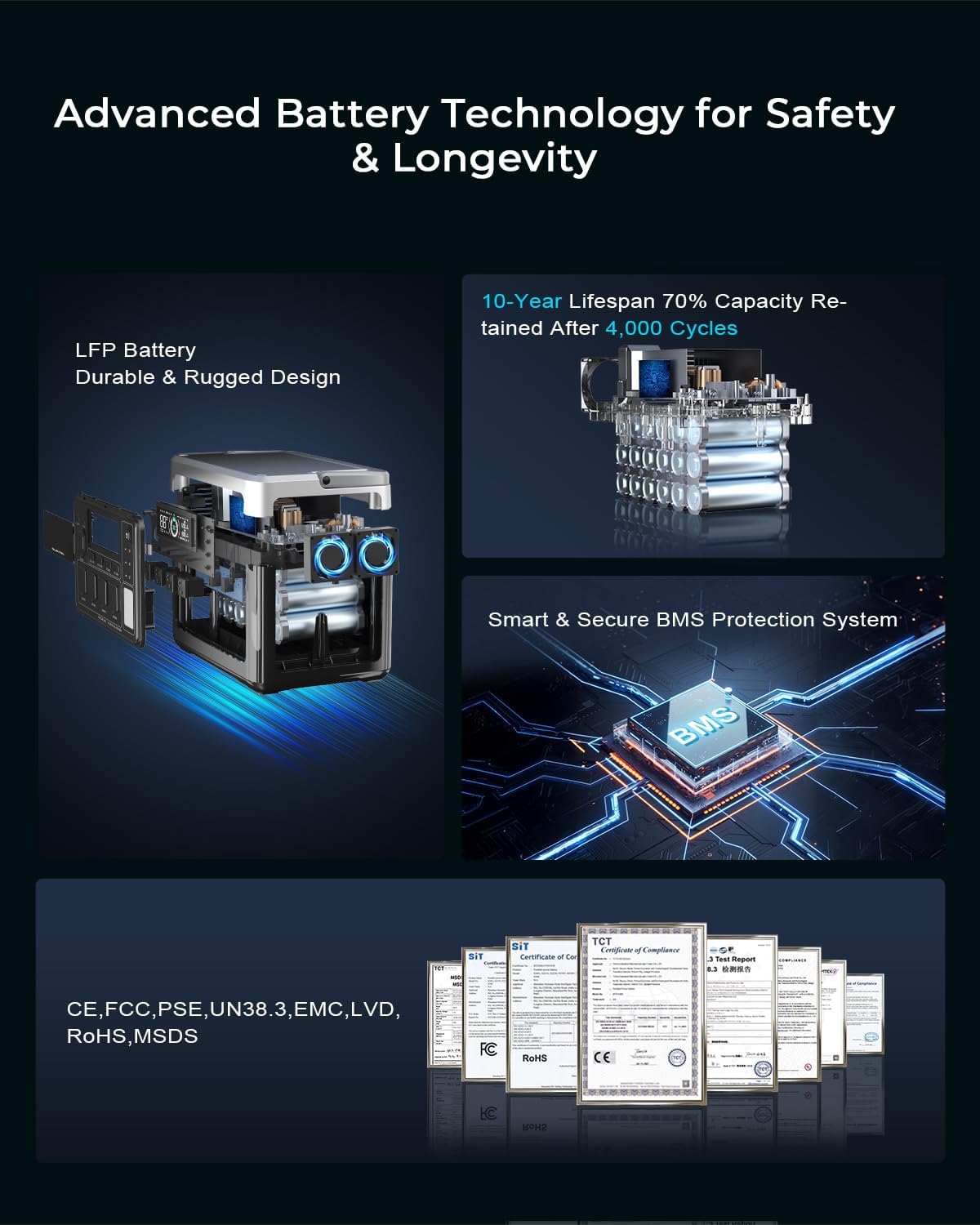

Diagram showing the internal LiFePO4 battery structure and BMS system of the OUKITEL P1000 Plus.

Image: Advanced LiFePO4 battery technology and BMS for safety and longevity.

Guía de configuración

Desempaquetar: Retire con coidado todos os compoñentes da embalaxe. Garde a embalaxe para o seu almacenamento ou transporte futuros.
Carga inicial: Before first use, fully charge the P1000 Plus using the AC charging cable. Connect the AC charging cable to the power station's AC input port and then to a standard wall outlet. The display will indicate charging status.
Solar Panel Setup (Optional): If using the 200W Solar Panel, unfold it and position it in direct sunlight. Connect the solar charging cable from the panel to the power station's solar input port.
Descarga a aplicación: For smart control features, download the "Wonderfree" app from your smartphone's app store.

OUKITEL P1000 Plus being charged via AC power, showing the display.

Image: OUKITEL P1000 Plus connected for AC charging.

Instrucións de funcionamento

Encendido/apagado

Press and hold the main power button for a few seconds to turn the unit on or off. The display screen will illuminate upon activation.

Cargando a central eléctrica

Carga de CA: Connect the AC charging cable to the power station and a wall outlet. The unit supports 1200W fast charging.
Carga solar: Connect the 200W solar panel (or other compatible solar panels up to 500W) using the solar charging cable. Ensure panels are in direct sunlight for optimal charging.
Carga do coche: Use the car charging cable to connect the power station to your vehicle's 12V cigarette lighter port.
CA + Carga solar: For the fastest charging, combine AC and solar inputs.

Diagram showing multiple charging methods for the OUKITEL P1000 Plus: AC, Solar, Car, and combined AC+Solar.

Image: Various charging methods for the OUKITEL P1000 Plus.

Usando os portos de saída

To use a specific output type (AC, DC, USB), press the corresponding button (AC, DC, USB) on the power station to activate it. The display will show active outputs.

Tomas de CA: Plug in standard household appliances. The P1000 Plus provides 1800W continuous power.
Portos USB: Connect USB devices for charging. Includes USB-A Quick Charge 3.0 and USB-C Power Delivery ports.
DC Outlets & Cigarette Lighter: Use for 12V DC powered devices.

Close-up of the OUKITEL P1000 Plus ports, showing AC, DC, USB-A, and USB-C outputs.

Image: Optimized and versatile output ports on the OUKITEL P1000 Plus.

Control de aplicación intelixente

After downloading the "Wonderfree" app, connect your smartphone to the power station via Wi-Fi or Bluetooth. The app allows you to:

Monitor real-time power levels, input, and output.
Adjust charging speeds.
Check battery temperature.

A person using a smartphone to control the OUKITEL P1000 Plus via the Wonderfree app.

Image: Easy app control interface for the OUKITEL P1000 Plus.

Función de alimentación ininterrumpida (UPS).

When the P1000 Plus is connected to an AC wall outlet and also has devices plugged into its AC outputs, it functions as a UPS. In case of a power outage, the unit will automatically switch to battery power within 0.01 seconds, ensuring continuous operation for connected devices.

Diagram illustrating the 10ms seamless UPS protection feature of the OUKITEL P1000 Plus, showing power on and power outage escenarios.

Image: OUKITEL P1000 Plus providing seamless UPS backup power.

Modos de iluminación LED

The power station includes an integrated LED light with three modes: steady illumination, SOS signal, and flashing. Press the dedicated LED button to cycle through these modes.

OUKITEL P1000 Plus providing light in a camping setting, highlighting its ultra-quiet operation.

Image: OUKITEL P1000 Plus used for quiet, portable power during camping.

Mantemento

Limpeza: Empregue un pano seco e suave para limpar o exterior da central eléctrica. Non empregue produtos de limpeza abrasivos nin mergulle a unidade en auga.
Almacenamento: Store the power station in a cool, dry place away from direct sunlight and extreme temperatures. For long-term storage, charge the unit to approximately 50-80% every 3-6 months to preserve battery health.
Coidado da batería: Avoid fully discharging the battery frequently. While LiFePO4 batteries are robust, maintaining a charge above 20% when possible can extend overall lifespan.
Ventilación: Ensure the ventilation openings are clear and unobstructed during operation to prevent overheating.

Resolución de problemas

Problema	Causa posible	Solución
A unidade non se acende	A batería está completamente descargada; o botón de acendido non se premeu correctamente.	Charge the unit via AC. Press and hold the power button firmly for 3-5 seconds.
Sen saída dos portos CA/CC/USB	Output port not activated; Device draws too much power; Overload protection triggered.	Press the corresponding AC/DC/USB button to activate. Check device wattage. Disconnect device, restart unit.
Velocidade de carga lenta	Low input power (e.g., cloudy weather for solar); Charging cable issue.	Ensure strong input source. Use original charging cables. Consider combined AC+Solar charging.
A aplicación non se conecta	Bluetooth/Wi-Fi off; App not updated; Unit too far from phone.	Ensure Bluetooth/Wi-Fi is enabled. Update app. Move phone closer to the unit. Restart app/unit.

Especificacións técnicas

Nome do modelo: P1000 Plus+PV200
Marca: OUKITEL
Tipo de batería: LiFePO4
Capacidade: 1024 Wh
Saída CA: 1800 W (3600 W pico)
Entrada AC: 1200 W (carga rápida)
Entrada solar: Ata 500W
Saída USB-A: 2x Quick Charge 3.0 (18W each)
Saída USB-C: 1x PD 20W, 1x PD 100W
Saída DC: 2x DC outlets, 1x Cigarette Lighter (12V)
Tempo de conmutación do UPS: anos 0.01
Dimensións: 12.99 cm de longo x 9.05 cm de ancho x 8.66 cm de alto
Peso: 25 libras
Material: Aluminio, Plástico

Visual Guides

OUKITEL P1000 Plus Power Station Overview

Video: A brief demonstration of the OUKITEL P1000 Plus Portable Power Station, showcasing its use for home and camping escenarios.

P1000 Plus 1800W Solar Generator Features

Vídeo: Un overview of the OUKITEL P1000 Plus 1800W Solar Generator, highlighting its key functionalities and benefits.

Garantía e Soporte

The OUKITEL P1000 Plus Portable Power Station comes with a 2 ano de garantía from the date of purchase. This warranty covers manufacturing defects and ensures free repairment within the warranty period.

Información de apoio:

Política de devolución/substitución: Eligible for worry-free return/replacement within 30 days of purchase.
Servizo de reparación: Free repairment within two years from the order date. Contact OUKITEL customer service to obtain a return label for repairs.
Repair Duration: Typically takes 1-2 weeks to complete. Note: Water damage due to deliberate human factor is not covered under free repairment.
Geographic Coverage: Repair services are available in the USA and Western Europe.

For further assistance or inquiries, please contact OUKITEL Official US customer service.
